Informationen

Artikelnummer::

50.02.006

Bernard 191 GR

Quelle : www.wikipedia.org/wiki/Bernard_190

(Anmerkung der Redaktion: Der begleitende Text ist in englischer Sprache verfasst, eine niederländische Version war nicht verfügbar.)

The Bernard 190 or Bernard-Hubert 190 was a French airliner of 1928. It was a high-wing cantilever monoplane of conventional configuration, based on the Bernard 18. Compared with its predecessor, it kept the same basic design but featured redesigned tail surfaces, an enlarged cabin, and offered its flight crew a completely enclosed cockpit. Also like its predecessor, the basic airliner model provided the basis for a long-range aircraft to be used in record attempts, the 191GR (for Grand Raid).

Ì´Ì_

Operational history.

The eight 190Ts served CIDNA on various European routes, but the 190 is best remembered for the exploits of the three 191GRs. The first built was used by Louis Coudouret in an attempt to cross the North Atlantic in August 1928. This was unsuccessful when the aircraft first refused to leave the ground in Paris, and was later turned back by Spanish authorities unwilling to permit the flight. On July 7 the following year, Coudouret crashed the aircraft near AngoulÌÎåÈme and was killed. It had 20 seats. Production ceased in 1948.

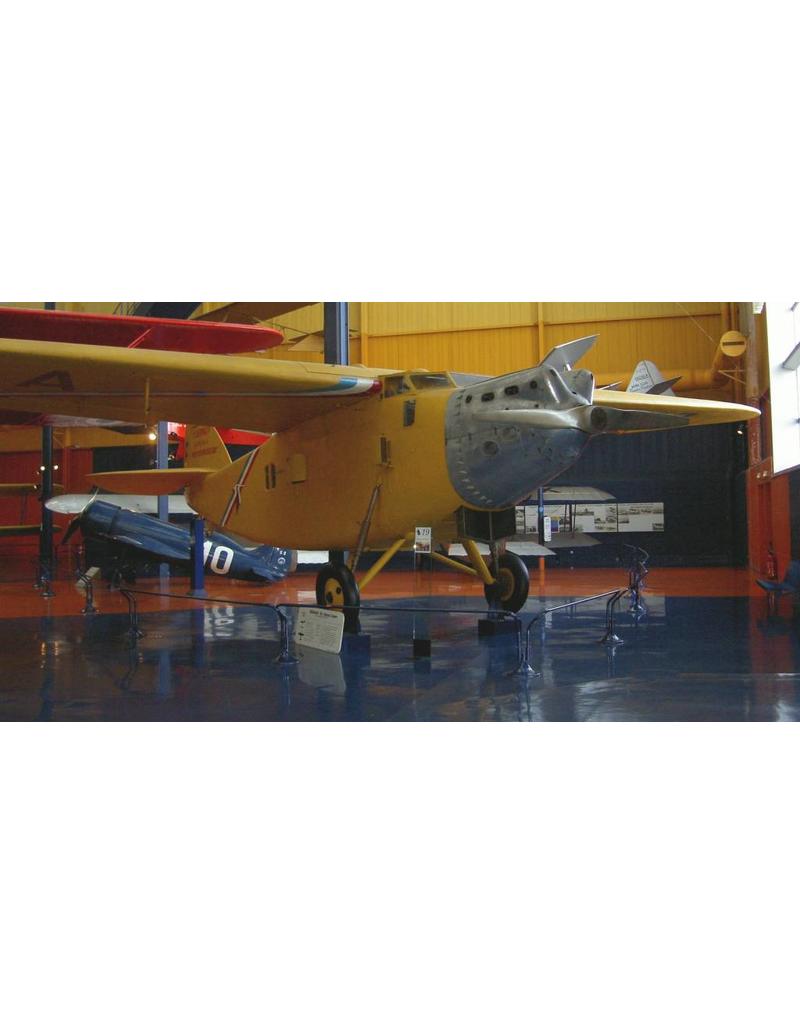

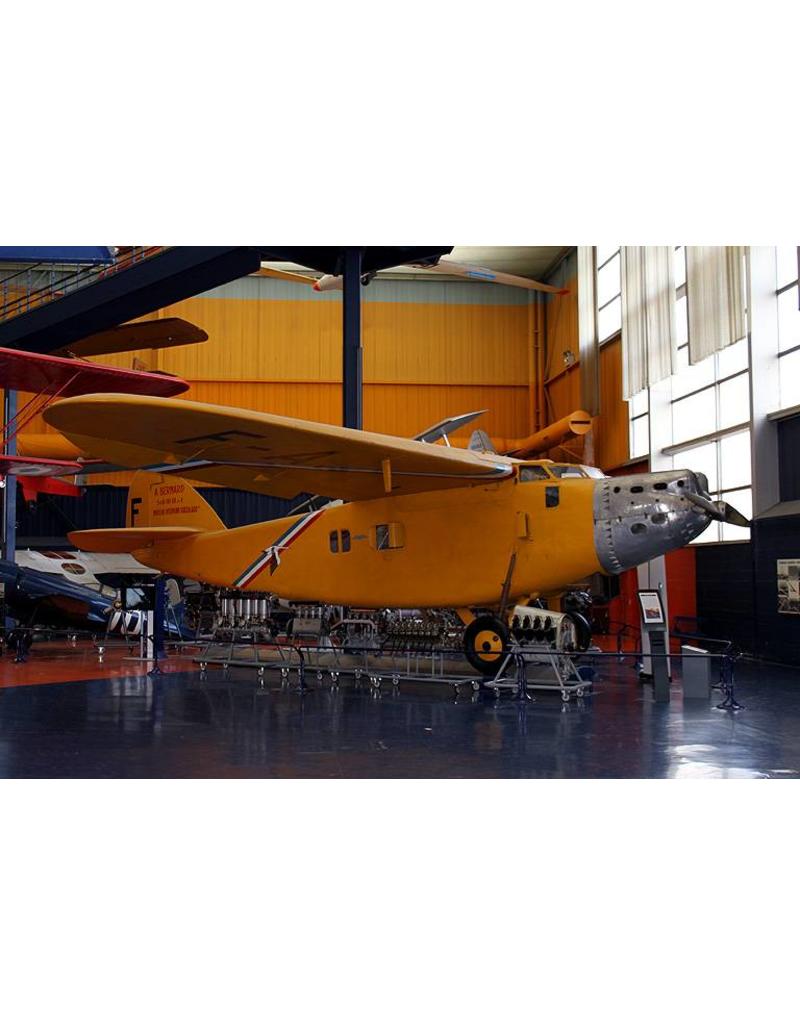

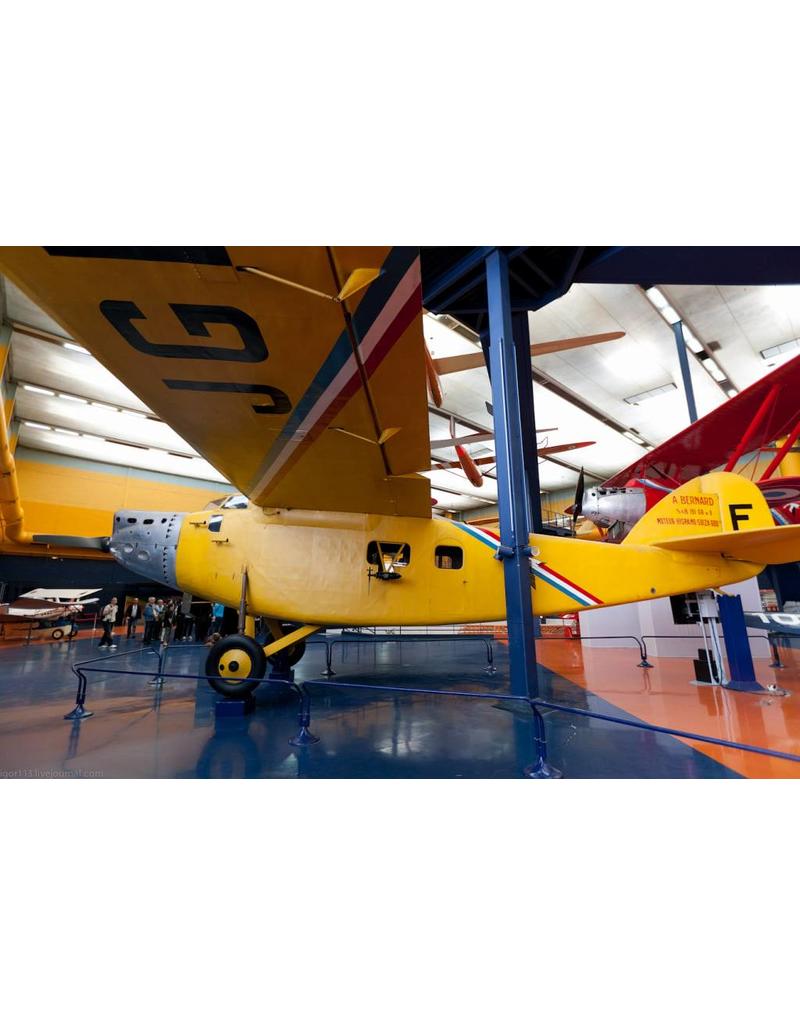

The second example was used in the first successful French aerial crossing of the North Atlantic. Painted bright yellow and dubbed Oiseau Canari ("Canary Bird") it departed Old Orchard Beach, Maine on June 13, 1929 and piloted by Jean Assolant, RenÌÎå© LefÌÎåÂvre and Armand Lotti, it completed the crossing to Oyambre, near Comillas, Cantabria, Spain, in 29 hours 52 minutes, even with a stowaway (Arthur Schreiber) aboard. This aircraft is now preserved in the MusÌÎå©e de l'Air et de l'Espace.

The third 191GR was used by Antoine Paillard to set two world airspeed records, for 100 km with a 2,000 kg payload, and for 1,000 km with a 1,000 kg payload.

Ì´Ì_

Variants.

190T

Single-engined airliner, powered by a 358Ì´Ì_kW (480Ì´Ì_hp) Gnome et RhÌÎåÇne 9A (licence-built Bristol Jupiter) radial piston engine.

191GR

Record-breaking plane, powered by 447Ì´Ì_kW (599Ì´Ì_hp) Hispano-Suiza 12Lb piston engine. Three built as 191G.R. No.1, 191G.R. No.2 and 191G.R. No.3.

192T

Single mailplane example for AÌÎå©ropostale.

193T

Single-engined transport aircraft, powered by a 336Ì´Ì_kW (451Ì´Ì_hp) Lorraine 12Eb piston engine. Only one built.

197GR

Engine demonstrator commissioned by Lorraine-Dietrich. Lost off Rangoon 26 February 1929.

Ì´Ì_

Operators.

Ì´Ì_France

Ì´Ì_

Specifications (190T)

General characteristics

Crew: two
Capacity: eight passengers
Length: 12.58 m (41 ft 3 in)
Wingspan: 17.30 m (56 ft 9 in)
Height: 3.59 m (11 ft 9 in)
Wing area: 42.9 m² (462 ft²)
Empty weight: 1,956 kg (4,312 lb)
Gross weight: 3,400 kg (7,496 lb)
Powerplant: 1 ÌÎÌÔ Gnome et RhÌÎåÇne-built Bristol Jupiter 9Ady radial, 358 kW (480 hp)

Performance

Maximum speed: 216 km/h (134 mph)
Range: 1,000 km (620 miles)
Service ceiling: 3,700 m (12,140 ft)

Ì´Ì_

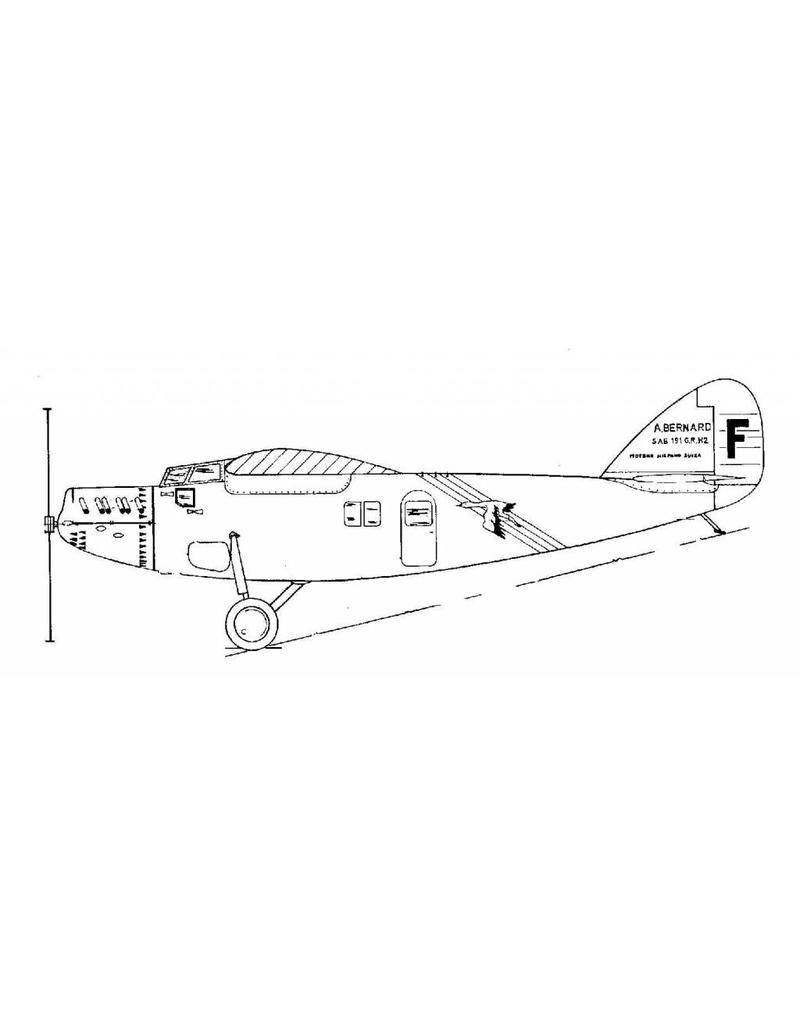

Spezifikationen Modellbauzeichnung :

Zeichnungsnummer	50.02.006
Autor	A.B. Smits
Beschreibung	Bernard 191 GR
Qualität	eine Maßskizze mit begrenzten Daten
Schwierigkeitsgrad	Ì´Ì_
Maßstab	1 : 36
Anzahl Blätter A00	0
Anzahl Blätter A0	0
Anzahl Blätter A1	0
Anzahl Blätter A2	1
Anzahl Blätter A3	0
Anzahl Blätter A4	0
Gesamtzahl der Zeichnungsblätter	1
Anzahl Blätter A4 Text	0
Gewicht in Gramm	45
Besonderheiten	Ì´Ì_
Anmerkungen	Ì´Ì_
