MBT Thermo-acoustic Stirling engine on solar heat

€12,10
Article number: 60.12.029

A detailed drawing for a special hot air engine.

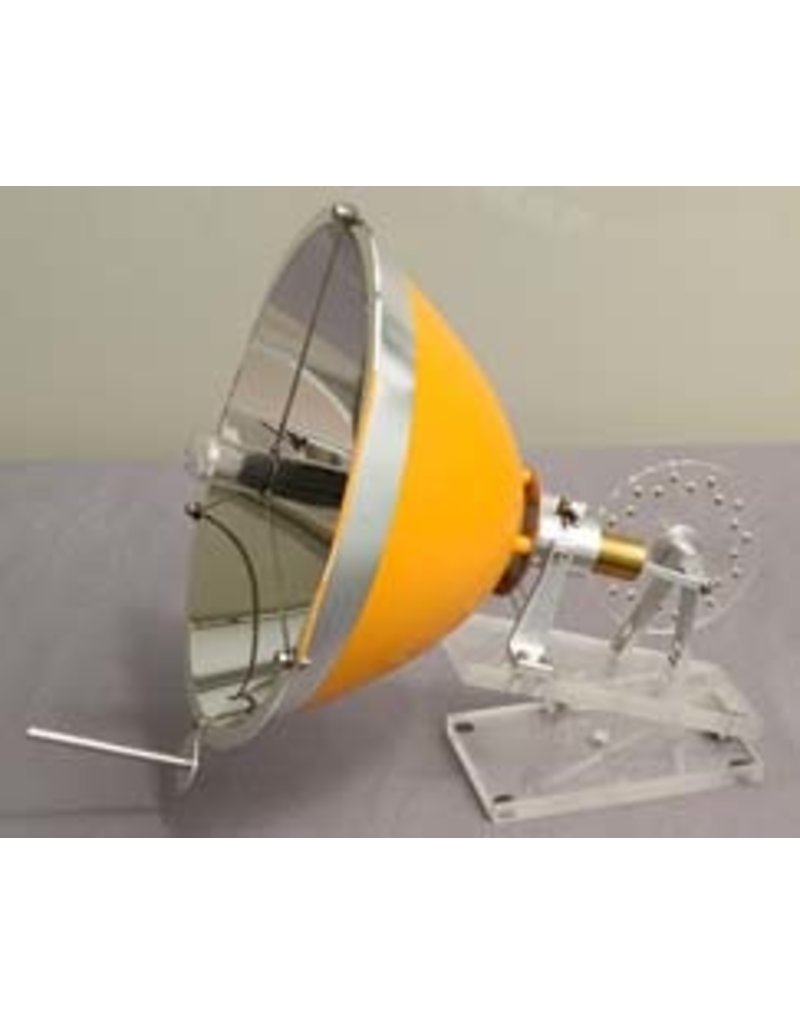

Designed and built by Jürgen Vogel, a “thermo-acoustic Stirling engine on solar heat”, also known as a “thermo-pulse Stirling”. The text on the drawing is in German, but that will not be an issue with this clear drawing.


Construction report published in De Modelbouwer no.3 - 2020
Article copy: 62.12.029 (4 pages)

Author: J. Vogel
Drawing content: a detailed model building drawing with dimensions
Scale: 1:25
Total number of drawing sheets: 1
Number of A4 pages of text:
Difficulty Level: D
