| Article number: | 10.02.017 |
The Topo Chiogiotto is a traditional Italian sailing vessel, originating specifically from the region of Chioggia, a town on the Adriatic Sea in north-eastern Italy. The vessel is often associated with the fishing traditions of this region and has a distinctive design suited to both the Adriatic Sea and the lagoons of Venice.
Construction and Design:
The Topo Chiogiotto is a small, traditional fishing vessel that is usually between 6 and 12 metres long. It has a low, wide and stable design, enabling the vessel to operate effectively in the shallow waters of the Adriatic Sea and the Venetian lagoon.
The hull of the Topo Chiogiotto is often made of wood, although some later versions may also use composite materials. The vessel has an open deck, which is typical of fishing boats, and provides space for nets, gear and the catch.
The bow and stern are relatively straight, and the sails are often attached to a single mast, with a lateen sail or a mainsail, depending on the specific design.
Sails and Sailing:
The vessel is often equipped with a lateen sail or gaff-rigged sails, a typical type of sail used on many traditional vessels around the Mediterranean. The sail is triangular, which makes the vessel manoeuvrable in the relatively confined and narrow waters of the lagoon or the coast.
The Topo Chiogiotto is seaworthy but designed for short voyages and local use. The vessel can also be rowed, particularly when the wind is not blowing in the right direction.
Use:
The Topo Chiogiotto was traditionally used for local fishing and transporting fish to nearby markets. The boats are often regarded as the workhorses of the traditional fishing communities in the region around Chioggia and Venice.
In addition to fishing, they were also used for transporting goods within the Adriatic Sea, mainly in shallow waters and lagoons. The lagoons of Venice were an important sailing area for the Topo Chiogiotto, as the ship’s design made it well suited to navigating the region’s shallow, picturesque waters.
Cultural and Social Significance:
The vessel represents a long-established tradition of fishing and maritime life in the Chioggia region. The town itself has a rich maritime history and is known for its fishing communities.
The Topo Chiogiotto is often seen as a symbol of local culture and economy, as it plays a crucial role in local fishing and the transport of seafood.
The vessel is still occasionally used in cultural events and traditional fishing competitions in the region, with a focus on preserving Chioggia’s historic maritime traditions.
Comparison with Other Vessels:
The Topo Chiogiotto is similar to other traditional Adriatic vessels, such as the bragozzo and the sandolo, but it has a unique design that makes it particularly suited to the conditions in the Venetian Lagoon and the waters around Chioggia.
Compared to larger vessels such as the caicco or toppone, the Topo Chiogiotto is smaller and more manoeuvrable, making it more suitable for local use and fishing in narrow waters.
The Topo Chiogiotto is an iconic and traditional Italian vessel, closely linked to the fishing culture and maritime history of the region around Chioggia and the Venetian lagoon. The vessel remains an important symbol of the local fishing communities and is an excellent example of the clever adaptation of traditional shipbuilding to the specific demands of the landscape and waters of the Adriatic Sea.
Specifications:
|

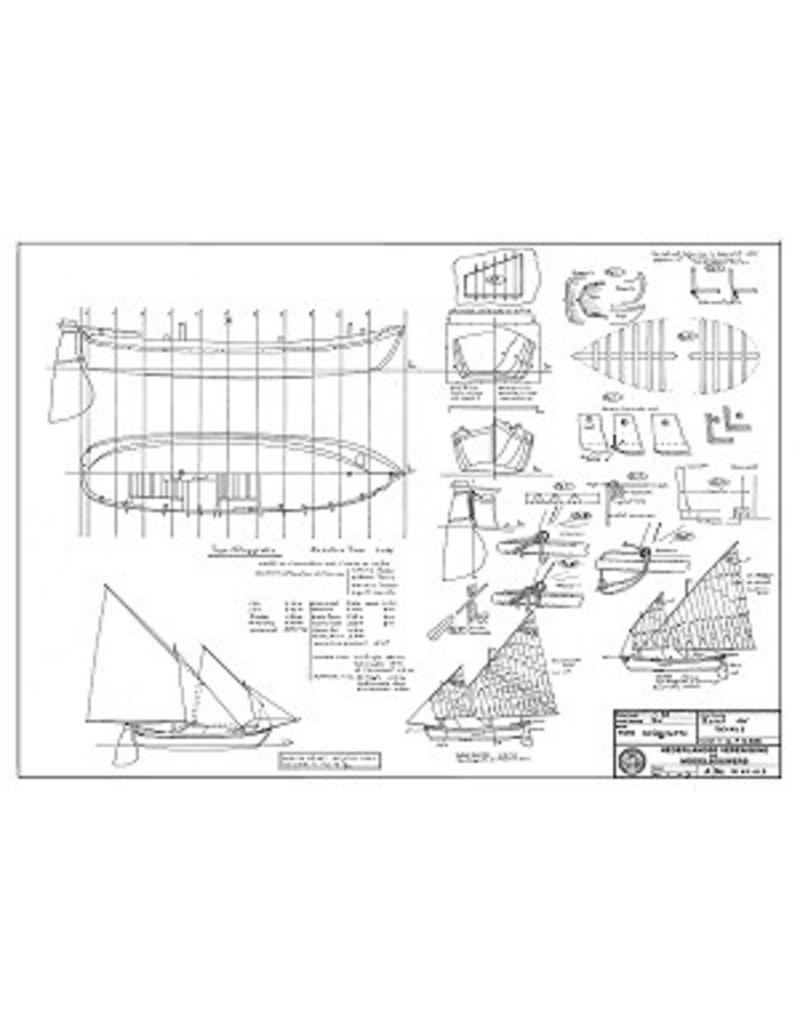

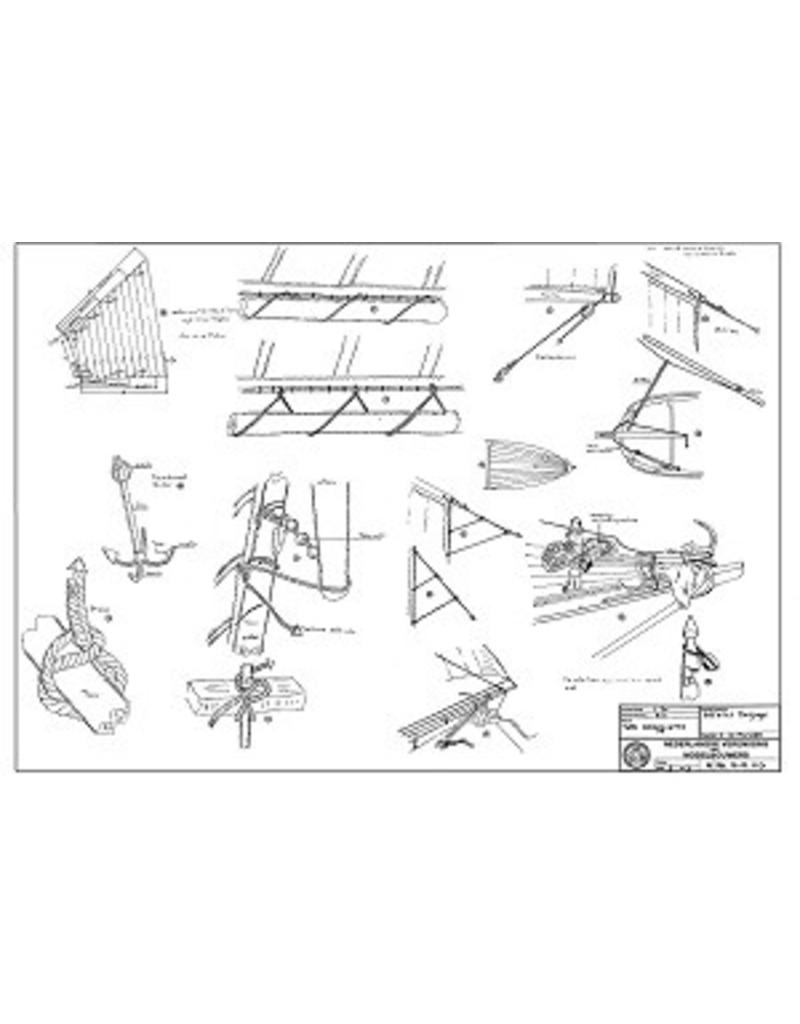

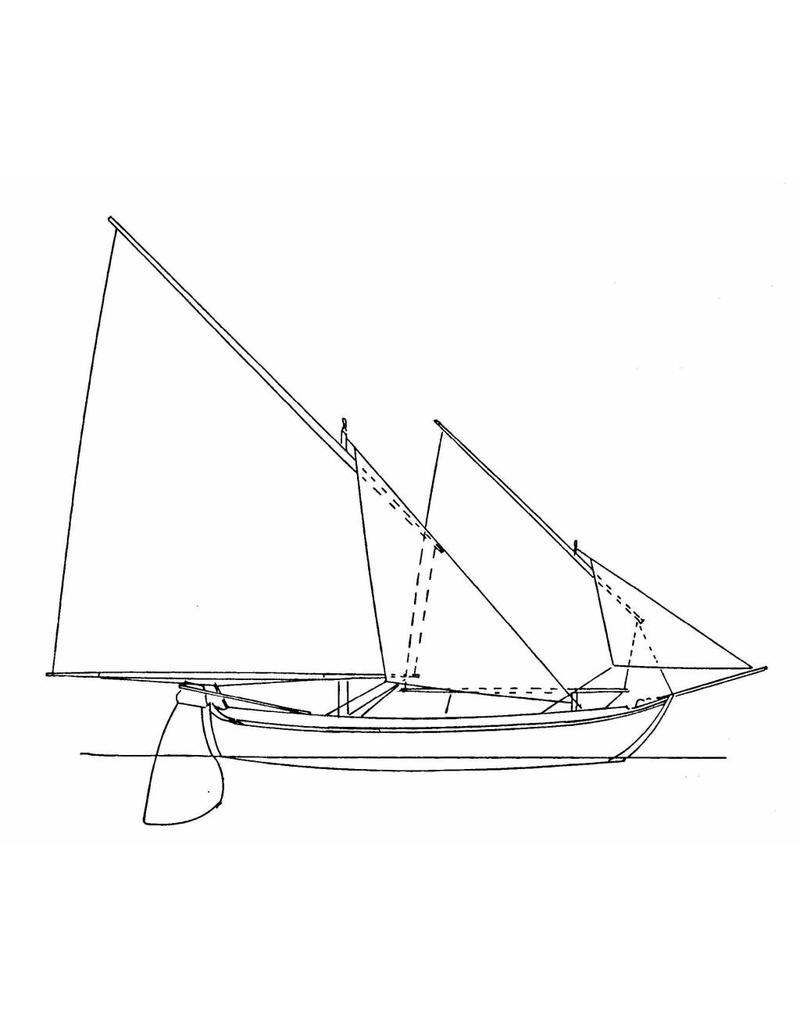

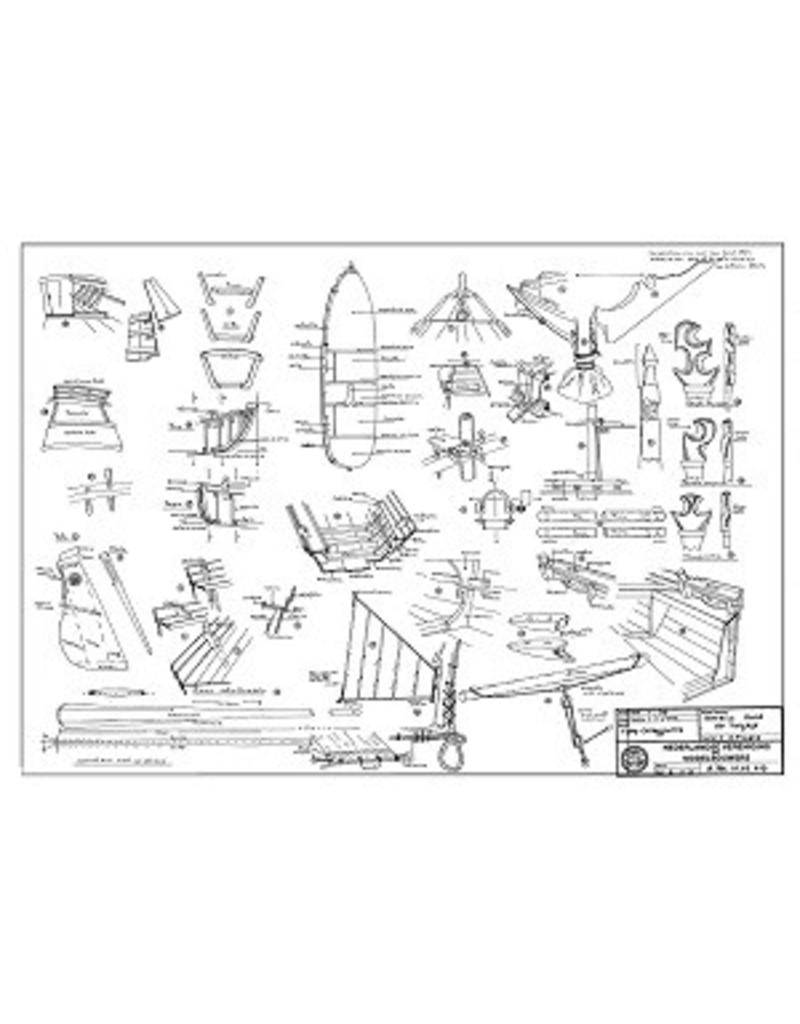

Drawing number |
10.02.017 |
|
Description |
Topo Chiogiotto |
|
Quality |
pen and ink; elevations on a scale of 1:70; highly detailed |
|
Scale |
1 : 30 |
|
Number of sheets A00 |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
3 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
3 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
85 |
|
Details |
Overall length 38 cm |
|
Remarks |
