| Article number: | 10.05.008 |
The Roeraak is a traditional type of flat-bottomed ship that originated in the 17th and 18th centuries. This ship was primarily used for inland and coastal shipping in the Netherlands.
Hull: The Roeraak has a characteristic, convex shape with a sharp bow and a relatively flat bottom.

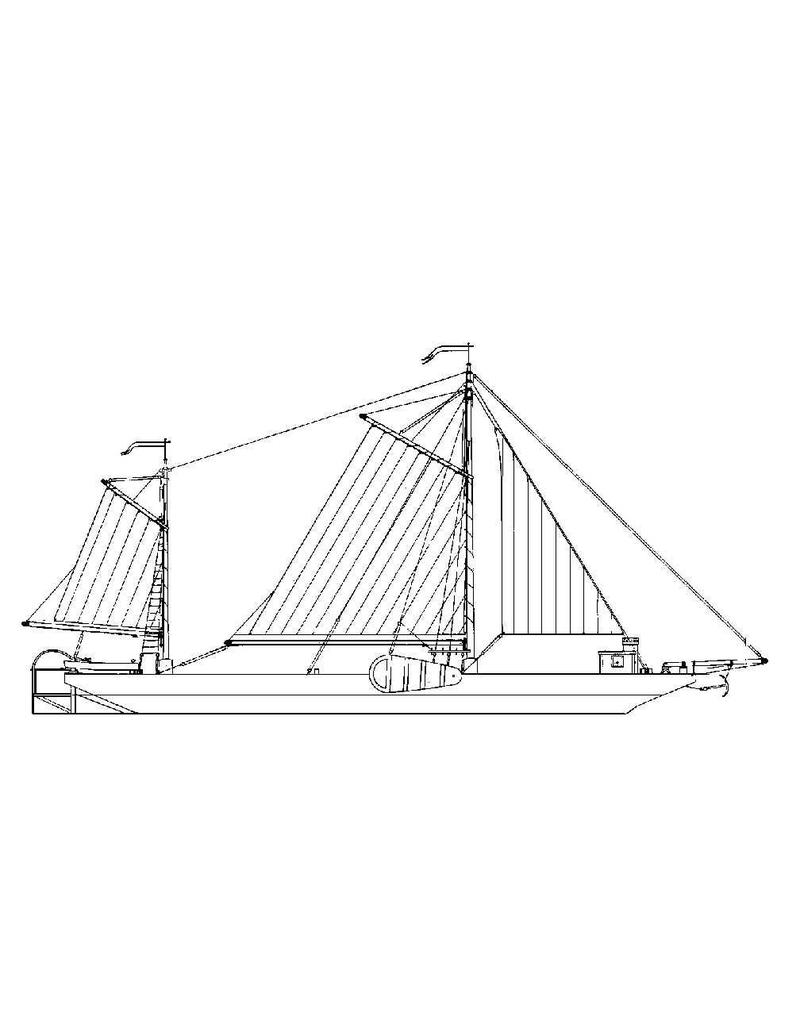

Rigging: The ship is equipped with a mizzen rig, meaning it has a mainsail that is angled relative to the ship's longitudinal axis.
Dimensions: The length varied, but a well-known model from the late 17th century has a length of approximately 85 cm at a scale of 1:10.
Usage: Roeraaken were used for transporting goods on inland waterways and along the coast
The Roeraak was primarily built in the regions around the major rivers. Over time, the ship further developed, with improvements in hull structure and rigging, making it more efficient for transport on inland waterways.
Although the Roeraak is not as well-known as some other traditional ships, it is part of the rich maritime heritage of the Netherlands. There are initiatives to preserve and restore this type of ship, so that future generations can learn about the history of inland shipping.
Specifications :
|
Drawing number |
10.05.008 |
|
Author |
J.Toet |
|
Description |
Roeraak (late 17th century) |
|
Quality |

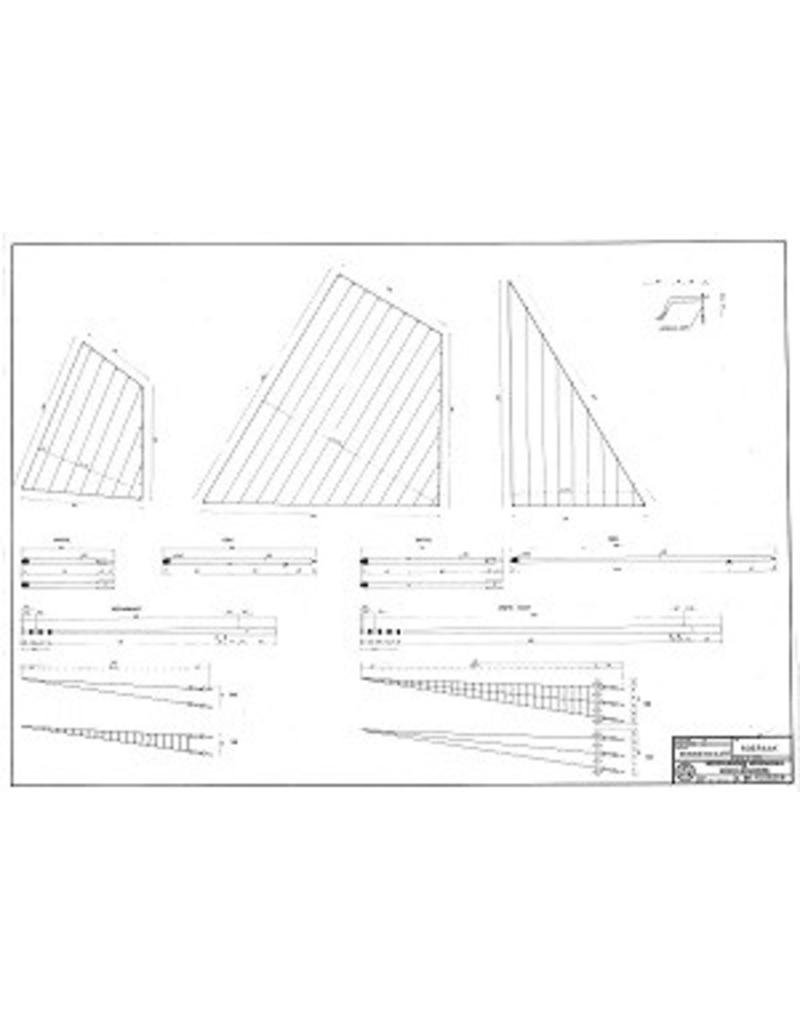

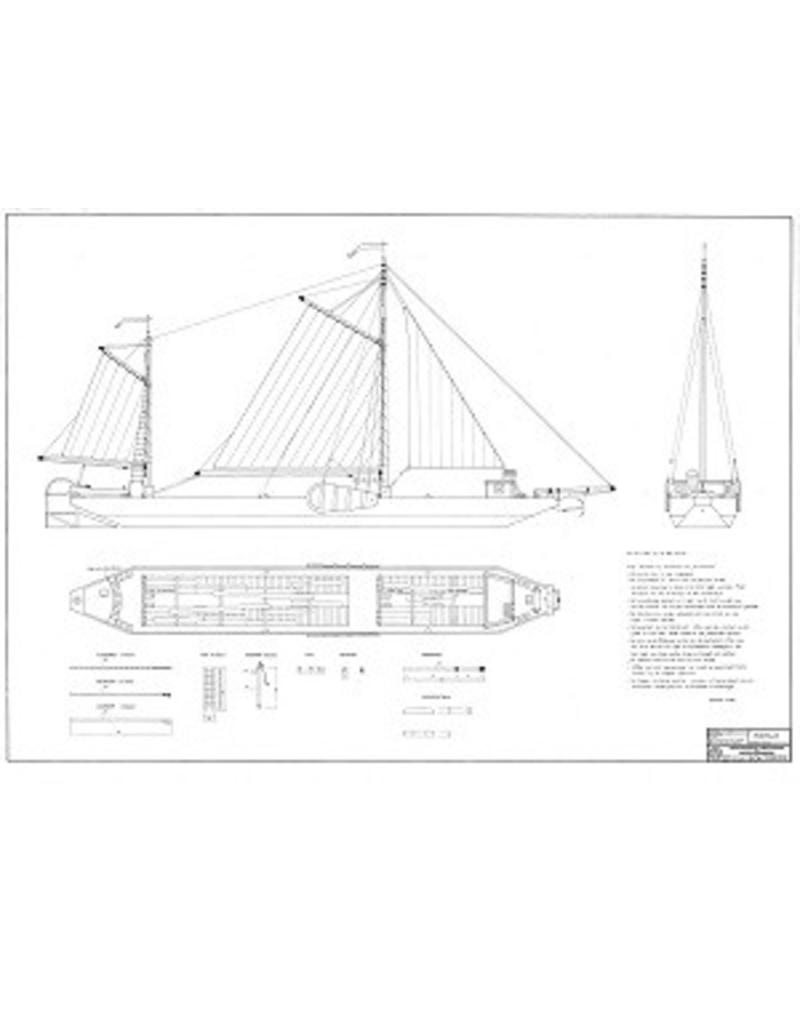

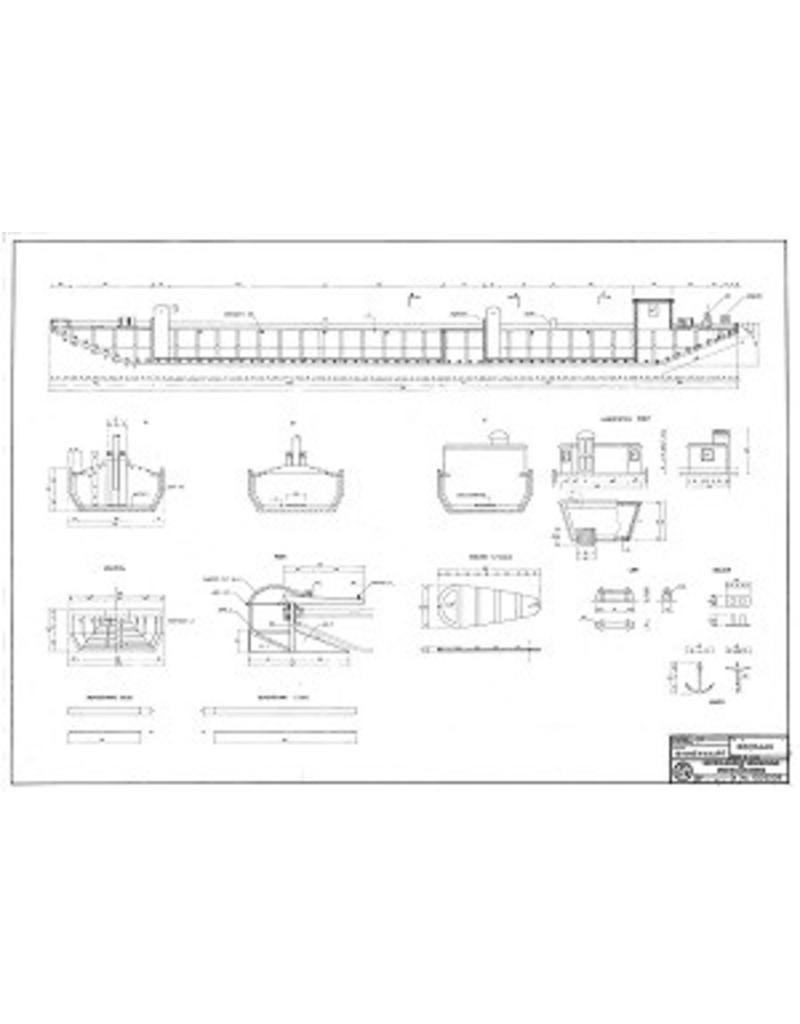

frame plan; cross-sections; elevation/rigging plan; details |
|
Scale |
1 : 10 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
2 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
3 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
185 |
|
Special features |
l.o.a. 85 cm |
