MBT 10.12.002 MV "Zephyr" coastal vessel (1952) - North Westland Shipping Co. Ltd (New Zealand)

Drawing number

10.12.002

Author

W.P. Dijkstra

Description

MV "Zephyr" coastal vessel (1952) - North Westland Shipping Co. Ltd (New Zealand)

Quality

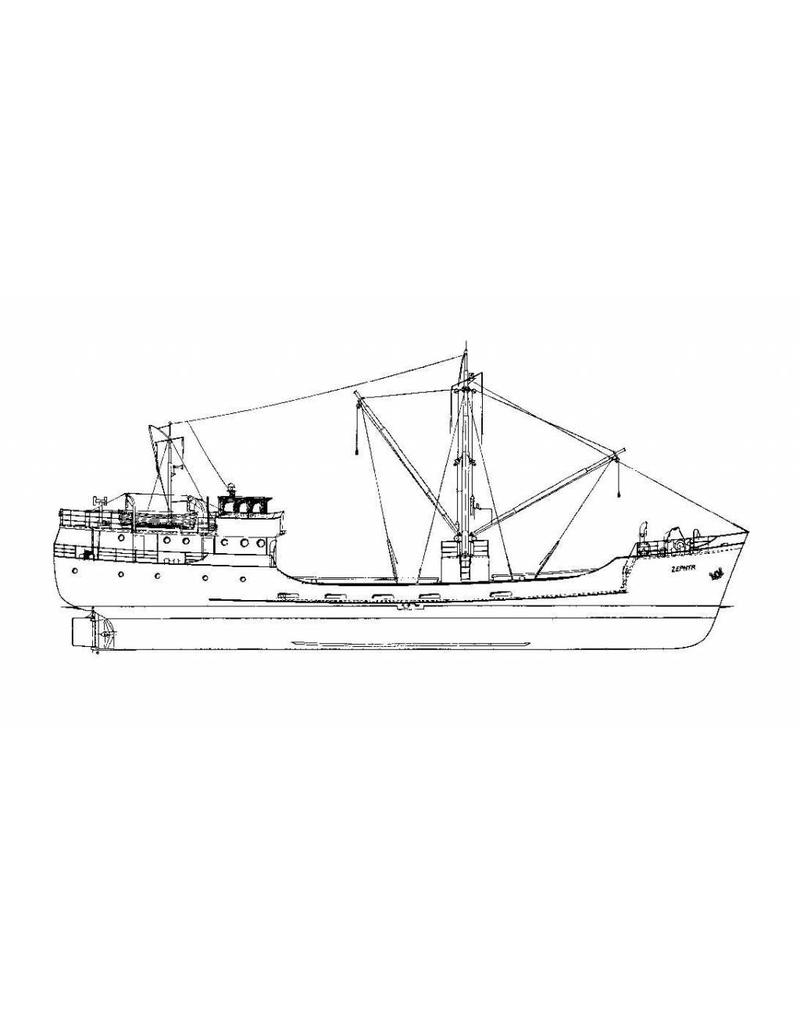

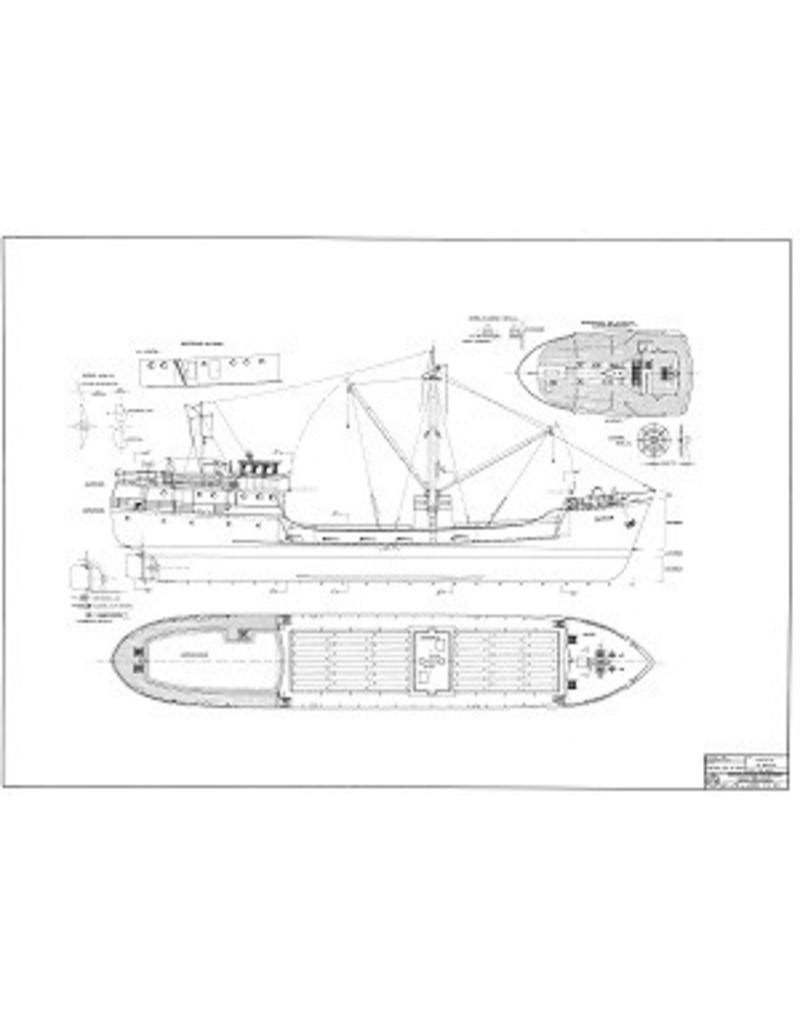

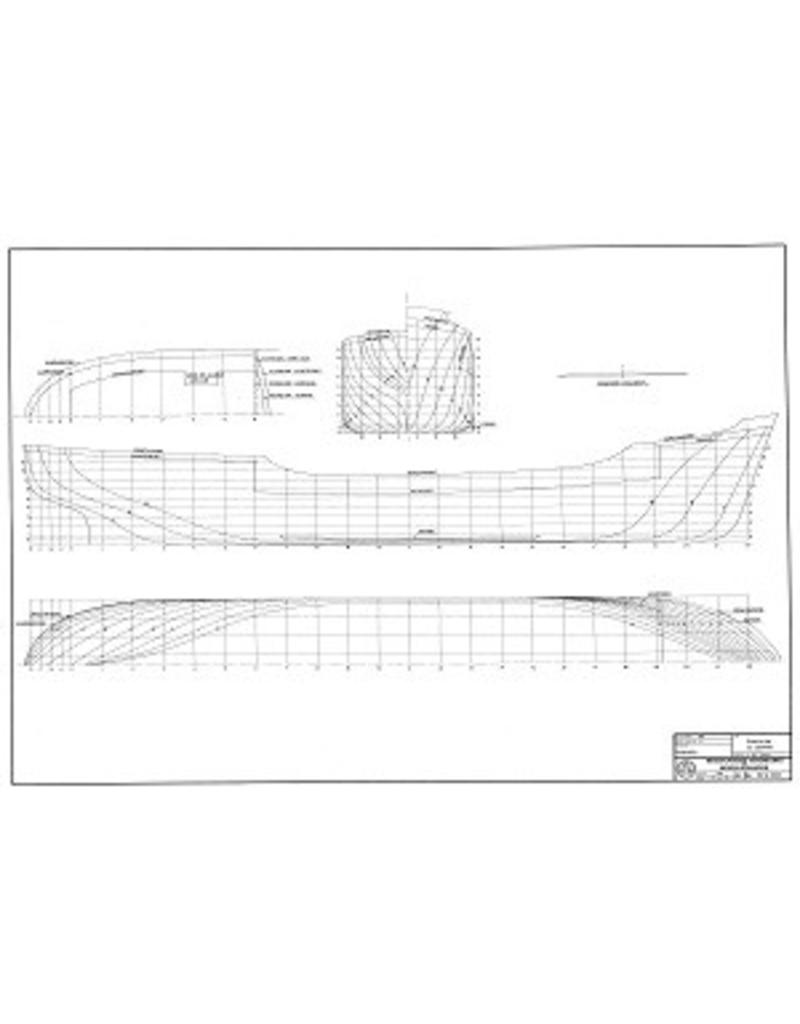

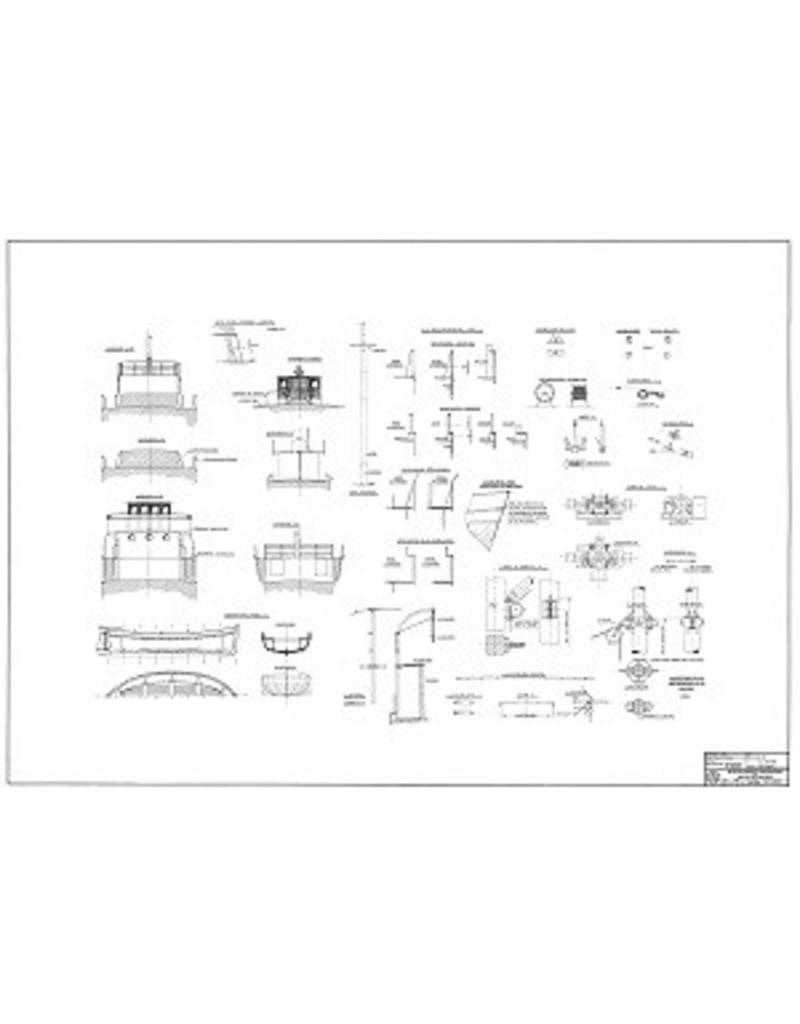

sp/lines; side view; deck plan; details

Scale

1 : 50

Number of sheets A00

0

Number of sheets A0

2

Number of sheets A1

1

Number of sheets A2

0

Number of sheets A3

0

Number of sheets A4

0

Total number of drawing sheets

3

Number of A4 text sheets

0

Weight in grams

225

Particulars

l.o.a. 80 cm

dM 1954/1,2

Copy of article: 12.12.002 (7 pages)

on the drawing the ship bears the name "Zephyr", as did the ship during its sea trials and voyage to New Zealand. After its arrival in New Zealand, it served as "Zephyr II".

Remarks
