| Article number: | 10.14.012 |
Specifications :
|
Drawing number |
10.14.012 |
|
Author |
J. Mooldijk |
|
Description |

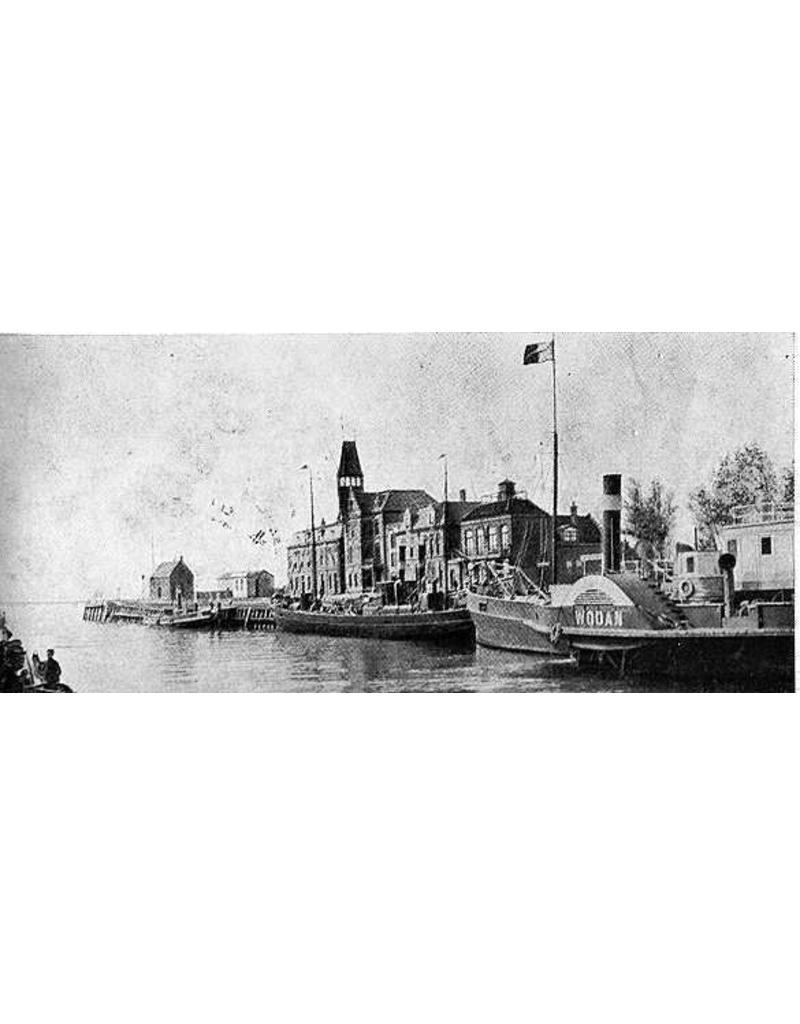

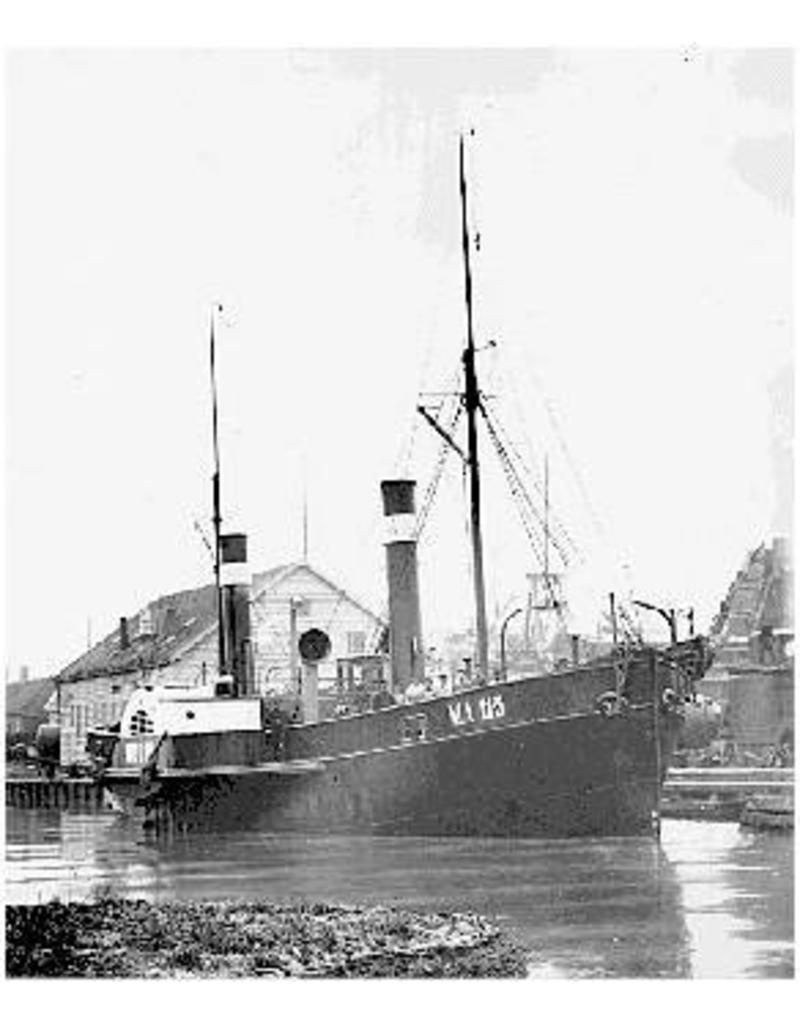

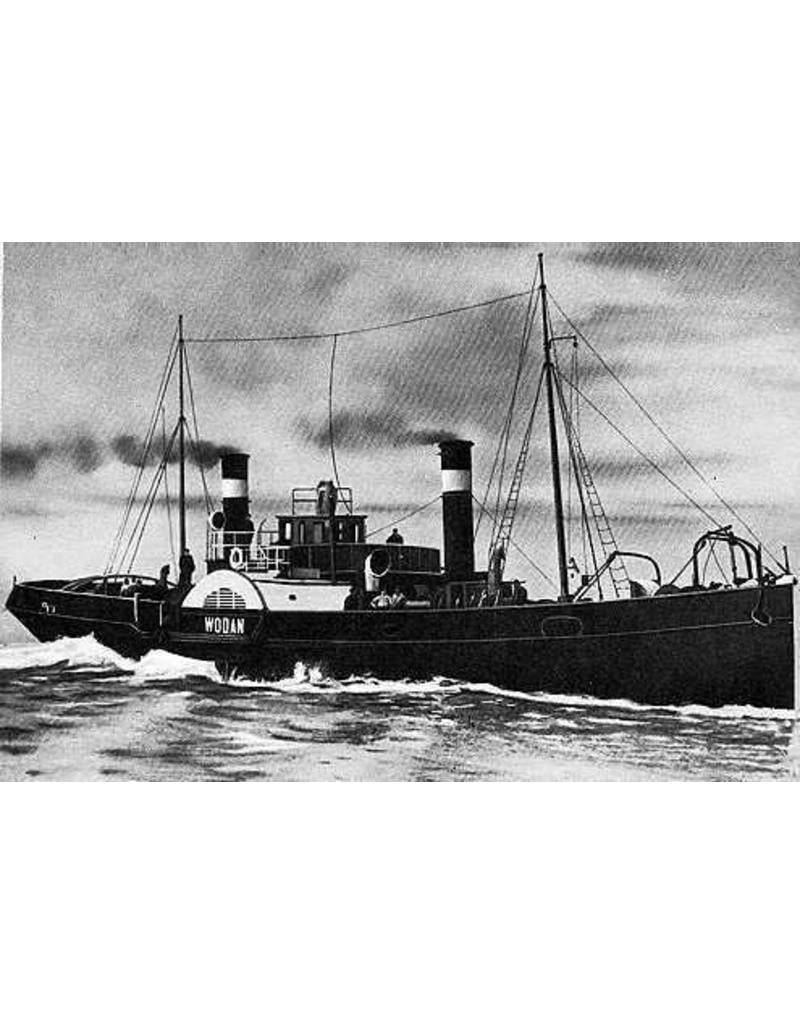

Paddle Tug ss "Wodan" (1883) - L. Smit & Co. |
|
Quality |

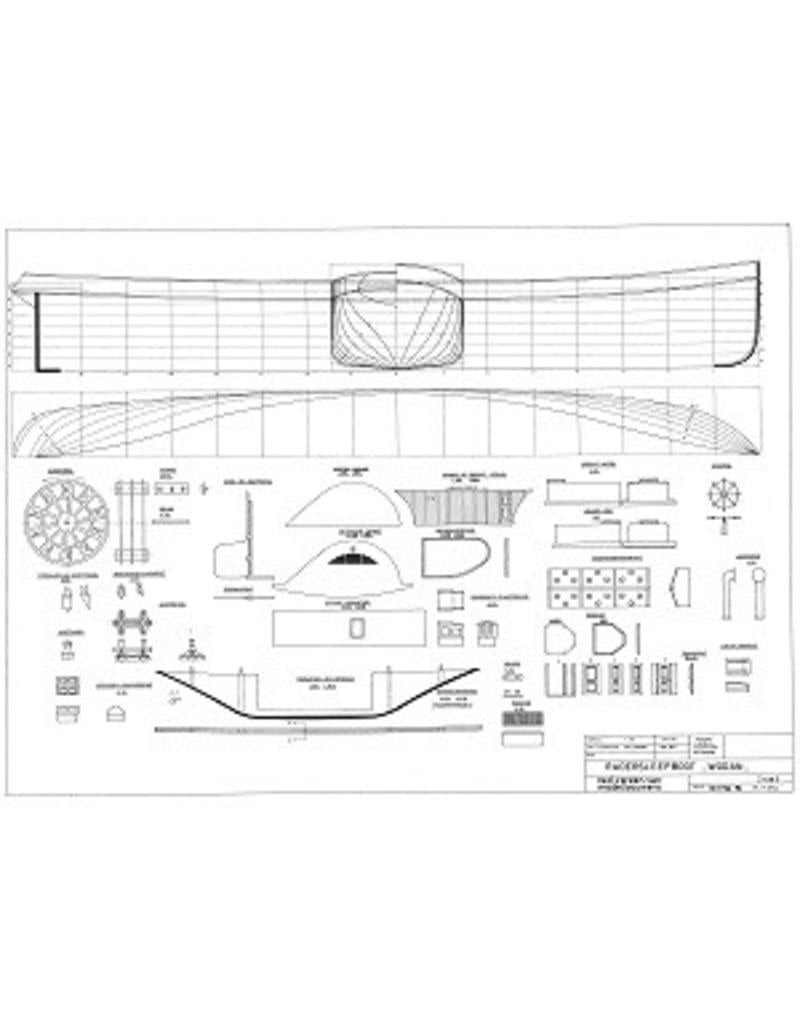

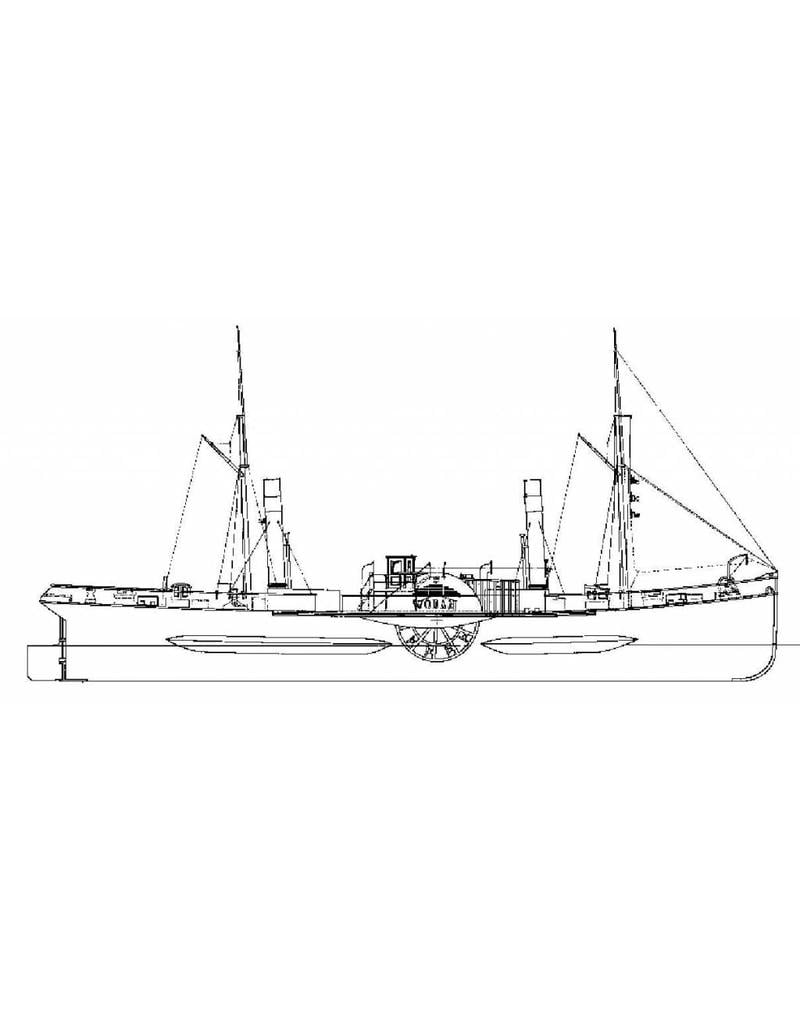

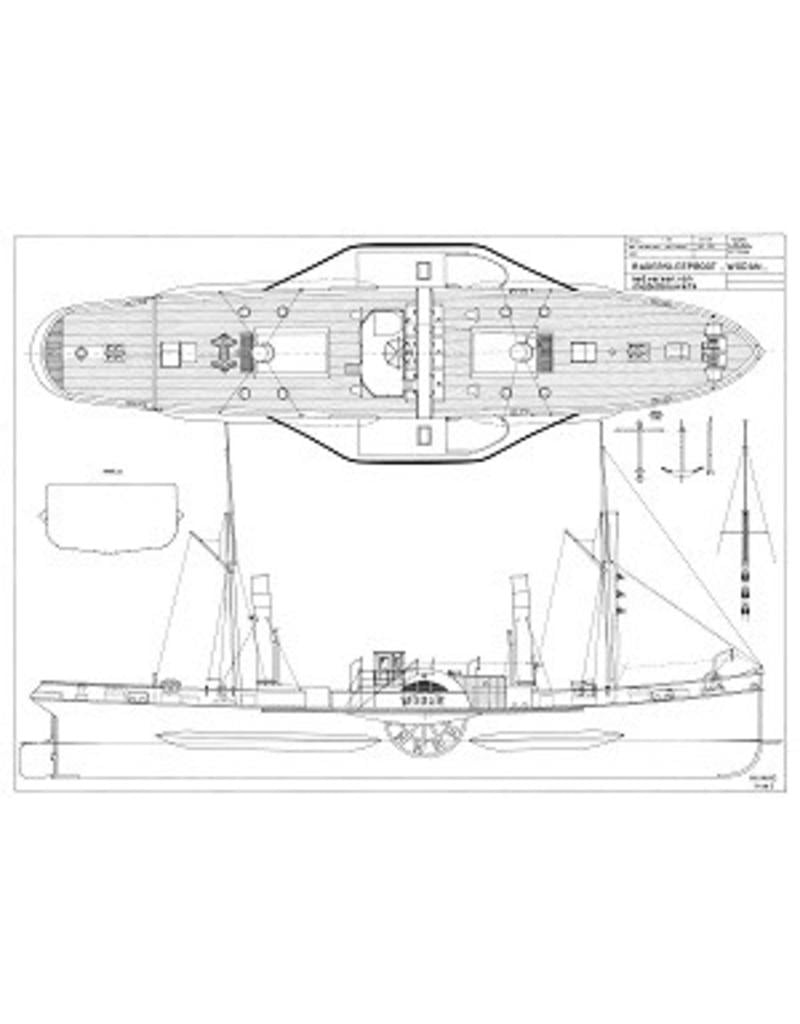

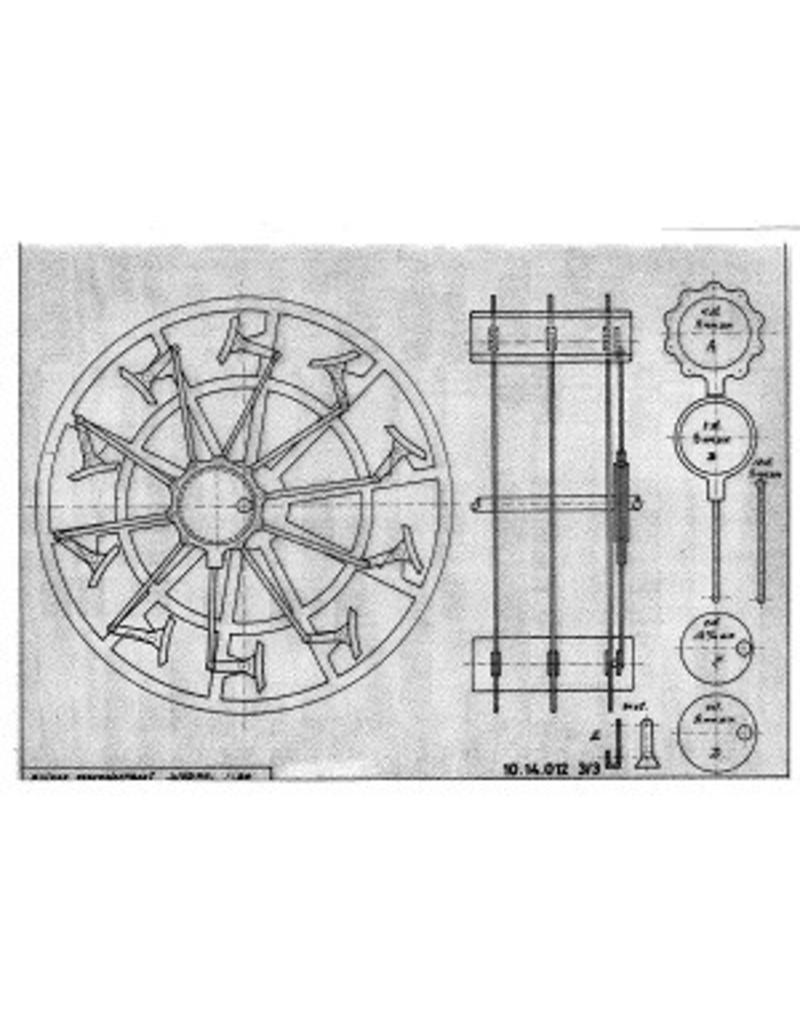

sheer plan/lines; side view; deck plan; details |
|
Scale |
1 : 60 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
2 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
1 |
|
Total number of drawing sheets |
3 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
105 |
|
Remarks |

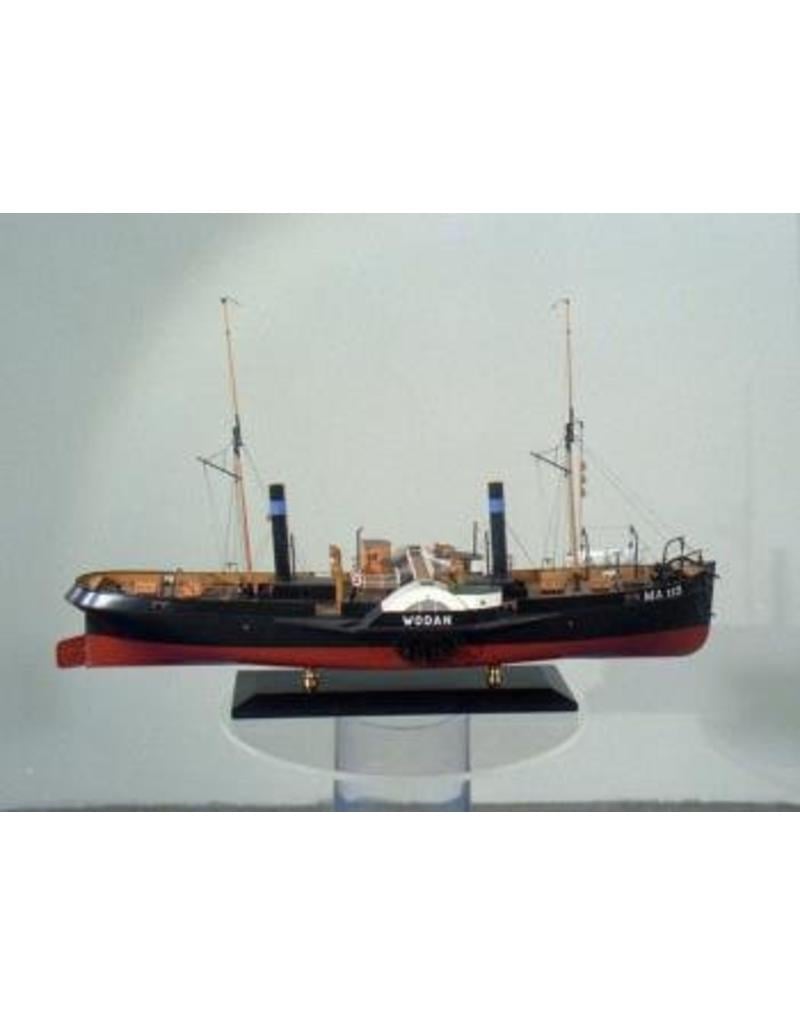

l.o.a. 68 cm |
|
Notes |
