| Article number: | 10.14.013 |
Specifications :
|
Drawing number |
10.14.013 |
|
Author |
J. Ploeg |
|
Description |

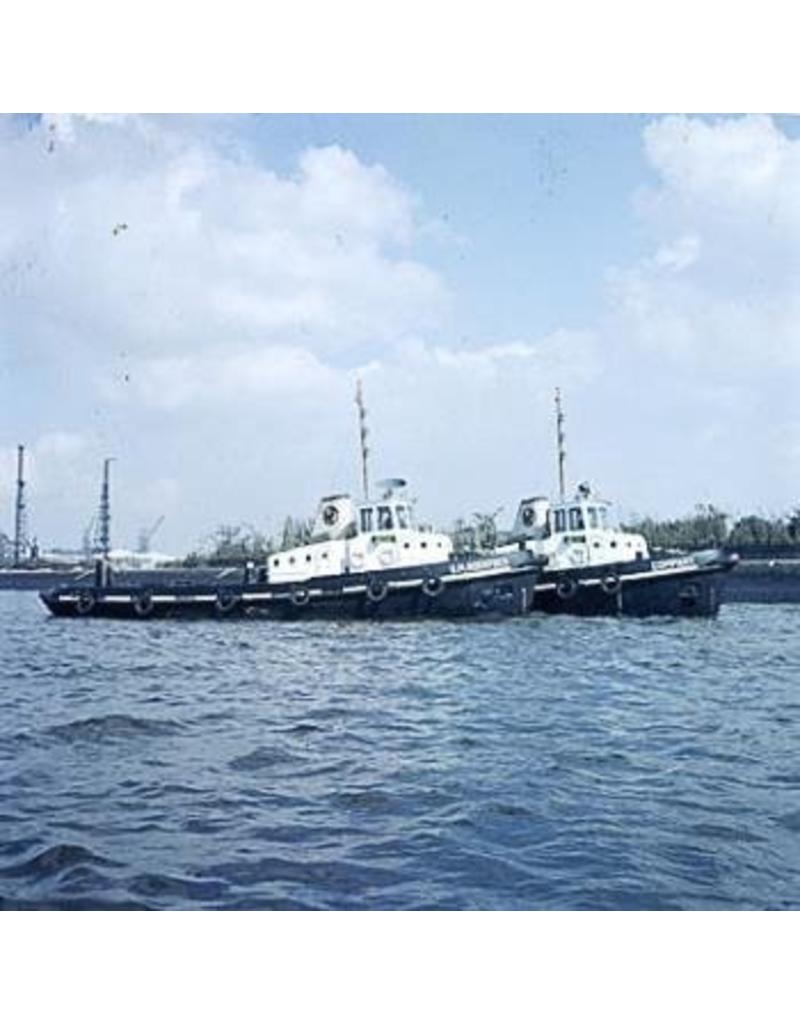

harbour tug ms "Company", "G.M. Roentgen" (1961) - Wilton Feijenoord |
|
Quality |

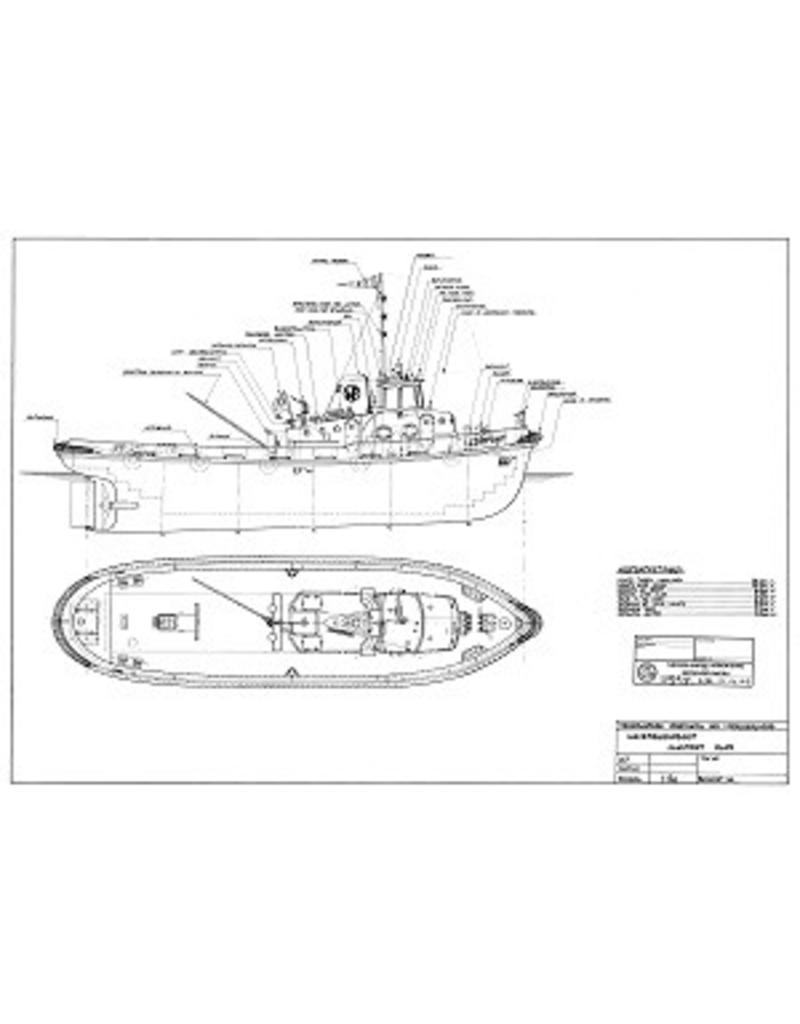

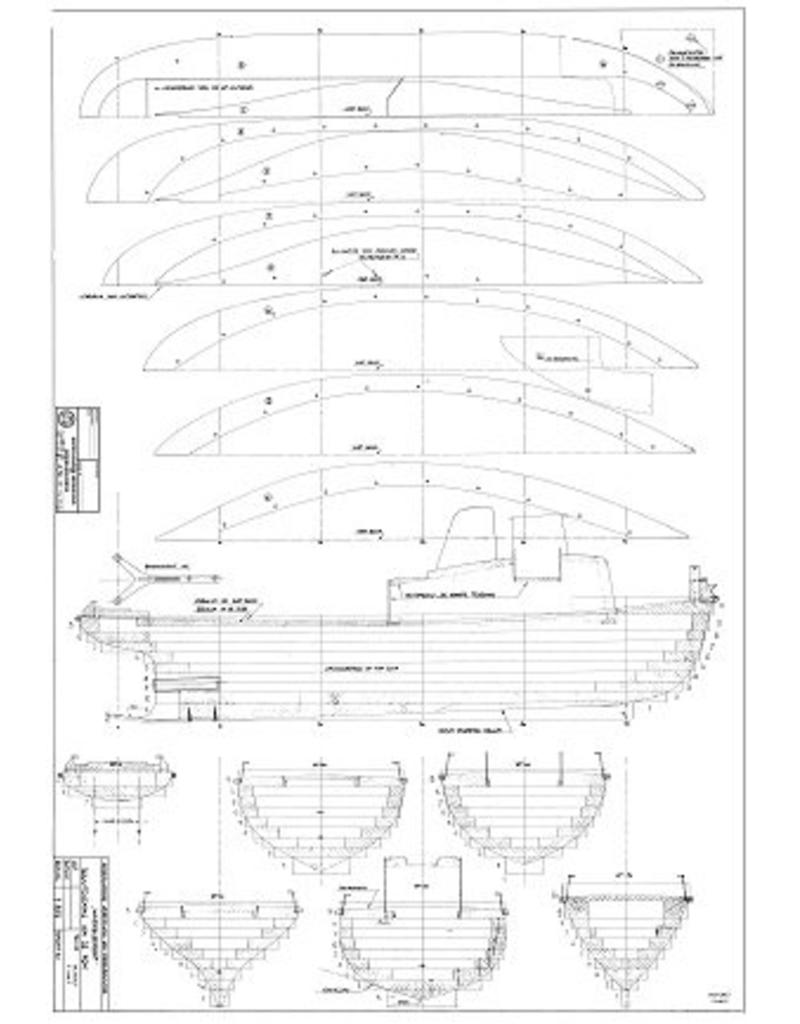

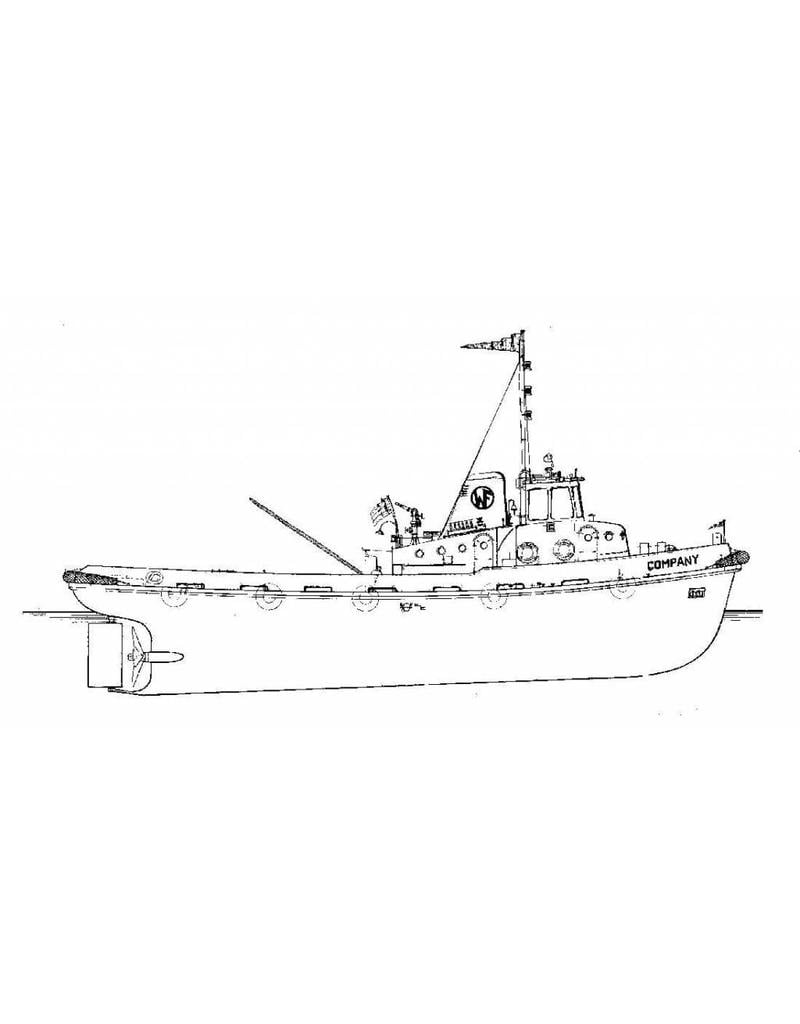

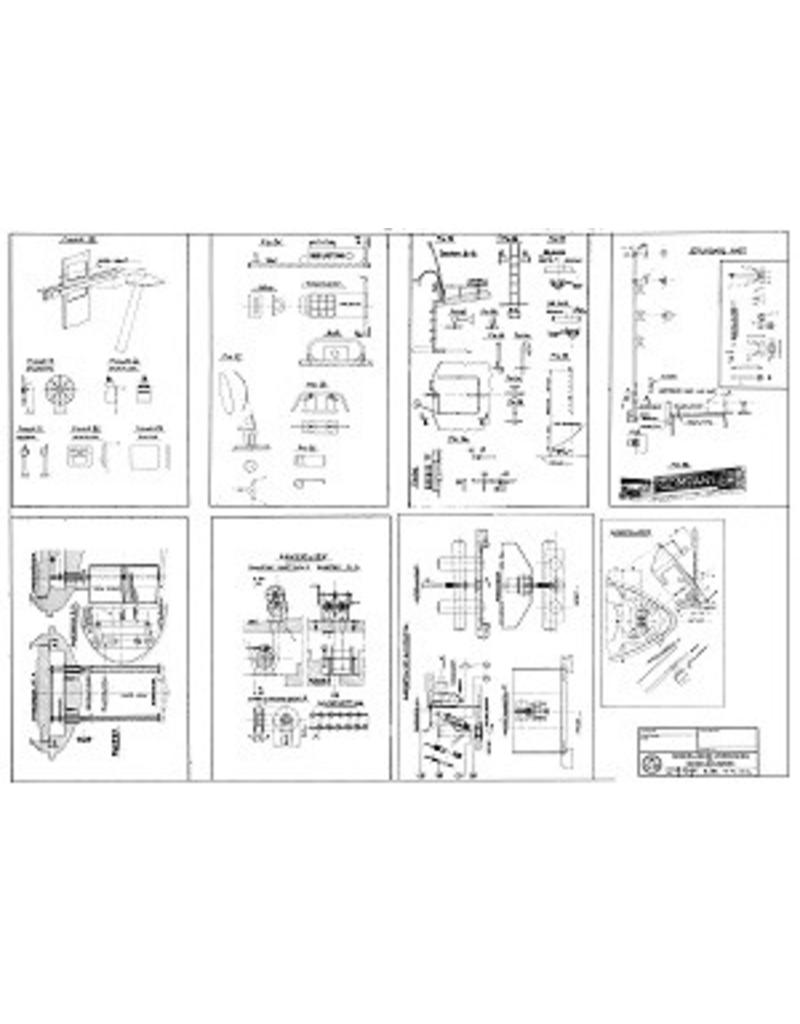

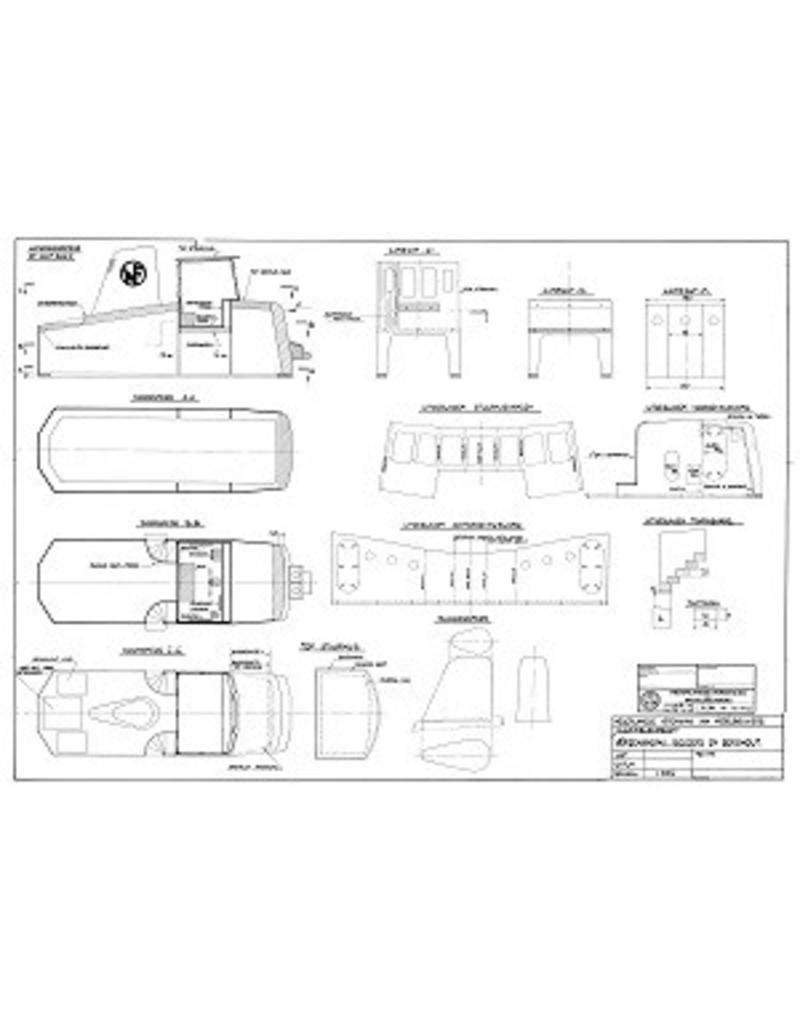

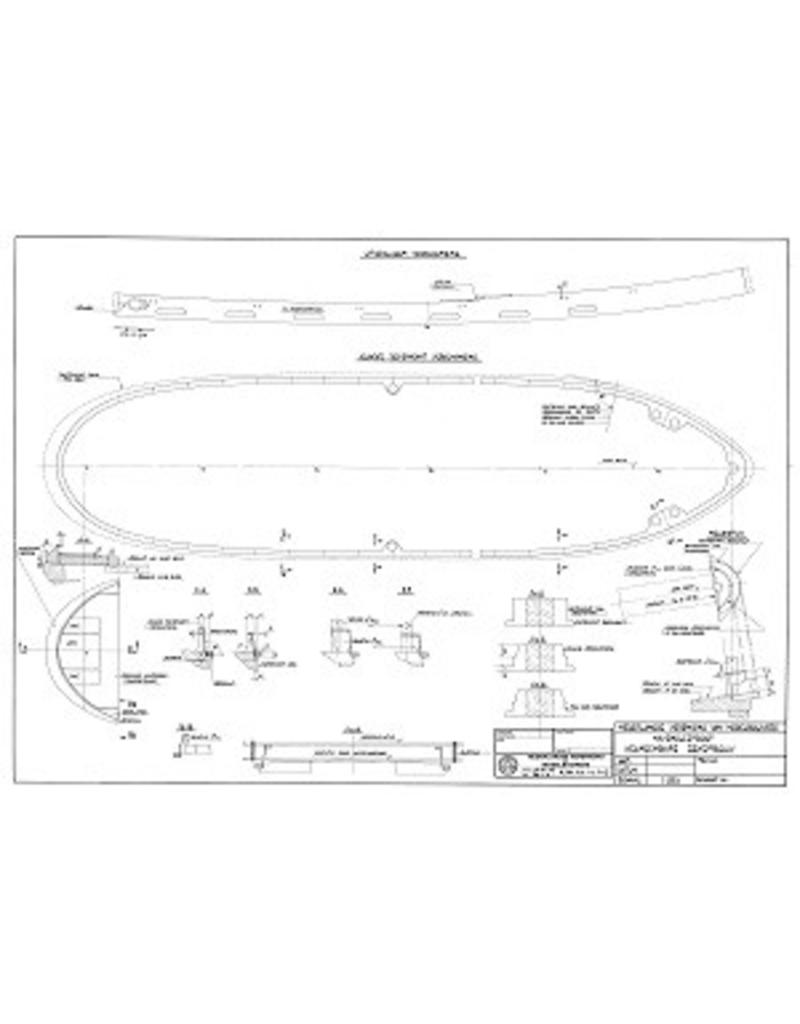

waterlines; block construction instructions; side view; deck plan; details |
|
Scale |
1 : 33,3 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
4 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
5 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
265 |
|
Particulars |
l.o.a. 75 cm |
|
Remarks |
