| Article number: | 10.14.014 |
Specifications :
|
Drawing number |
10.14.014 |
|
Author |
N.H. Brands |
|
Description |

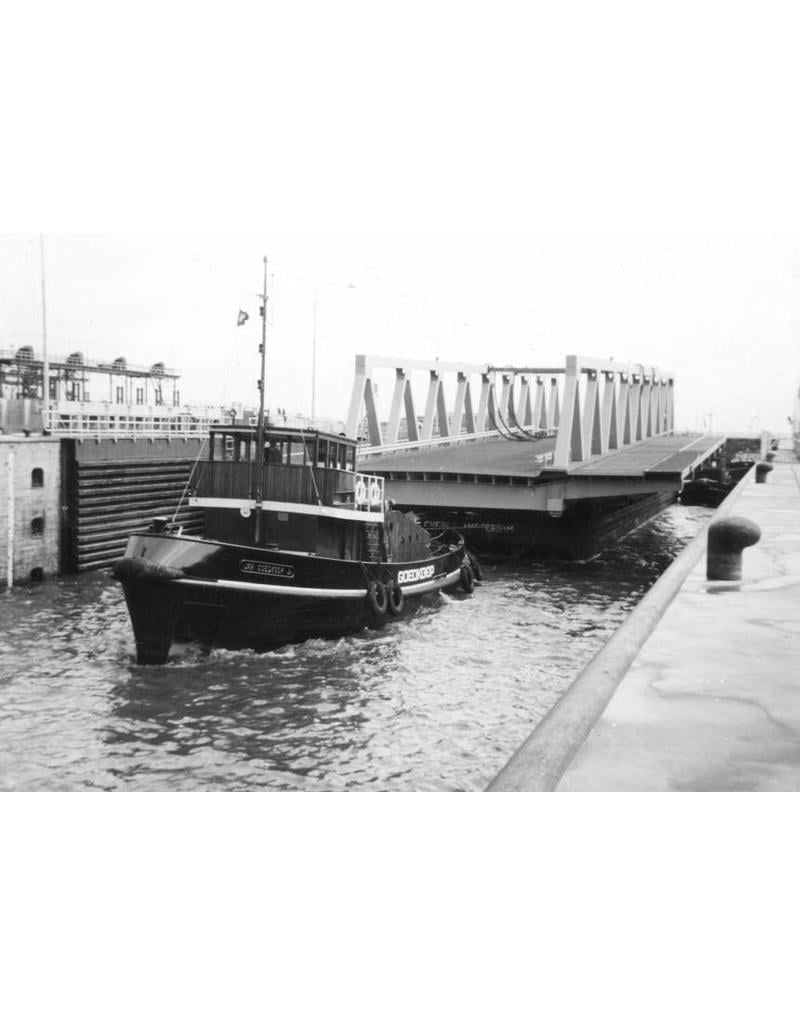

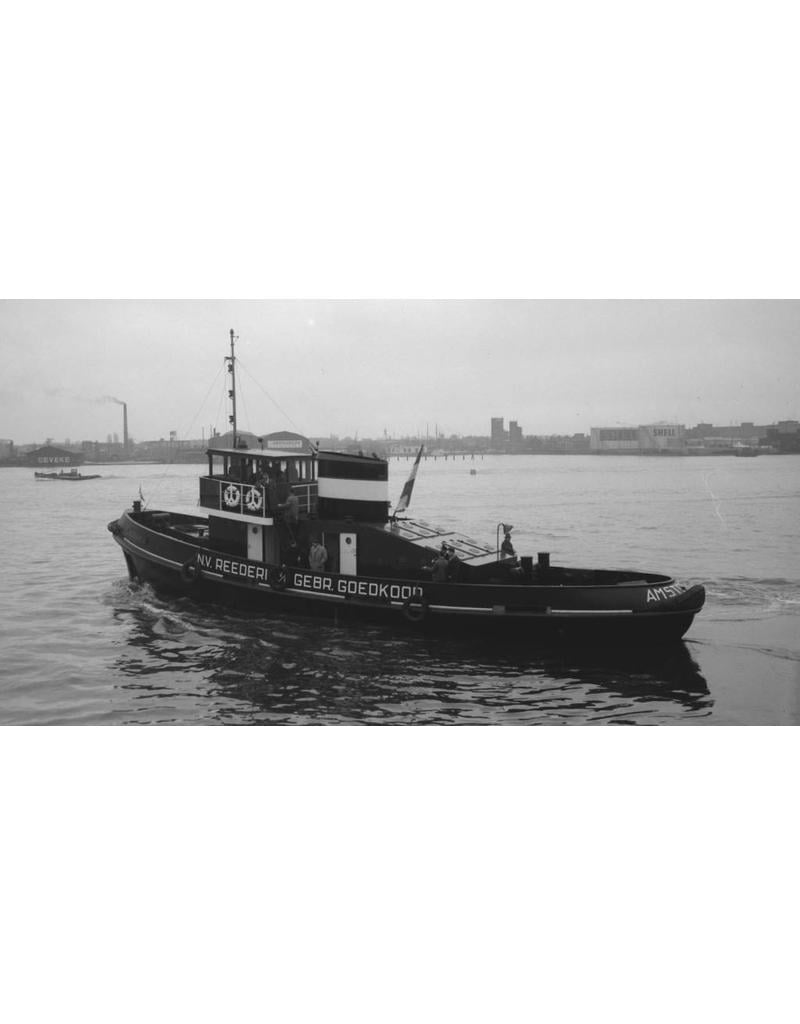

harbour tug m.s. "Jan Jr. Goedkoop" - no. 22 (1958) - Shipping Company fmr. Gebr.Goedkoop |
|
Quality |

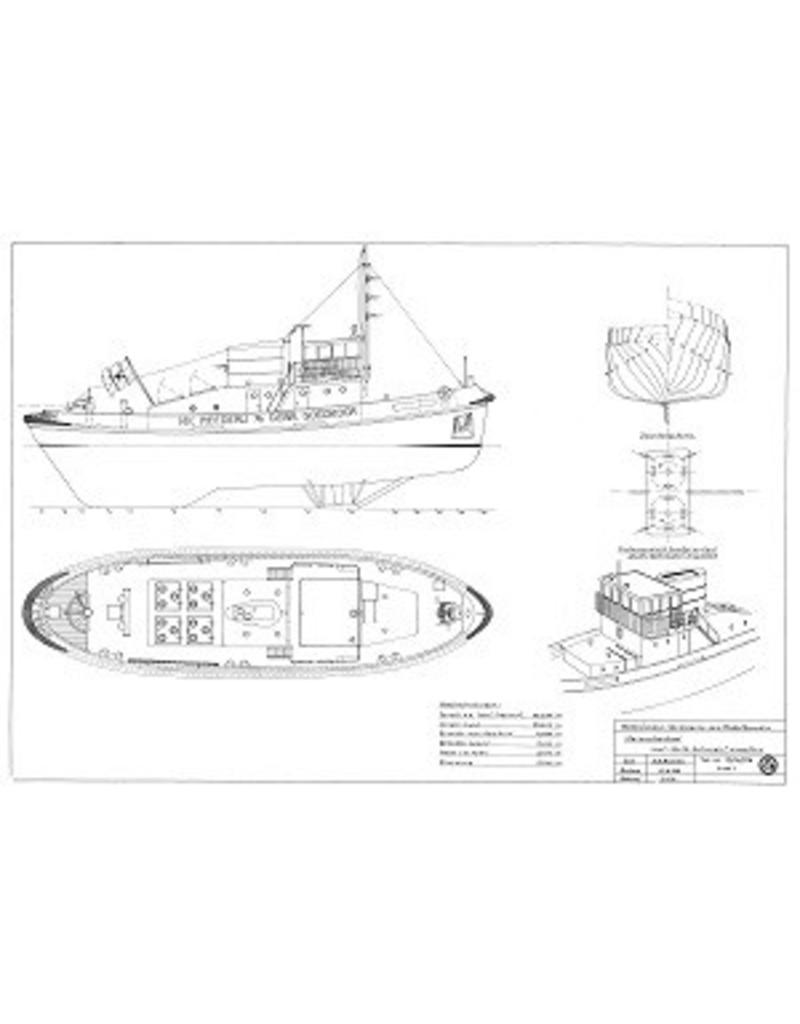

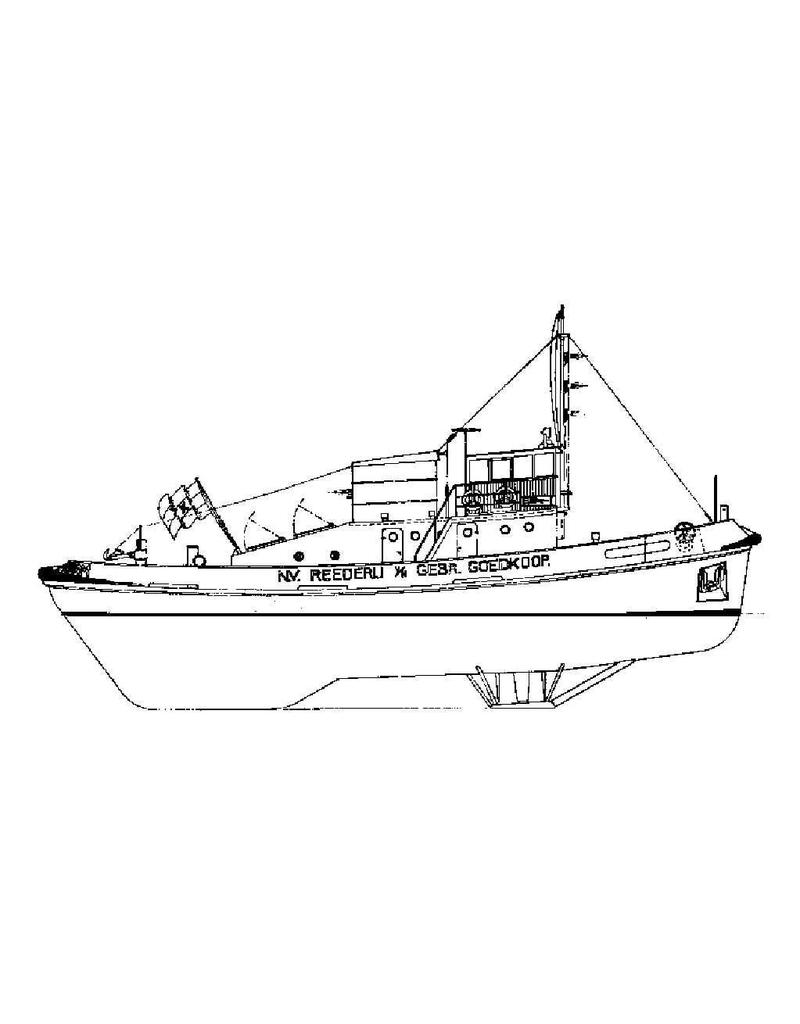

frames; side view; deck plan; some details |
|
Scale |
1 : 50 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
1 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
65 |
|
Particulars |
l.o.a. 50 cm |
|
Remarks |
