| Article number: | 10.14.023 |
Specifications :
|
Drawing number |
10.14.023 |
|
Author |
J. Mooldijk |
|
Description |
ocean-going tug ss " Witte Zee" (1914) - L. Smit & Co |
|
Quality |

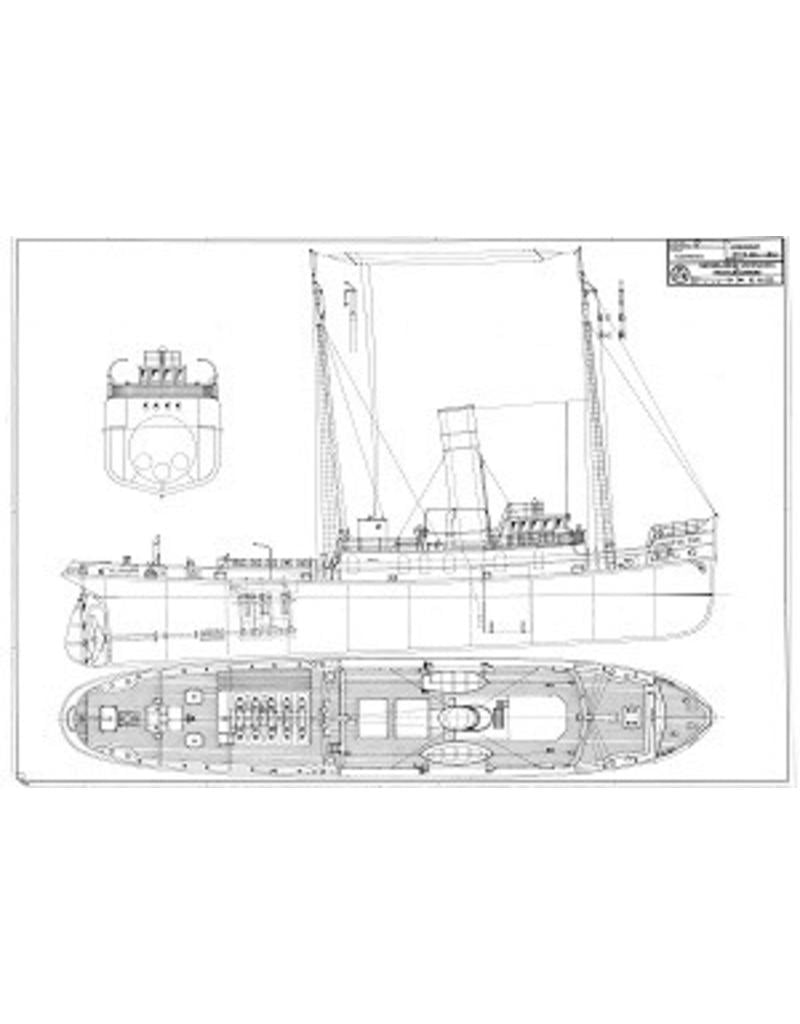

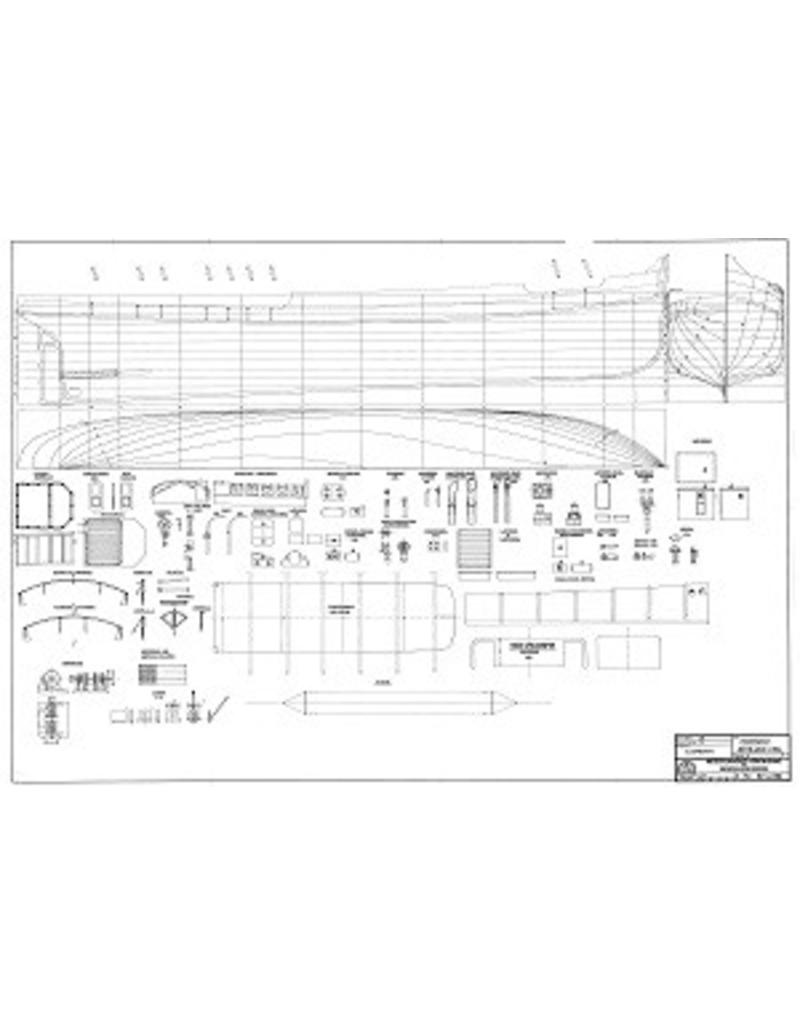

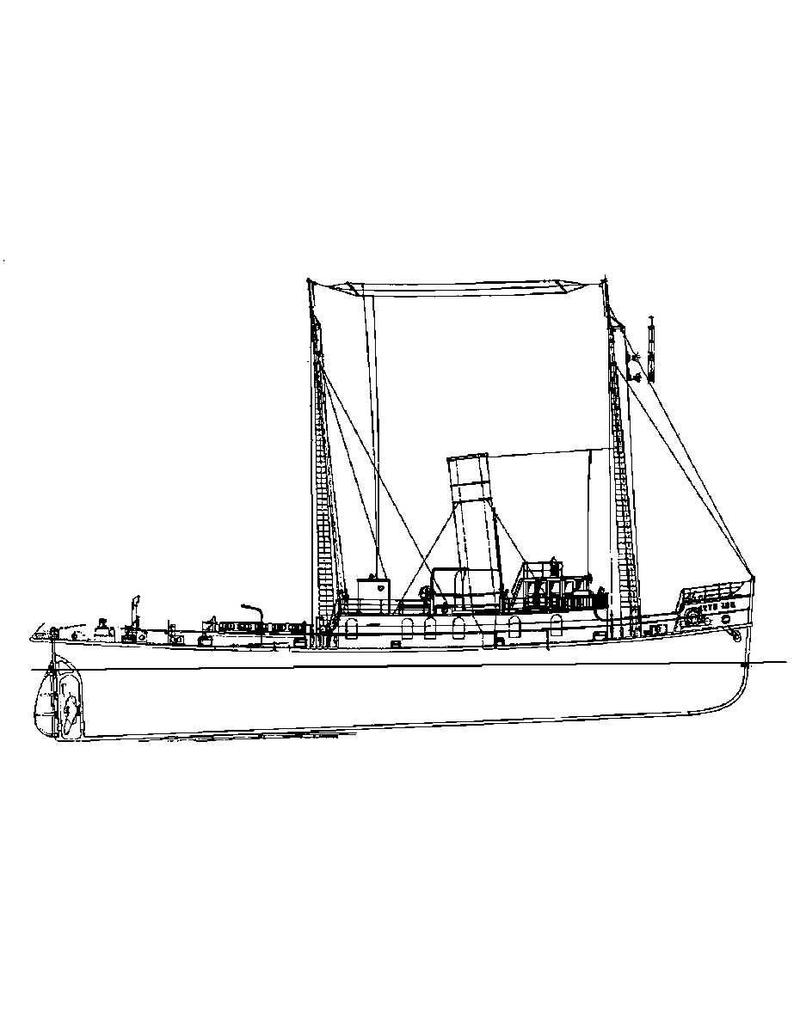

frames/lines; side view; deck plan; details |
|
Scale |
1 : 75 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
2 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
105 |
|
Particulars |
l.o.a. 71 cm |
|
Notes |
