| Article number: | 10.14.024 |
Specifications :
|
Drawing number |
10.14.024 |
|
Author |
A.J.v.d. Kaay |
|
Description |
ocean-going tug ms "Smit Enterprise" (1972) - Smit International, Curacao |
|

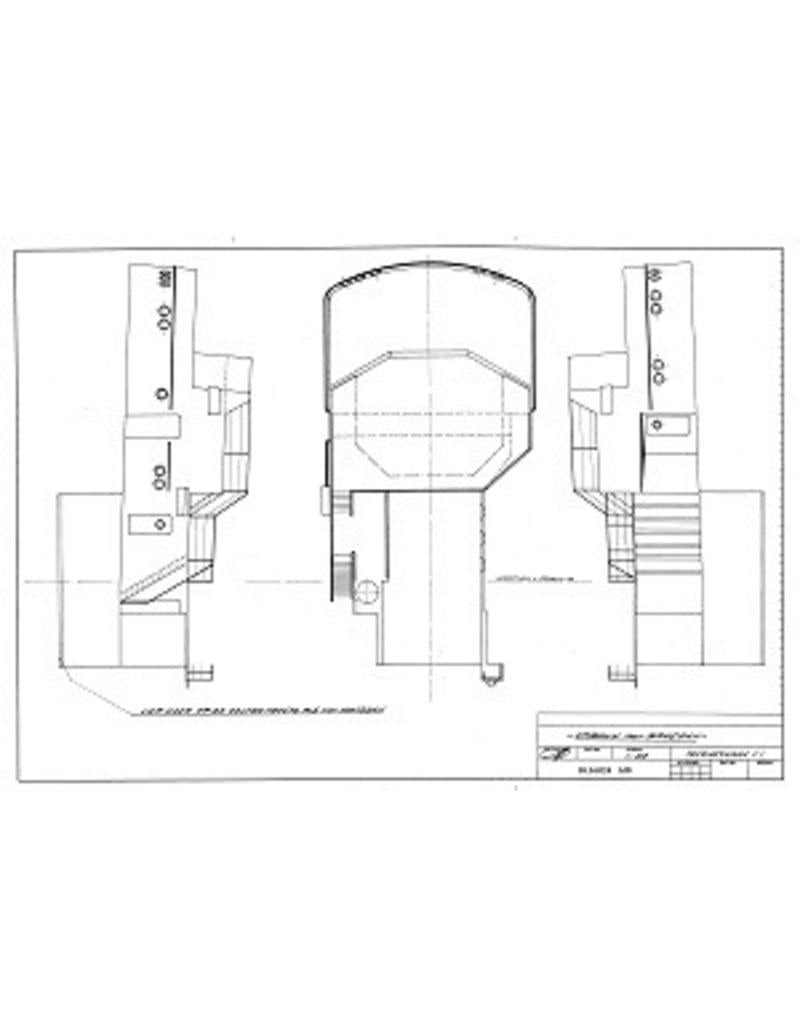

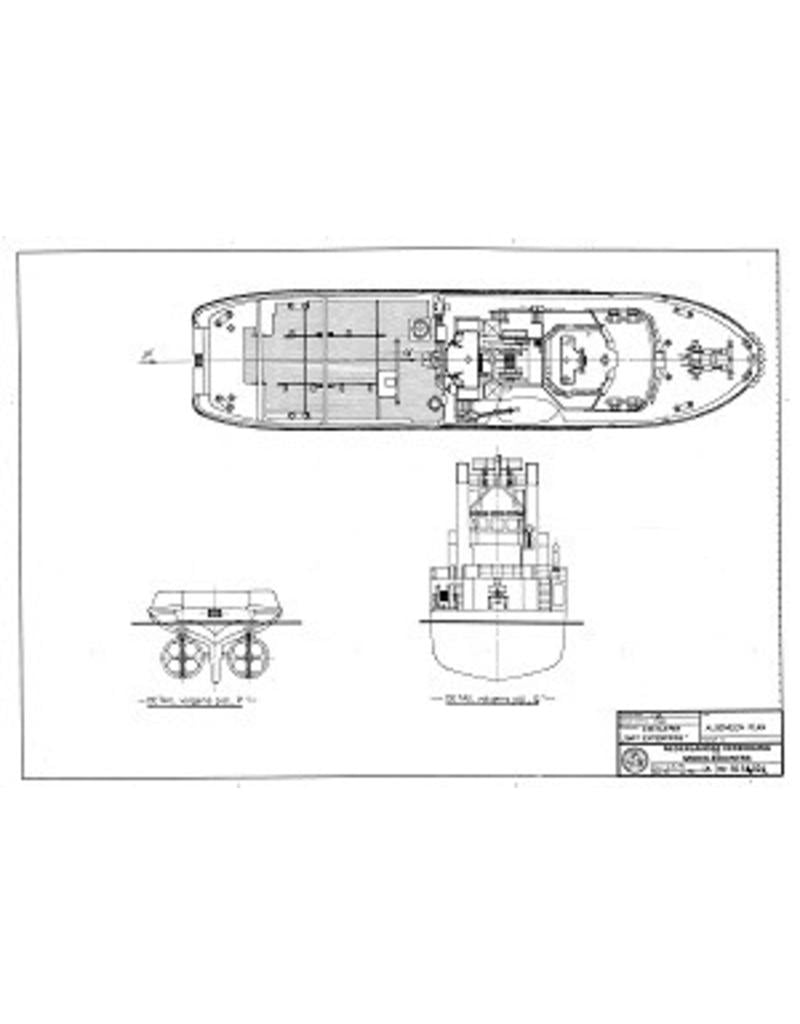

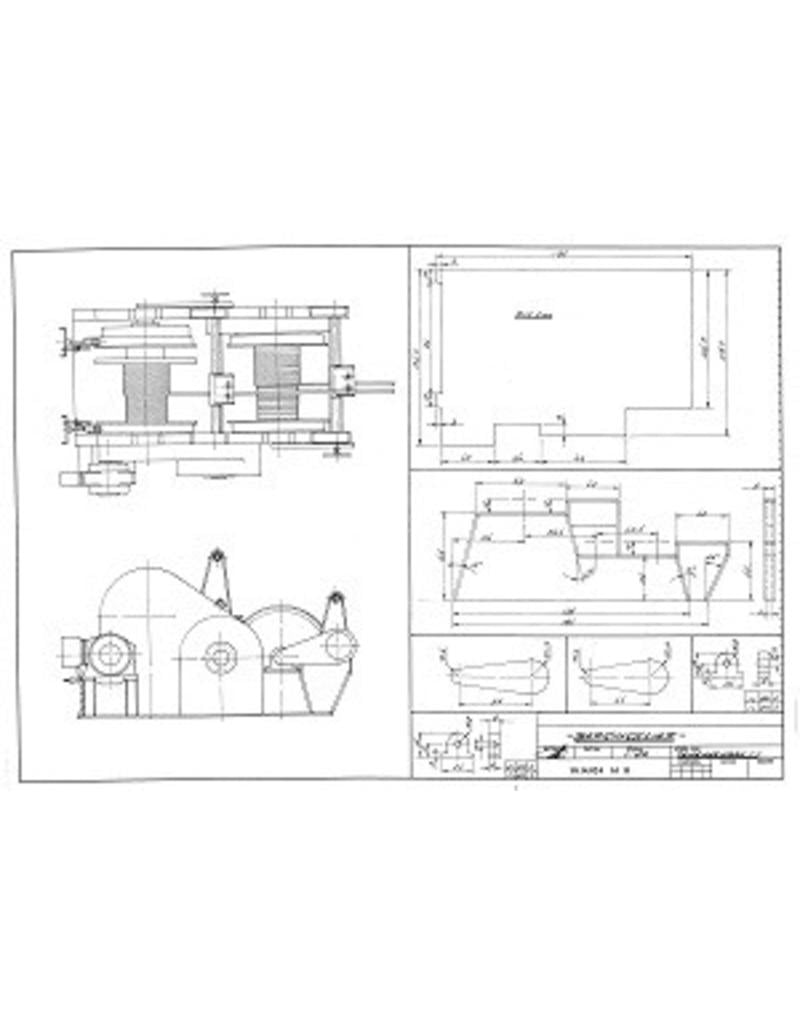

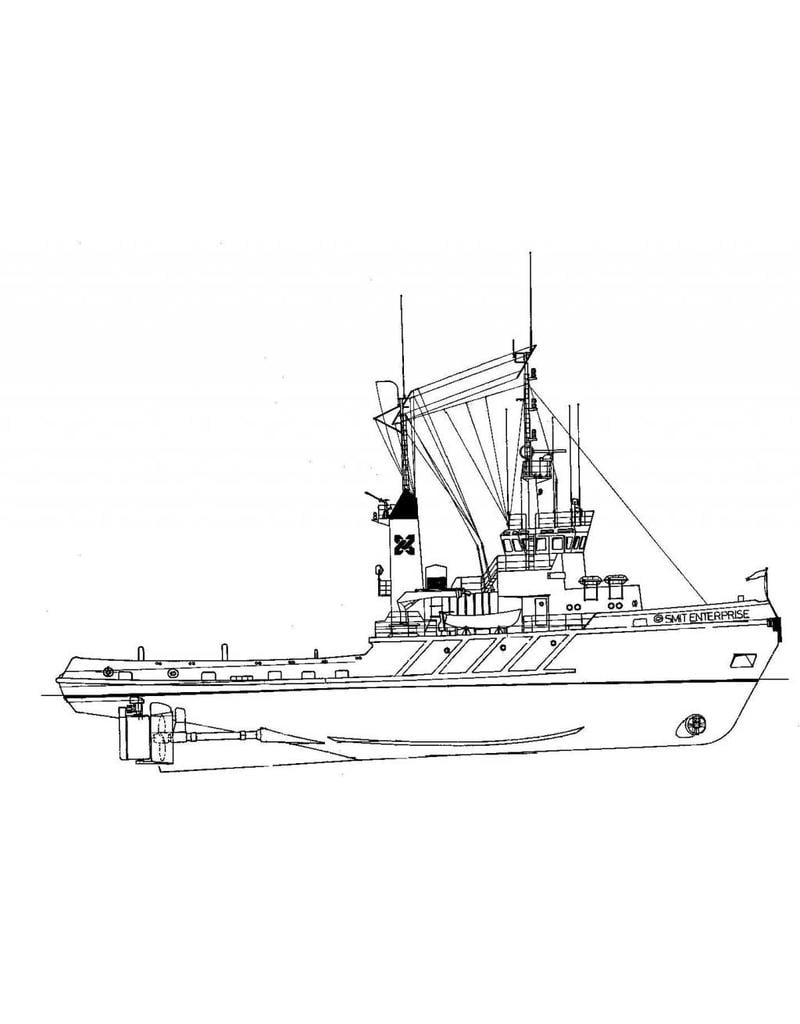

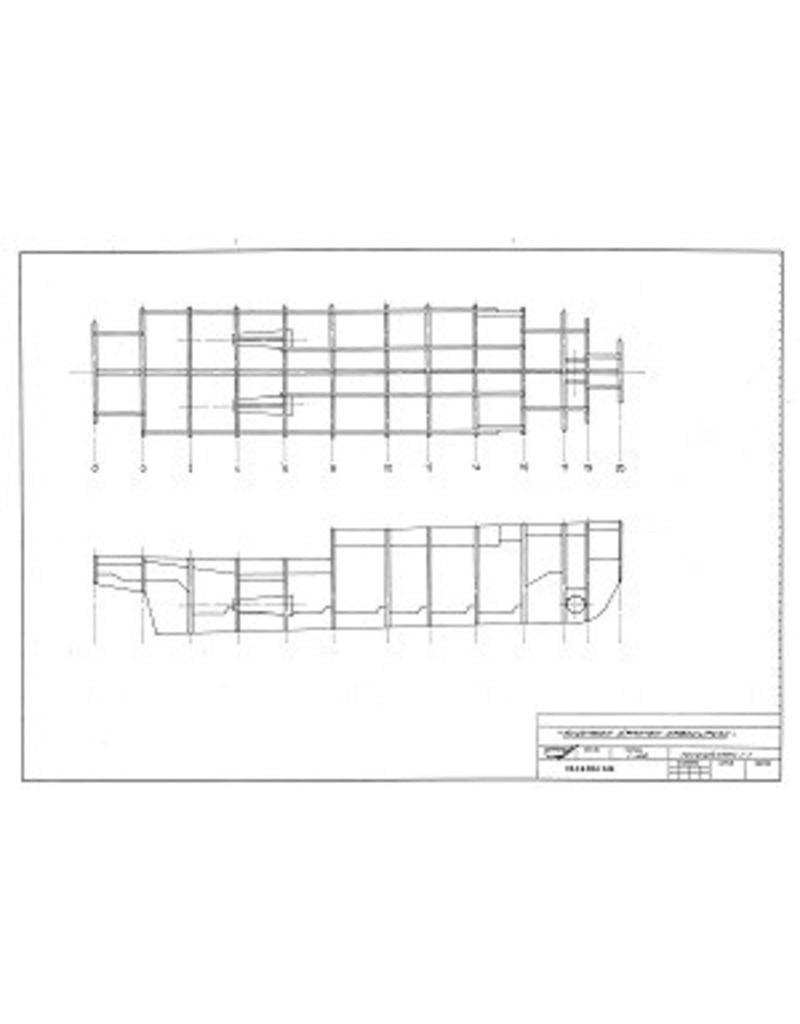

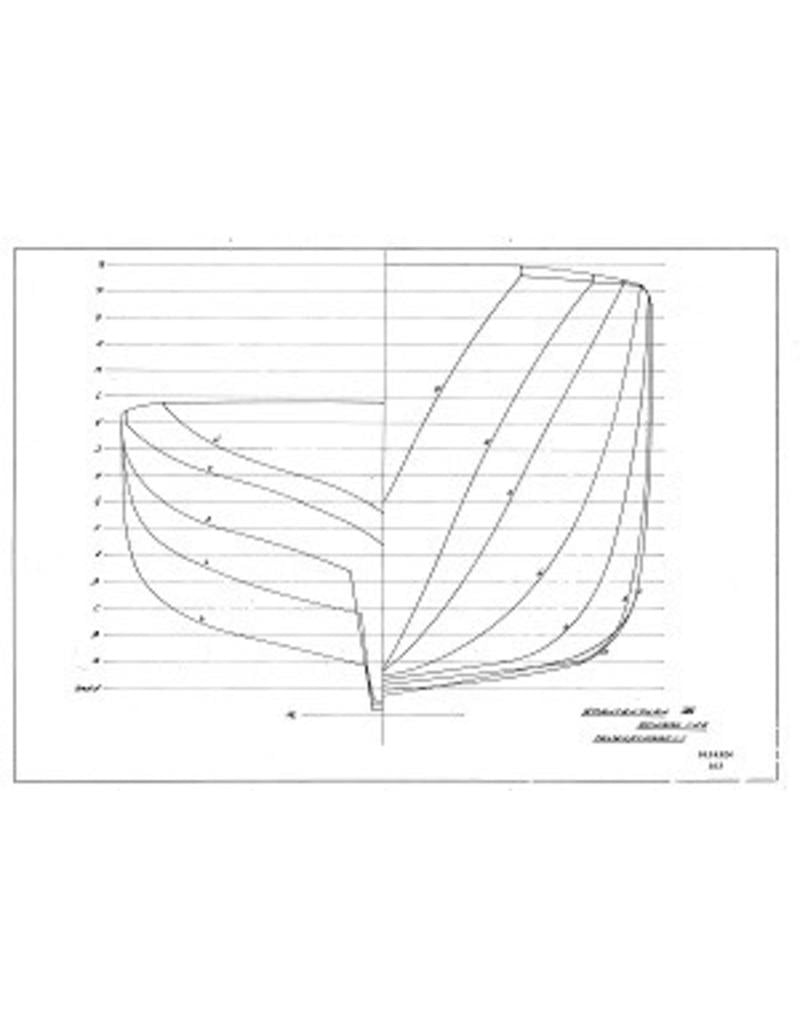

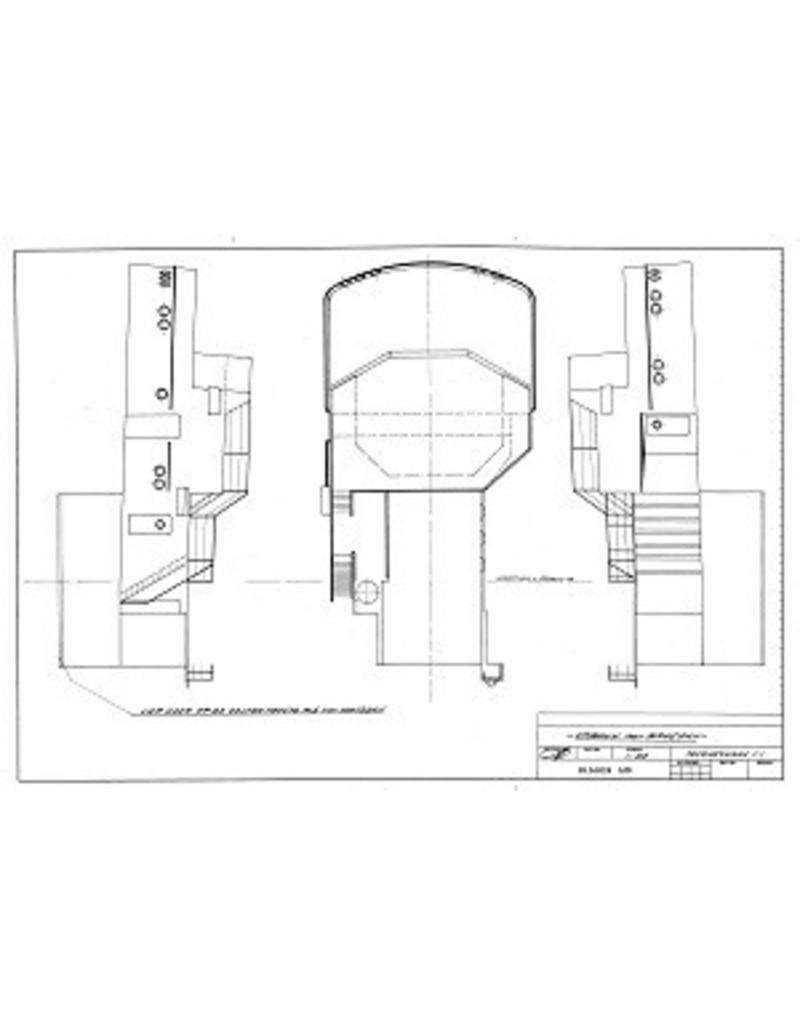

Quality |
frames; all construction frames and parts; side view; deck plan 1:100; details |
|
Scale |
1 : 25 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
13 |
|
Number of sheets A3 |
25 |
|
Number of sheets A4 |
33 |
|
Total number of drawing sheets |
71 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
525 |
|
Particulars |
l.o.a. 176 cm |
|
Remarks |
