| Article number: | 10.14.026/A |
Specifications :
|
Drawing number |
10.14.026/A |
|
Description |

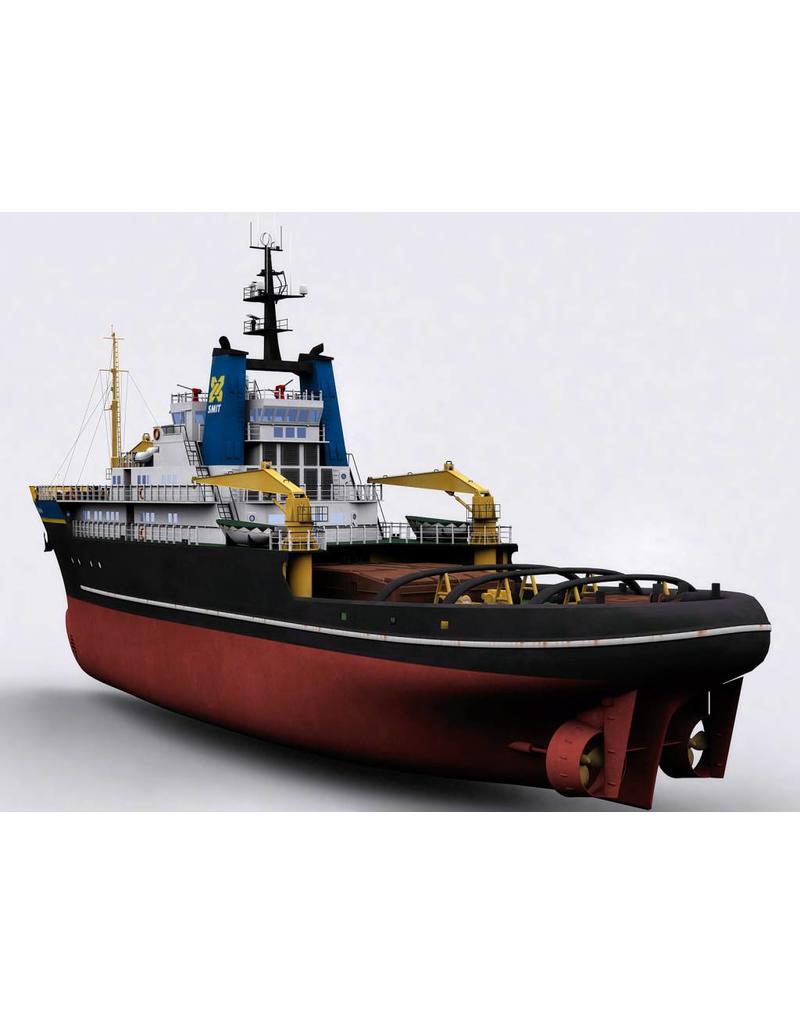

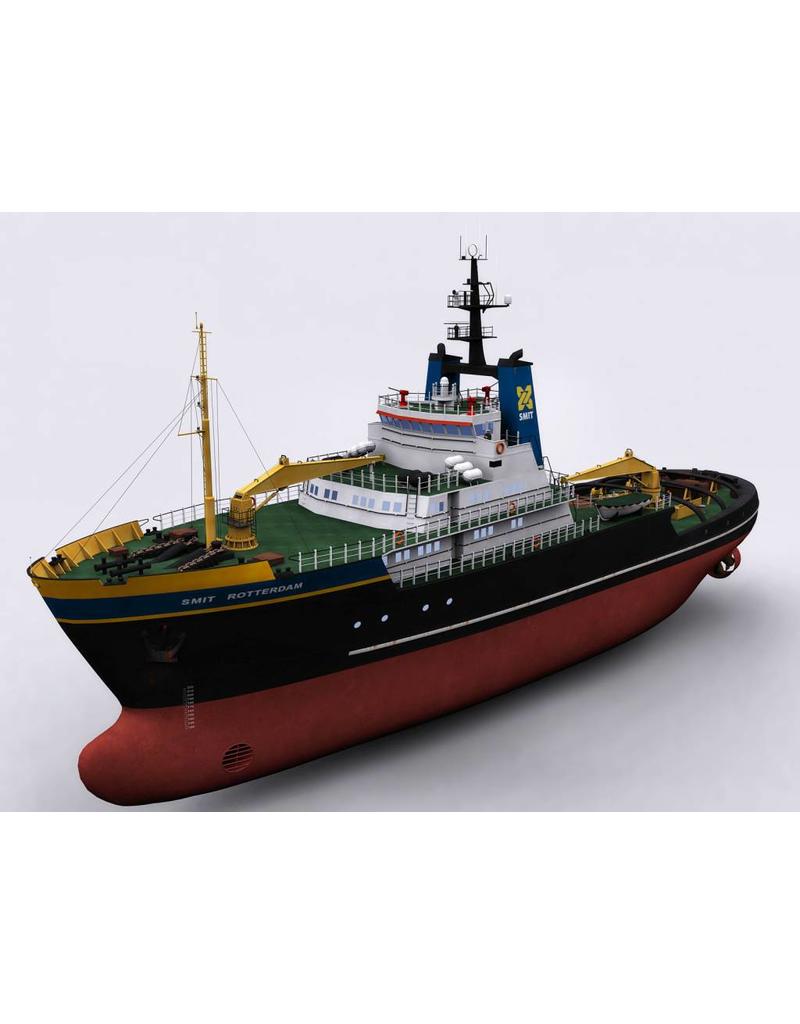

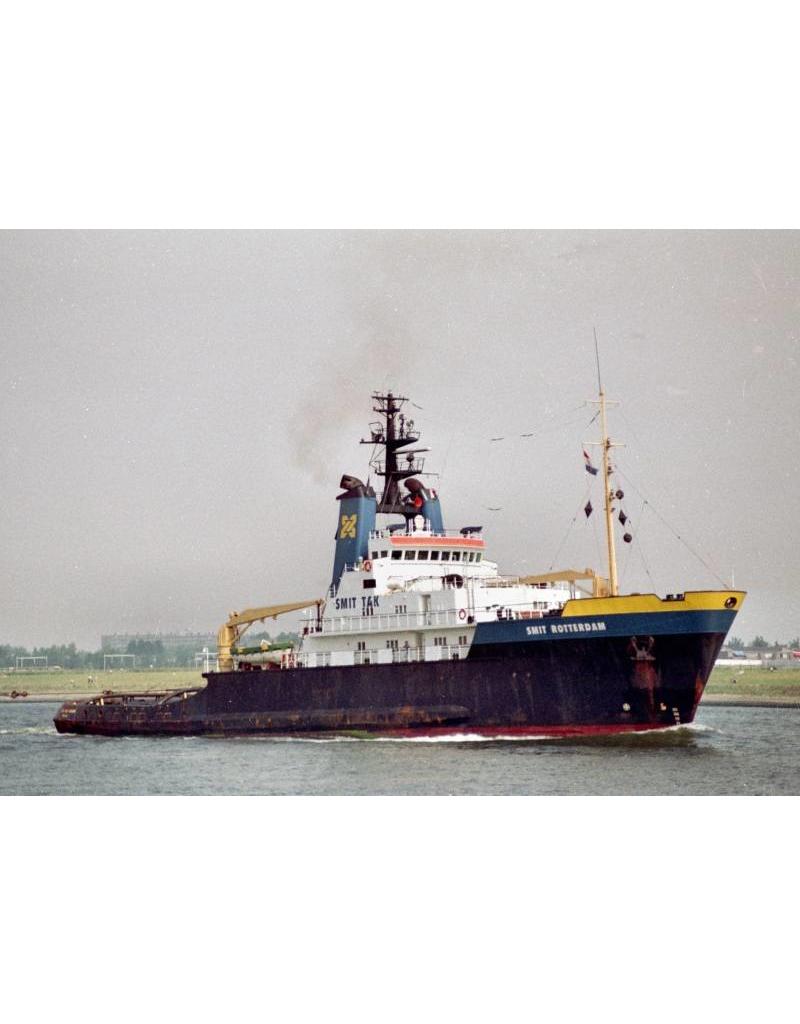

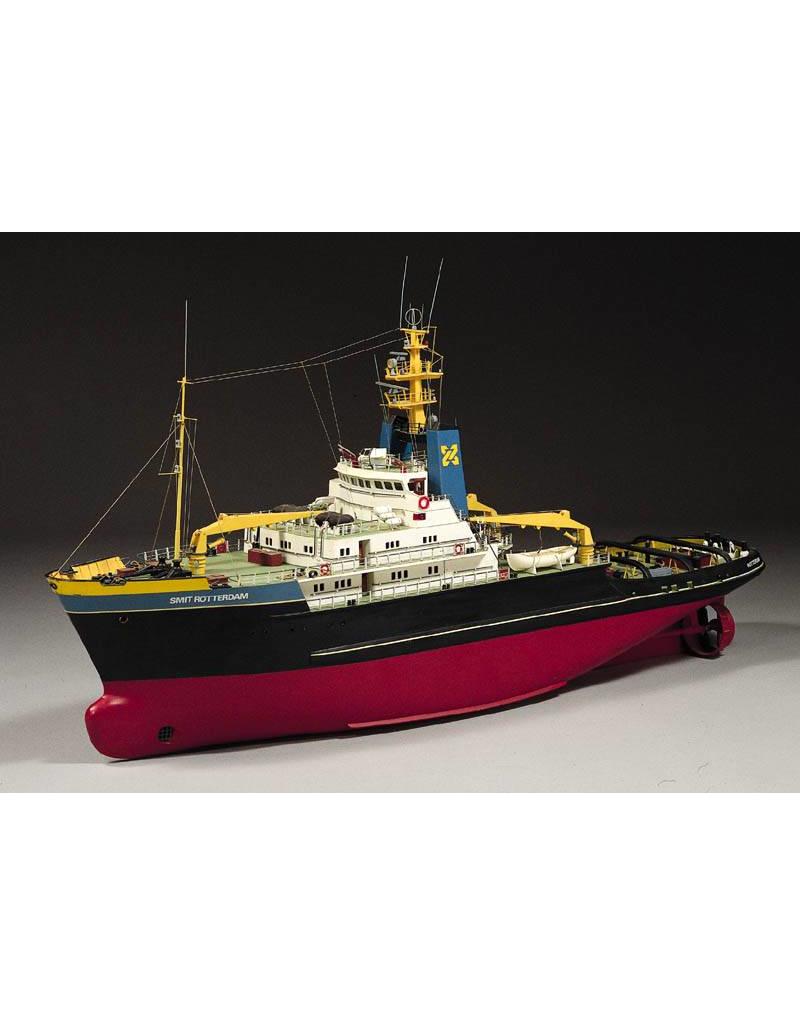

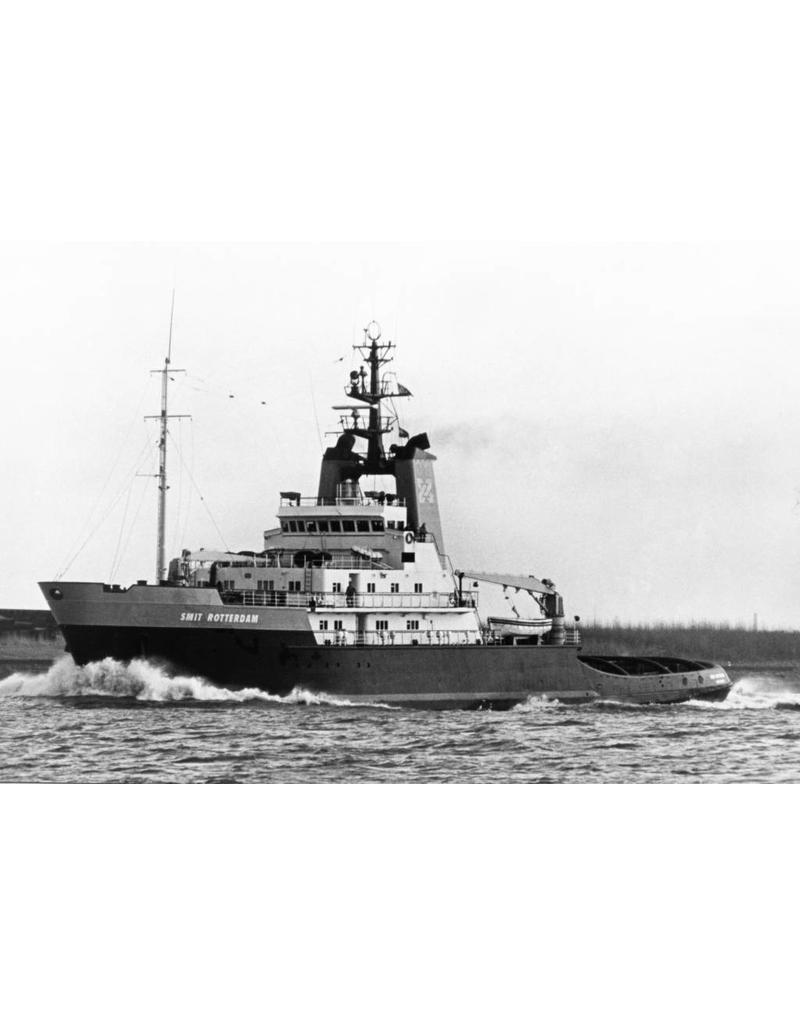

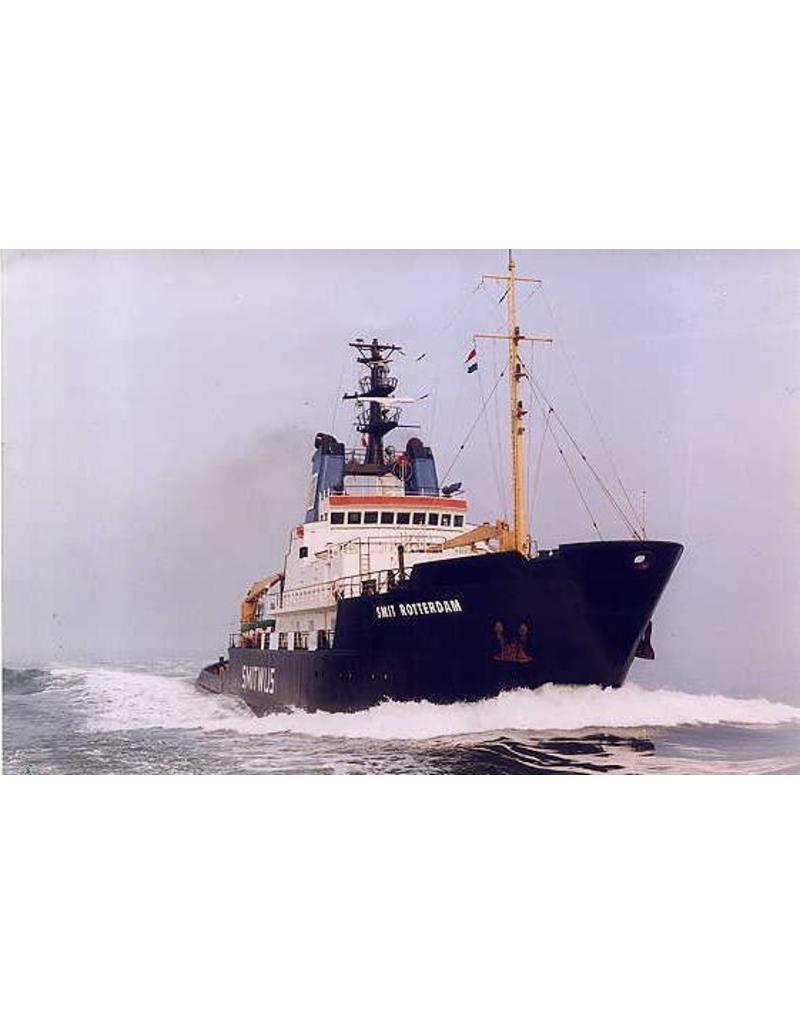

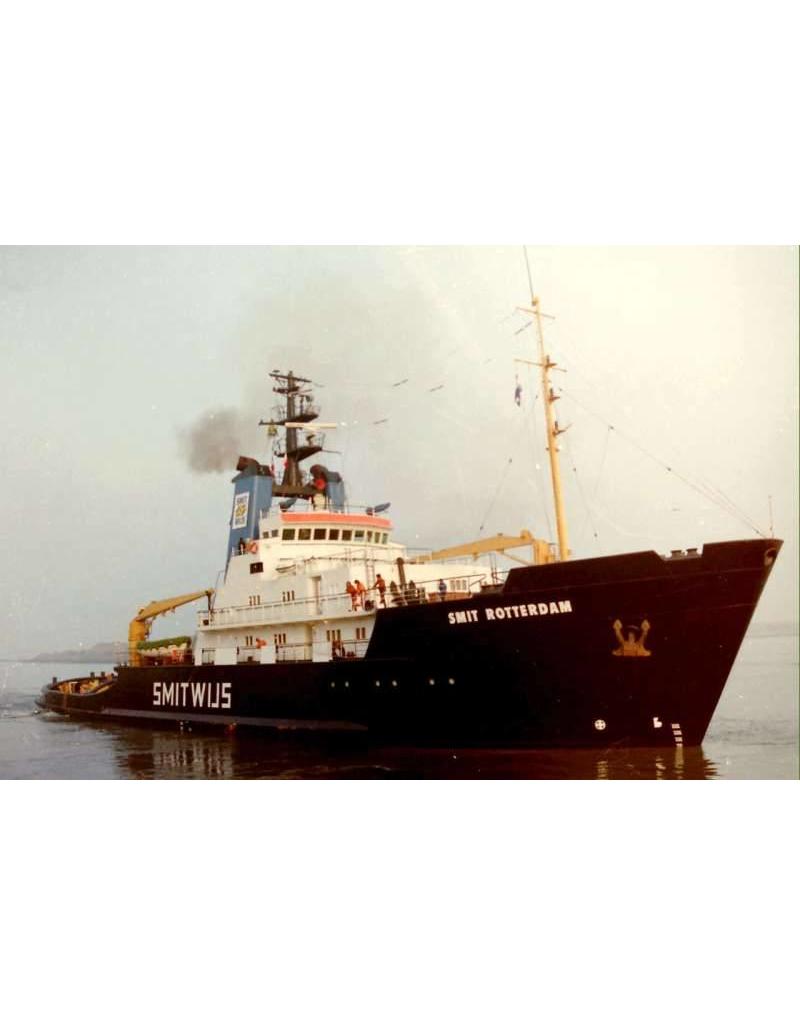

seagoing tugboat MV "Smit Rotterdam" (1975), "Smit London" (1974) - Smit Internationale |
|
Quality |

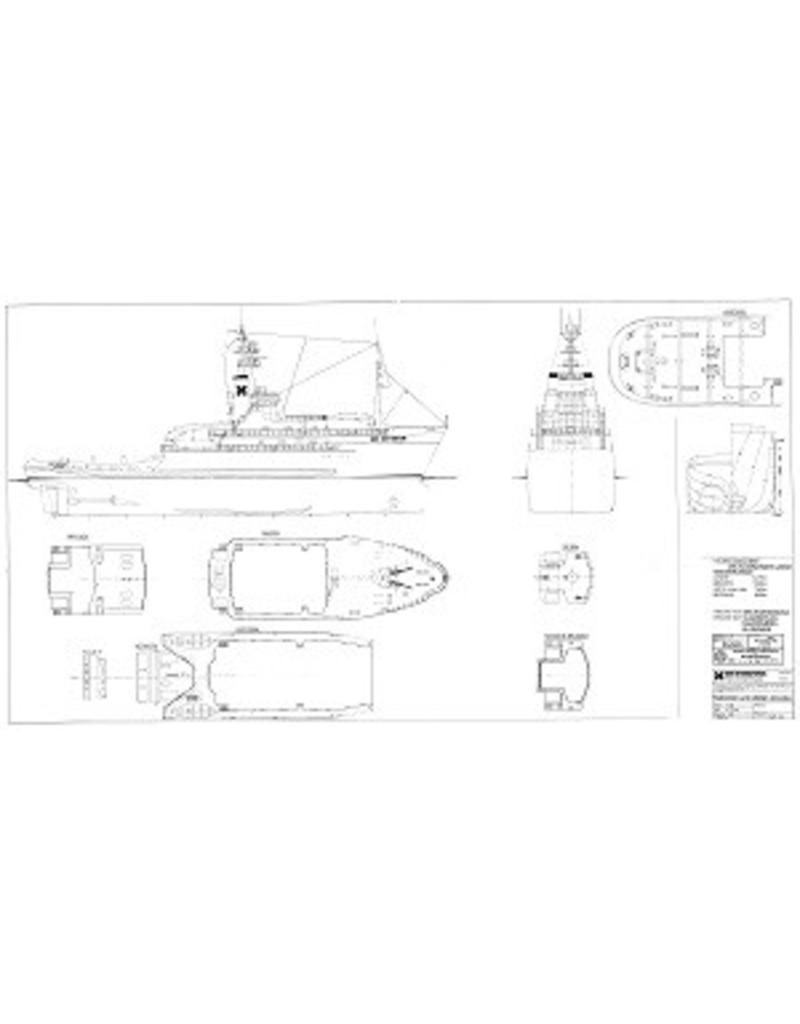

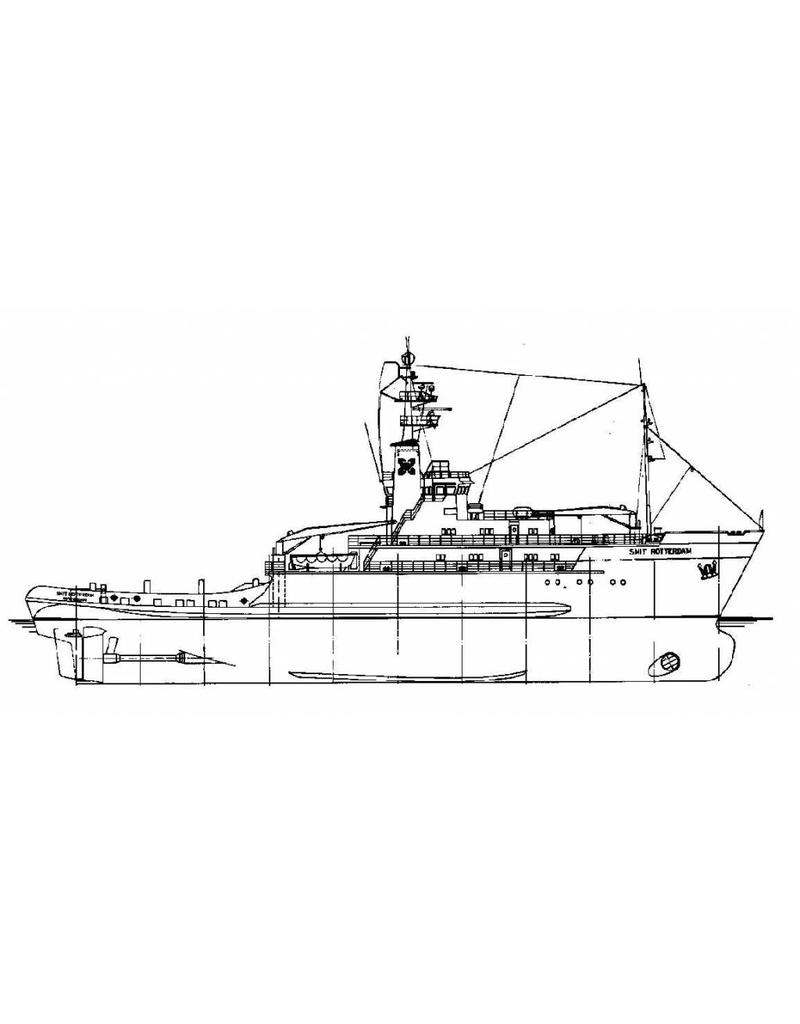

frames; side view; deck plans; some details |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
1 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
65 |
|
Particulars |
the same ship, on a smaller scale and less detailed |
|
Remarks |
