| Article number: | 10.14.028 |
Specifications :
|
Drawing number |
10.14.028 |
|
Author |
A.J.v.d. Kaay |
|
Description |

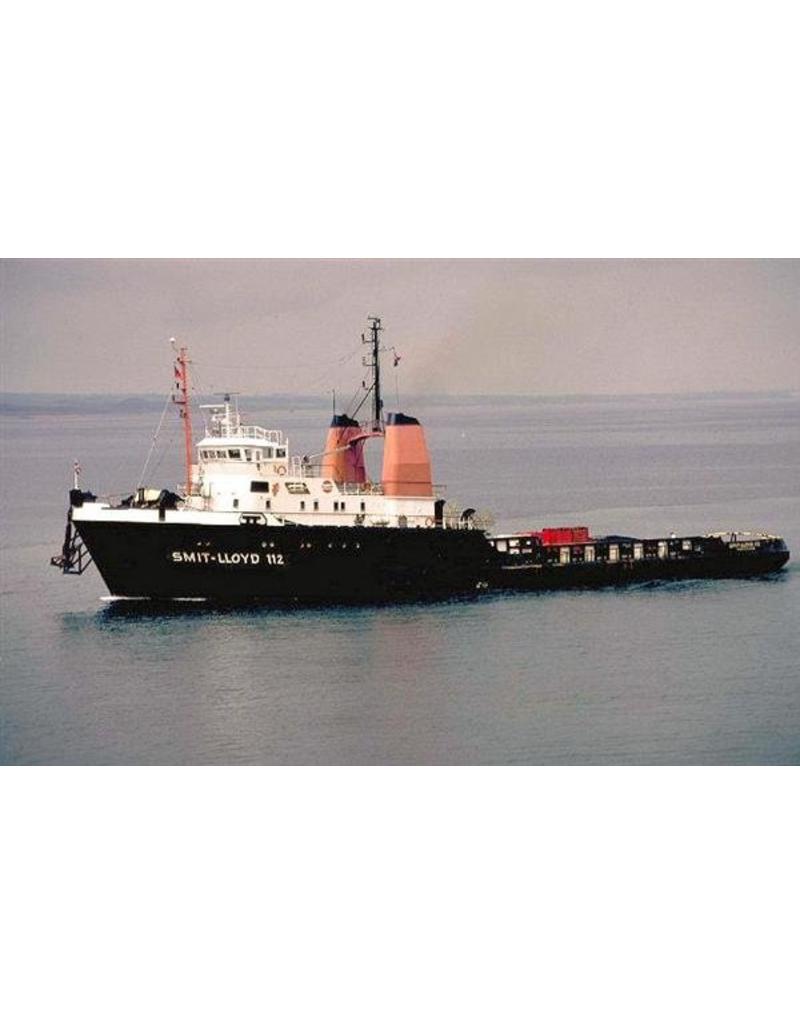

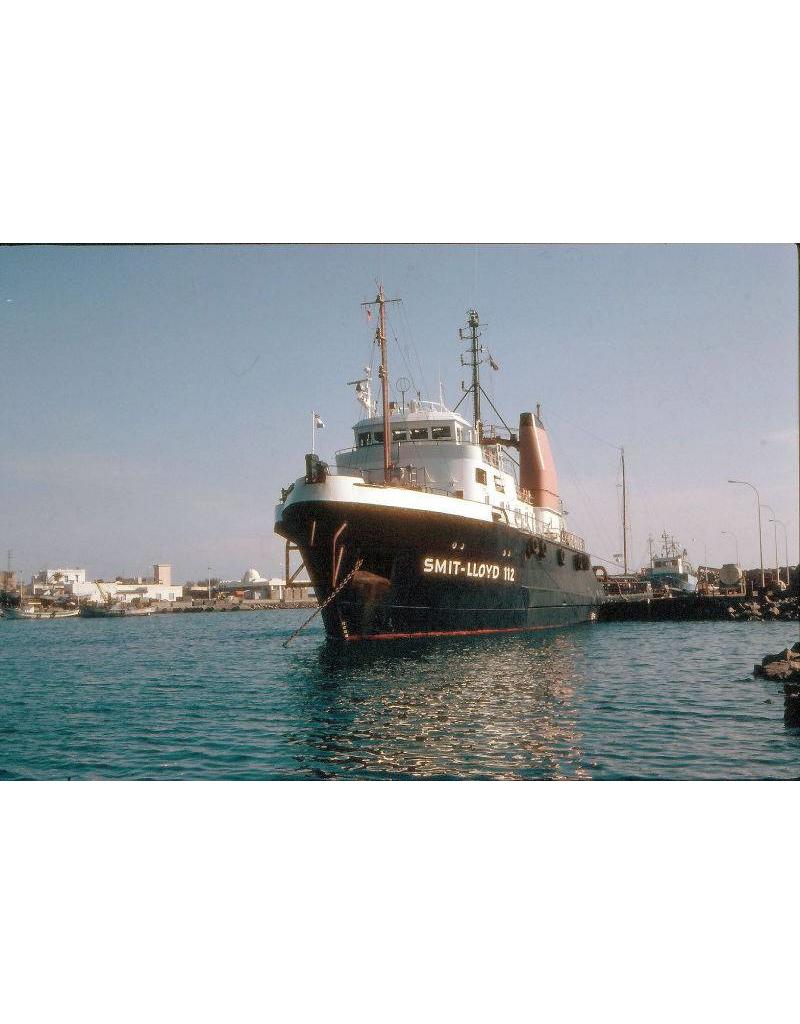

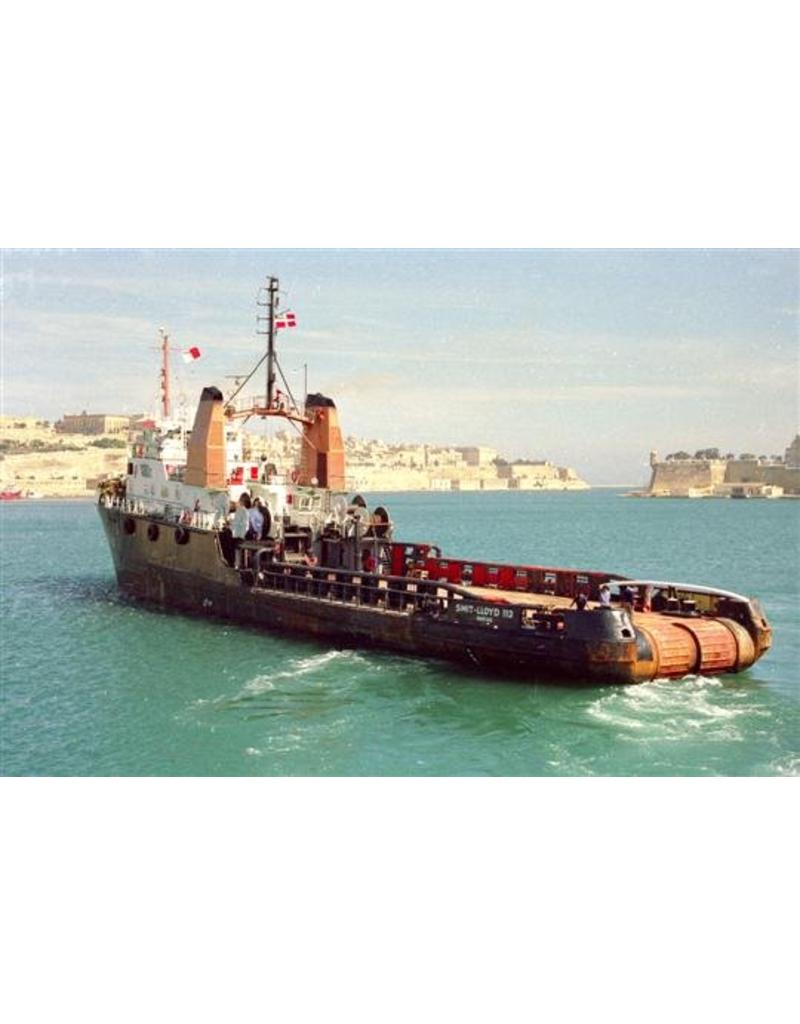

supply tug ms "Smit Lloyd 112" (1975) - Smit-Lloyd |
|
Quality |

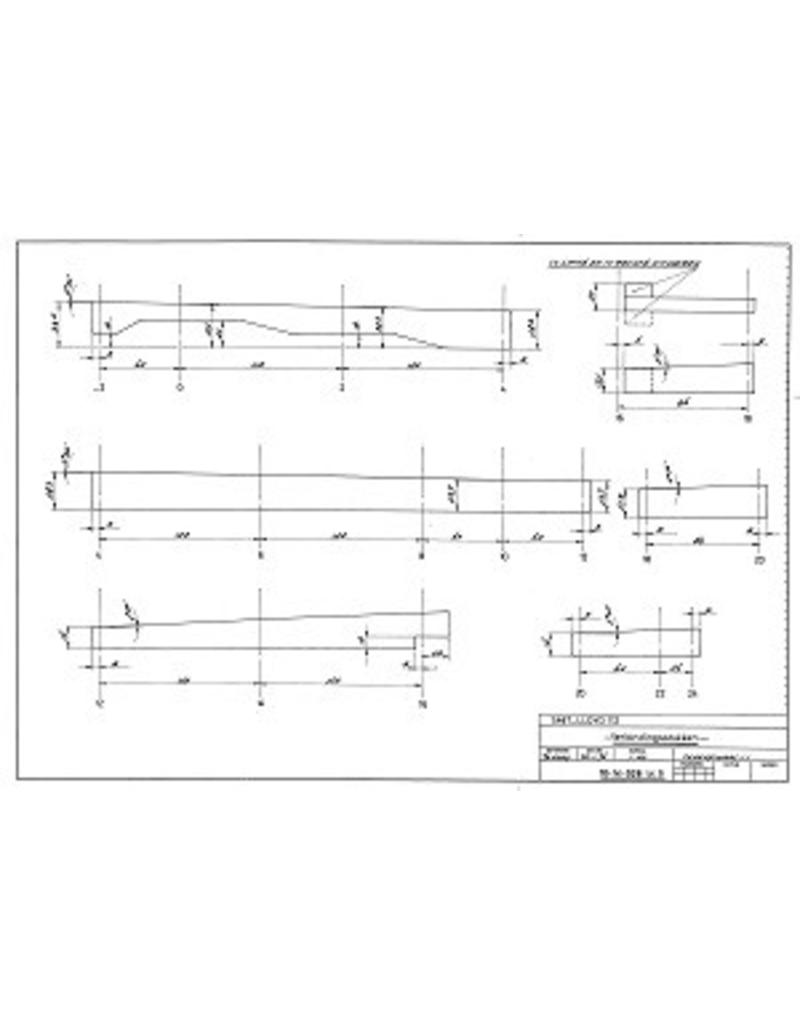

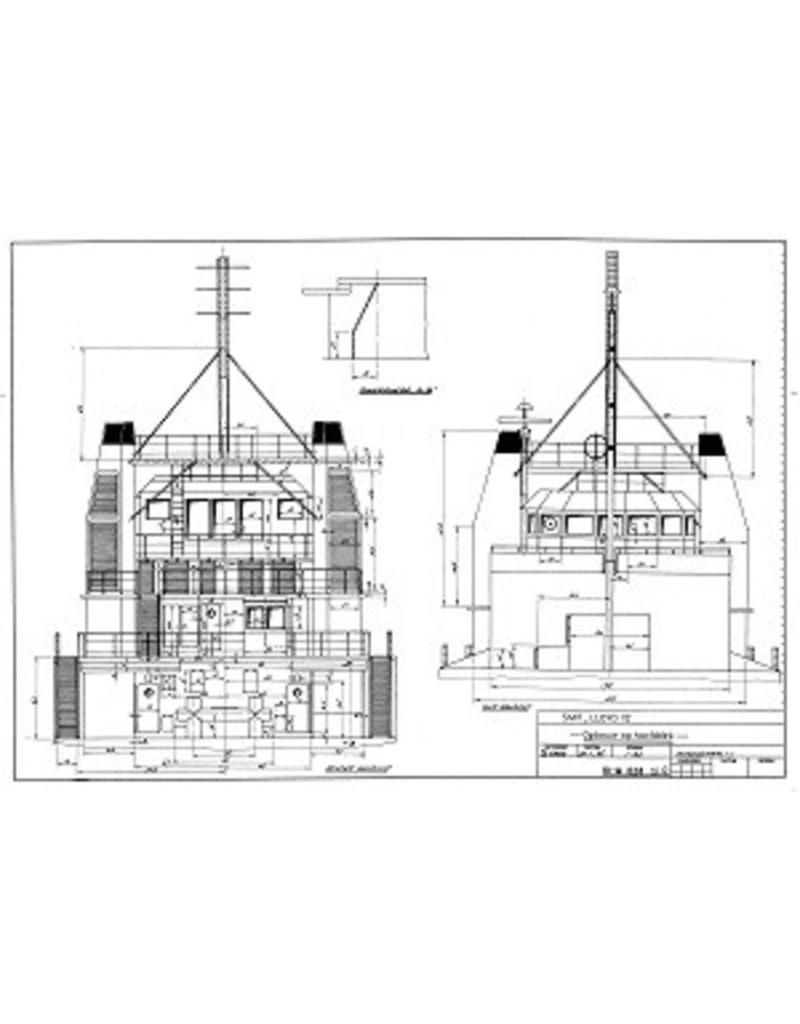

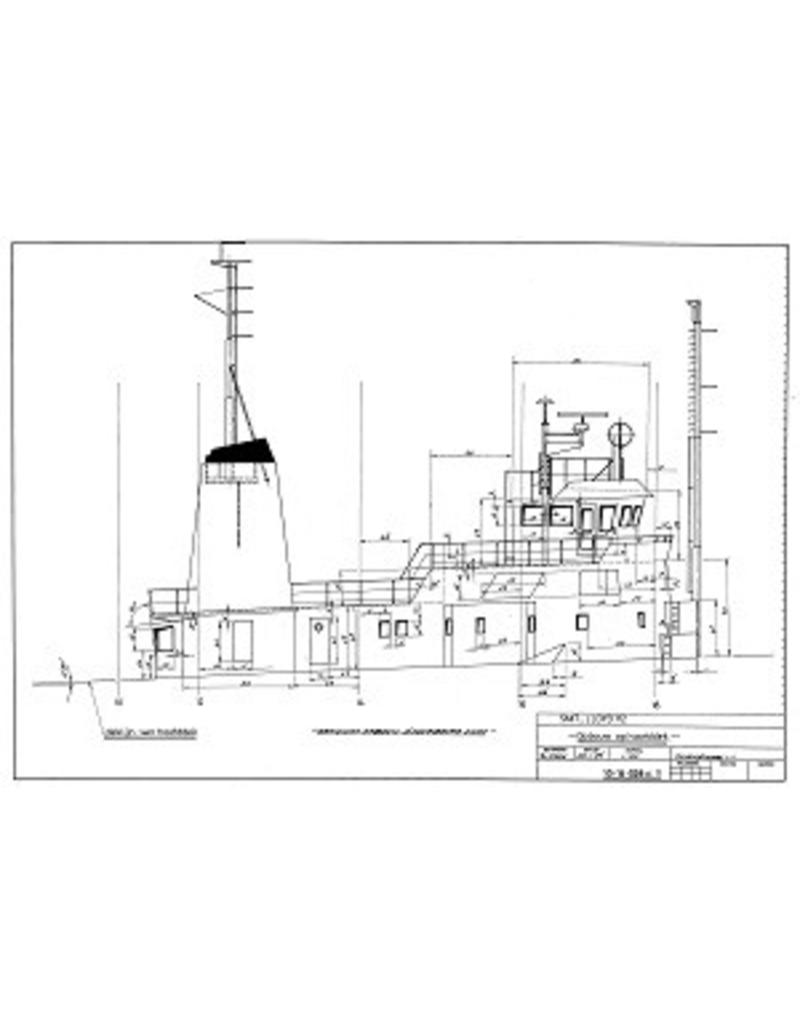

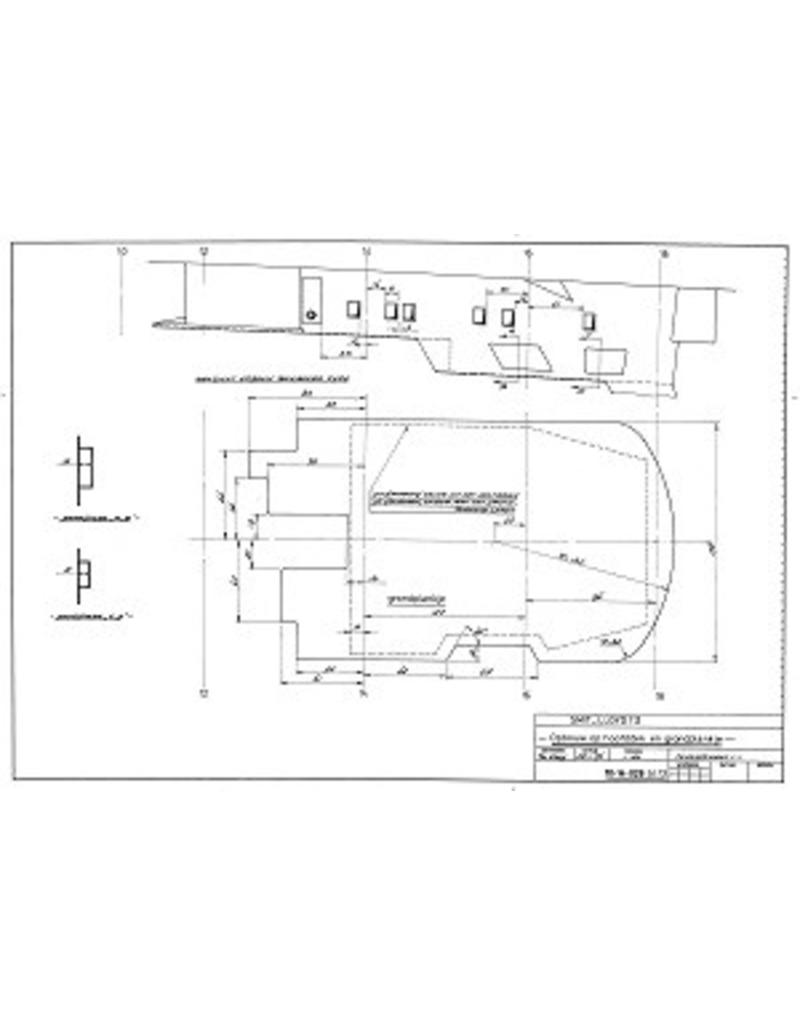

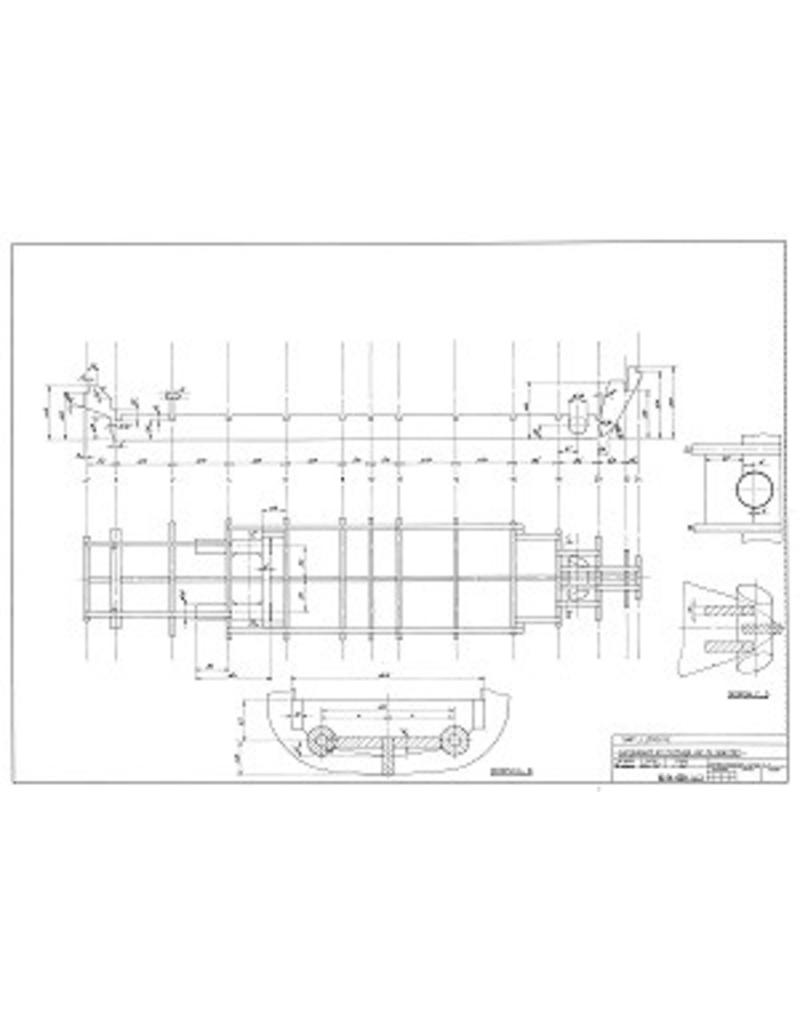

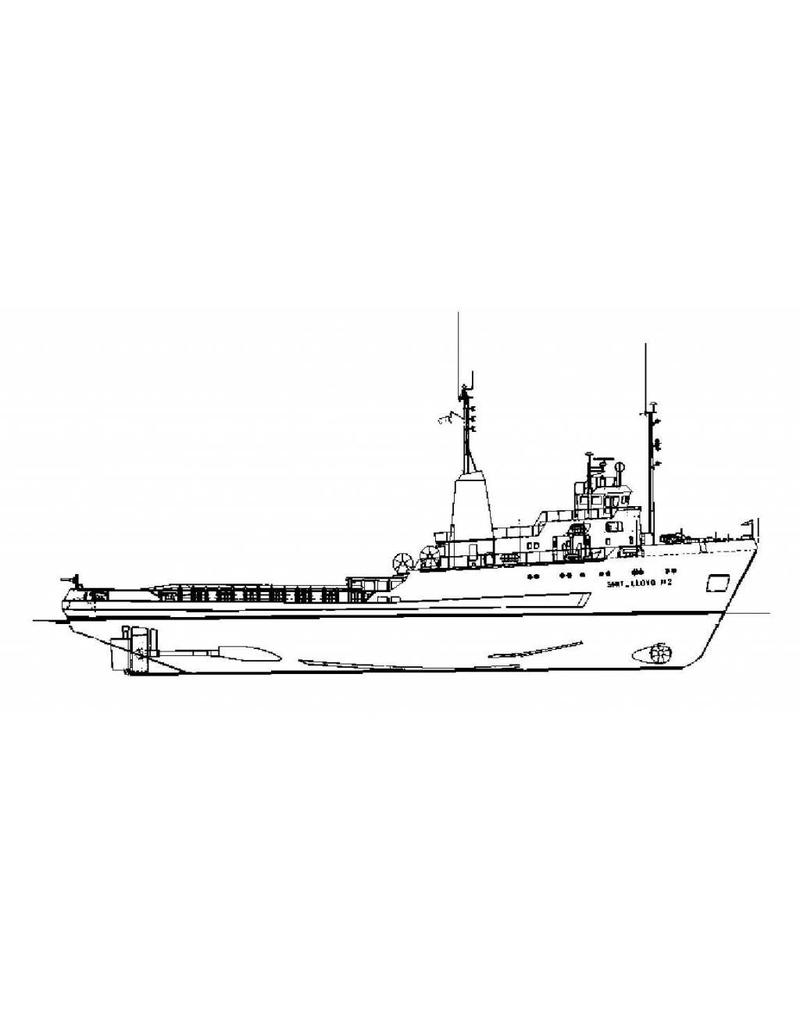

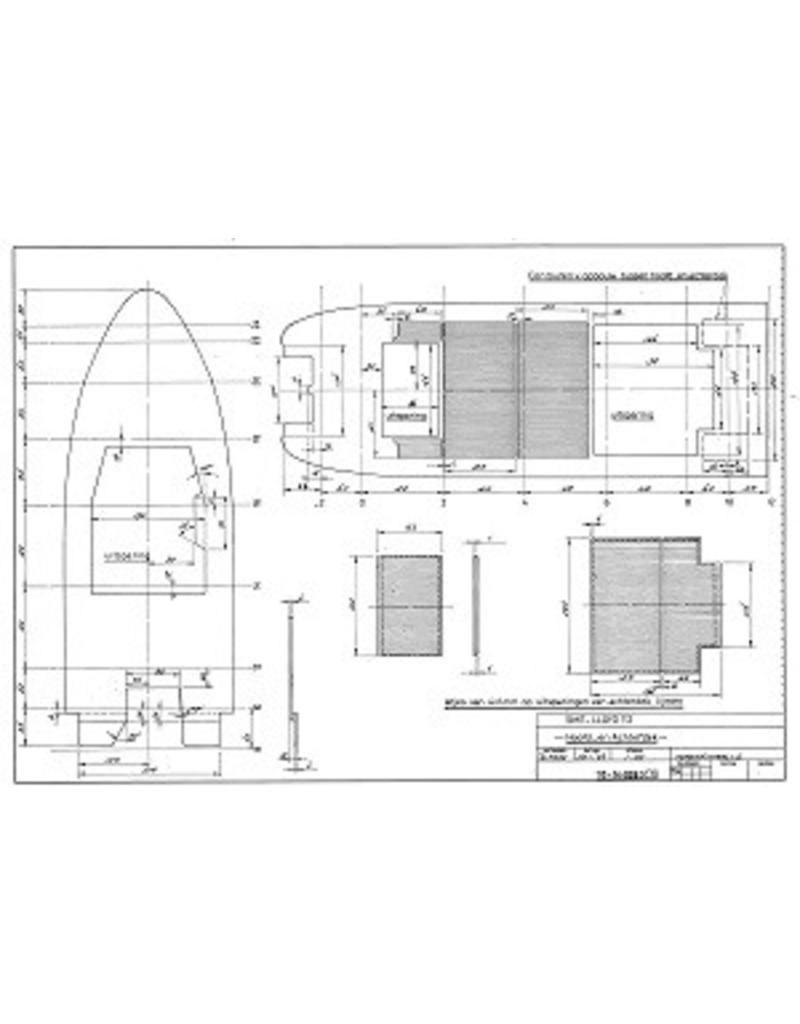

frames; construction frames and all parts; side view; deck plan; details |
|
Scale |
1 : 50 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
2 |
|
Number of sheets A2 |
16 |
|
Number of sheets A3 |
2 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
20 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
445 |
|
Particulars |
l.o.a. 65 cm |
|
Remarks |
sister ships? |
