| Article number: | 10.14.041 |
Specifications :
|
Drawing number |
10.14.041 |
|
Author |
A.J.M Nijenhuis |
|
Description |

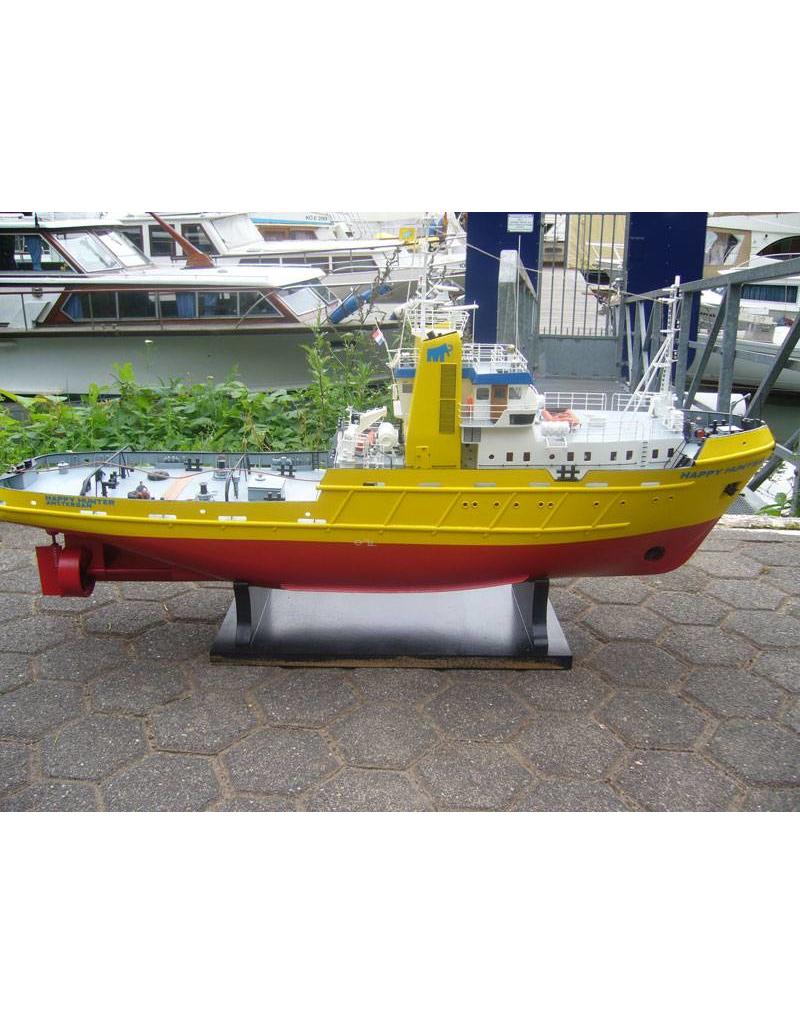

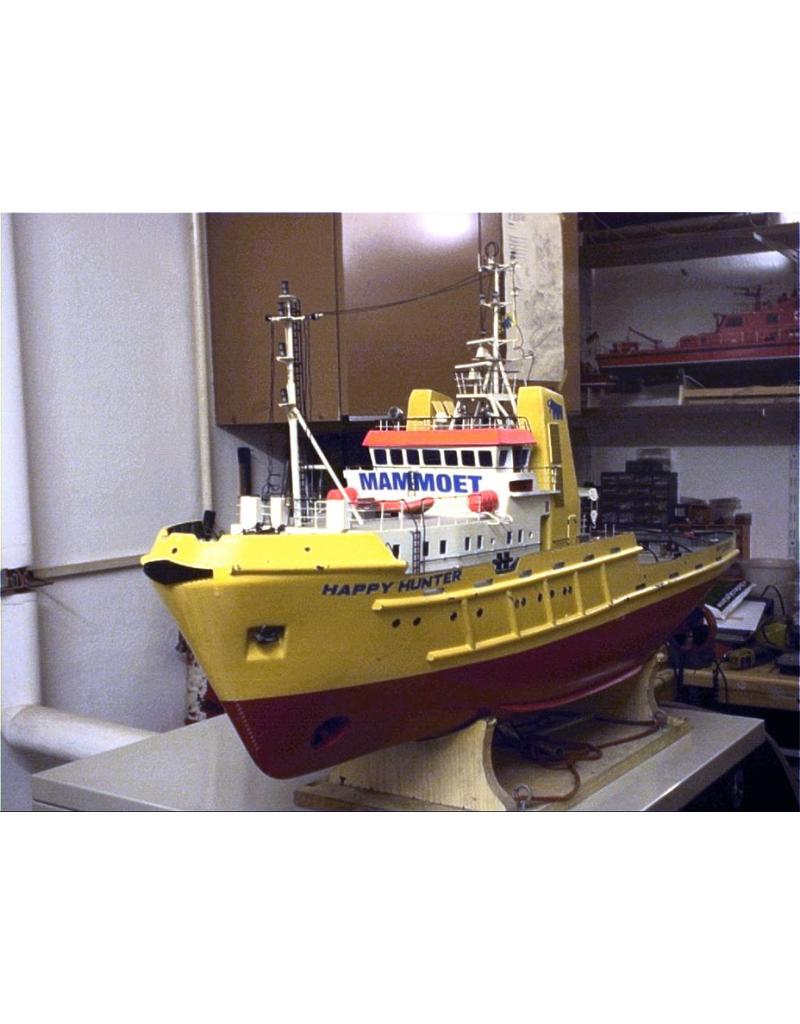

ocean-going tug ms "Happy Hunter" (1976) - Mammoet Shipping; after 1982 "Smit Hunter" |
|
Quality |

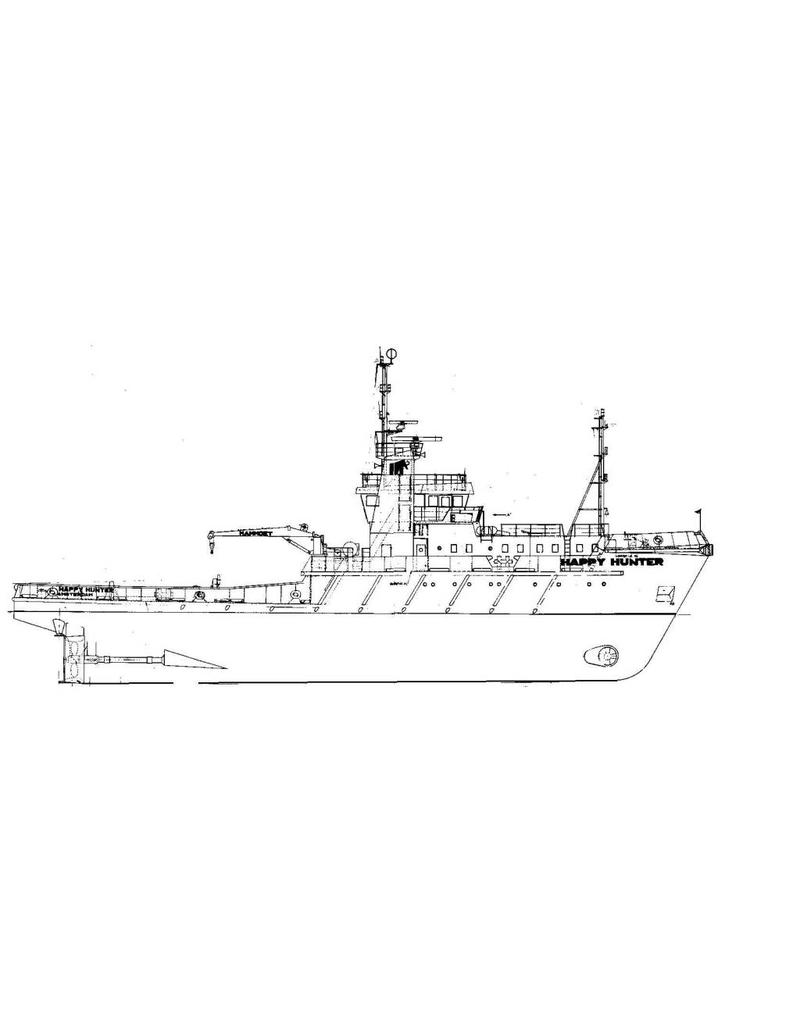

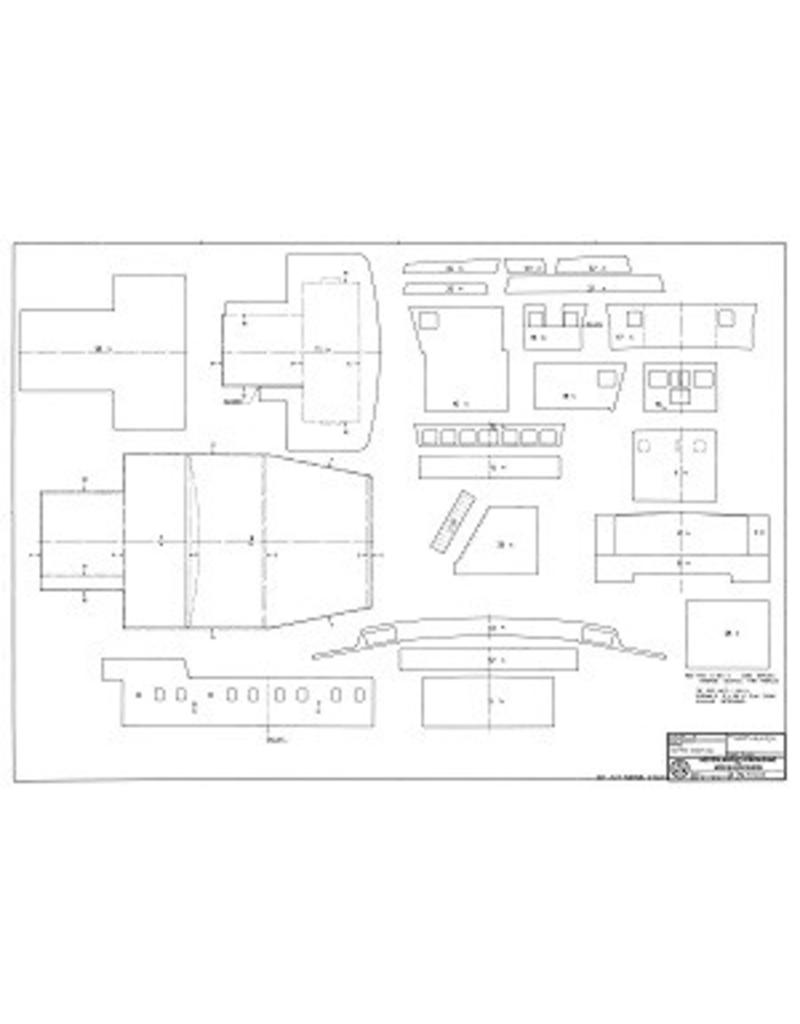

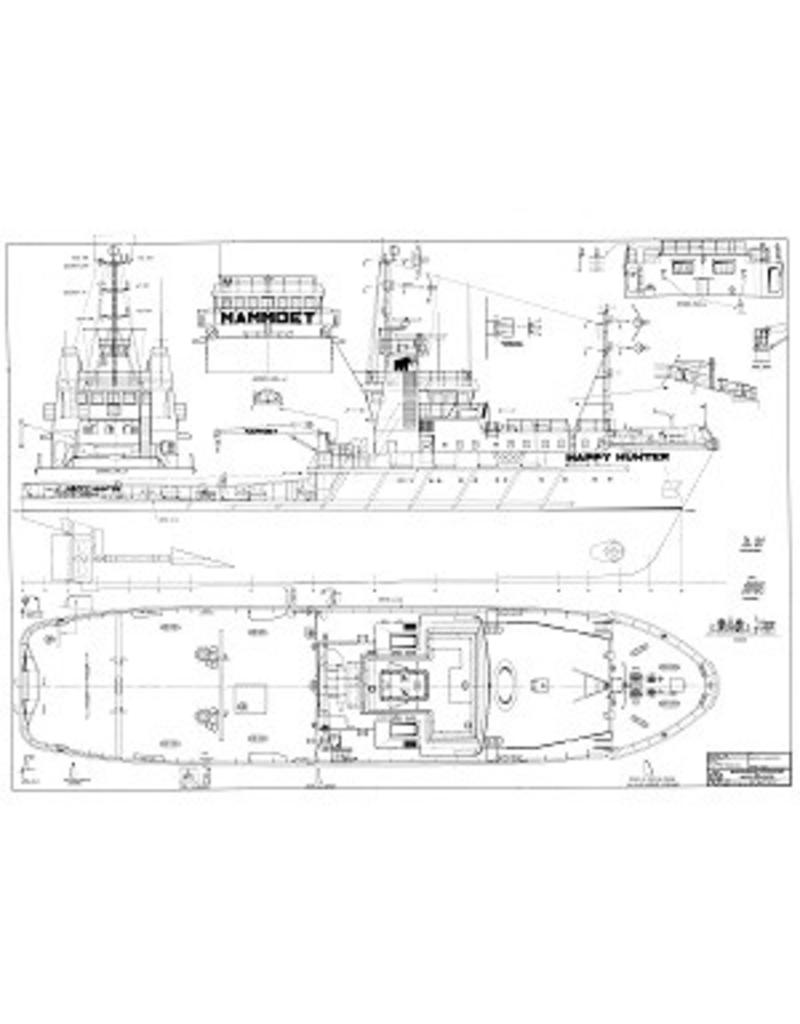

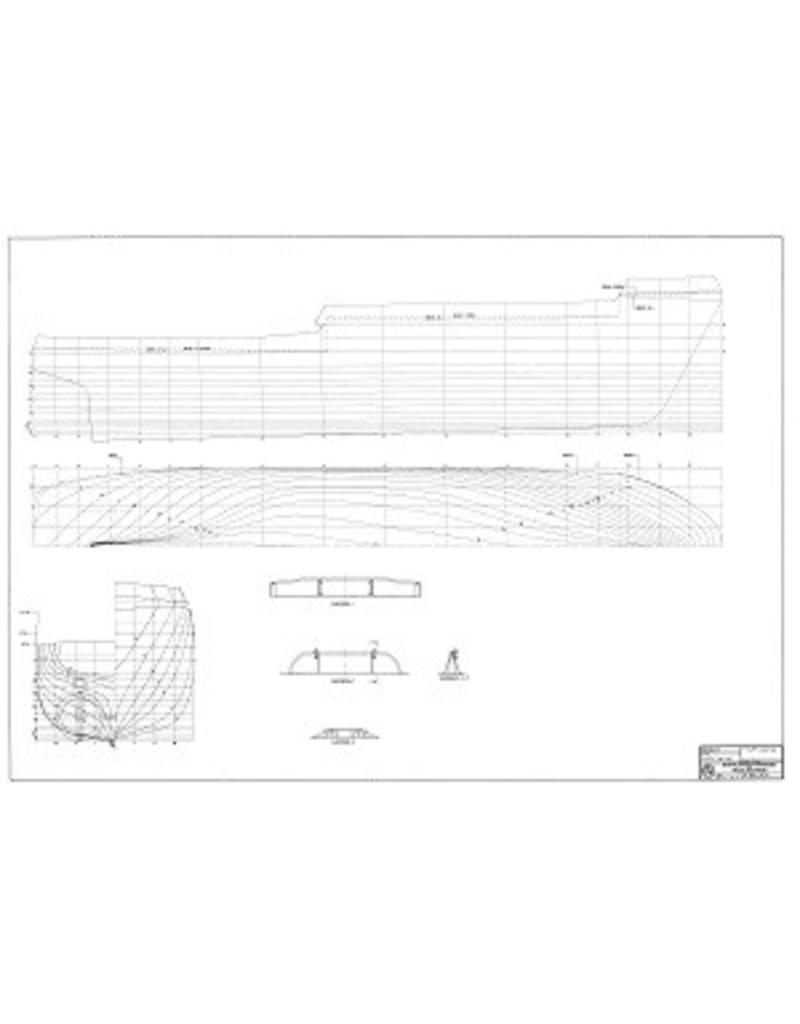

sp/lines; side view; deck plan; superstructure components; details |
|
Scale |
1 : 50 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
2 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
1 |
|
Total number of drawing sheets |
4 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
230 |
|
Particulars |
l.o.a. 104 cm |
|
Remarks |
