| Article number: | 10.14.043 |
Specifications :
|
Drawing number |
10.14.043 |
|
Author |
H.J.J.Tullemans |
|
Description |

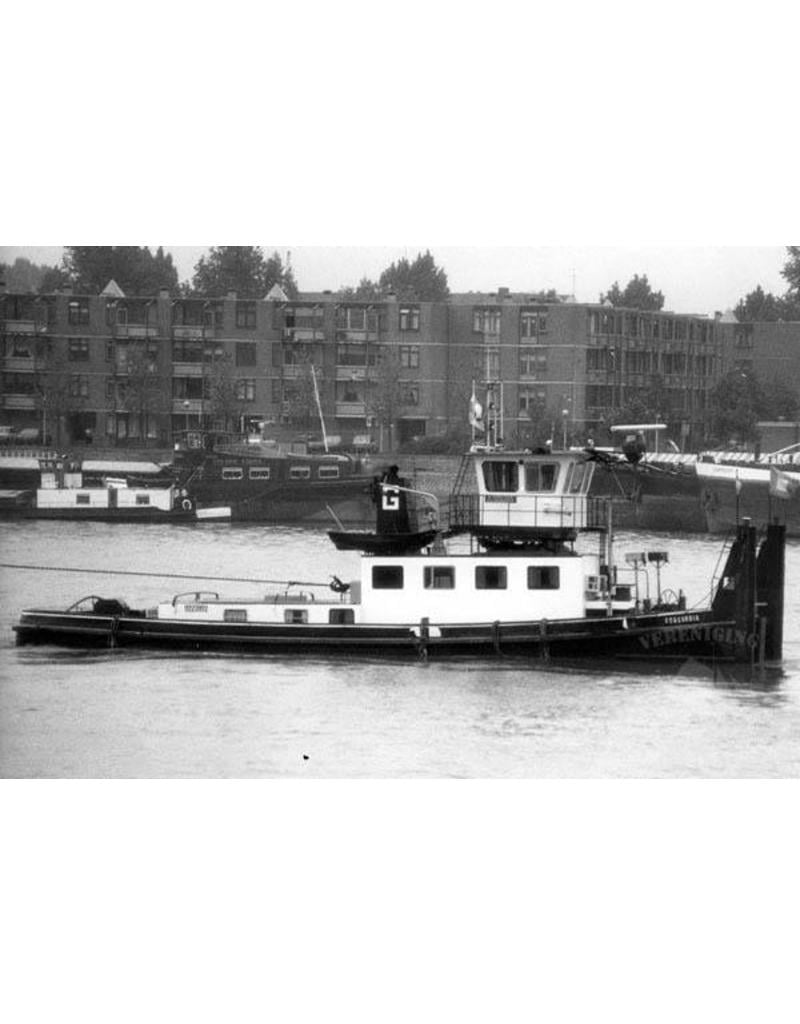

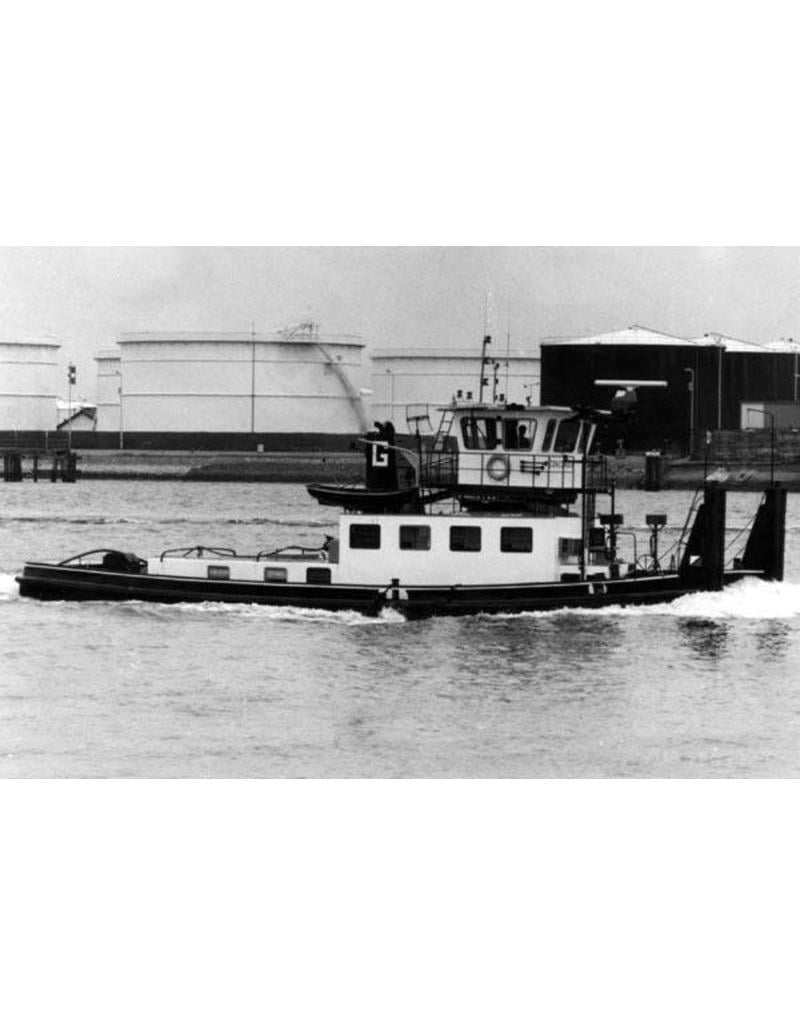

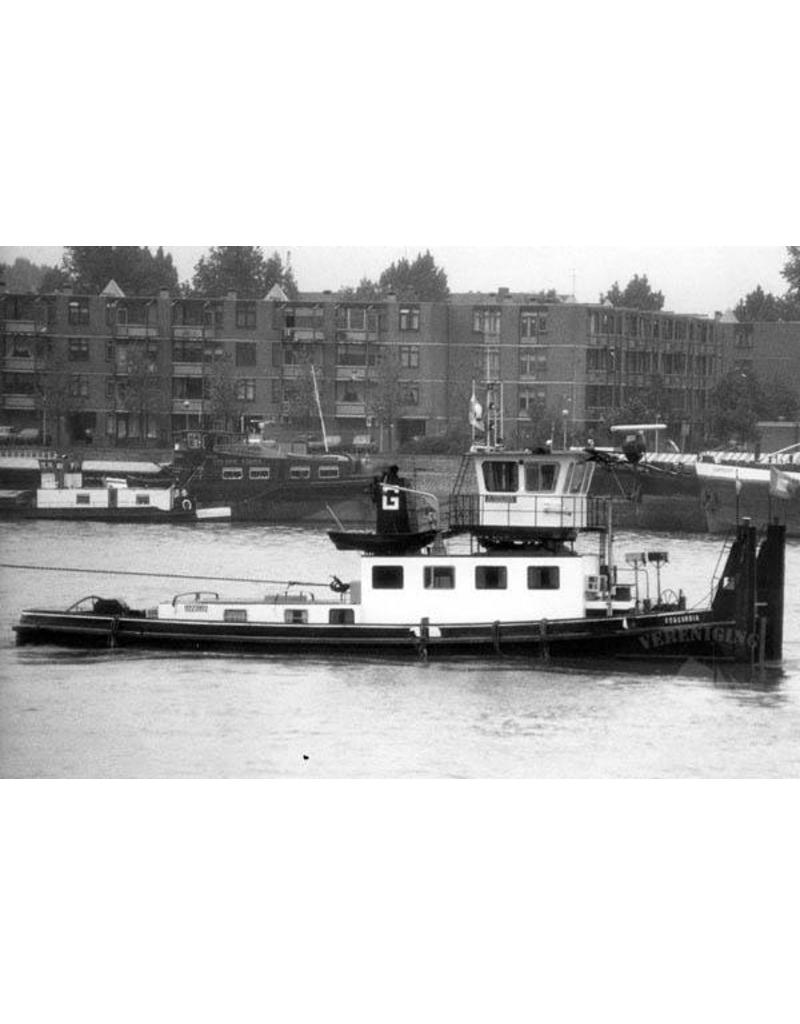

pusher tug ms "Concordia" (1940) -A.C.M. Garsten, Zwijndrecht |
|
Quality |

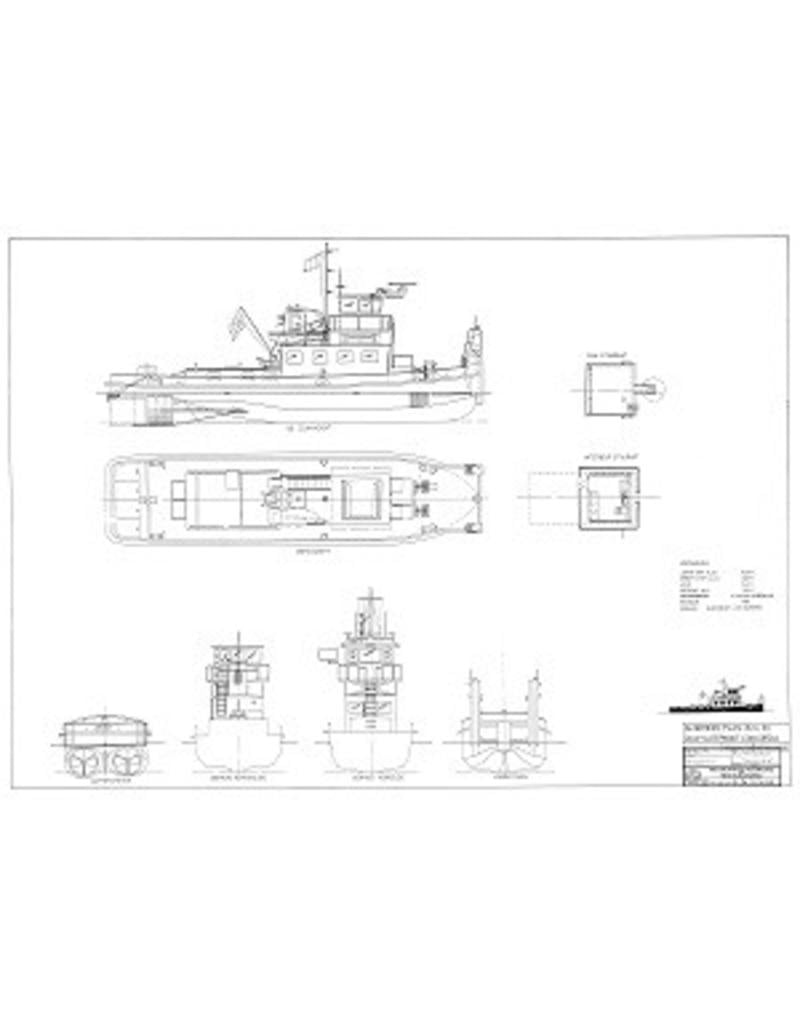

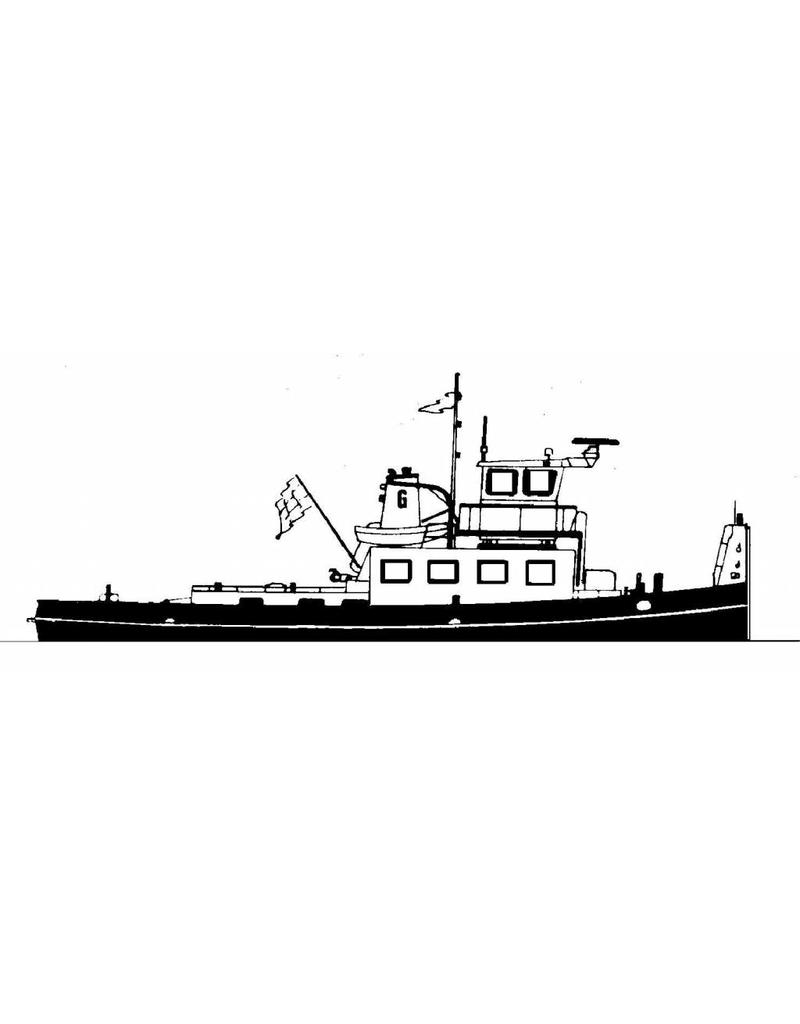

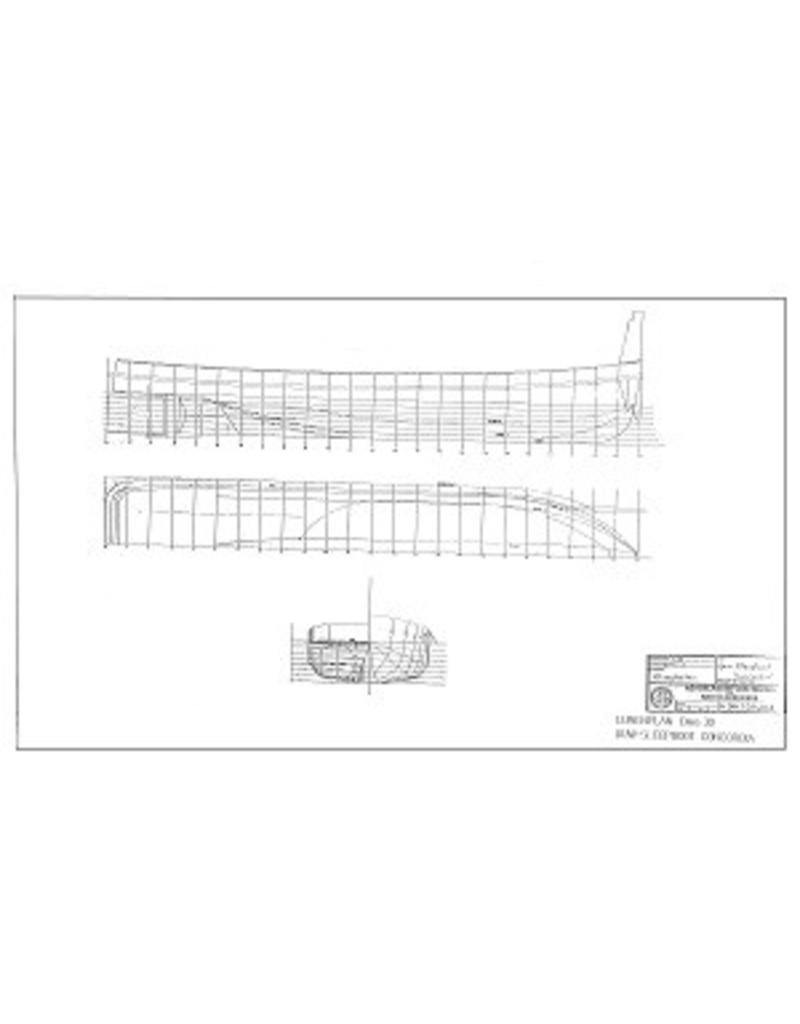

sp/lines; side view; deck plan |
|
Scale |
1 : 50 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
105 |
|
Particulars |
l.o.a. 48 cm |
|
Remarks |
