| Article number: | 10.14.066/A |
Specifications :
|
Drawing number |
10.14.066/A |
|
Description |

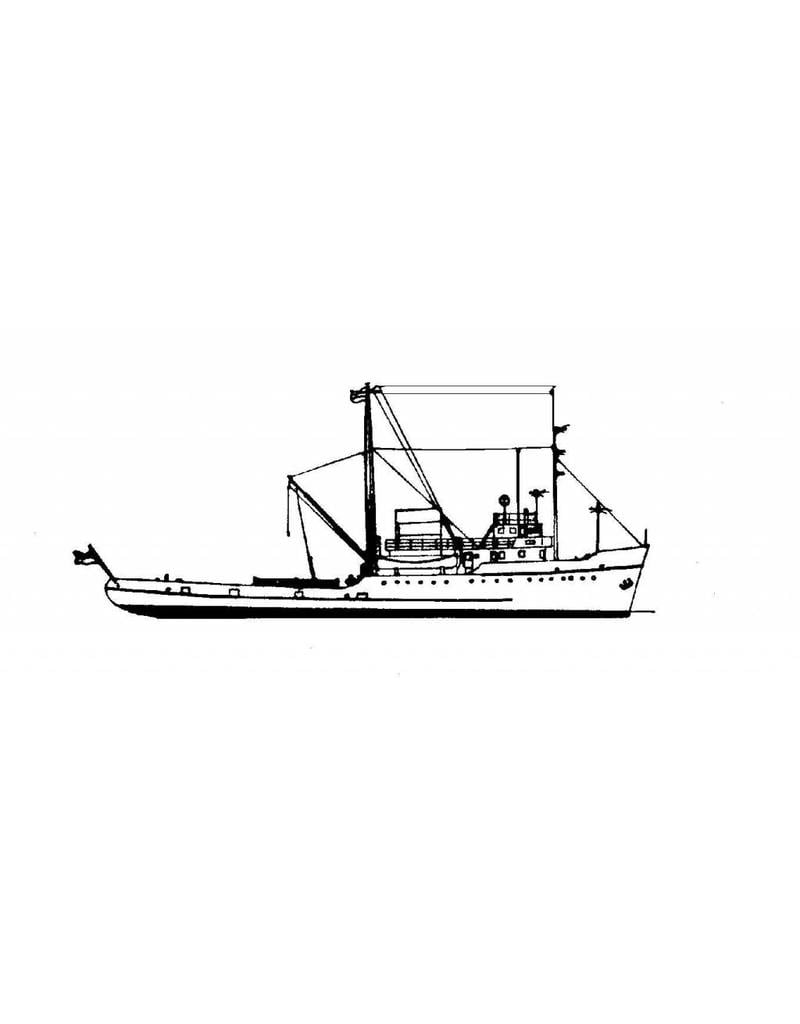

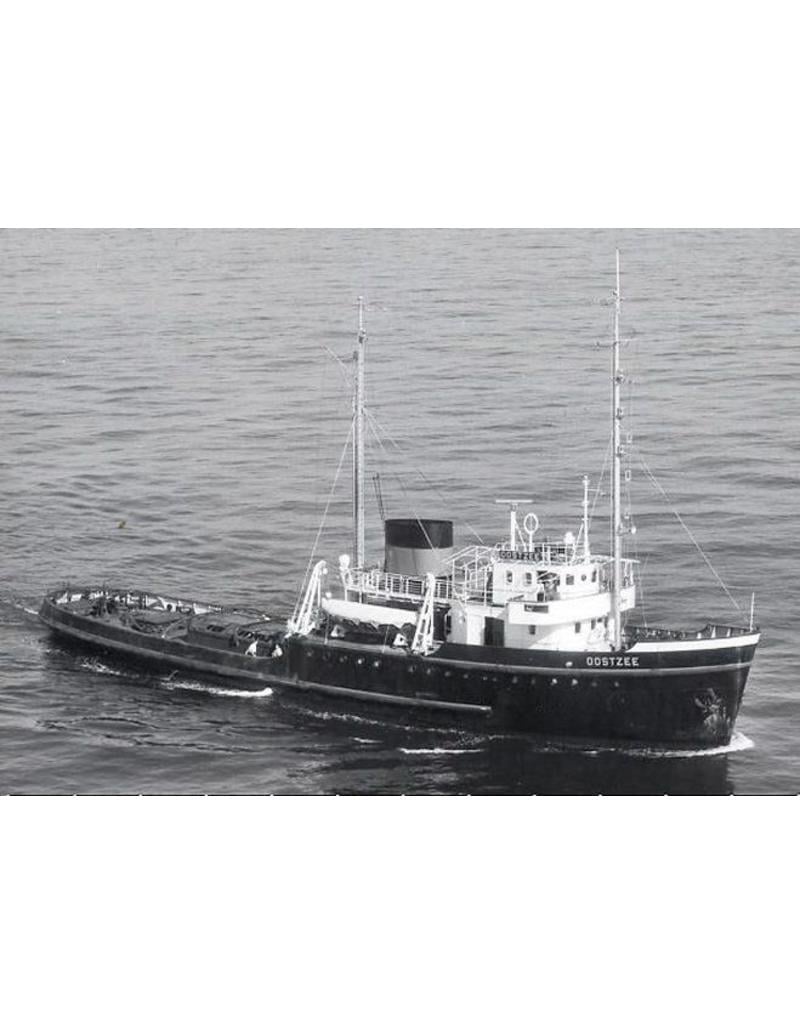

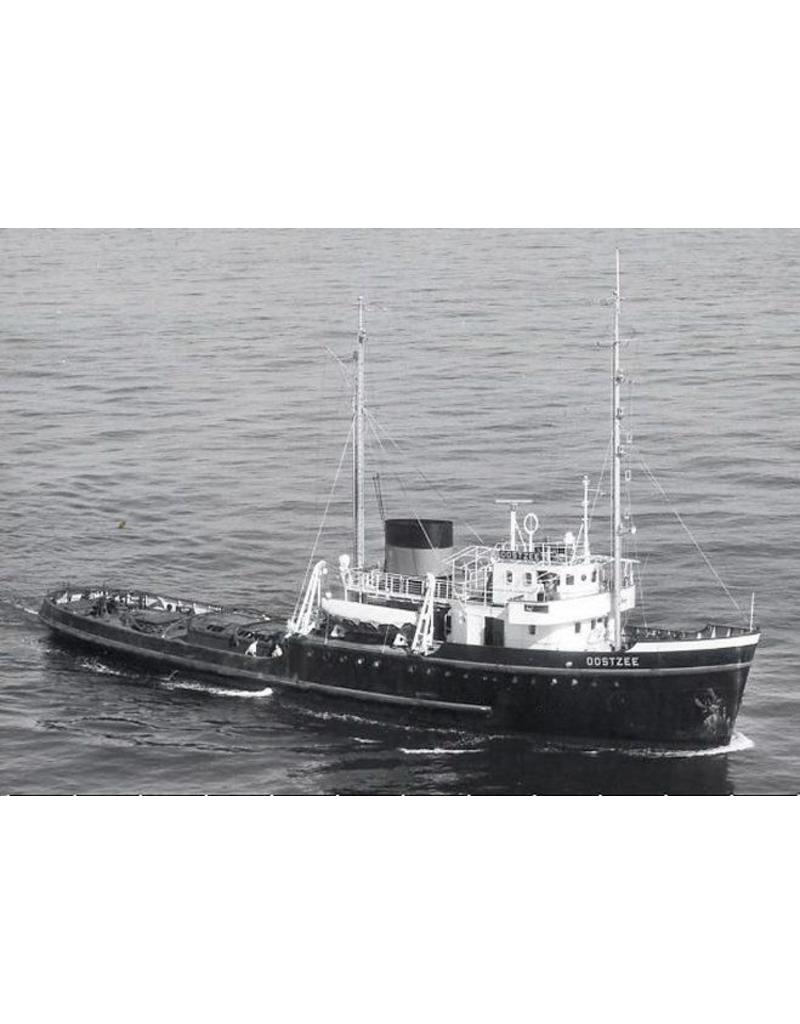

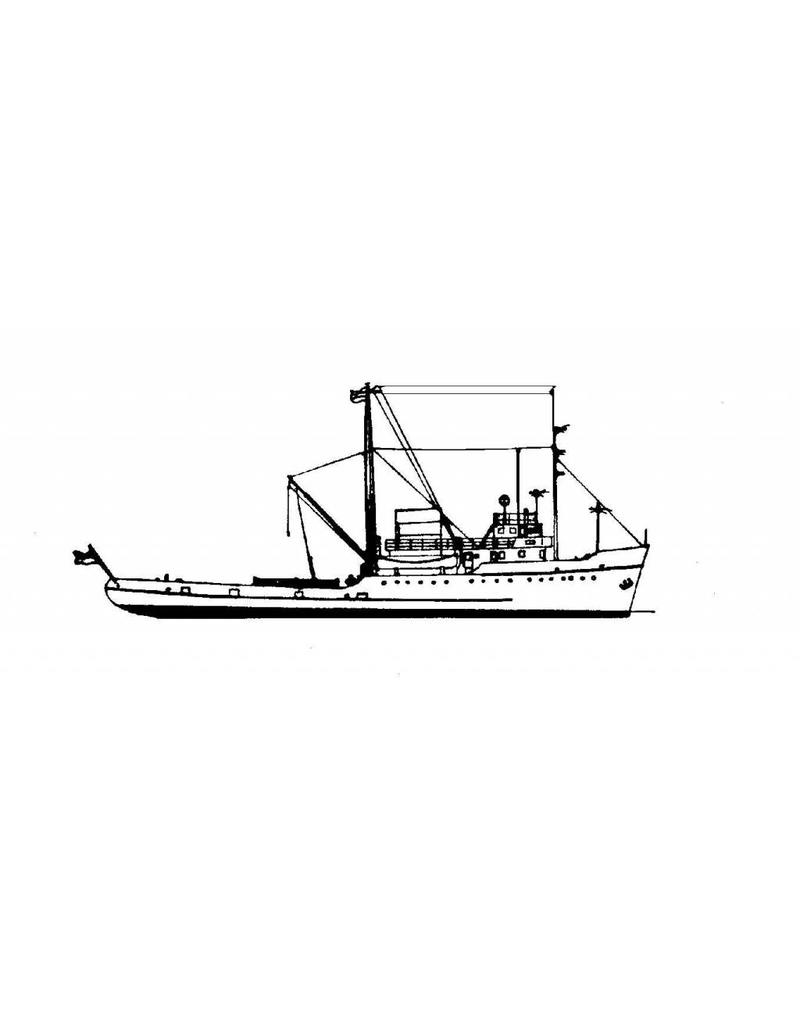

Seagoing tug ms "Oostzee" (1954) - L. Smit & Co's International Towage Company |
|
Content |

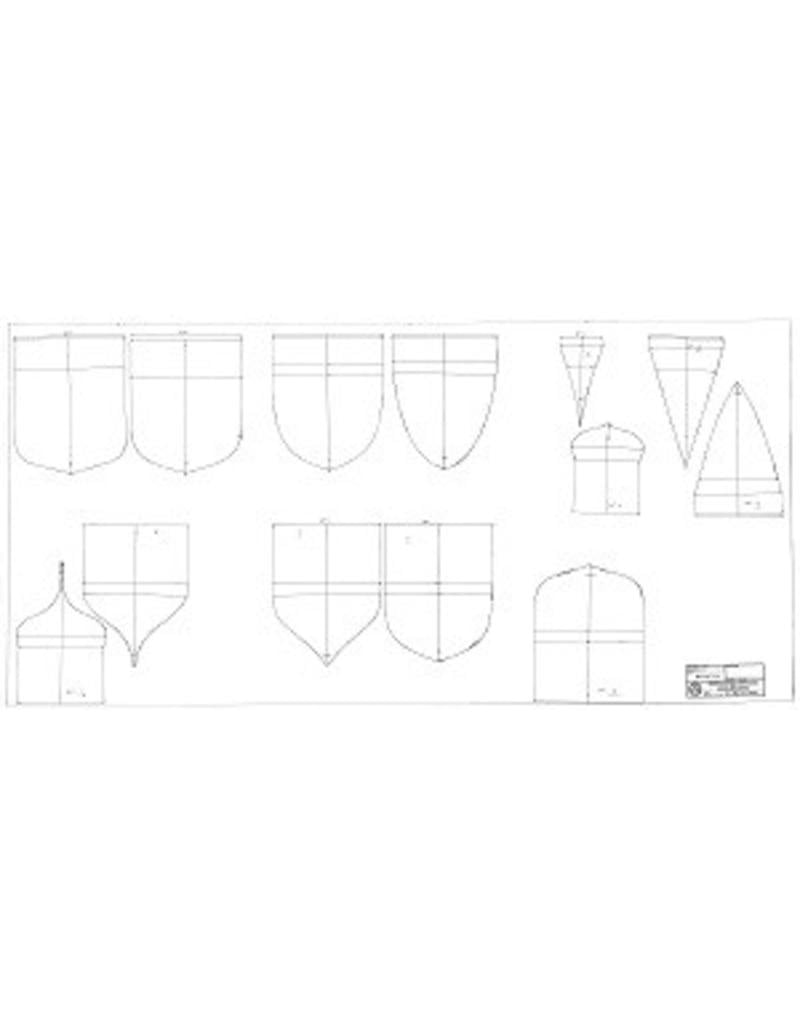

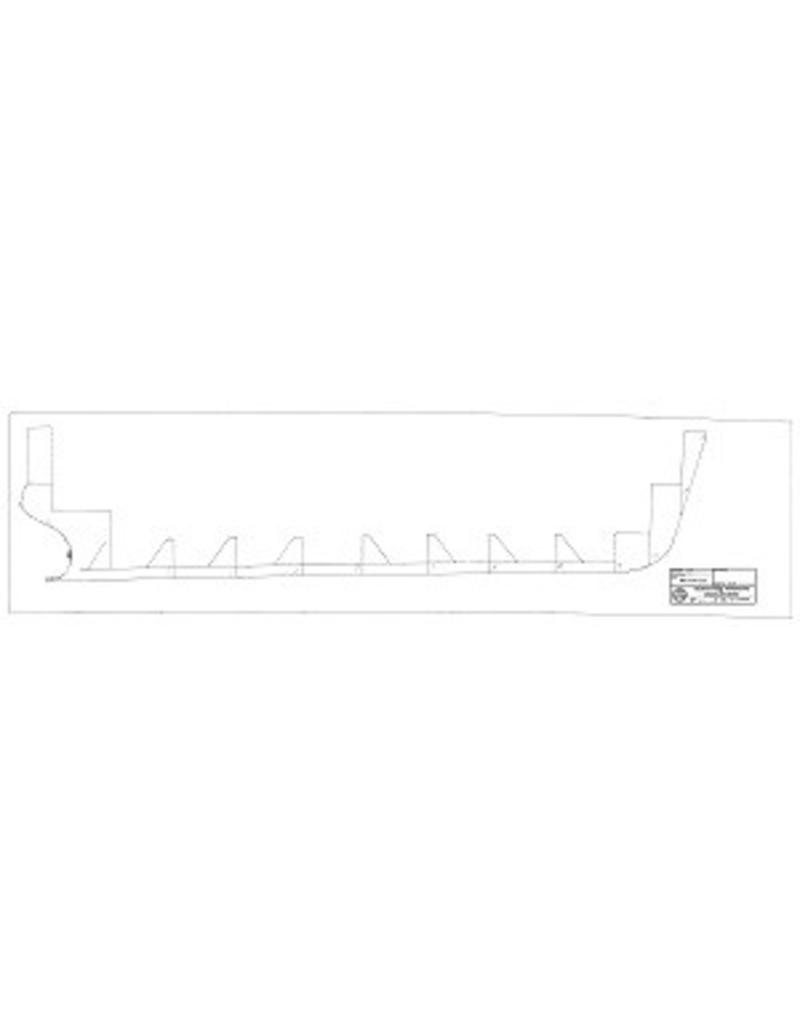

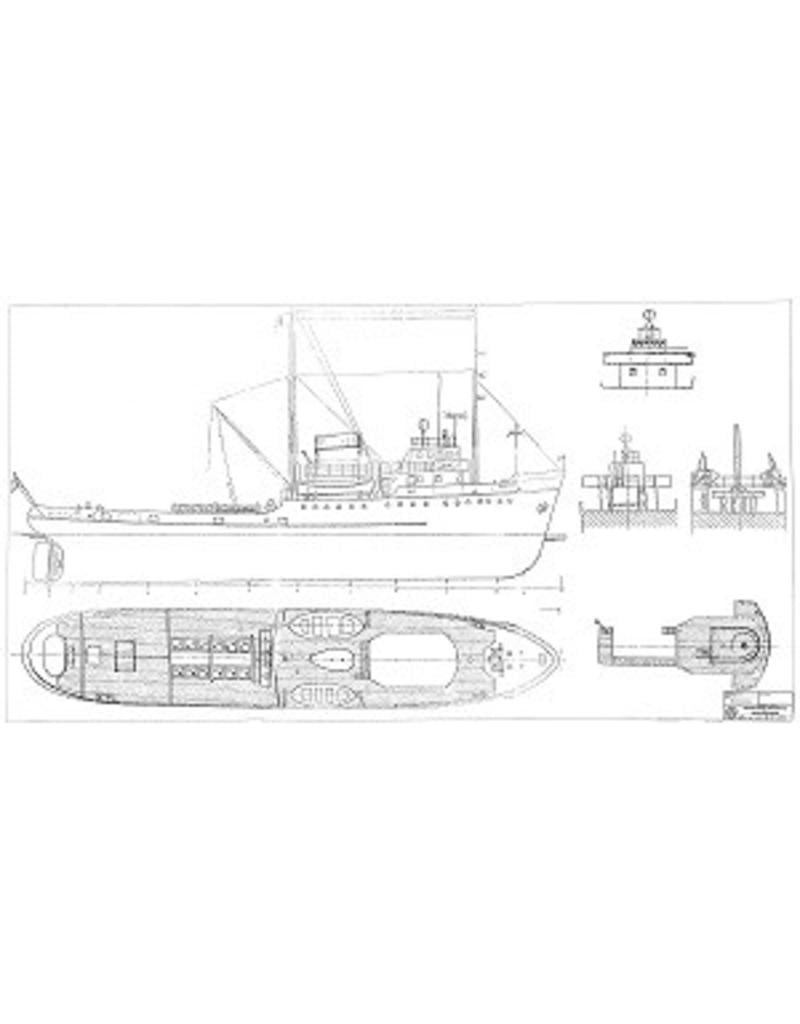

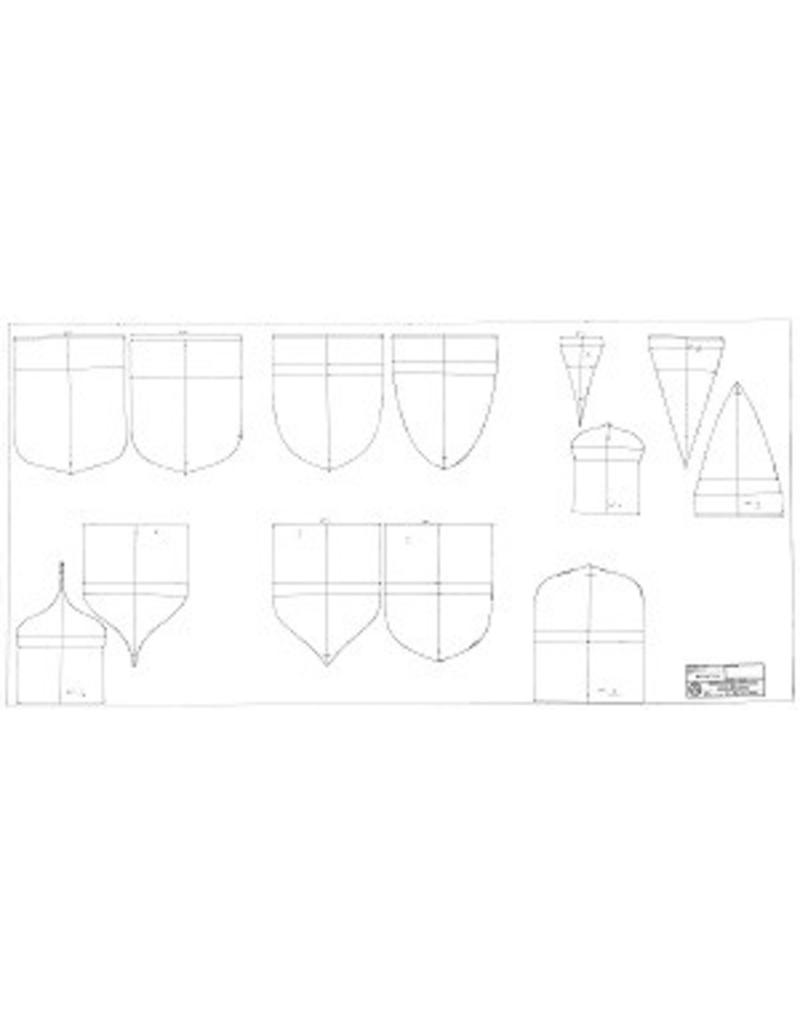

construction frames; side view; deck plans; some details |
|
Scale |
1 : 50 |
|
Number of A00 sheets |
2 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
1 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
3 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
125 |
|
Particulars |
l.o.a. 98 cm |
|
Remarks |
artek 4248 |
