| Article number: | 10.14.073 |
Specifications :
|
Drawing number |
10.14.073 |
|
Author |
J.TH.M. Buter |
|
Description |

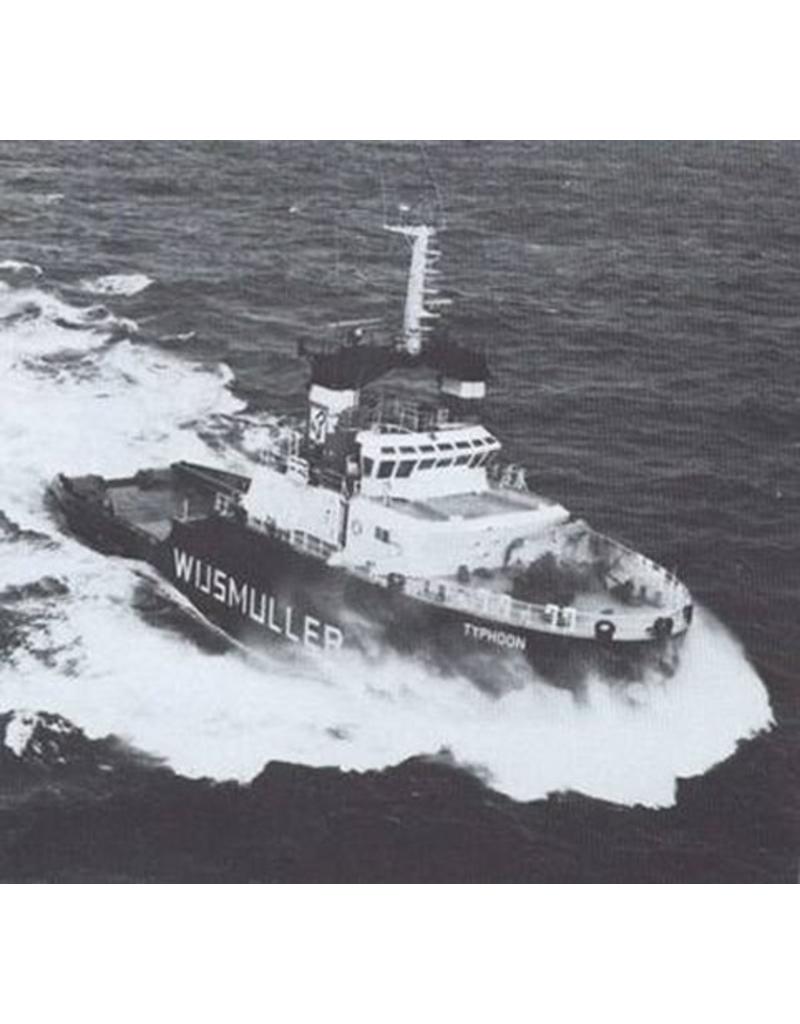

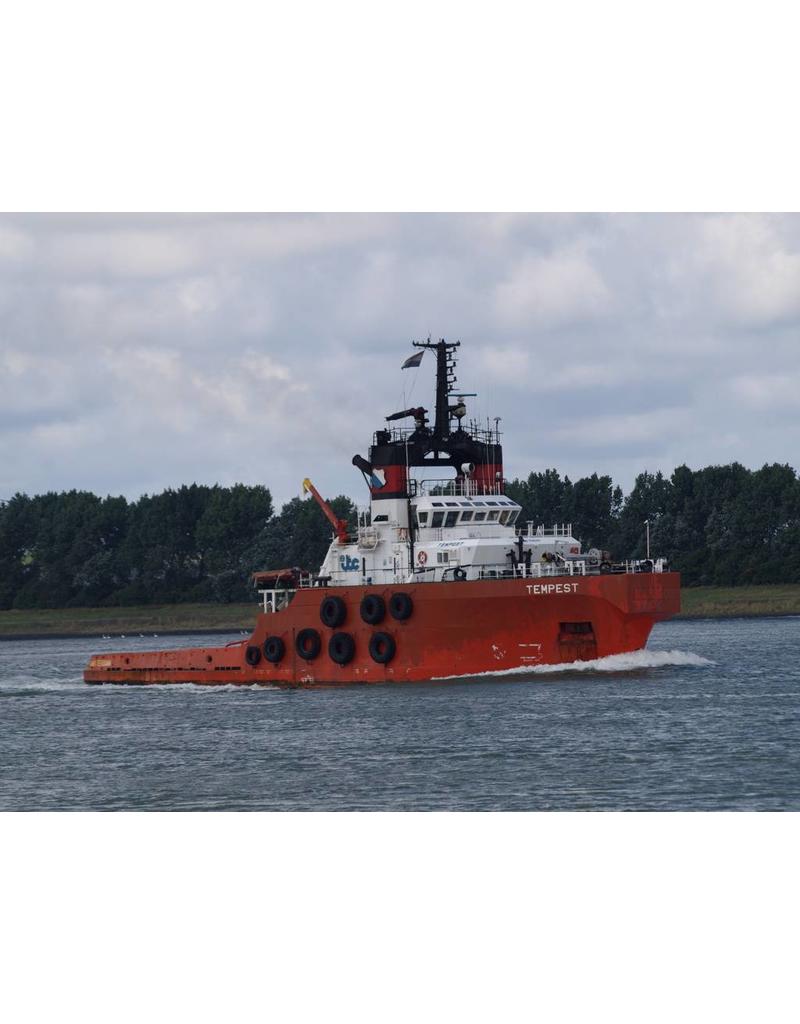

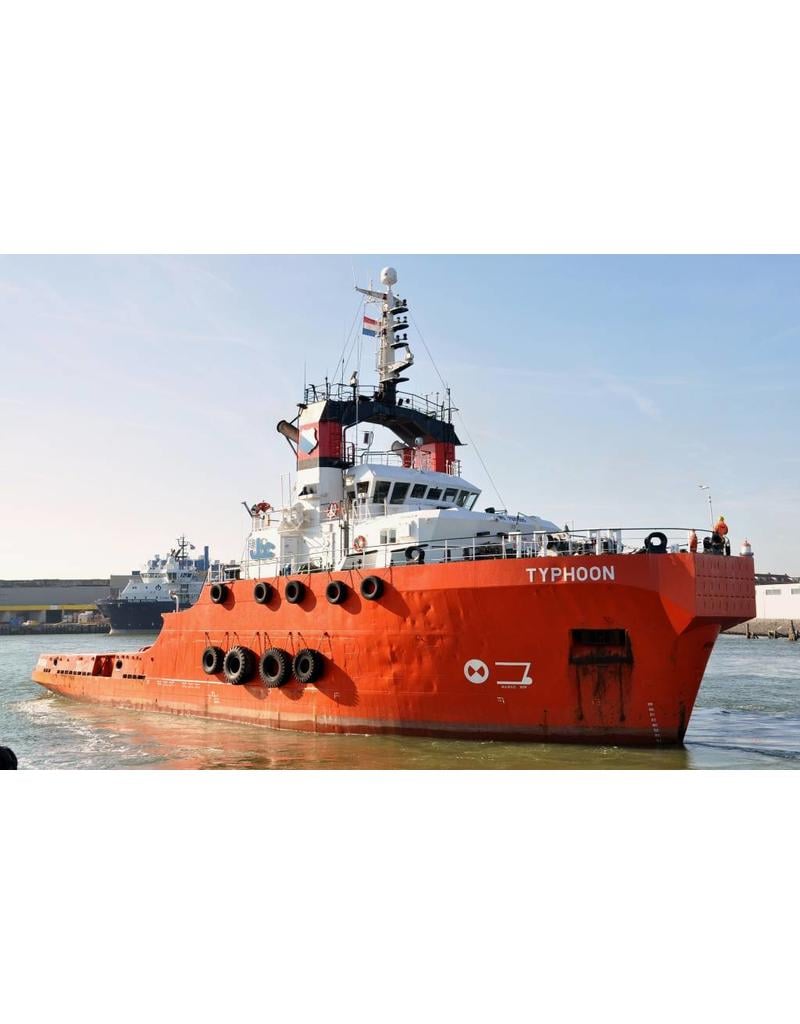

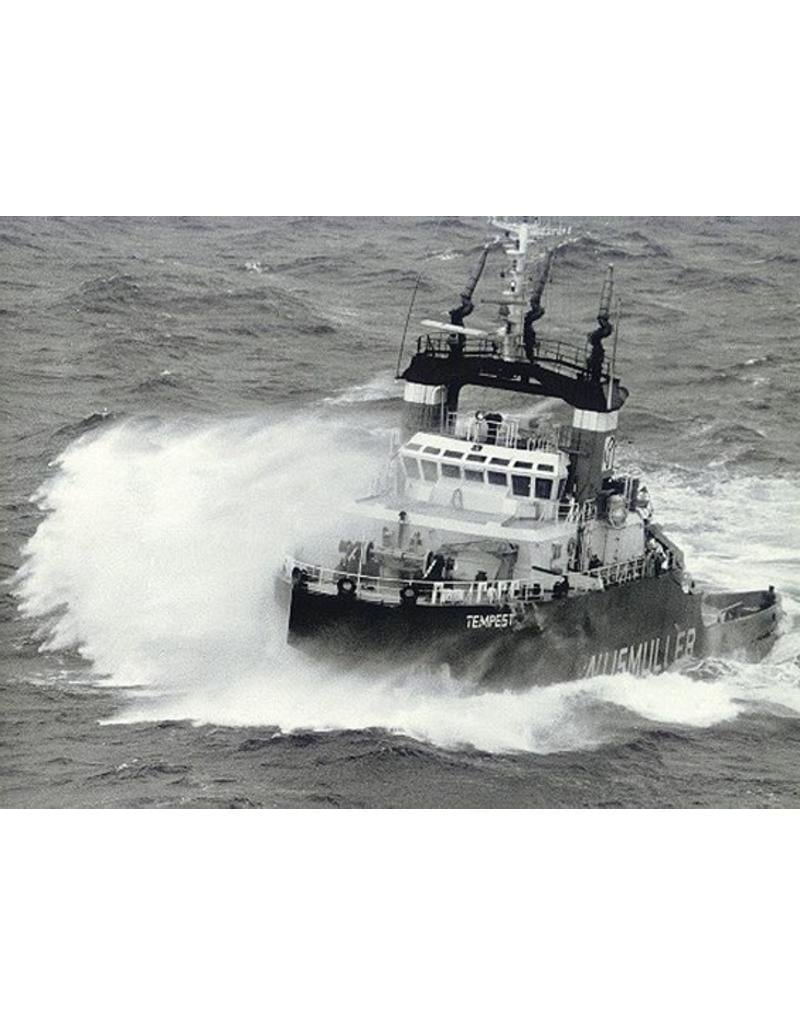

MV "Tempest" and "Typhoon" ocean tug (1976) - Bureau Wijsmuller |
|
Quality |

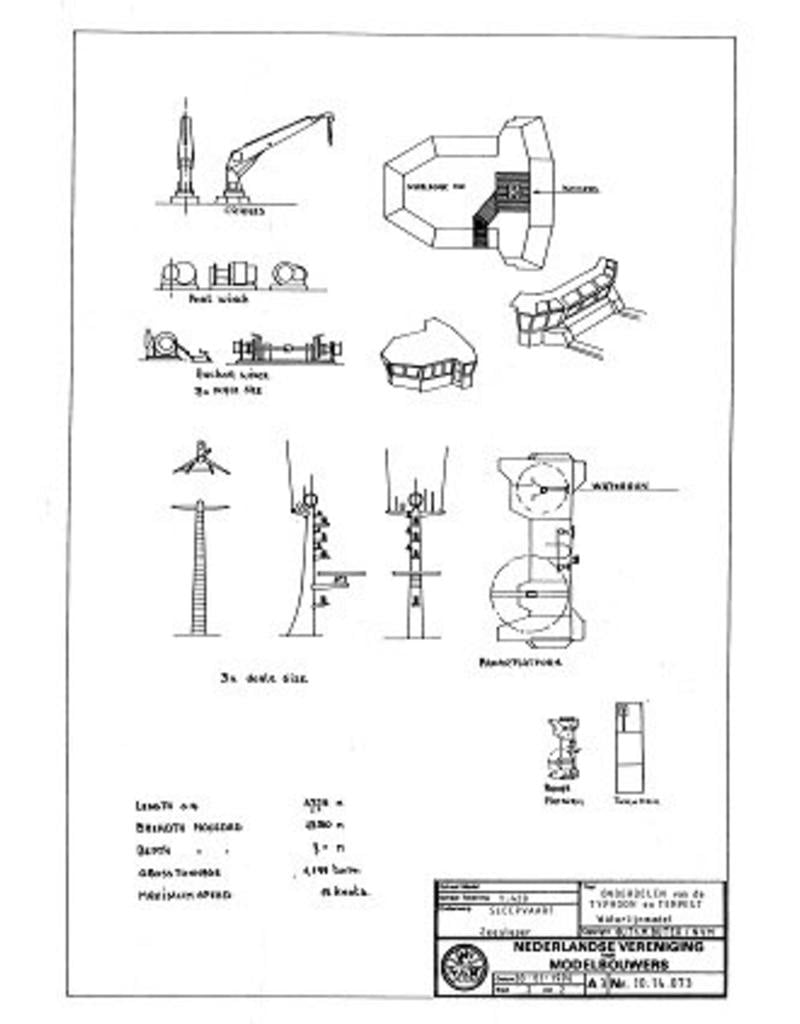

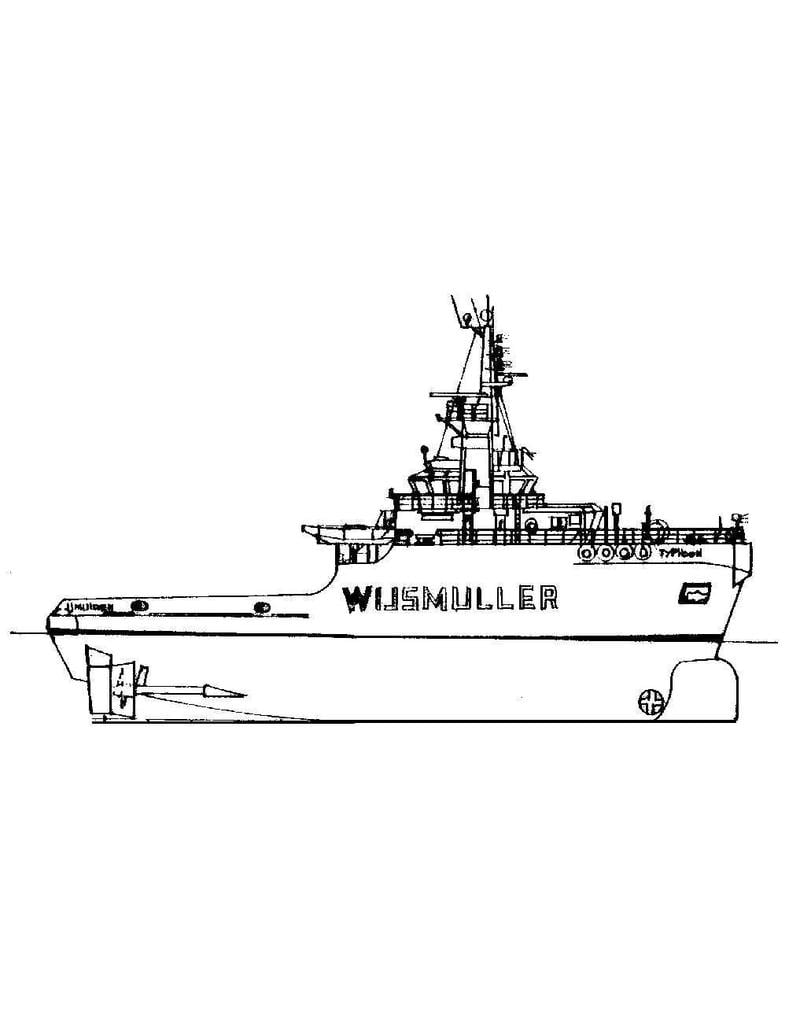

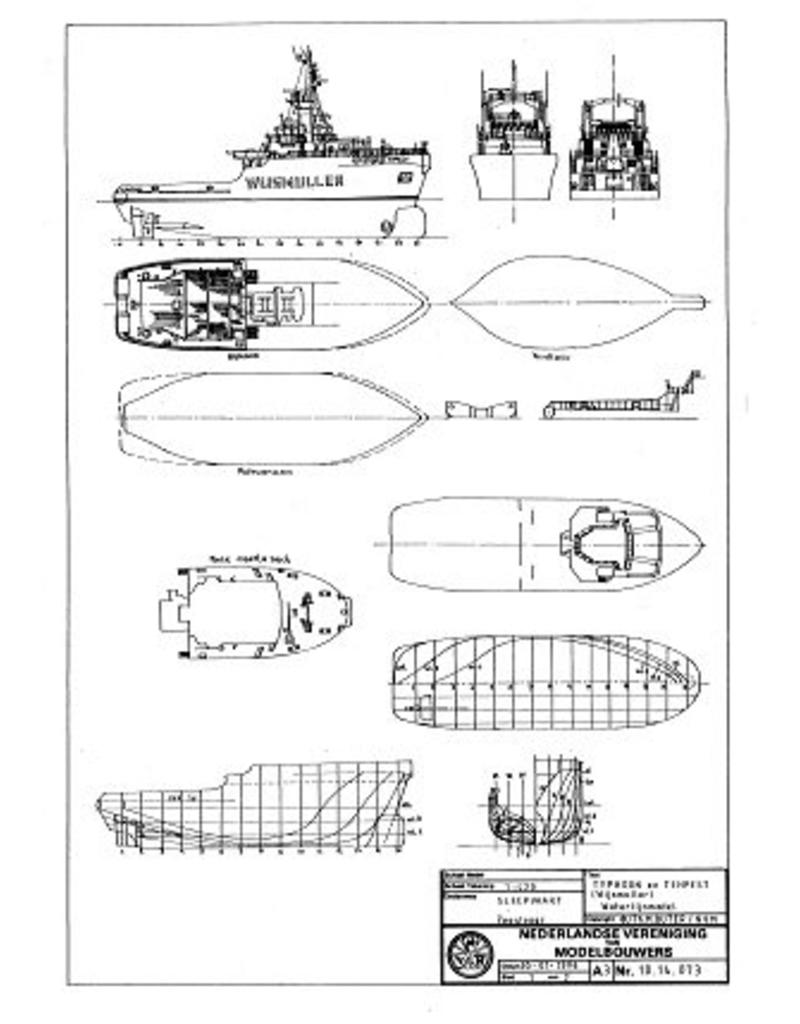

sp/lines; side view; deck plans; details |
|
Scale |
1 : 420 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
2 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
45 |
|
Particulars |
l.o.a. 13 cm |
|
Remarks |
