| Article number: | 10.14.082 |
Specifications :
|
Drawing number |
10.14.082 |
|
Description |
tugboat ms "Tiawlene" |
|
Quality |

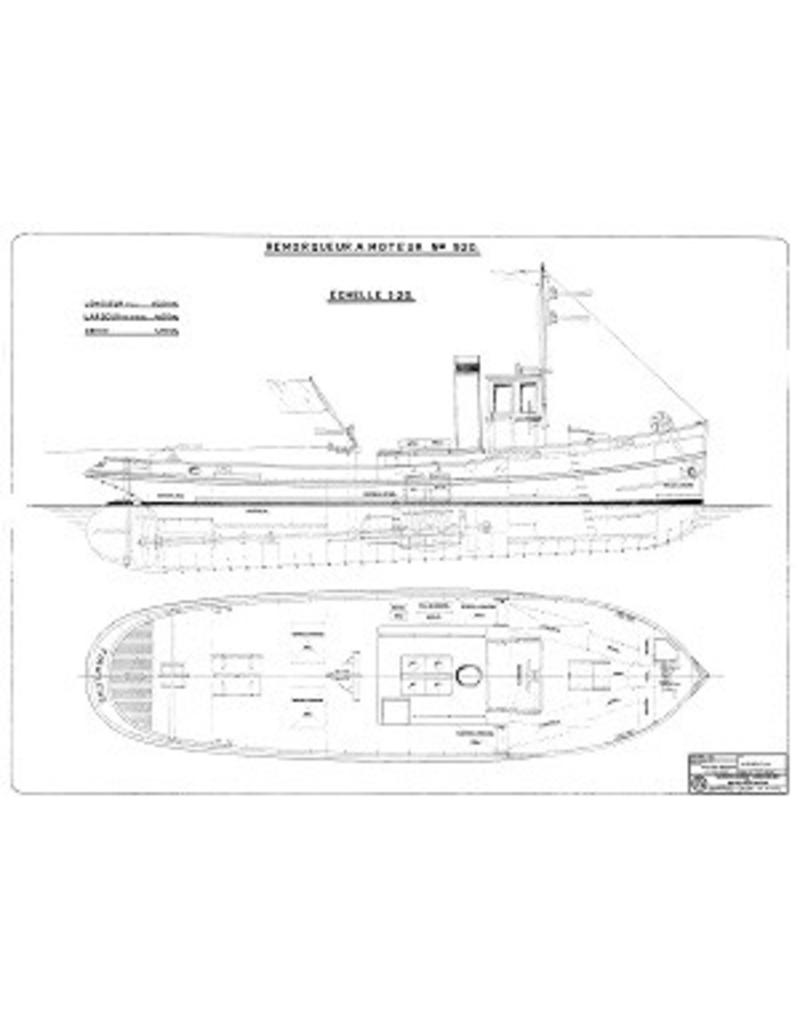

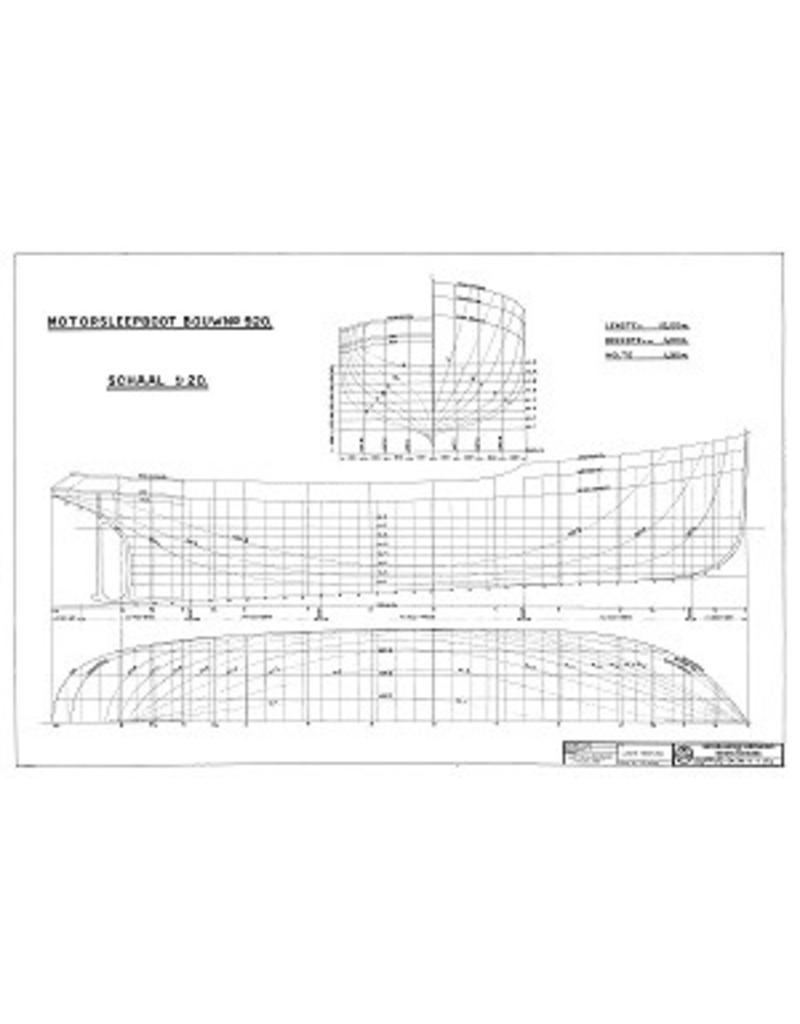

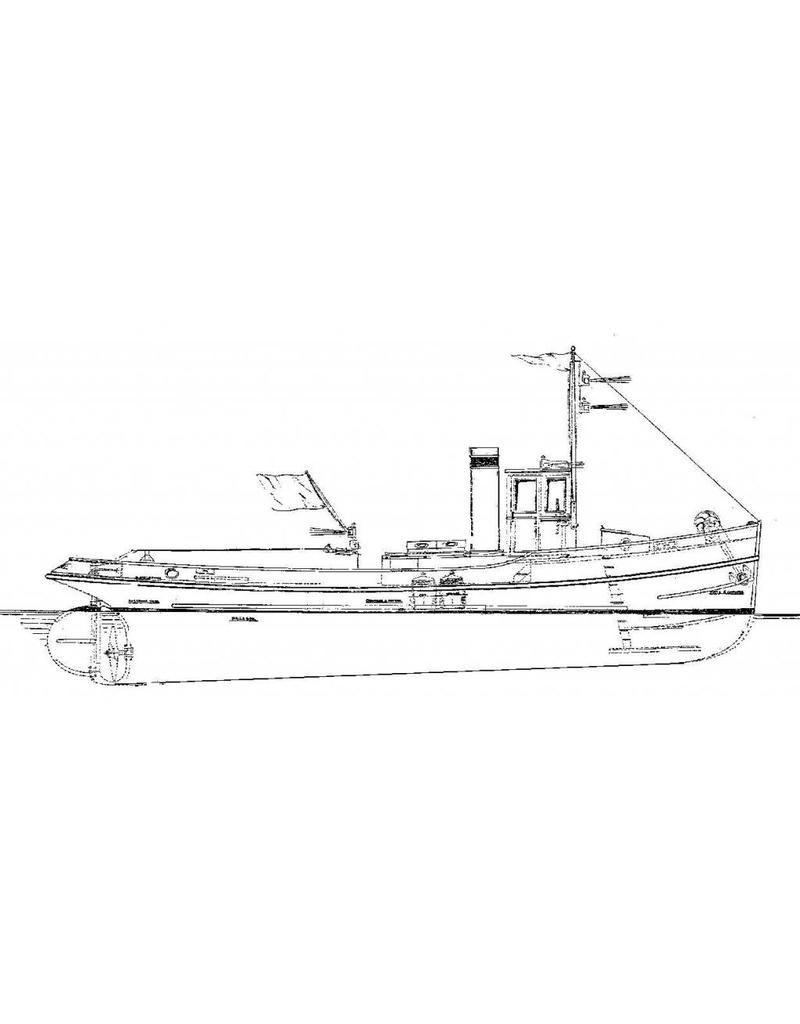

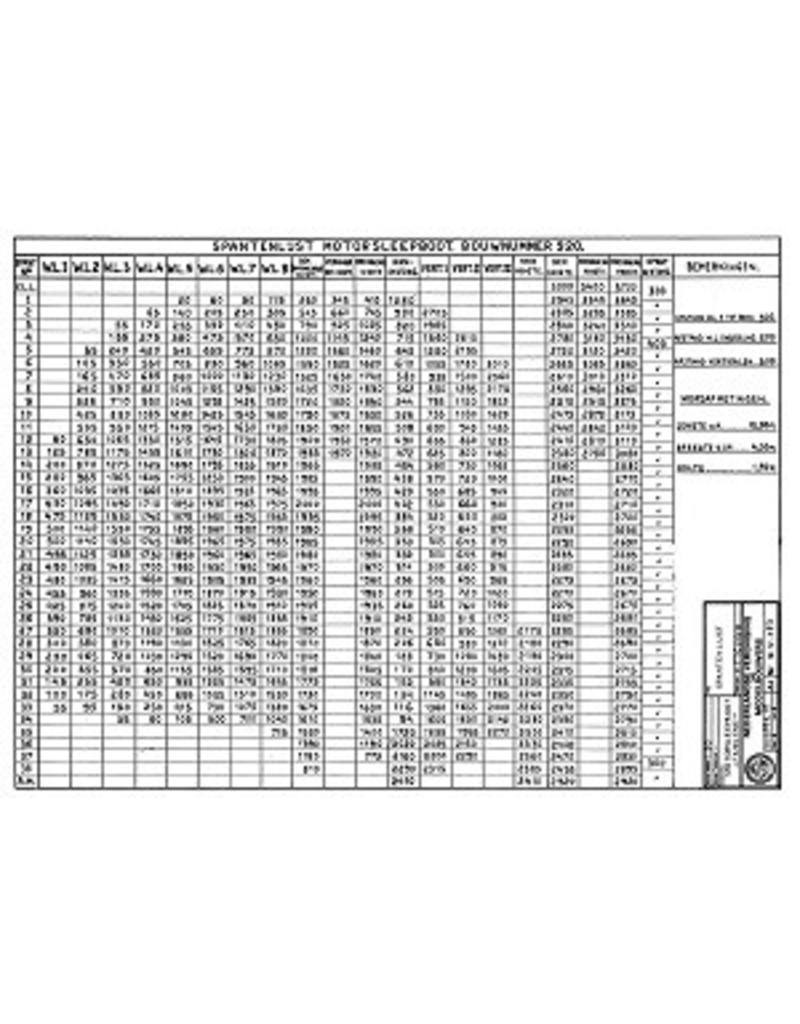

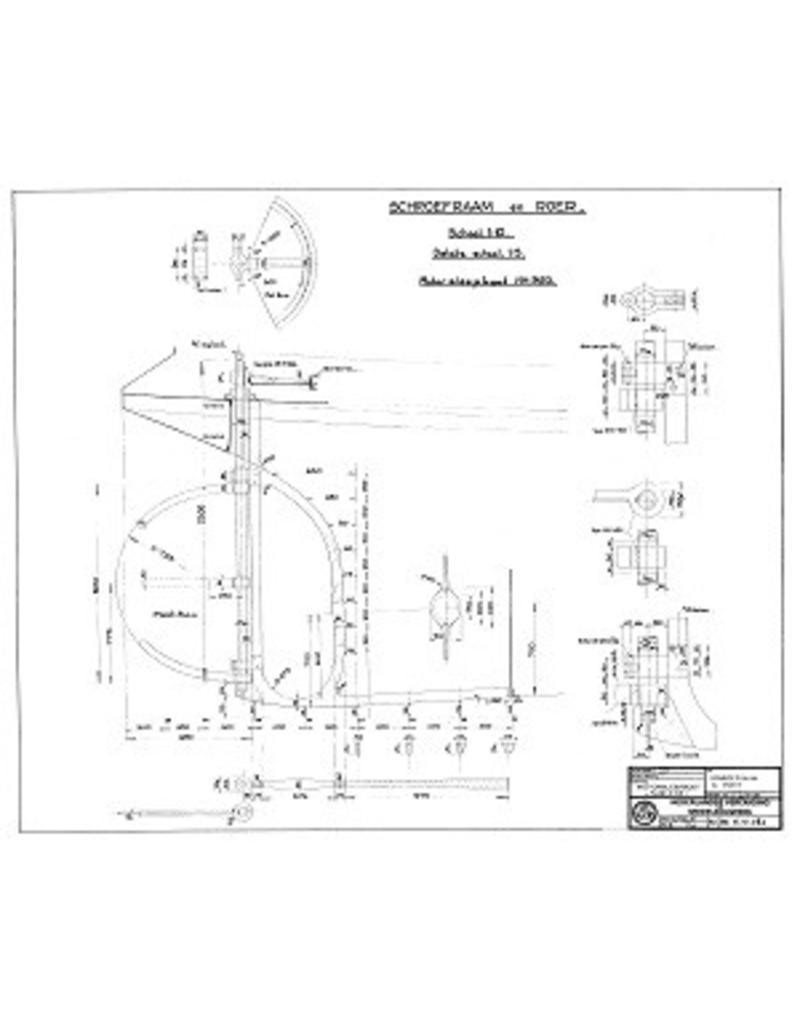

sections/lines; frame list; side view/cross-section; deck plan; details |
|
Scale |
1 : 20 |
|
Number of sheets A00 |
1 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
2 |
|
Number of sheets A2 |
1 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
4 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
205 |
|
Particulars |
l.o.a. 75 cm |
|
Remarks |
year of construction? |
