| Article number: | 10.14.085 |
Specifications :
|
Drawing number |
10.14.085 |
|
Description |
harbour tugboat |
|
Quality |

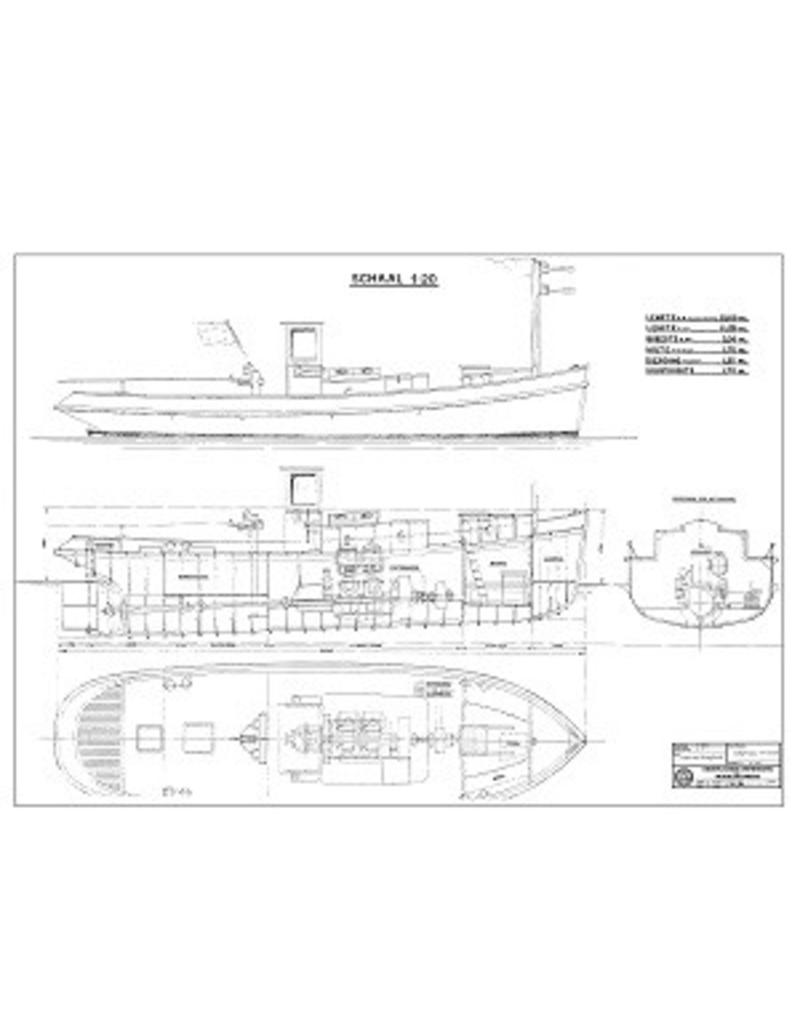

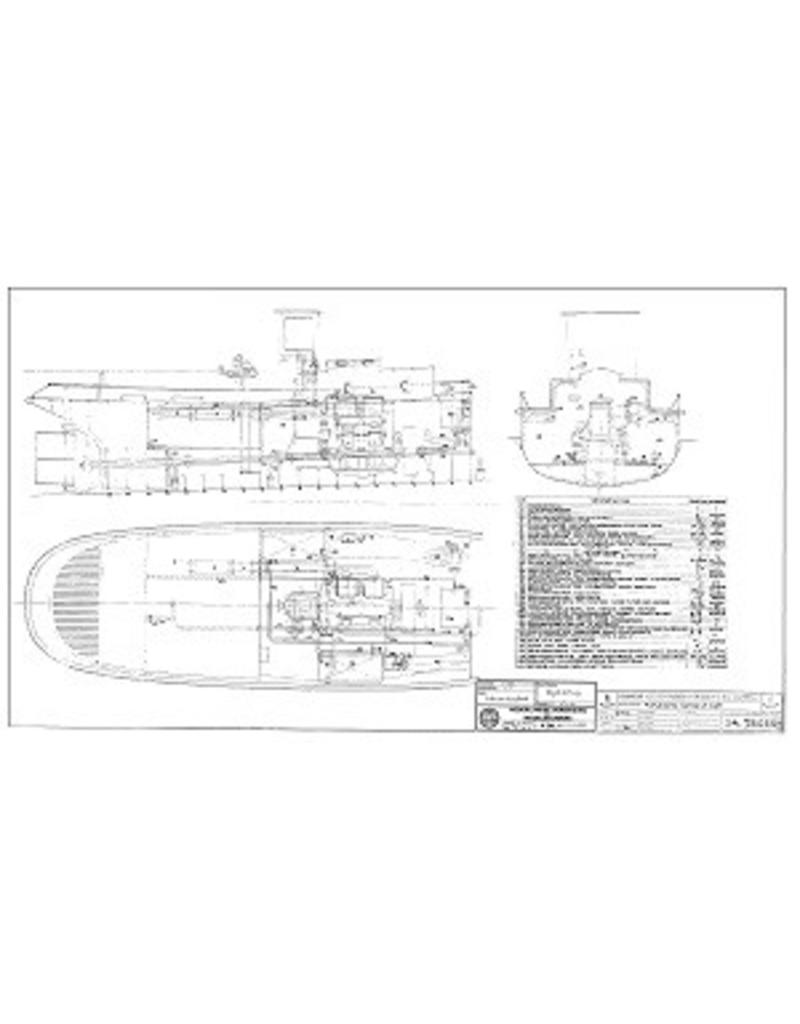

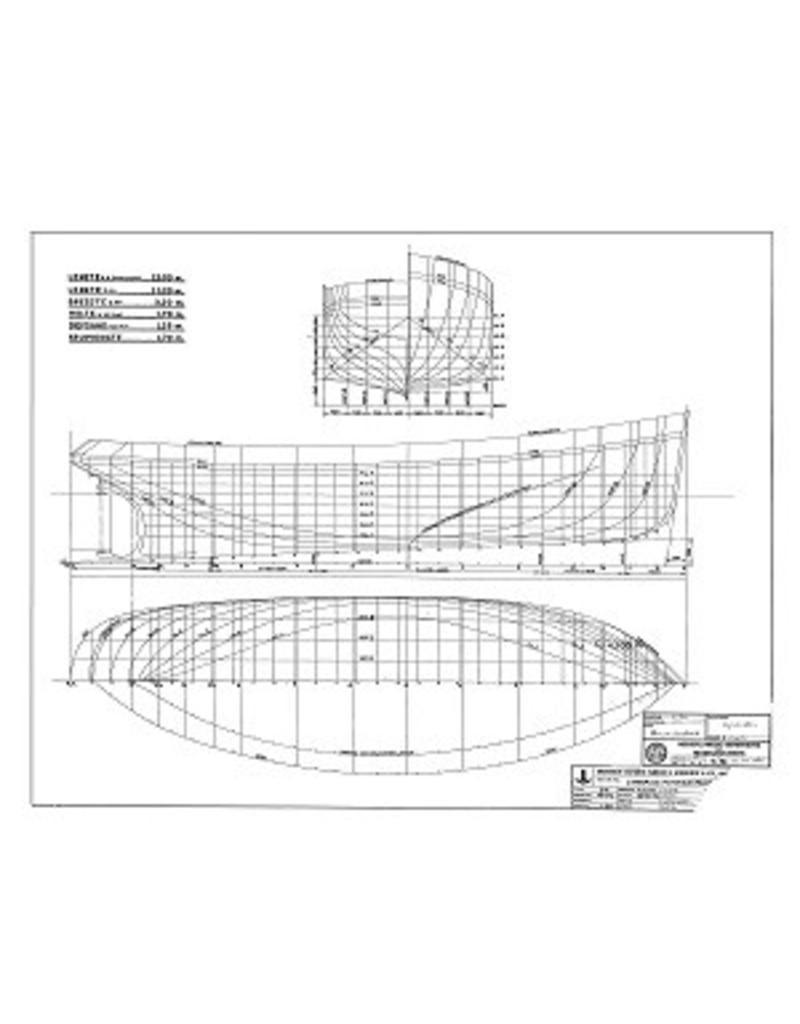

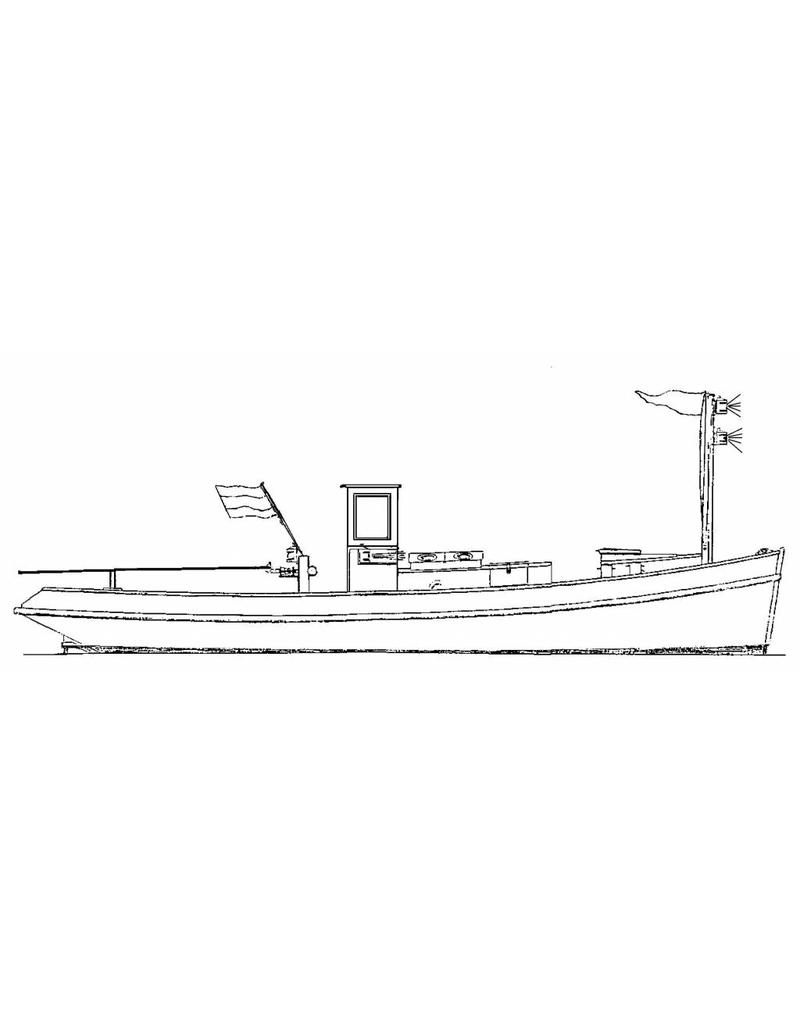

frames/lines; side view; longitudinal section; deck plan; engine installation details |
|
Scale |
1 : 20 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
2 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
3 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
185 |
|
Particulars |
l.o.a. 61 cm |
|
Remarks |
