| Article number: | 10.14.097 |
Specifications :
|
Drawing number |
10.14.097 |
|
Author |
L.Fontijn |
|
Description |

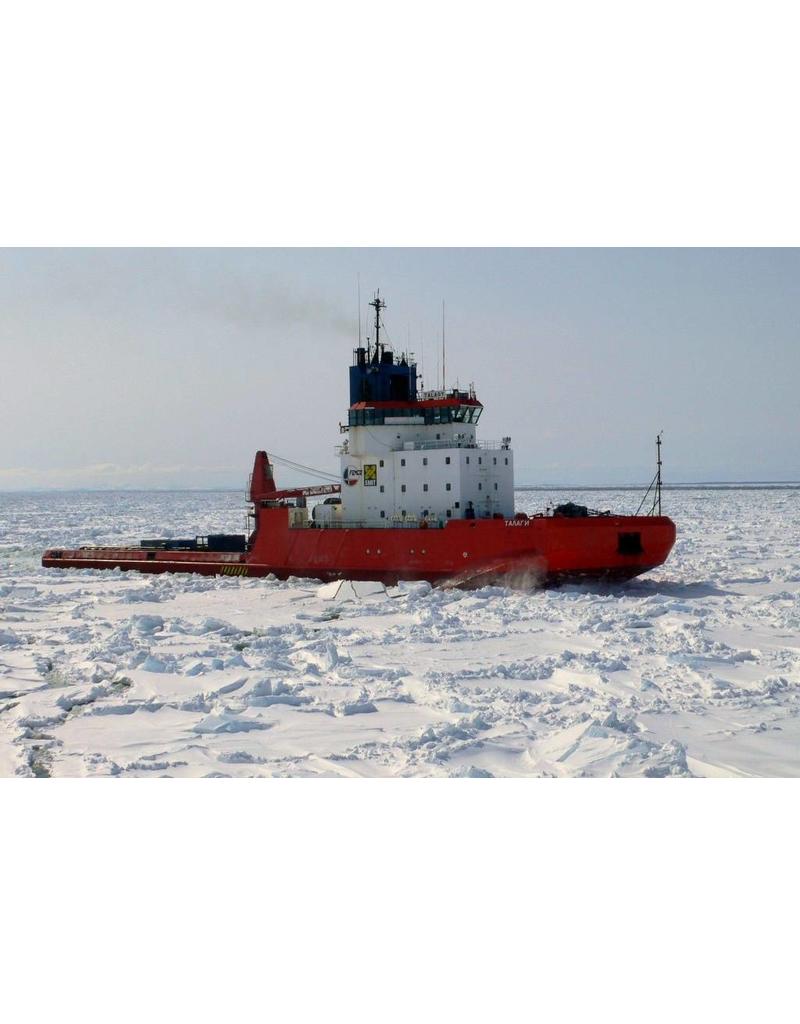

ms. Kigoriak |
|
Quality |

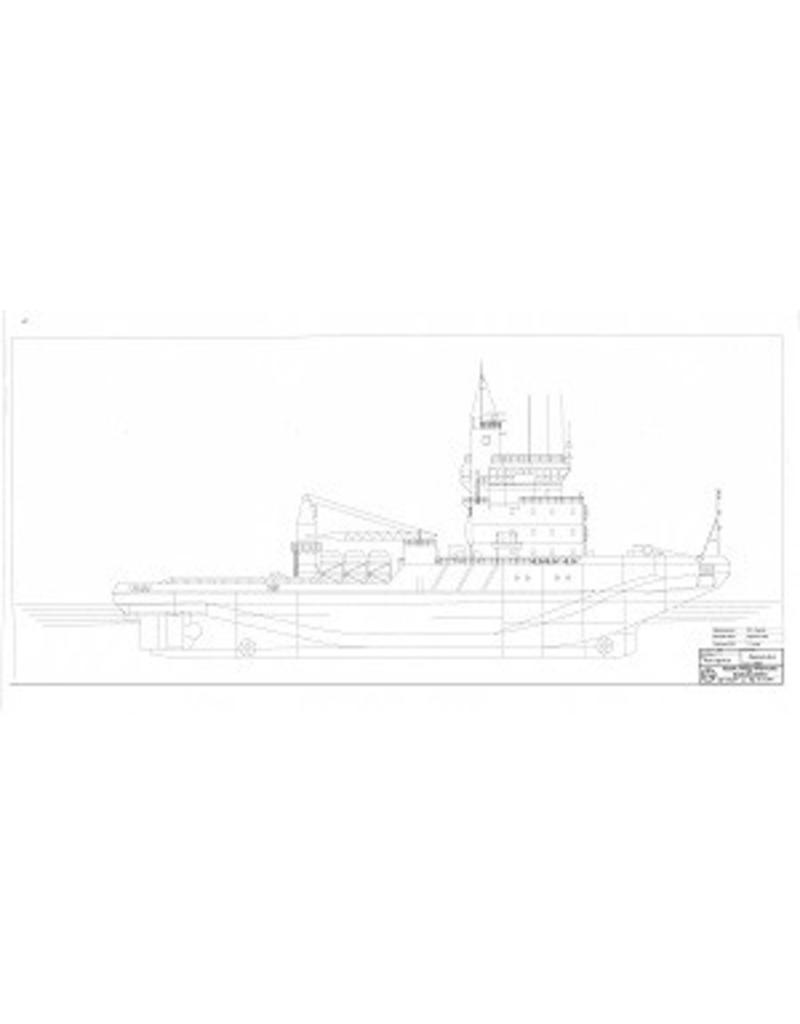

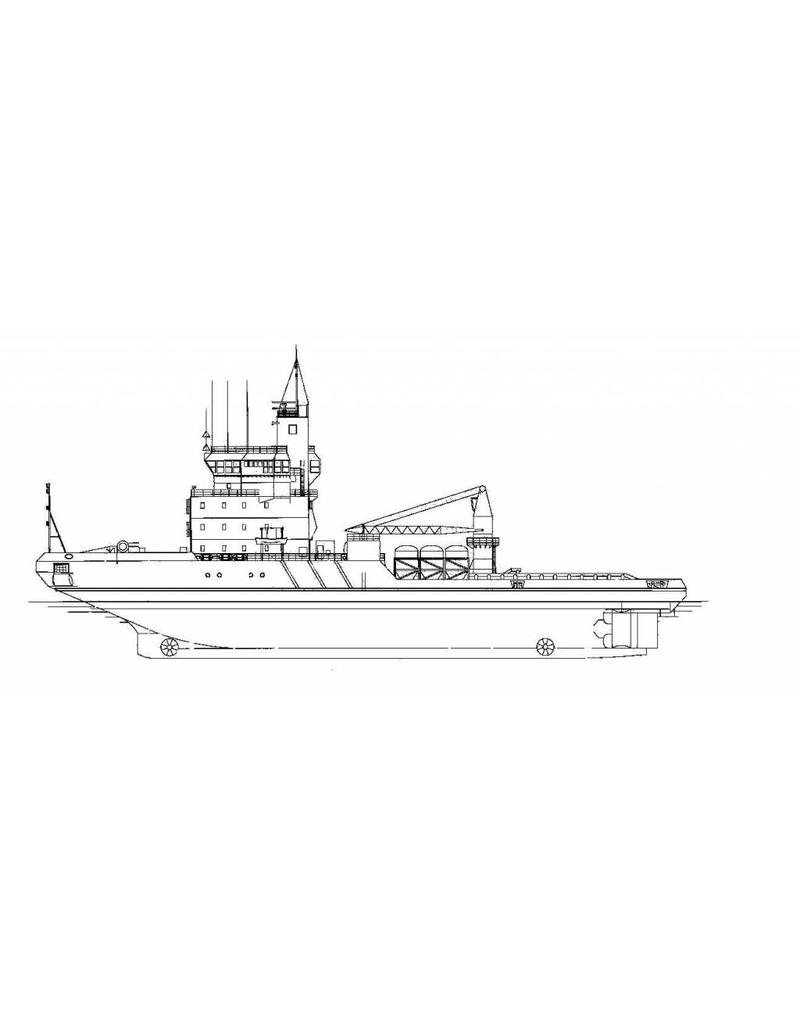

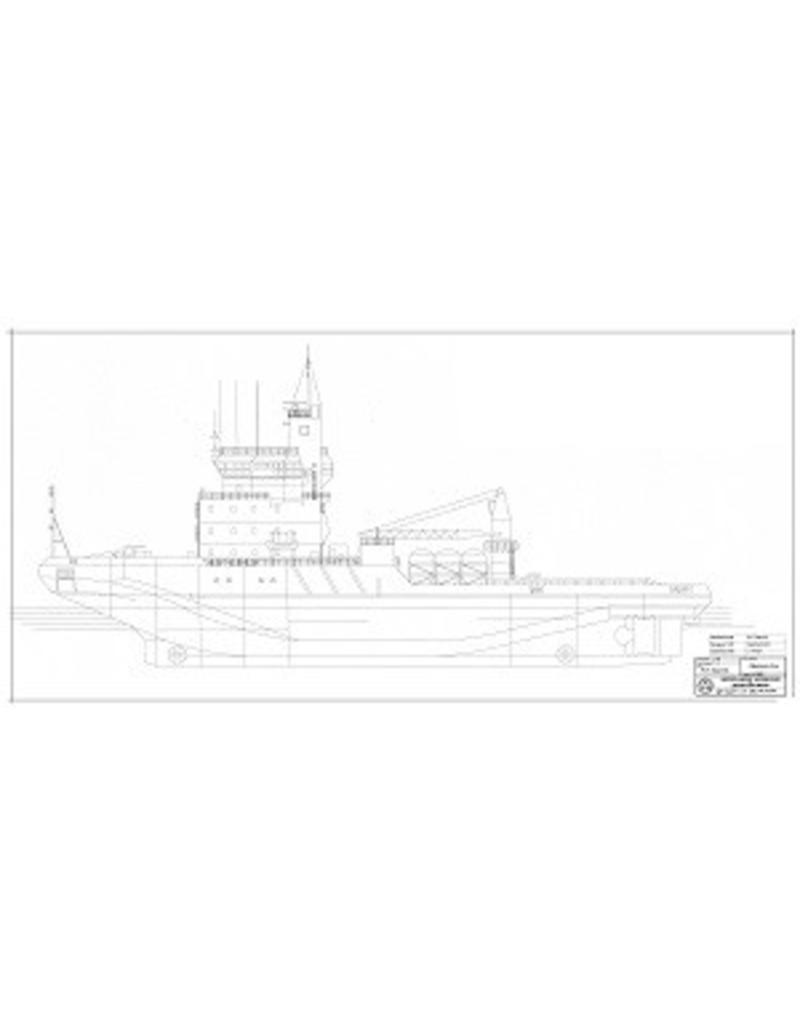

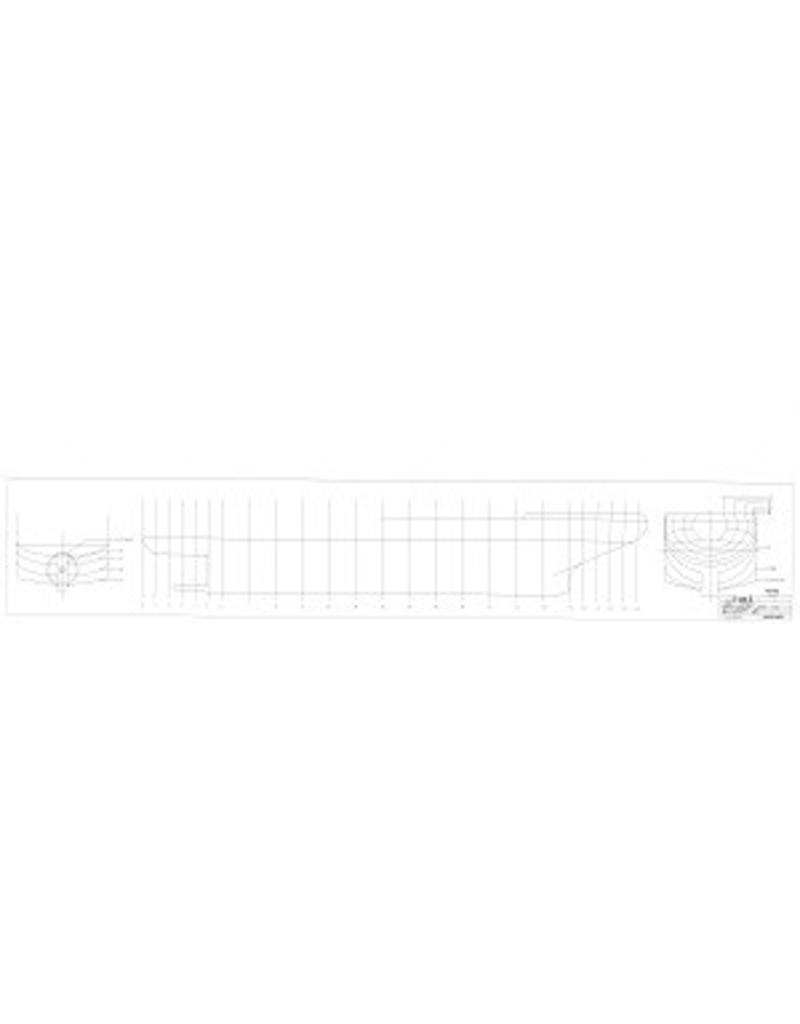

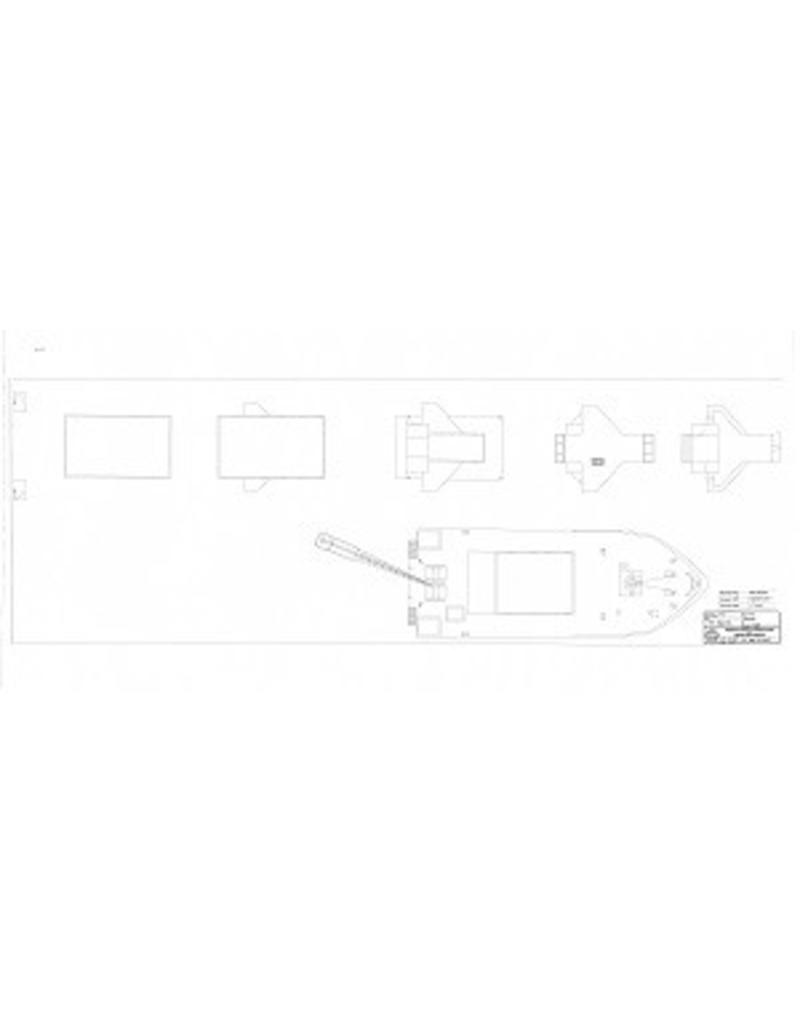

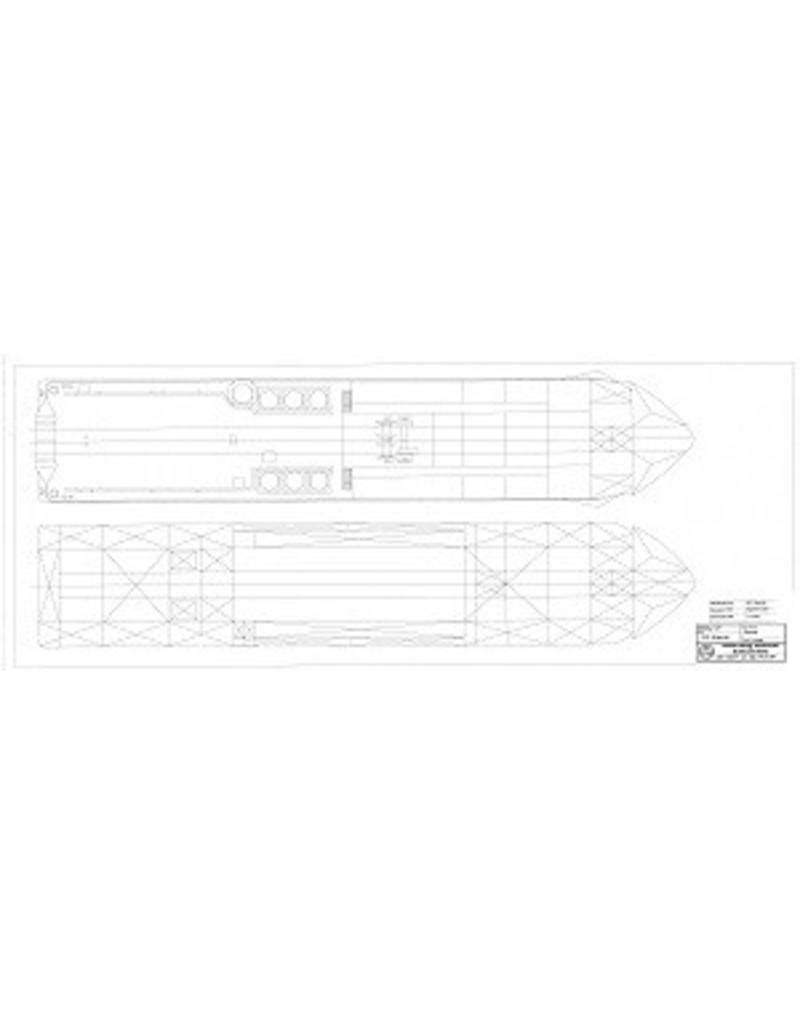

general plan; frames/lines; details |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
5 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
5 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
425 |
|
Particulars |
l.o.a. 90 cm |
|
Remarks |
check owner, type etc; |
