| Article number: | 10.14.103 |
Specifications :
|
Drawing number |
10.14.103 |
|
Description |

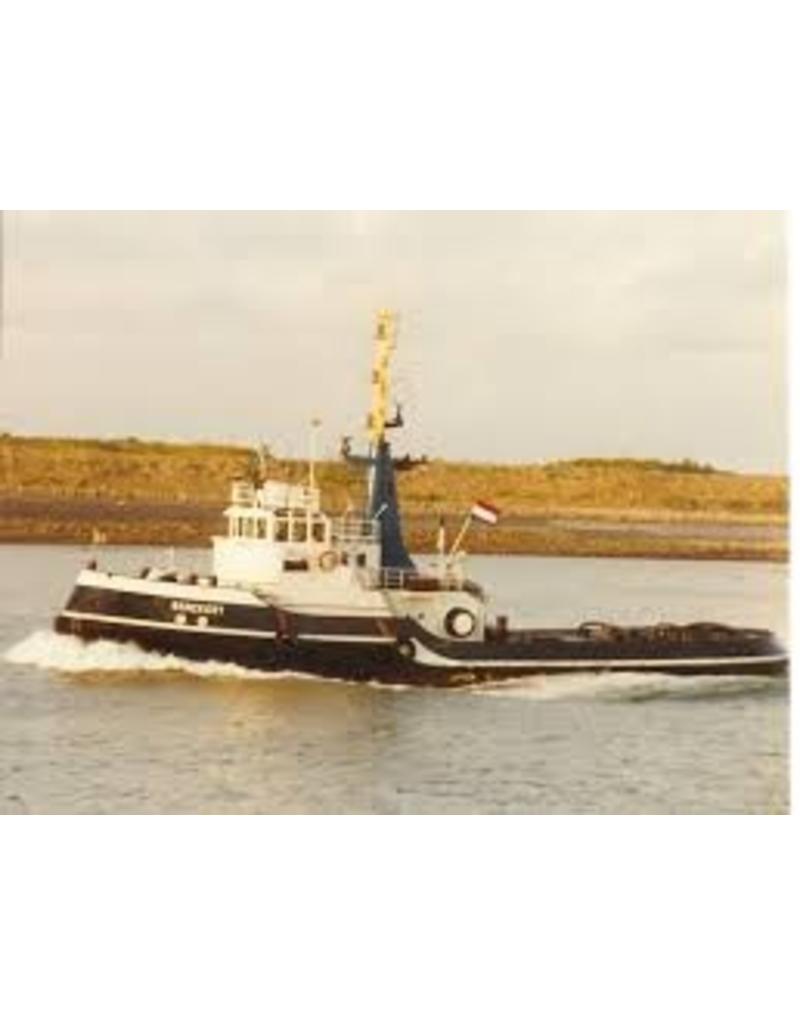

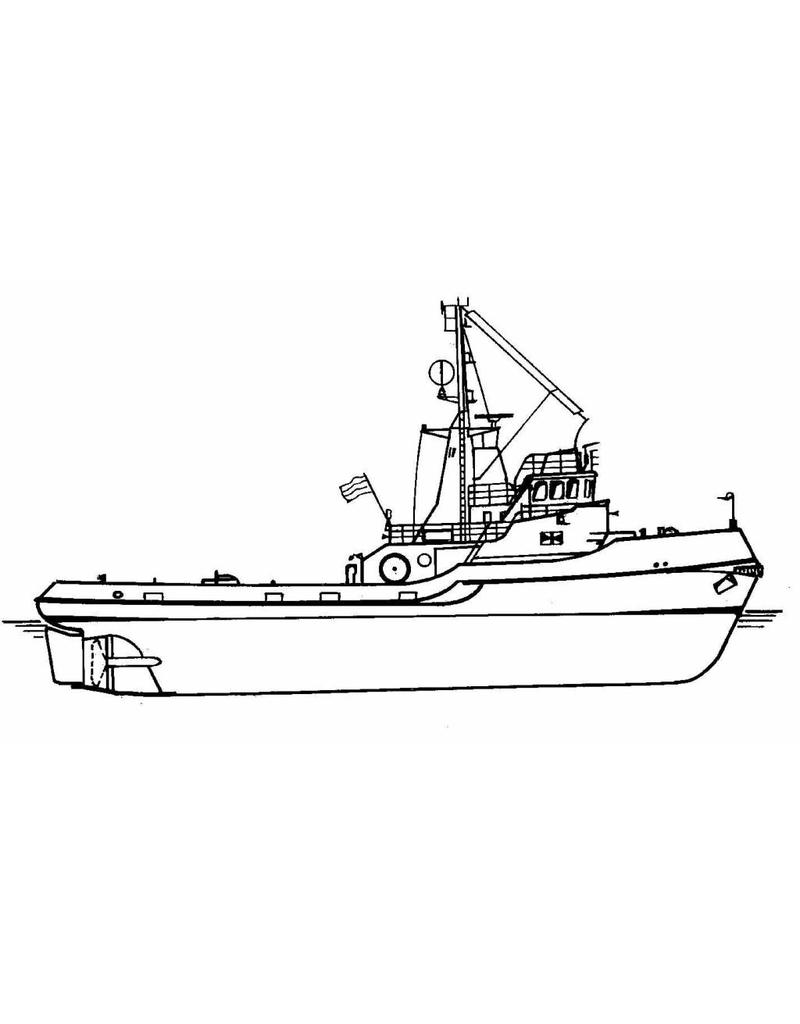

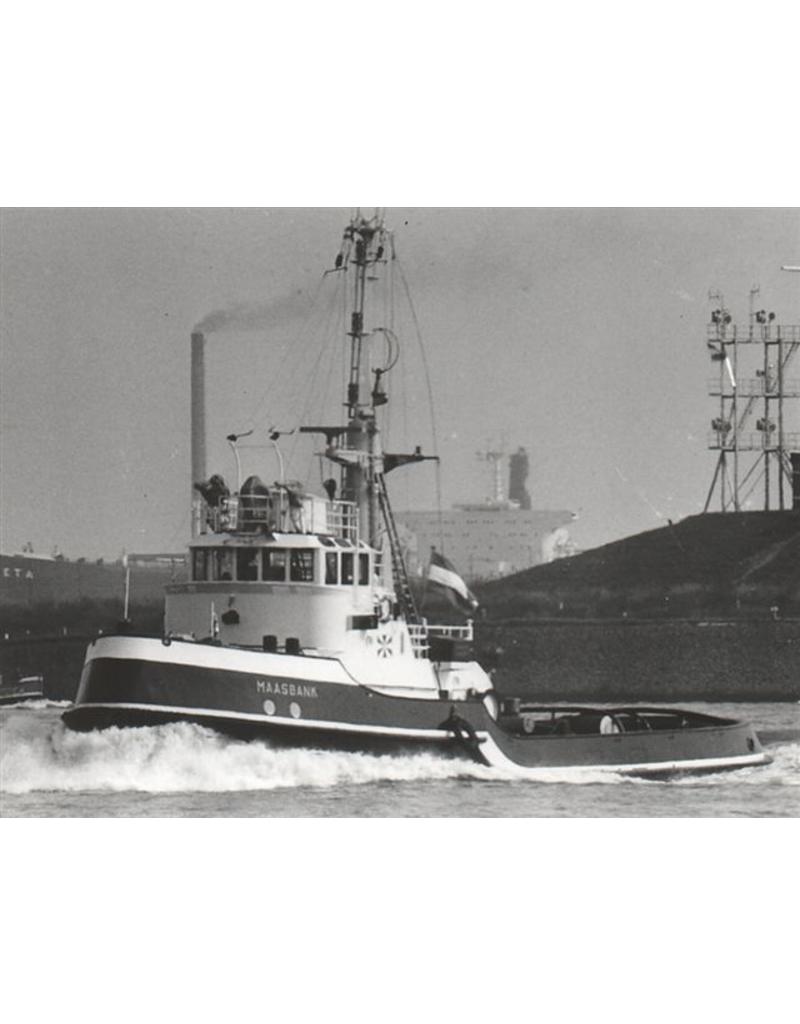

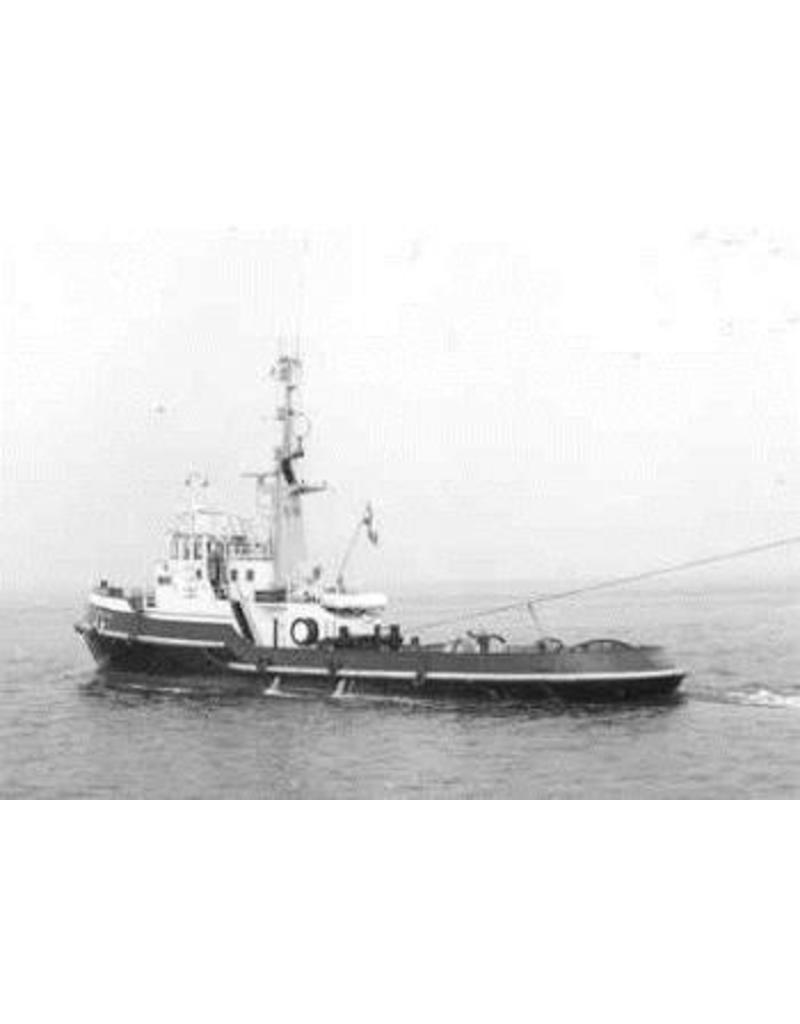

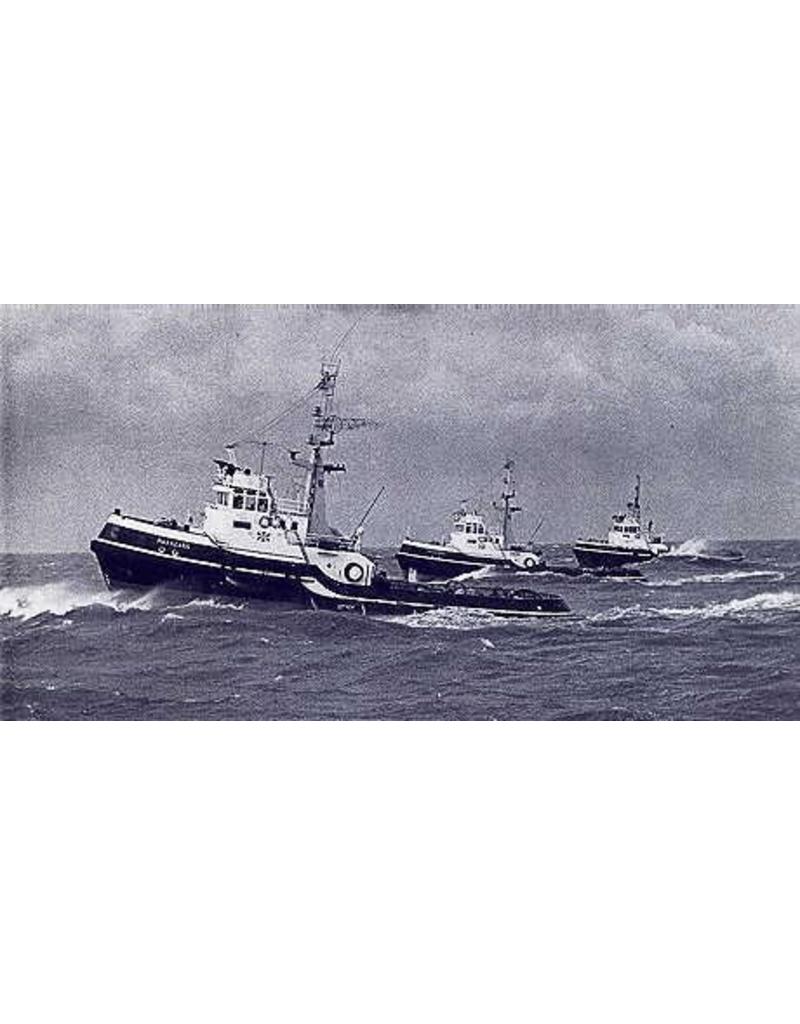

harbour/coastal tugboat MV Maasbank (1957) - New Rott Tug |
|
Quality |

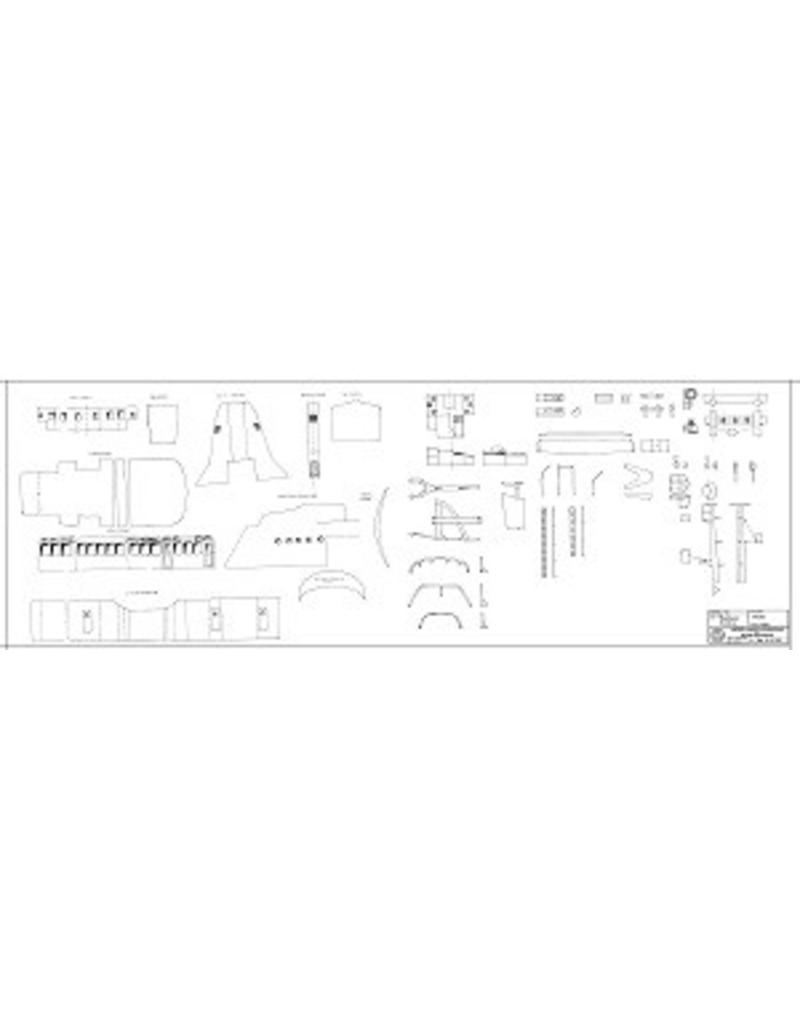

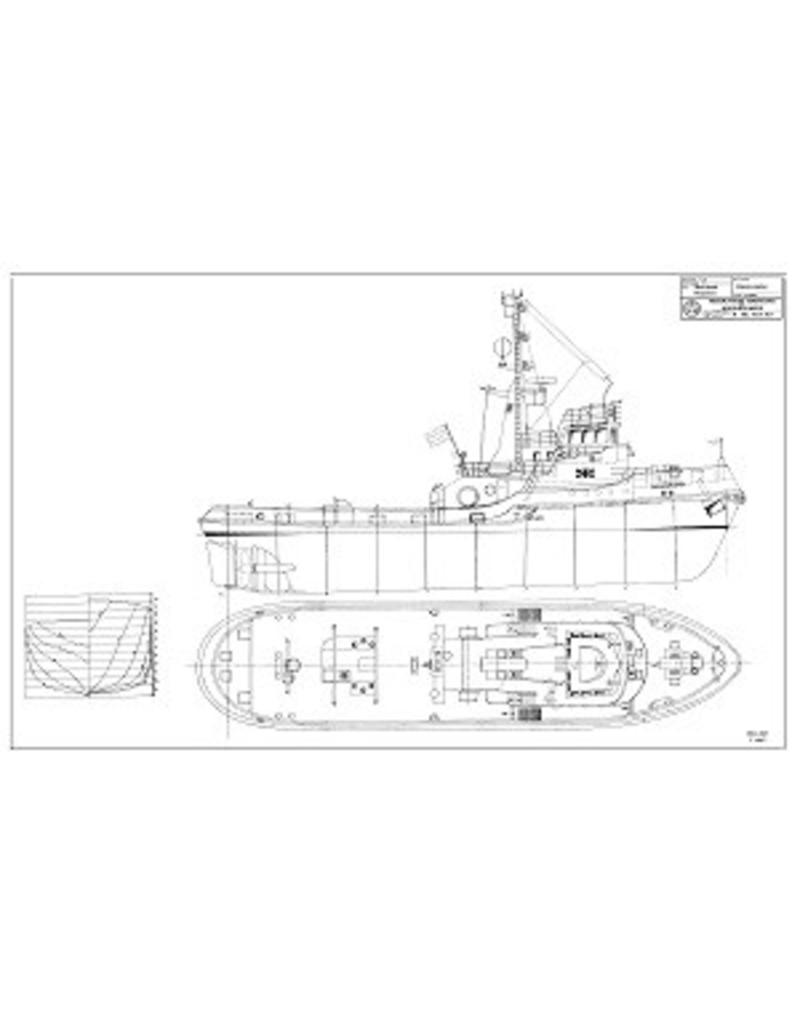

general plan; frame plan; details |
|
Scale |
1 : 50 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
2 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
105 |
|
Particulars |
l.o.a. 66 cm |
|
Remarks |

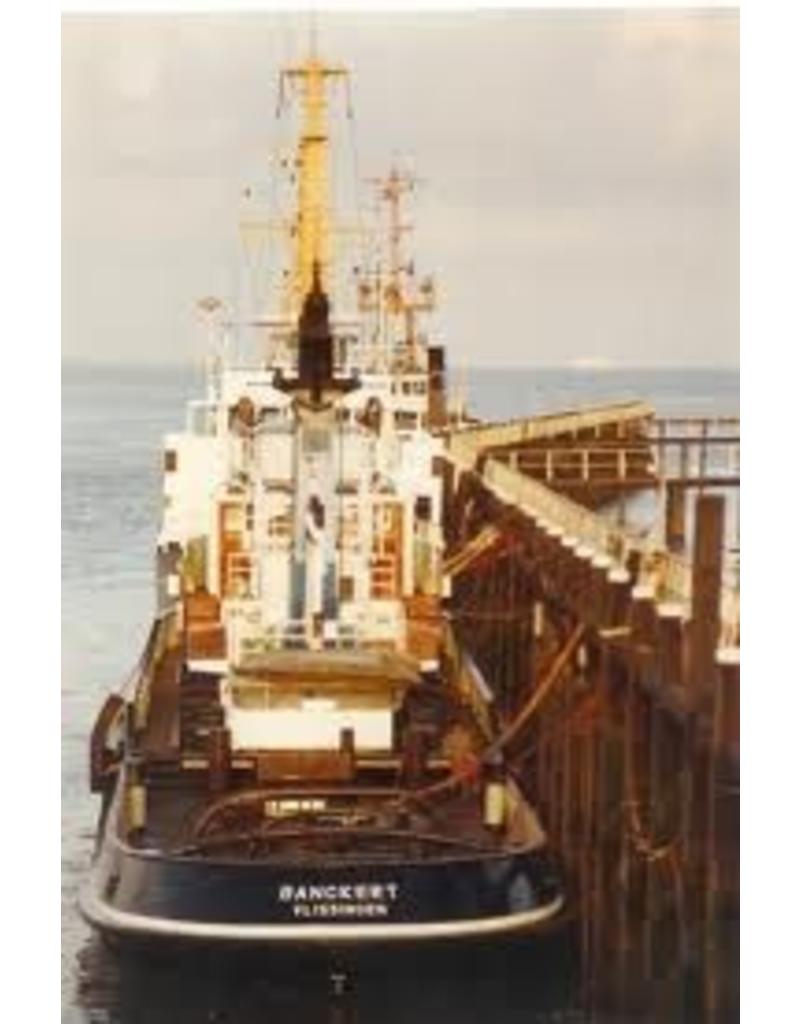

sister ships |
