| Article number: | 10.14.106 |
Specifications :
|
Drawing number |
10.14.106 |
|
Description |

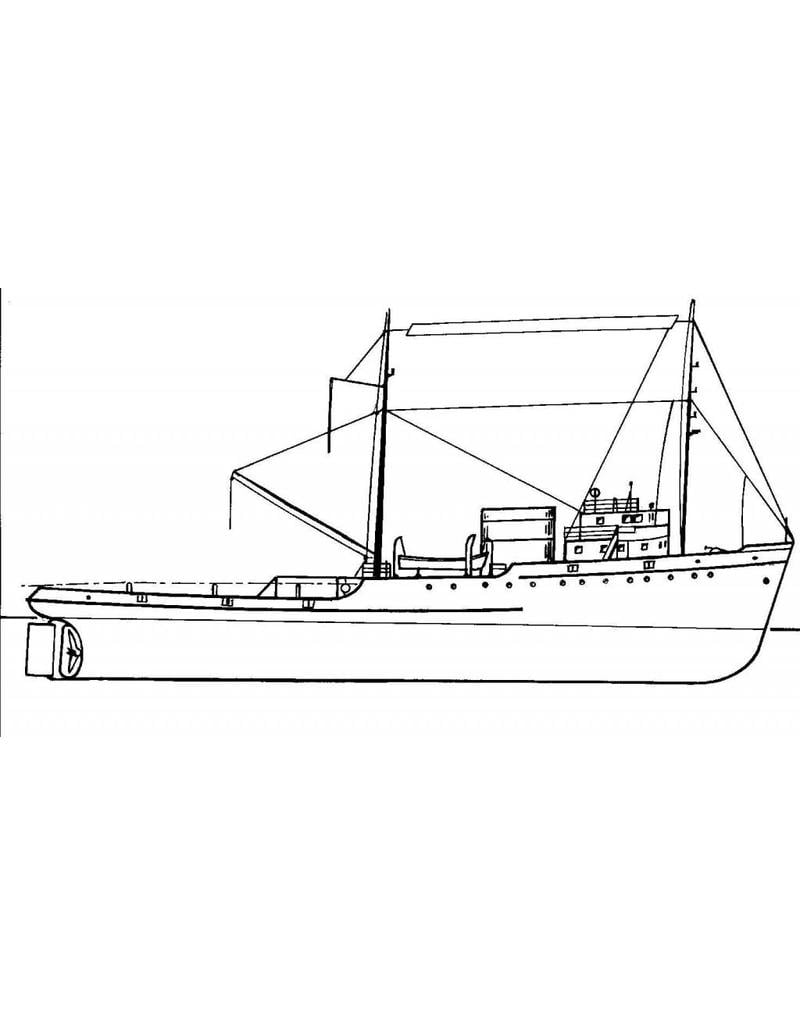

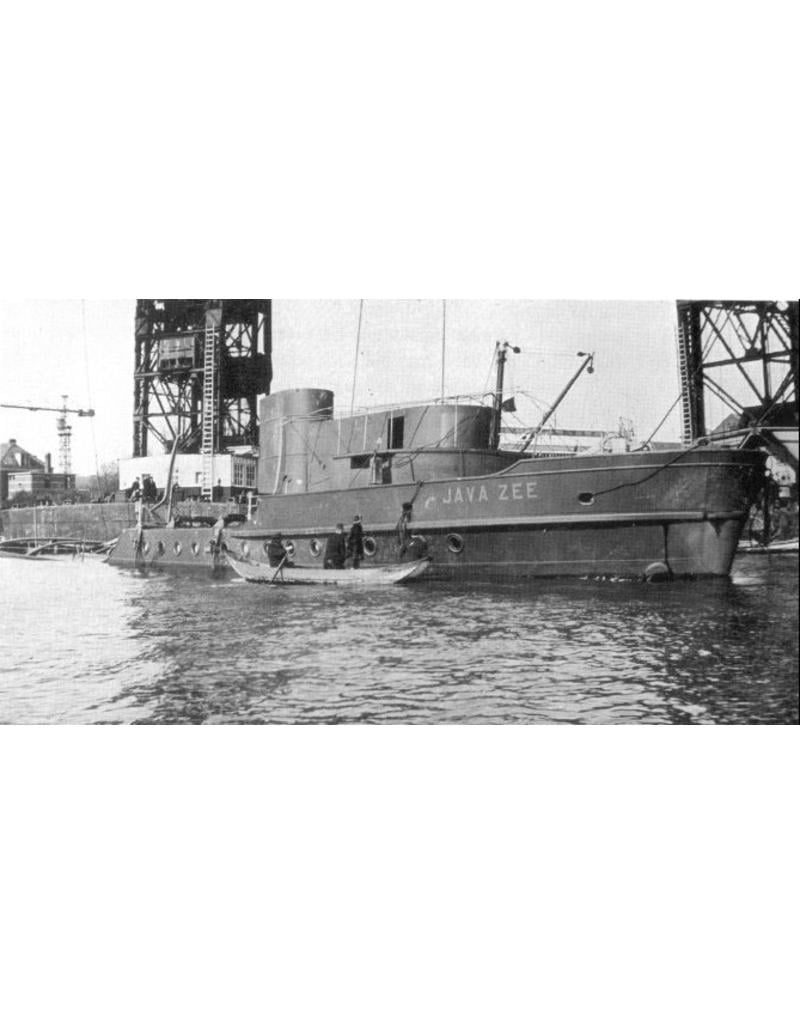

seagoing tug MV Javazee (1939) - Smit Int. |
|
Quality |

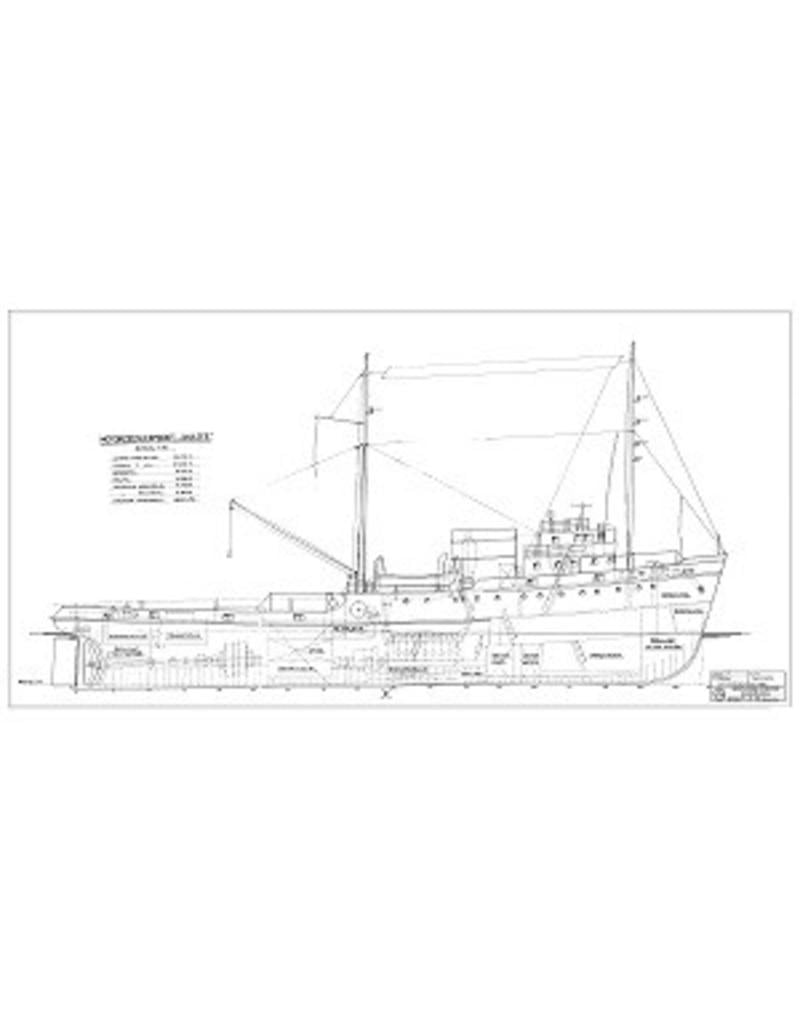

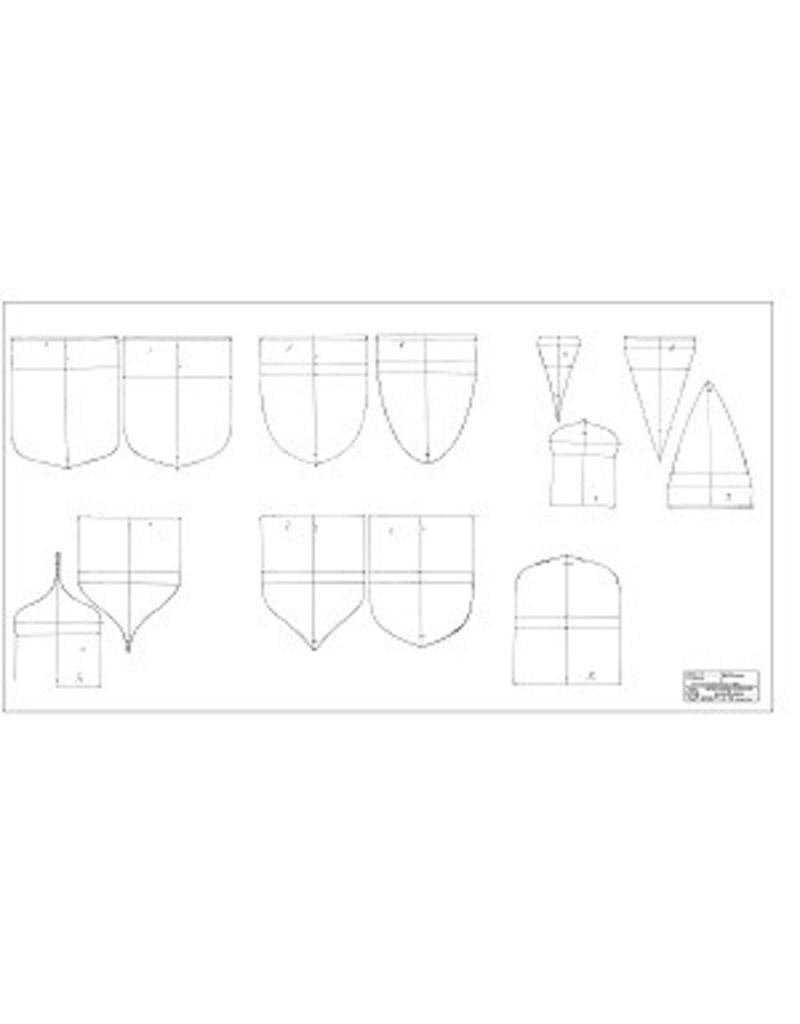

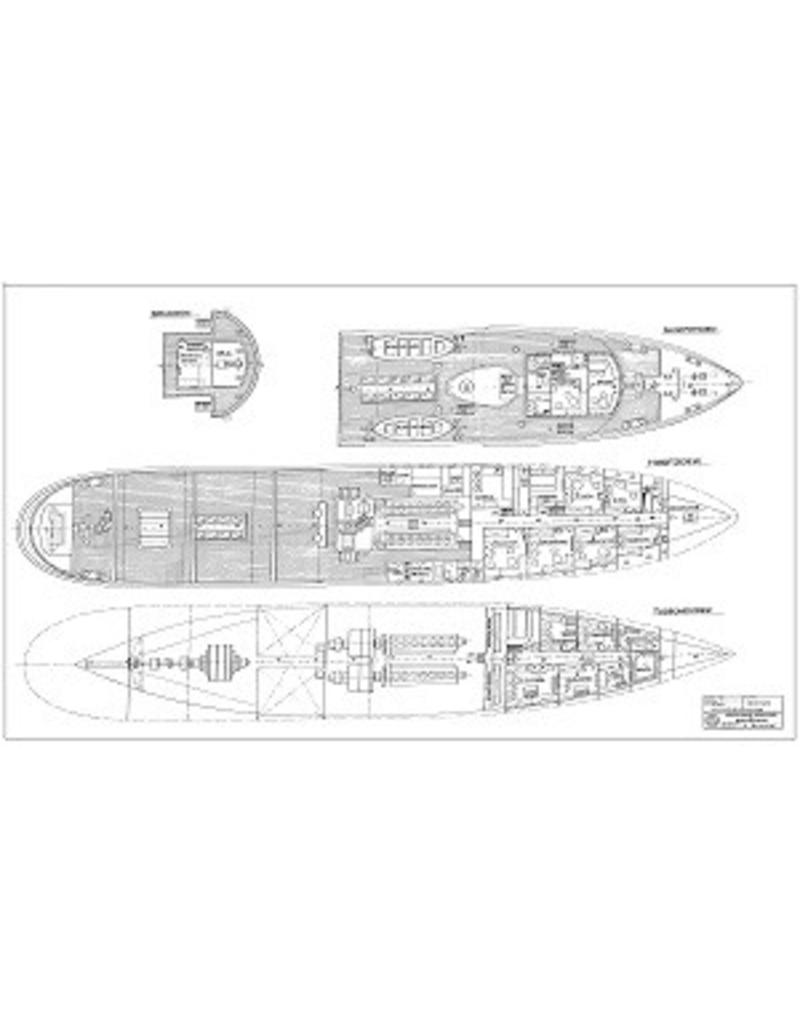

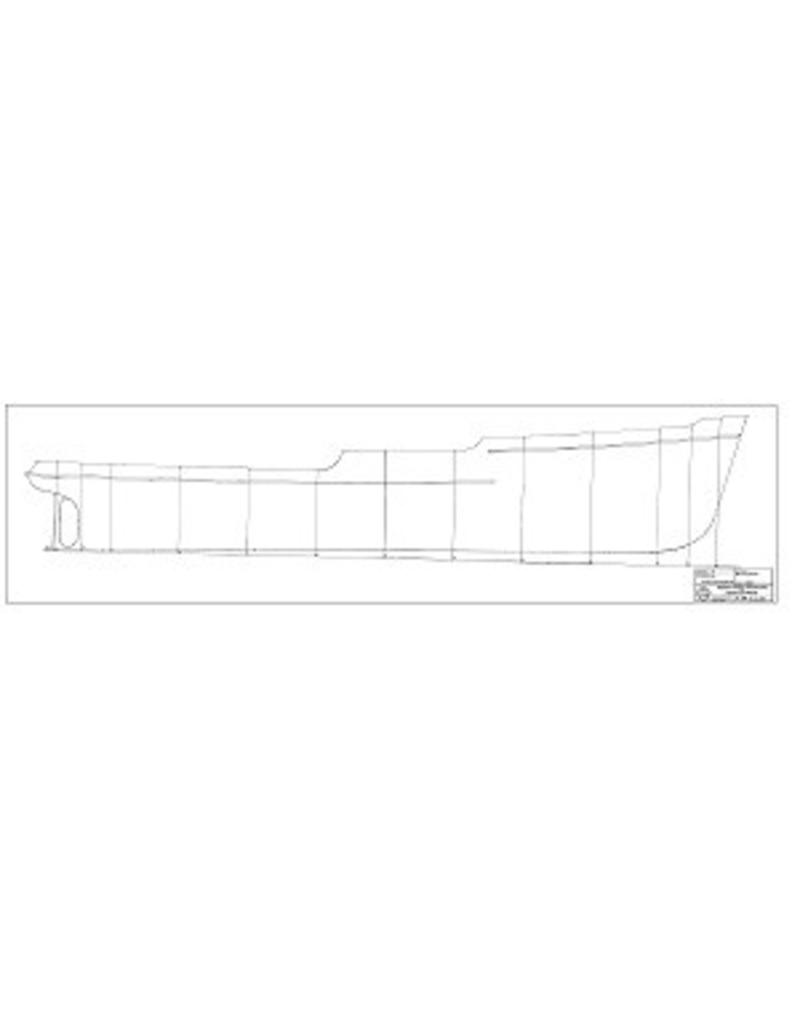

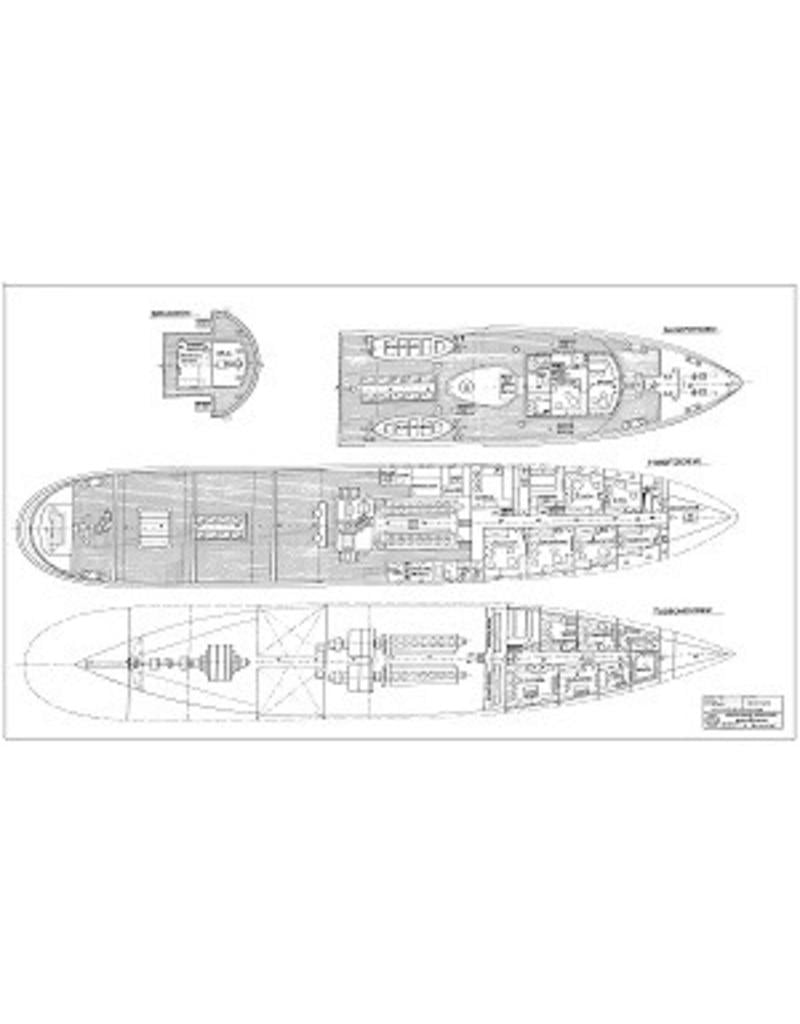

general arrangement; construction frames; paint list |
|
Scale |
1 : 50 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
4 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
4 |
|
Number of A4 text sheets |
1 |
|
Weight in grams |
350 |
|
Particulars |
l.o.a. 113 cm |
|
Remarks |
artek 4243 |
