| Article number: | 10.16.018 |
Specifications :
|
Drawing number |
10.16.018 |
|
Description |
dinghy for outboard motor |
|
Quality |

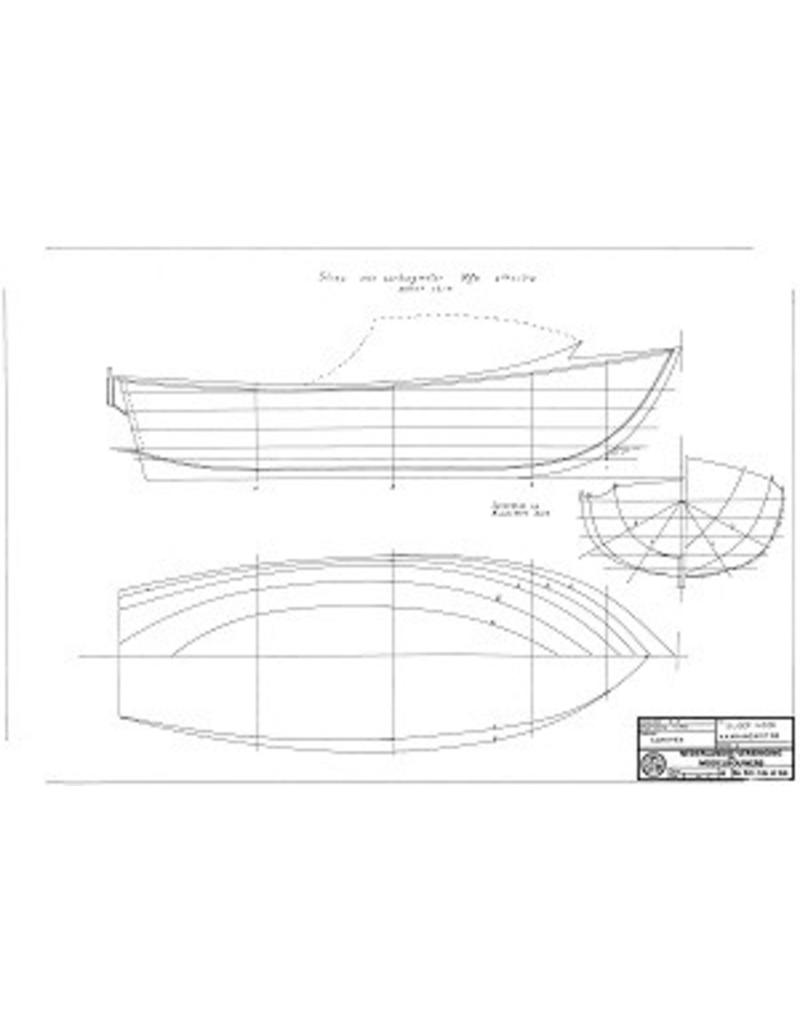

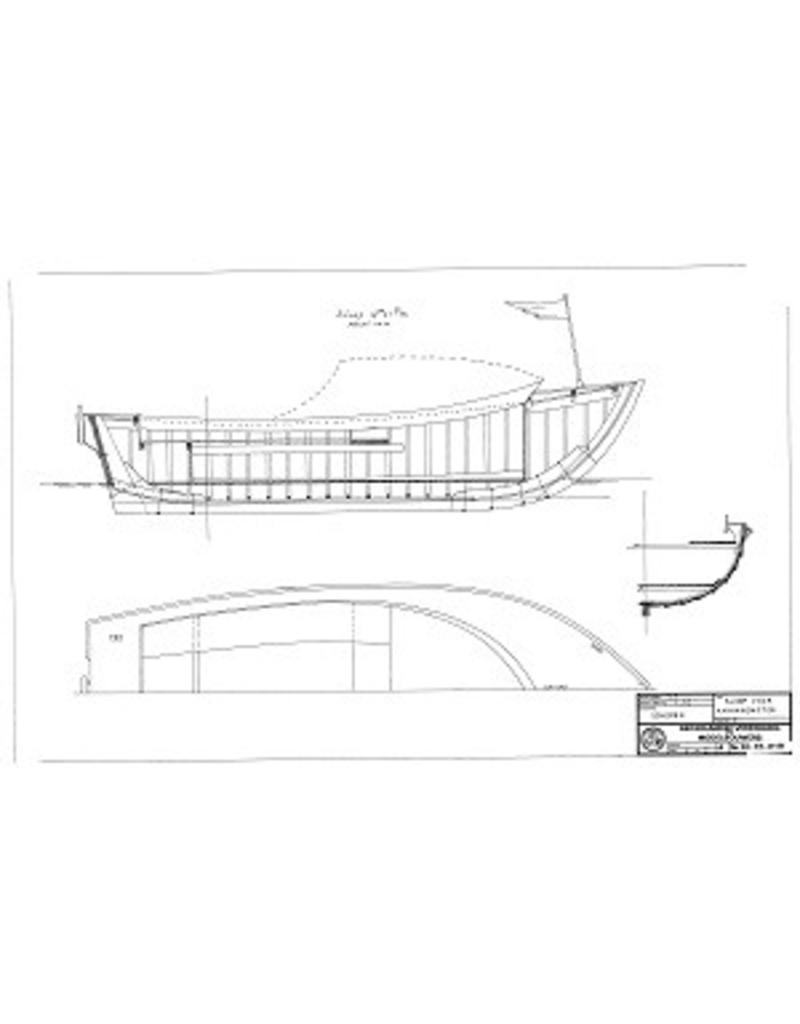

frames/lines; longitudinal section; deck plan; cross-section |
|
Scale |
1 : 10 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
2 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
56 |
|
Particulars |
l.o.a. 46 cm |
|
Remarks |
was 10.17.007 |
