| Article number: | 16.09.001 |
Specifications :
|
Drawing number |
16.09.001 |
|
Description |

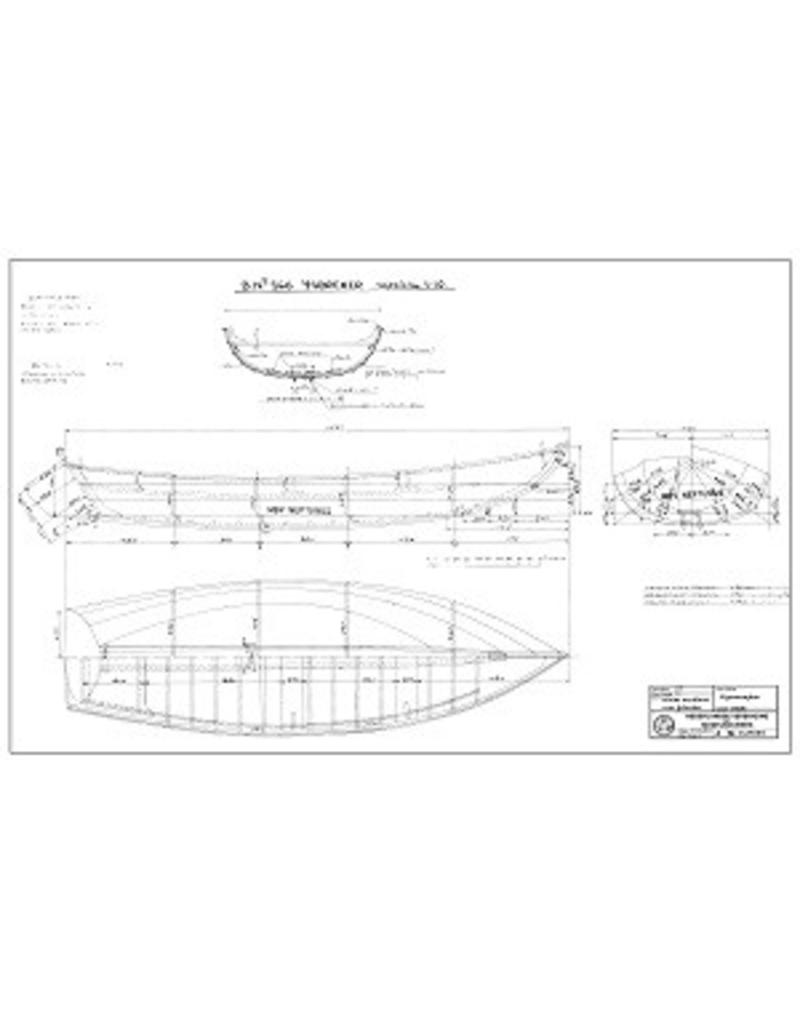

small workboat for an icebreaker |
|
Quality |
general plan; no sp/lines plan |
|
Difficulty level |
C |
|
Scale |
1 : 10 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
65 |
|
Particulars |
l.o.a. 1:48 cm |
|
Remarks |
artek 4578 |
