| Article number: | 16.10.070 |
Specifications :
|
Drawing number |
16.10.070 |
|
Description |

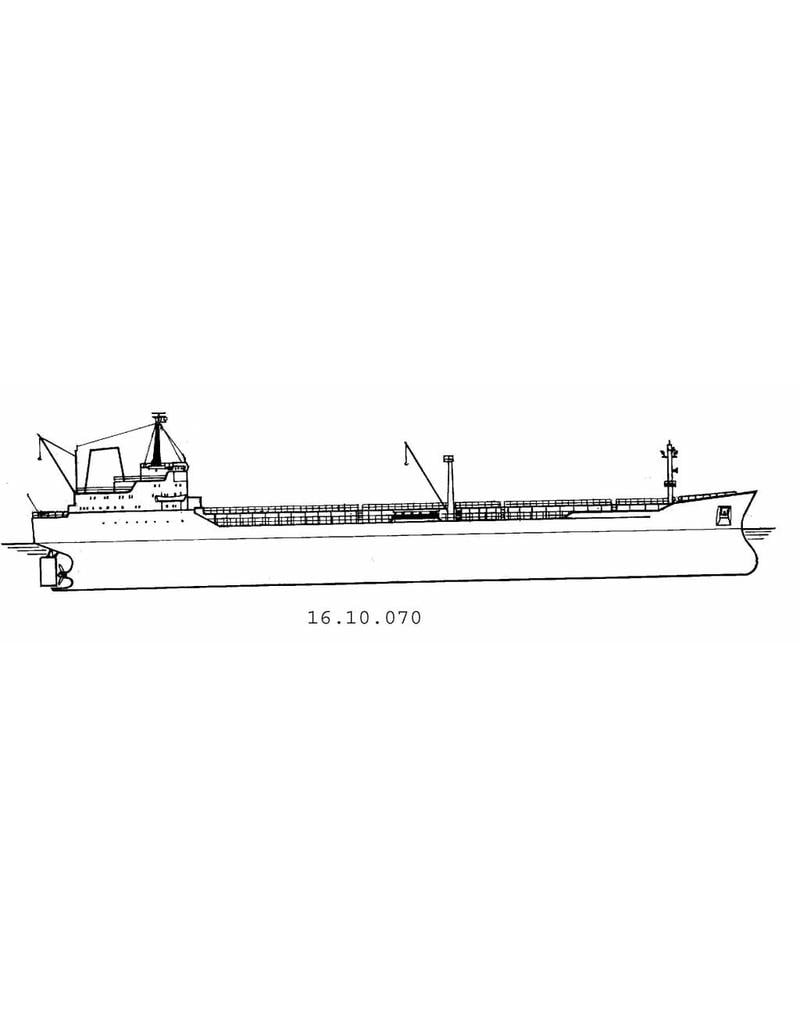

tanker MS G.A. Walker (1974) - Can.Pacific |
|
Quality |
general arrangement; body plan/lines |
|
Difficulty level |
D |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
4 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
4 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
265 |
|
Particulars |
l.o.a. 170 cm |
|
Remarks |
artek 4123 |
