| Article number: | 16.10.087 |
Specifications :
|

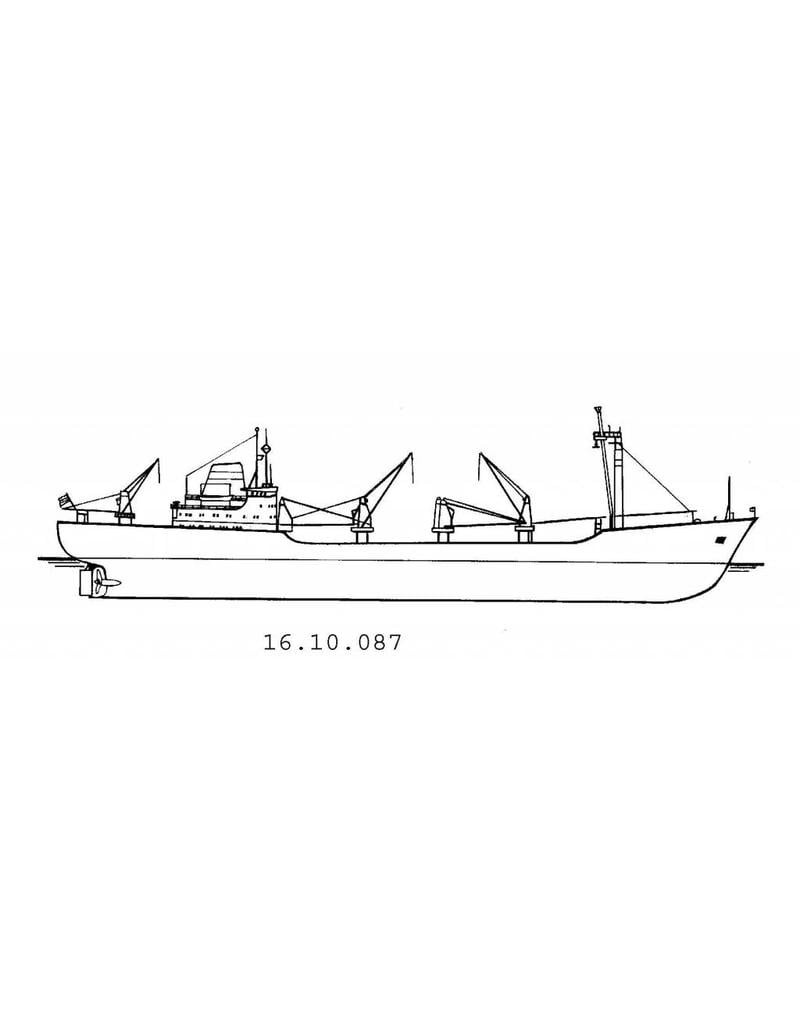

Drawing number |
16.10.087 |
|
Description |
cargo ship ms "Wissekerk", "Westerkerk", "Waalekerk" (1967) - VNS/Nedlloyd |
|
Quality |
general plan 1:1:100 and 1:1:200; sp/lines; rigging plan; colour scheme |
|
Difficulty level |
D |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
4 |
|
Number of sheets A0 |
1 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
5 |
|
Number of A4 text sheets |
1 |
|
Weight in grams |
|
|
Particulars |

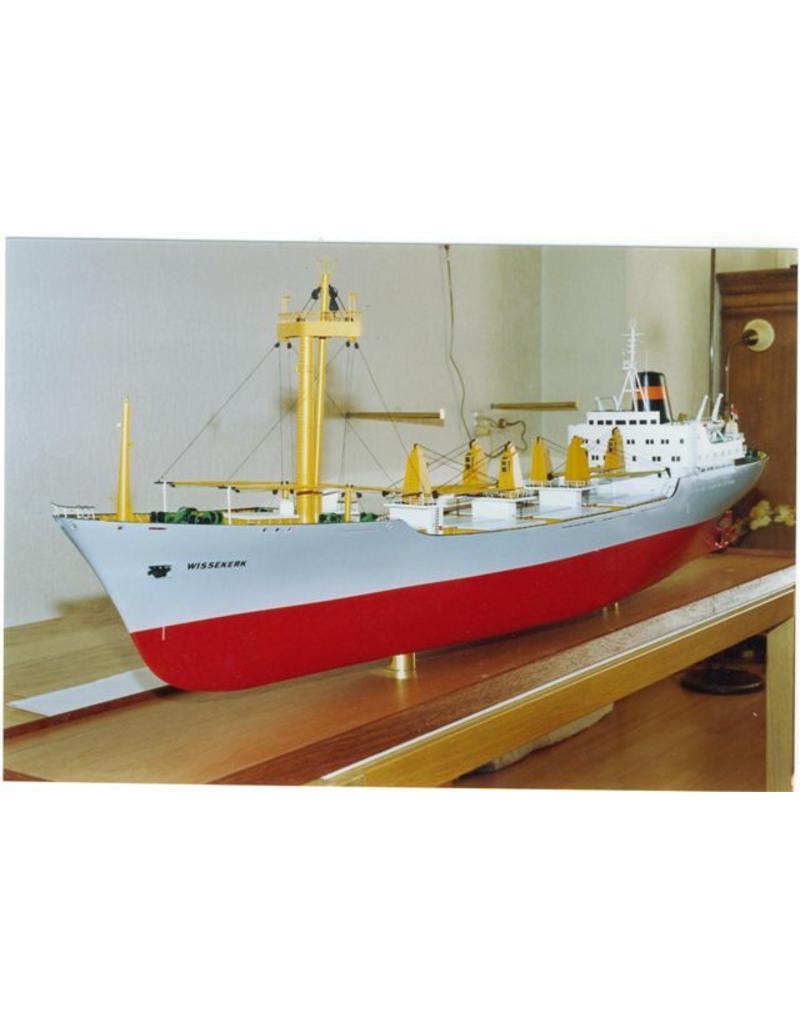

l.o.a. 166 cm |
|
Remarks |
artek 4063 |
