| Article number: | 16.14.003 |
Specifications :
|
Drawing number |
16.14.003 |
|
Description |

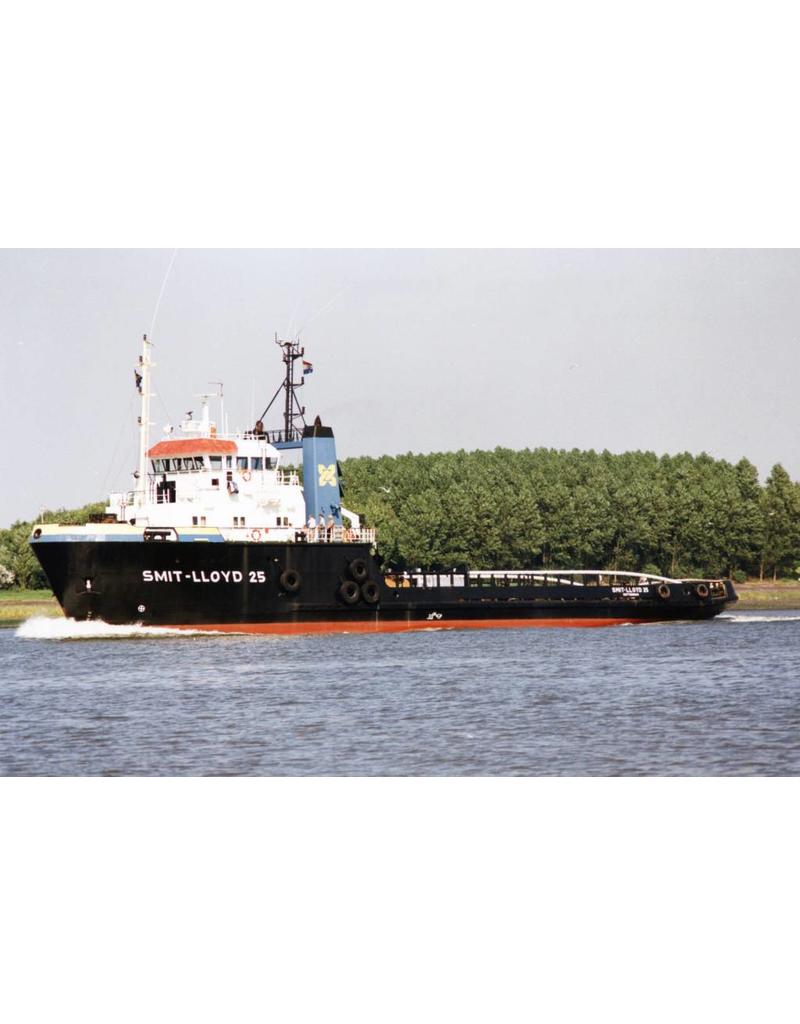

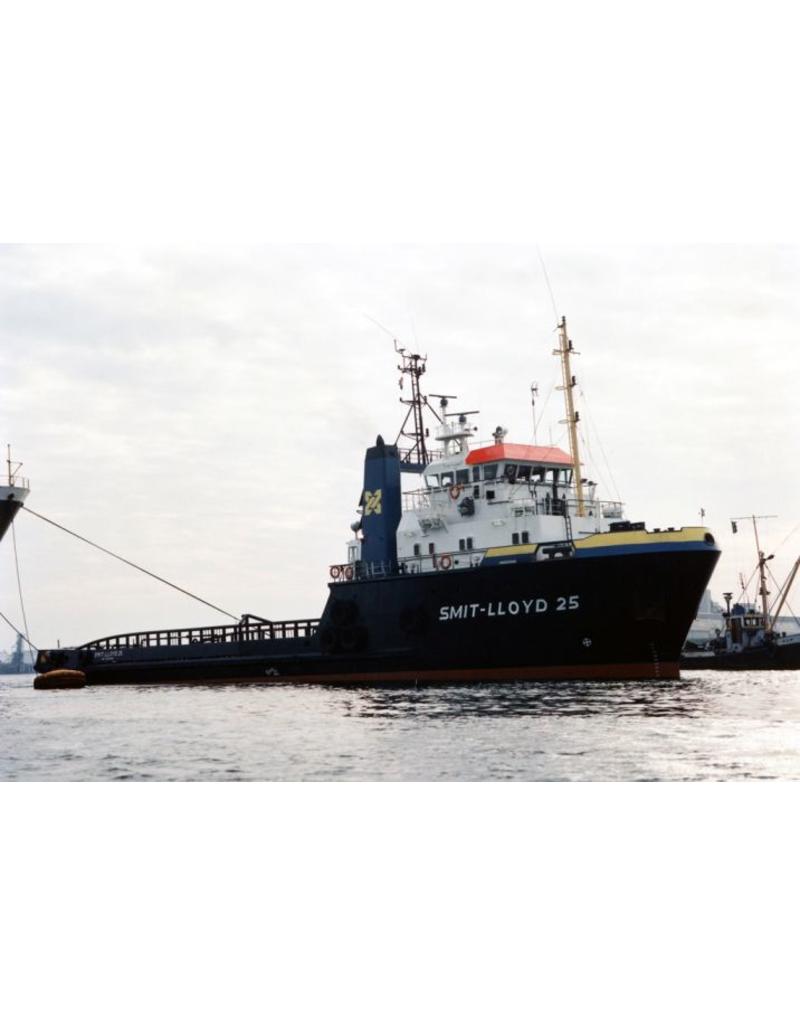

supply ms Smit Lloyd 1:25 (1982) - Smit Lloyd |
|
Quality |

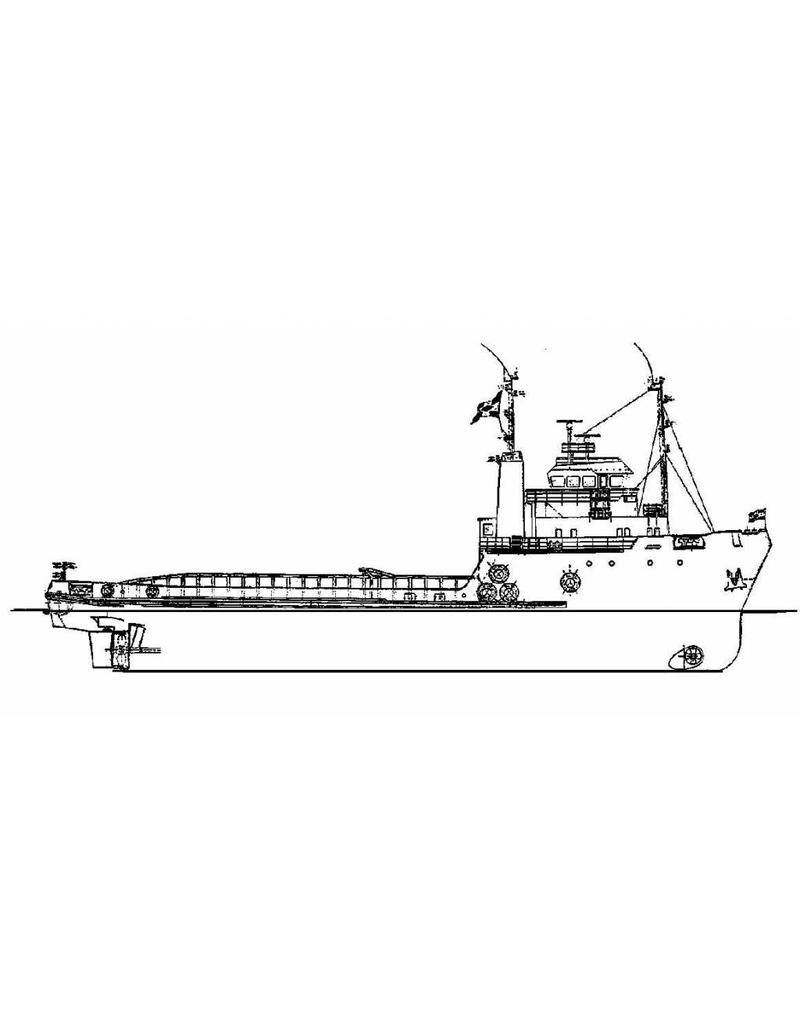

general plan; sp/lines 1:50; details |
|
Difficulty level |
D |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
2 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
3 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
125 |
|
Particulars |
l.o.a. 58 cm |
|
Remarks |
artek 4305-2 Ì´Ì_
|
