| Article number: | 16.14.062 |
Specifications :
|
Drawing number |
16.14.062 |
Ì´Ì_ |
|
Description |

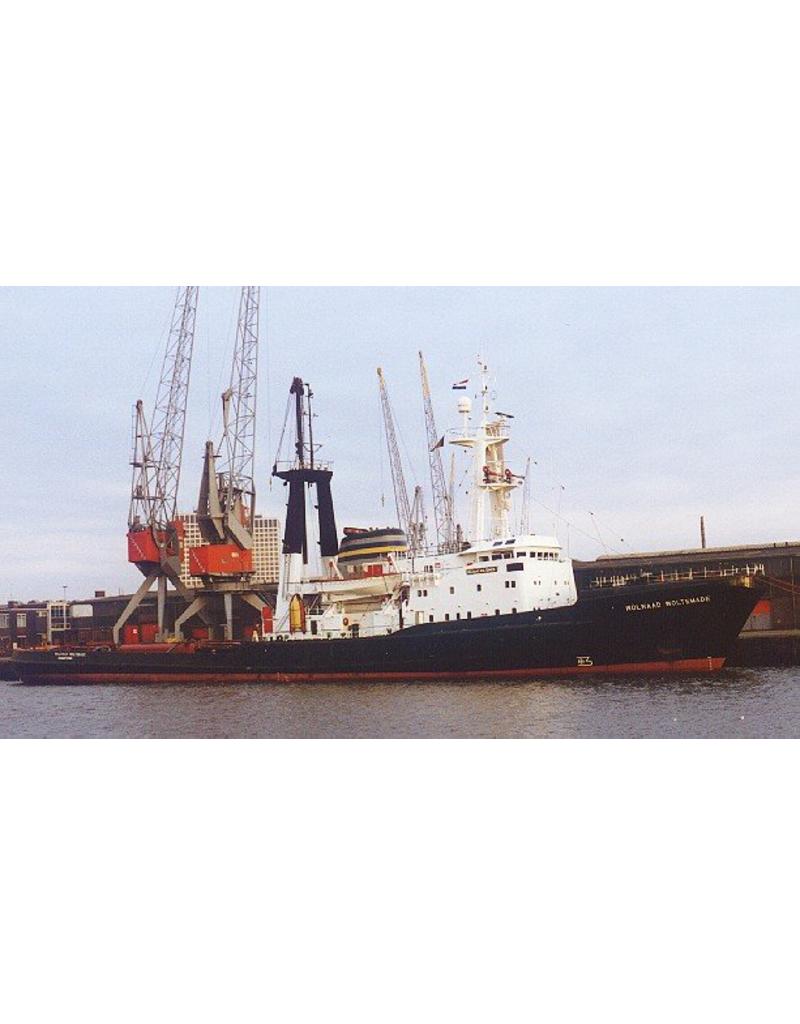

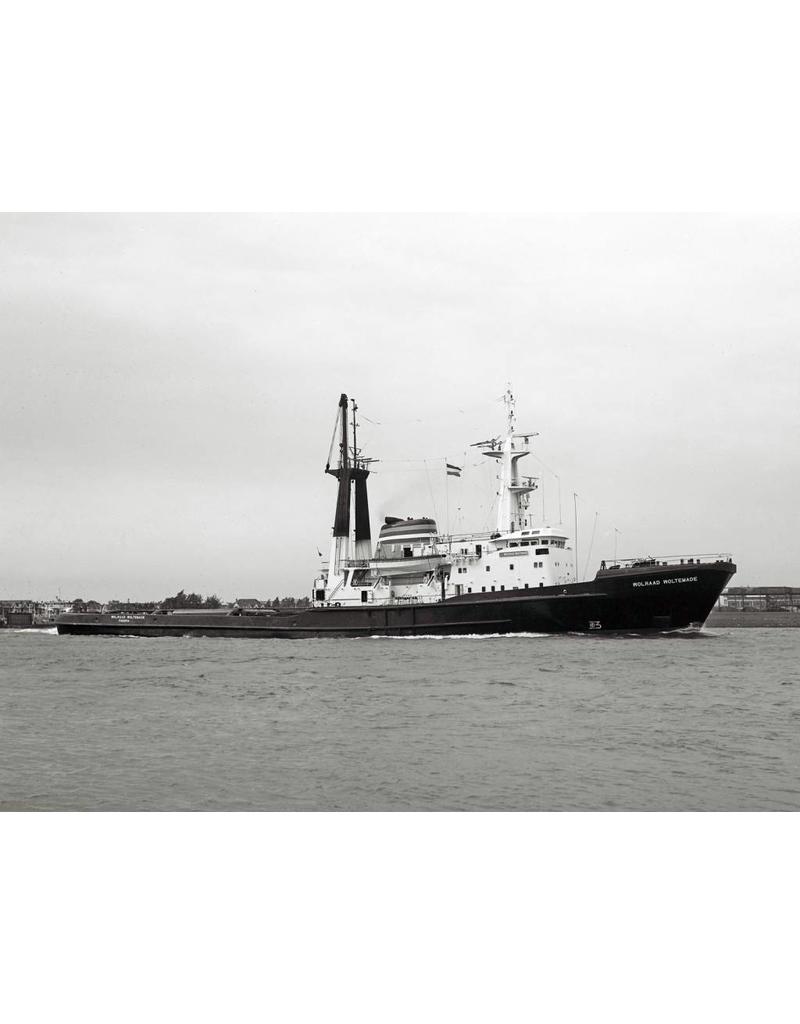

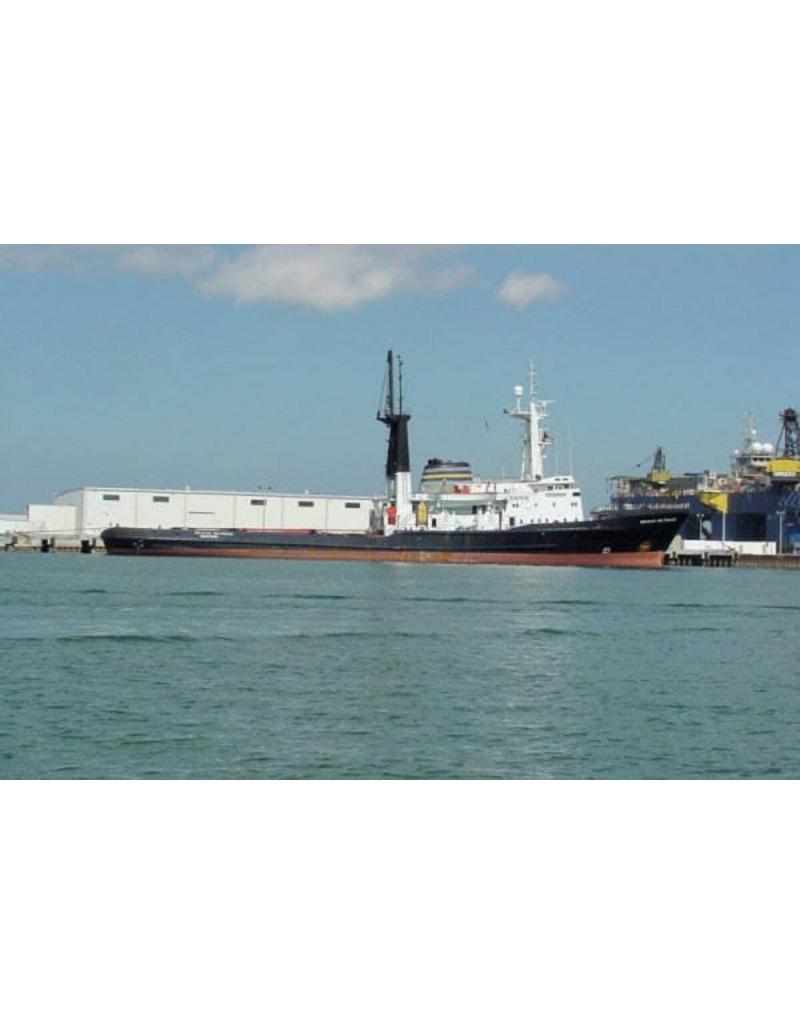

ocean-going tug ms SA Wolraad Woltemade, SA John Ross (1976) - Safmarine |
|
|
Quality |

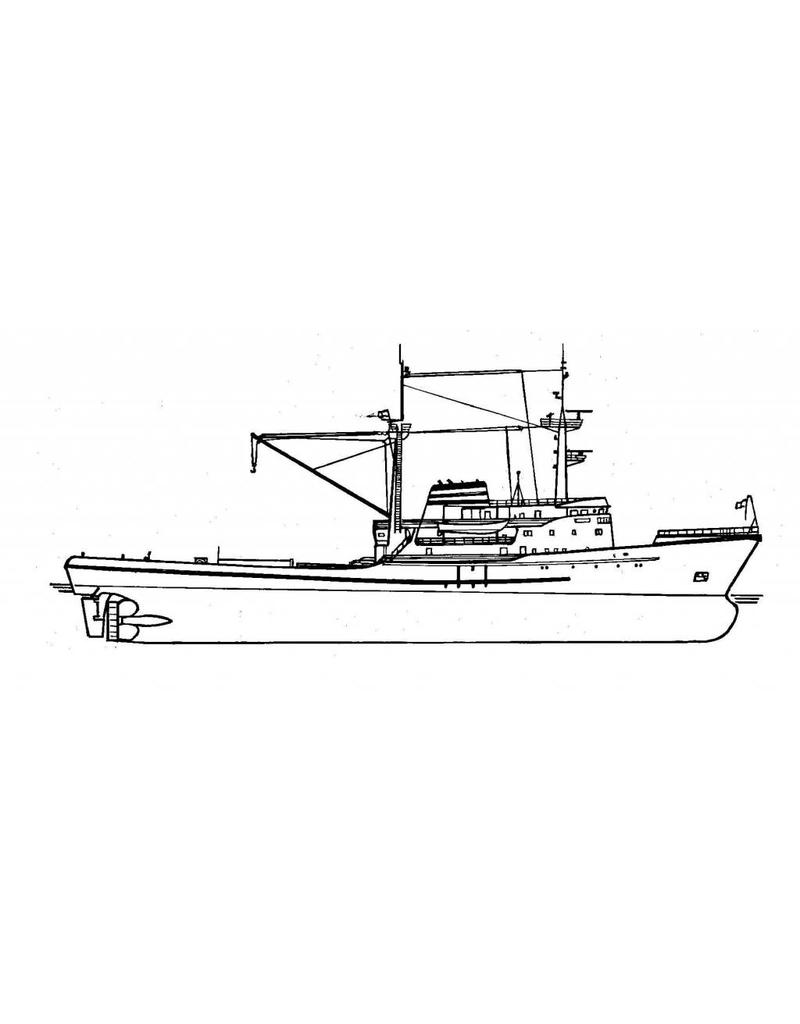

general arrangement plan; body plan/lines plan |
|
|
Difficulty |
D |
Ì´Ì_ |
|
Scale |
1 : 75 |
Ì´Ì_ |
|
Number of sheets A00 |
1 |
Ì´Ì_ |
|
Number of sheets A0 |
0 |
Ì´Ì_ |
|
Number of sheets A1 |
0 |
Ì´Ì_ |
|
Number of sheets A2 |
0 |
Ì´Ì_ |
|
Number of sheets A3 |
0 |
Ì´Ì_ |
|
Number of sheets A4 |
0 |
Ì´Ì_ |
|
Total number of drawing sheets |
1 |
Ì´Ì_ |
|
Number of A4 text sheets |
0 |
Ì´Ì_ |
|
Weight in grams |
Ì´Ì_ | |
|
Particulars |
l.o.a. 1:119 cm |
|
|
Remarks |
artek 4299 Ì´Ì_
|
|
