| Article number: | 16.16.002 |
Specifications :
|
Drawing number |
16.16.002 |
|
Description |

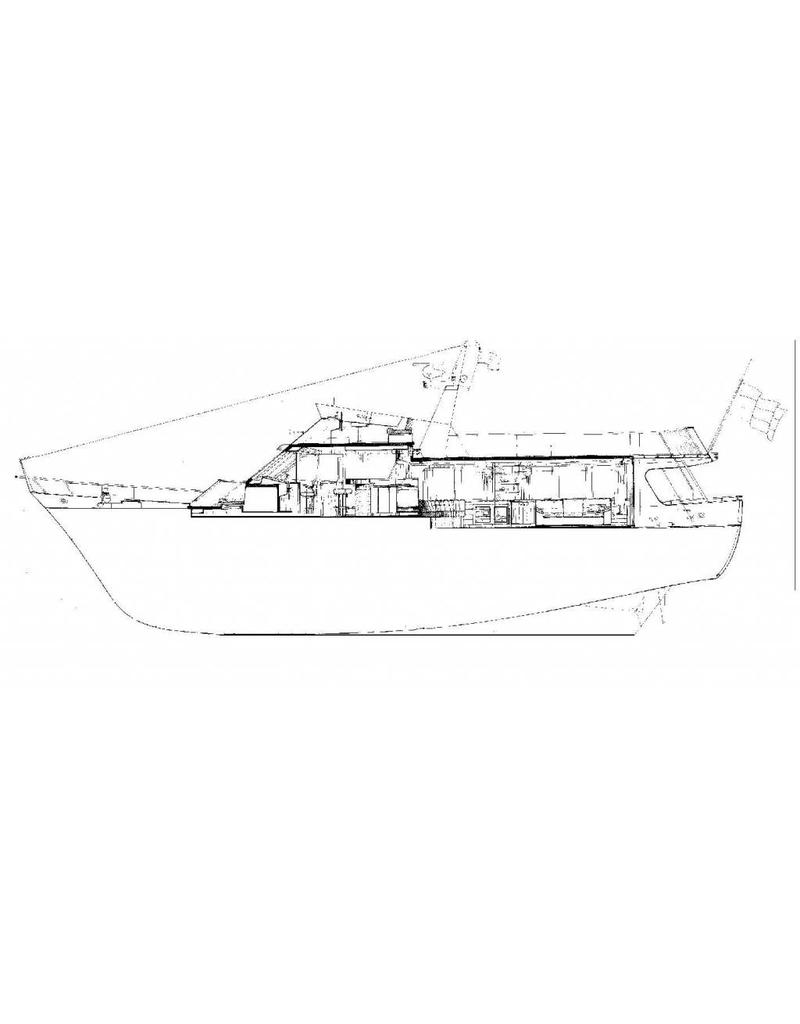

motor yacht Alhena |
|
Quality |
general plan; sp/lines 1:1:20; construction plan 1:1:20; sections 1:20 |
|
Difficulty level |
D |
|
Scale |
1 : 40 |
|
Number of sheets A00 |
5 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
5 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
305 |
|
Details |
l.o.a. 53 cm |
|
Remarks |
draughtsman? shipyard? Ì´Ì_
|
