| Article number: | 16.19.032 |
Specifications :
|
Drawing number |
16.19.032 |
|
Description |

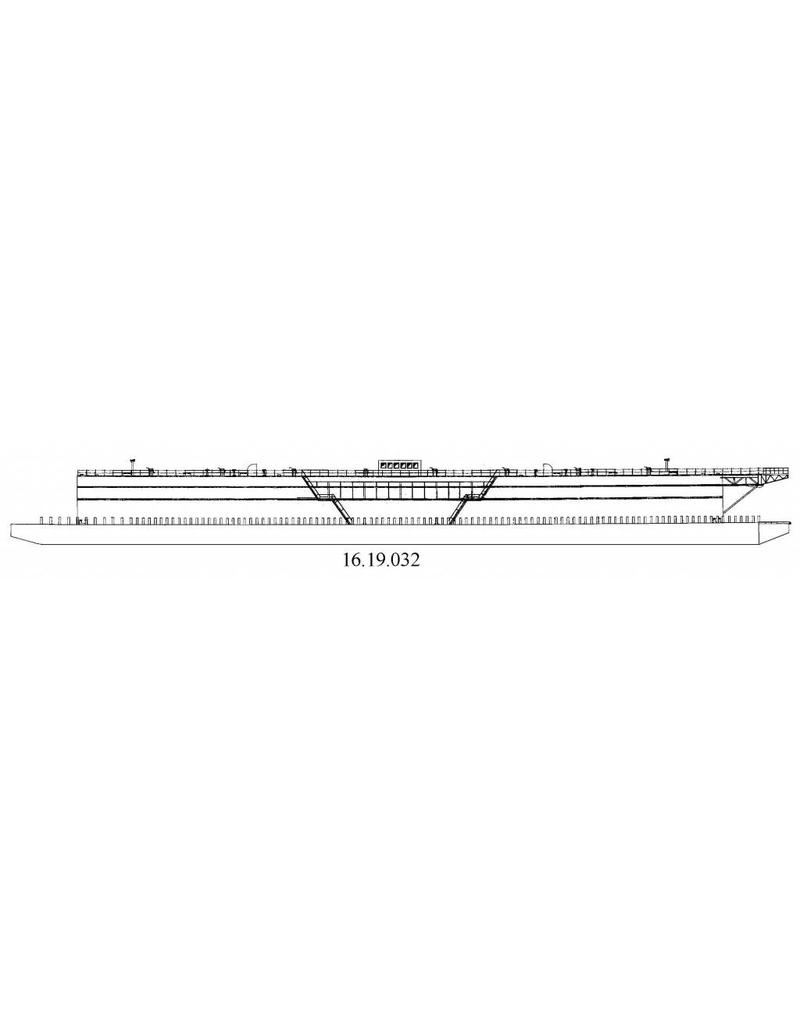

floating dry dock |
|
Quality |
general plan; cross-sections; no frame/lines plan |
|
Difficulty level |
C |
|
Scale |
1 : 100 |
|
Number of A00 sheets |
1 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
0 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
Ì´Ì_ |
|
Particulars |
l.o.a. 130 cm |
|
Remarks |
artek 4371 Ì´Ì_
|
