| Article number: | 20.05.005 |
Specifications :
|
Drawing number |
20.05.005 |
|
Author |
J.P.de Hek |
|
Description |

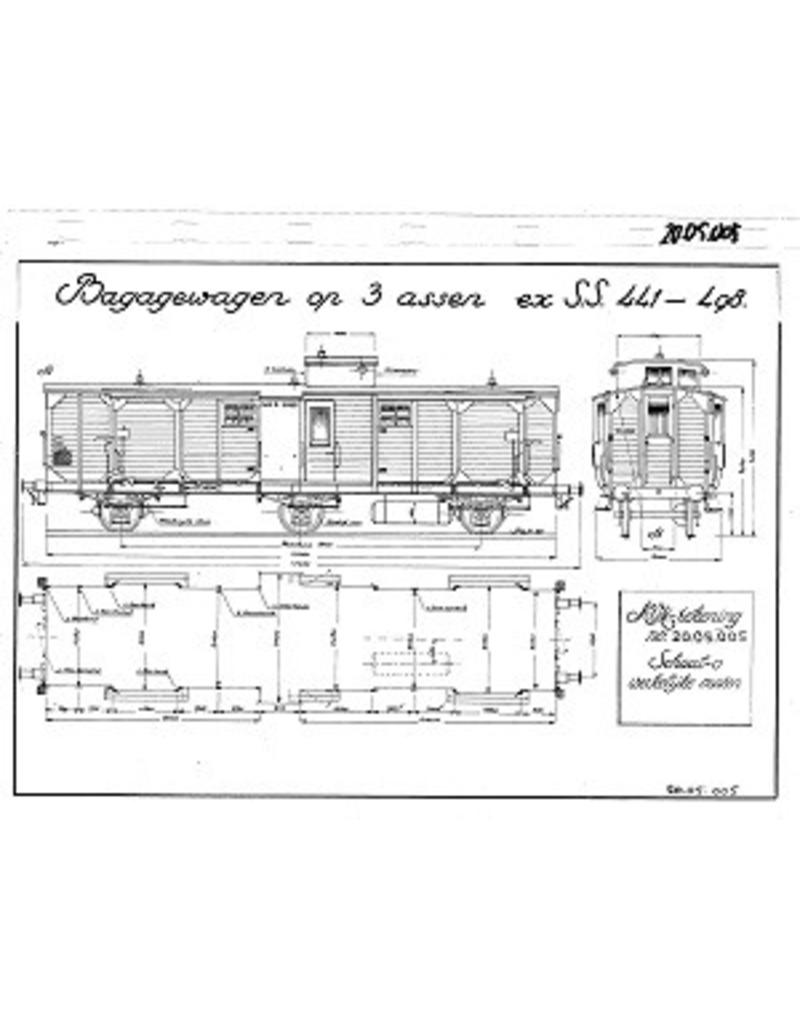

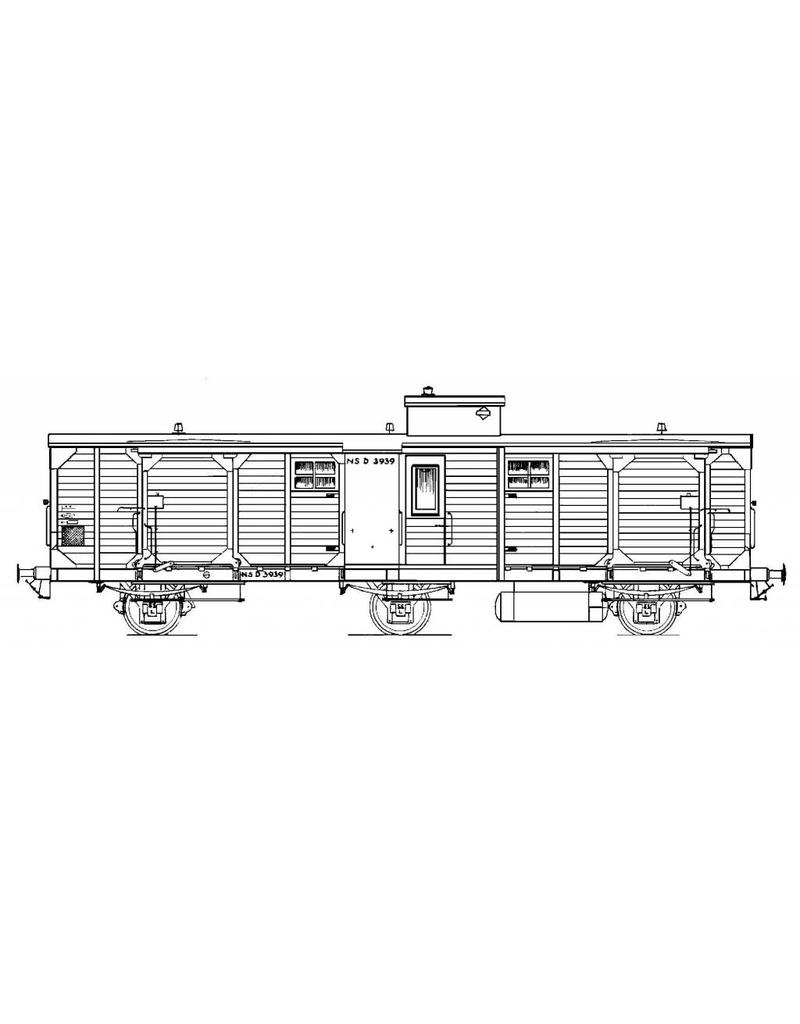

3-axle luggage van D 3939 (ex SS 441-498) |
|
Quality |
detailed dimensioned sketch with prototype dimensions |
|
Difficulty level |
D |
|
Scale |
1 : 45 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
1 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
35 |
|
Particulars |
dM 1958/5 |
|
Remarks |
