| Article number: | 20.07.001 |
Specifications :
|
Drawing number |
20.07.001 |
|
Author |
G.C. Schalk |
|
Description |

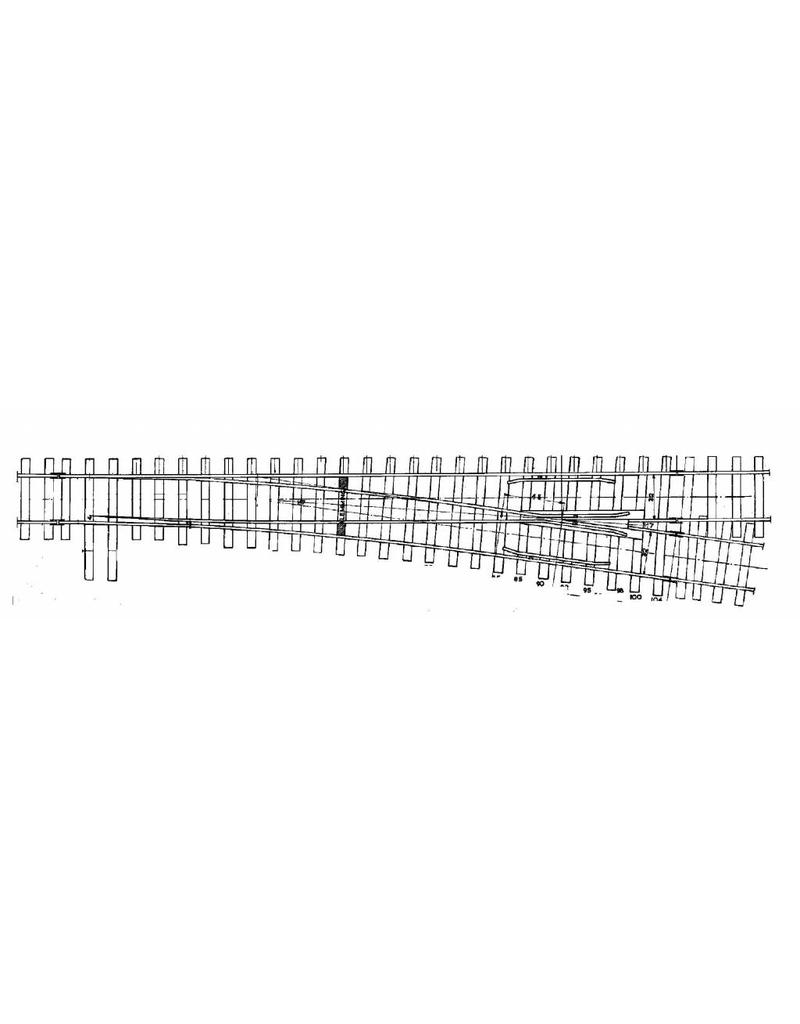

ordinary right-hand turnout 1:7, 1:3.5 for gauge 0 |
|
Quality |
construction drawing at model scale, fully dimensioned |
|
Difficulty level |
B |
|
Scale |
1 : 1 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
1 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
45 |
|
Special features |
dM 1949/5 |
|
Notes |
