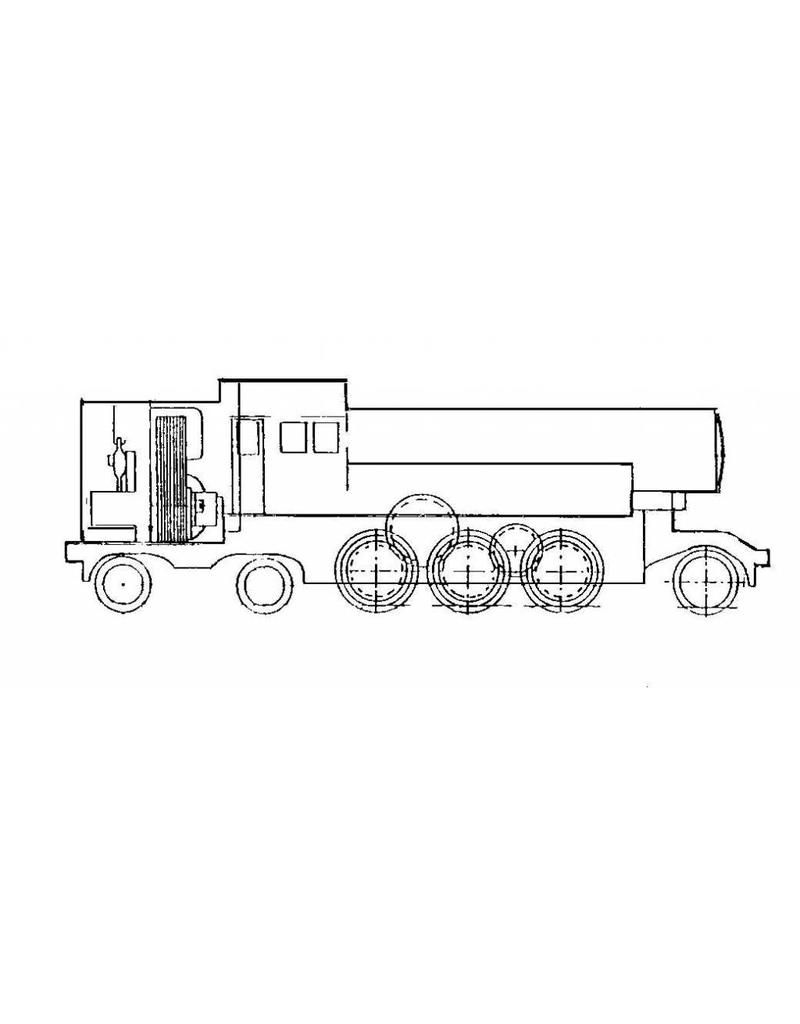

MBT 20.10.001 DB tender locomotive BR 66 for H0 gauge

Drawing number

20.10.001

Author

H. van der Biezen

Description

DB tender locomotive BR 66 for H0 gauge

Quality

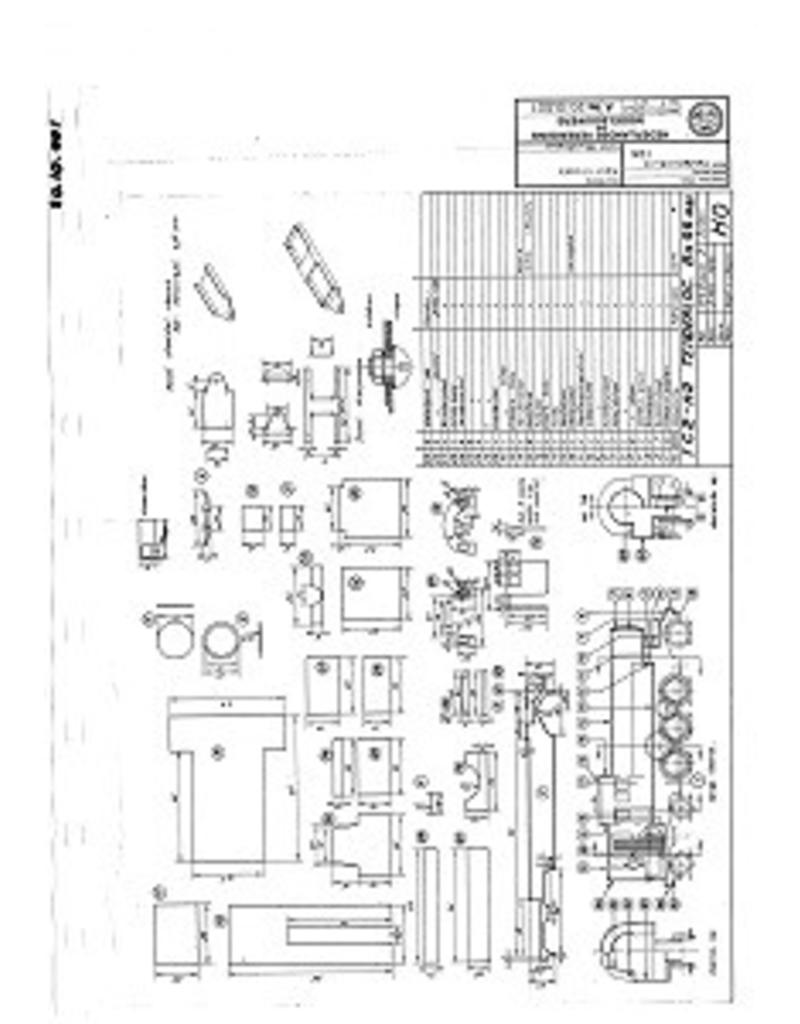

construction drawing for a limited detailed model; parts dimensioned

Difficulty level

C

Scale

1 : 87

Number of A00 sheets

0

Number of A0 sheets

0

Number of A1 sheets

0

Number of A2 sheets

1

Number of A3 sheets

0

Number of A4 sheets

0

Total number of drawing sheets

1

Number of A4 text sheets

0

Weight in grams

45

Special features

dM 2003/3

Copy of article: 22.10.001 (1 page)

The drawn electrical drive is outdated and must be adapted by the builder at their own discretion

Remarks
