| Article number: | 20.12.002 |
Specifications :
|
Drawing number |
20.12.002 |
|
Author |
A. Donker |
|
Description |

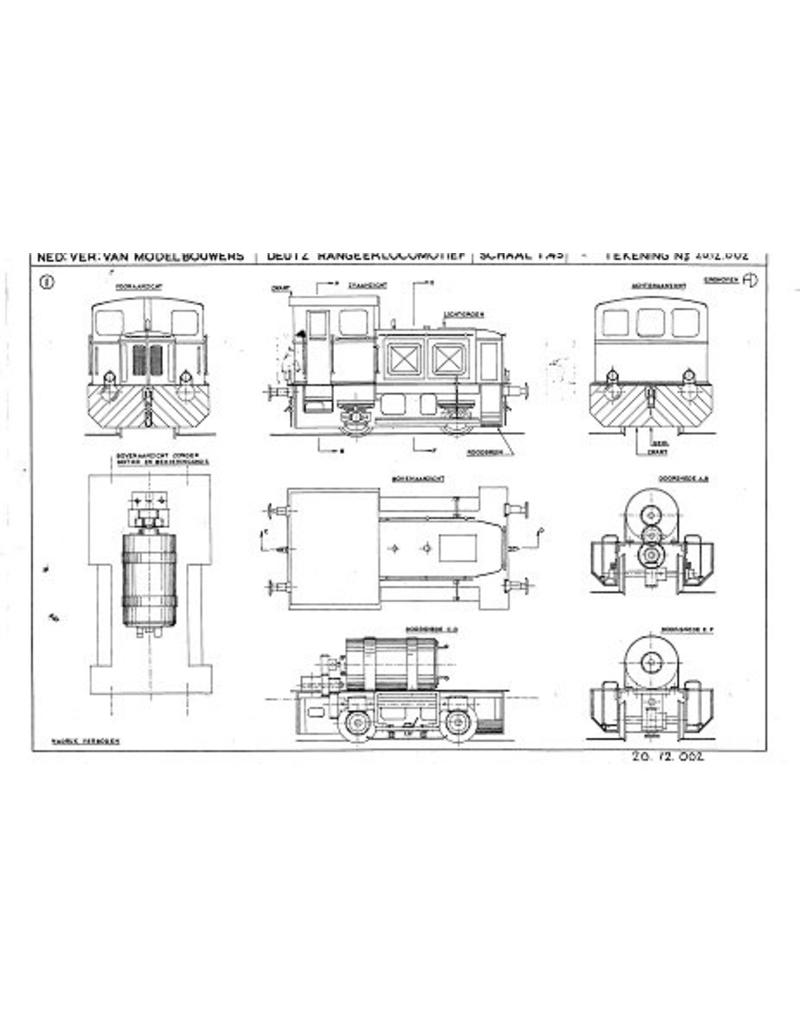

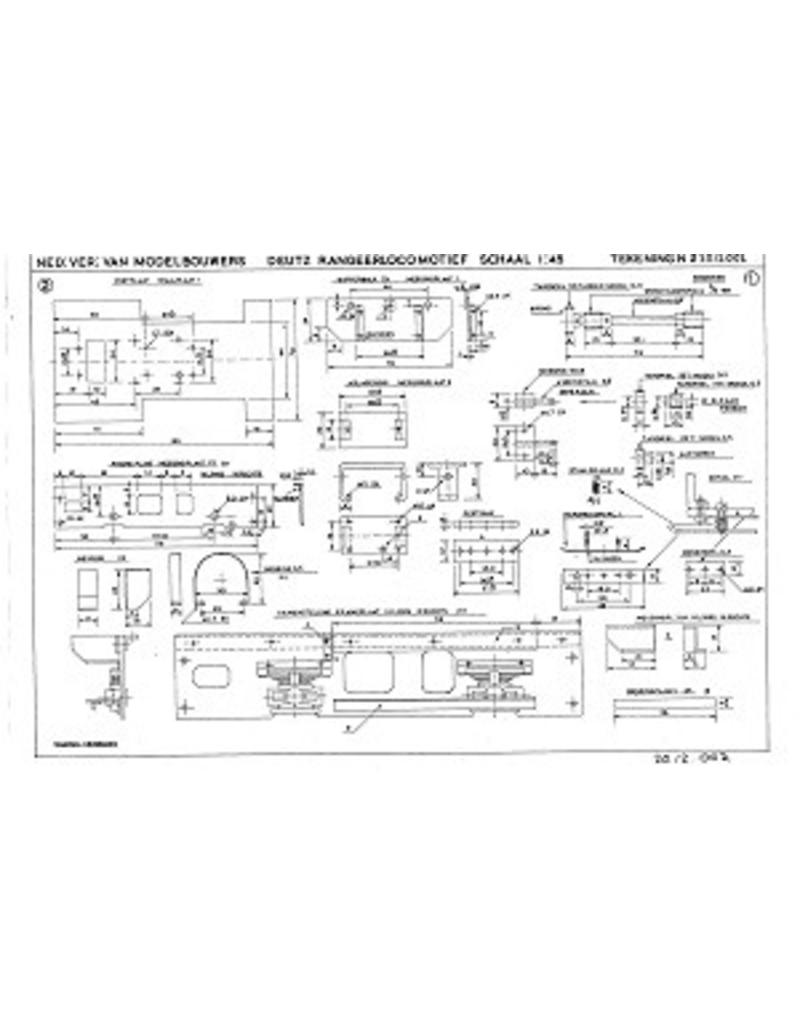

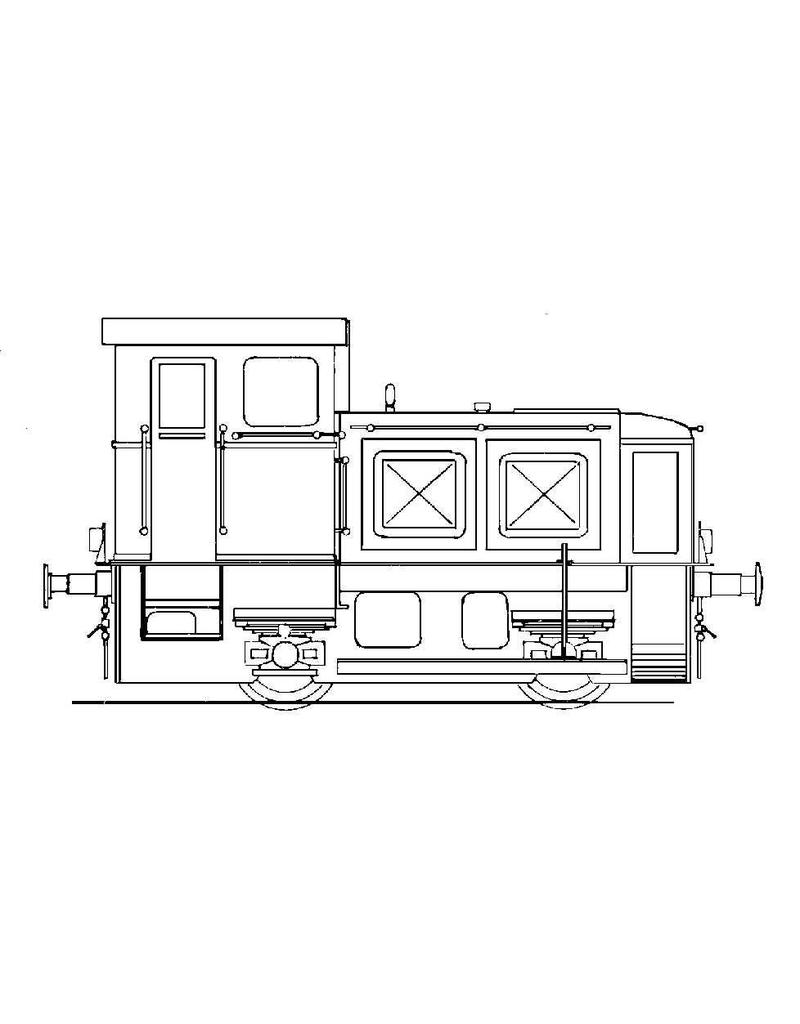

industrial shunting locomotive Deutz for gauge 0 |
|
Quality |
complete construction drawing; parts dimensioned |
|
Difficulty level |
C |
|
Scale |
1 : 45 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
3 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
3 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
55 |
|
Particulars |
dM 1957/4 |
|
Remarks |
