| Article number: | 20.33.008 |
Specifications :
|
Drawing number |
20.33.008 |
|
Author |
J.F. Smit |
|
Description |

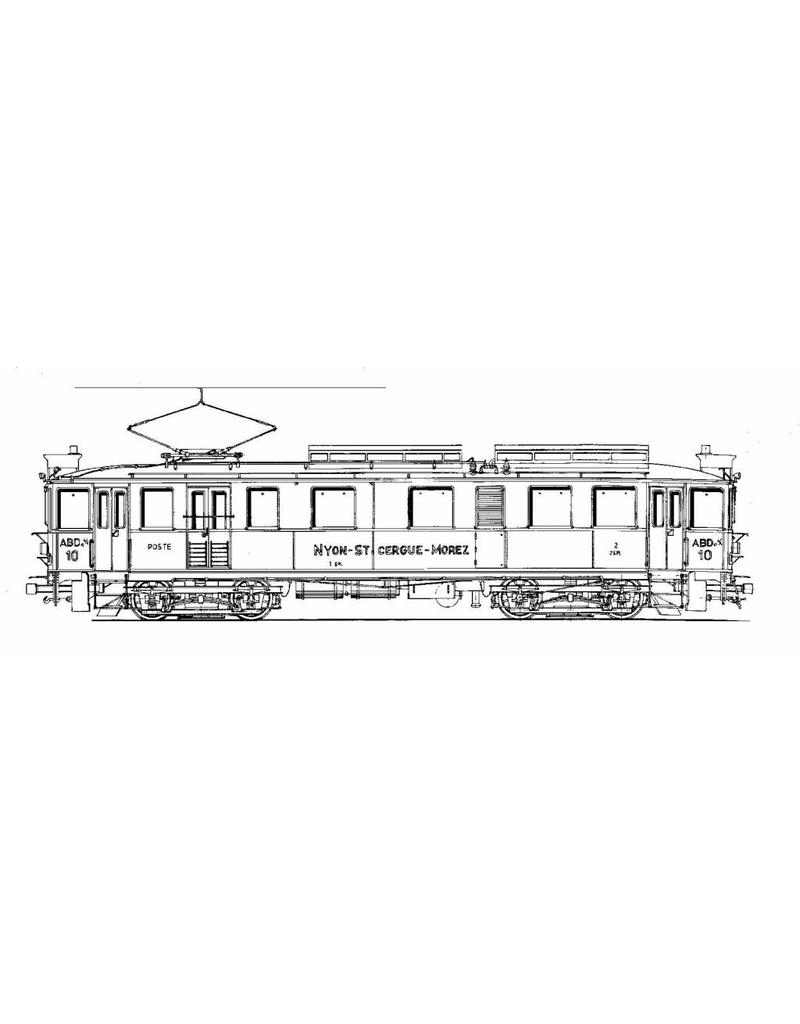

railcar ABDe 4/4 10-11 Nyon-St Cergue-Morez |
|
Quality |
dimensioned sketch with prototype dimensions |
|
Difficulty level |
D |
|
Scale |
1 : 45 |
|
Number of A00 sheets |
0 |
|
Number of A0 sheets |
0 |
|
Number of A1 sheets |
0 |
|
Number of A2 sheets |
1 |
|
Number of A3 sheets |
0 |
|
Number of A4 sheets |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
45 |
|
Particulars |
|
|
Remarks |
