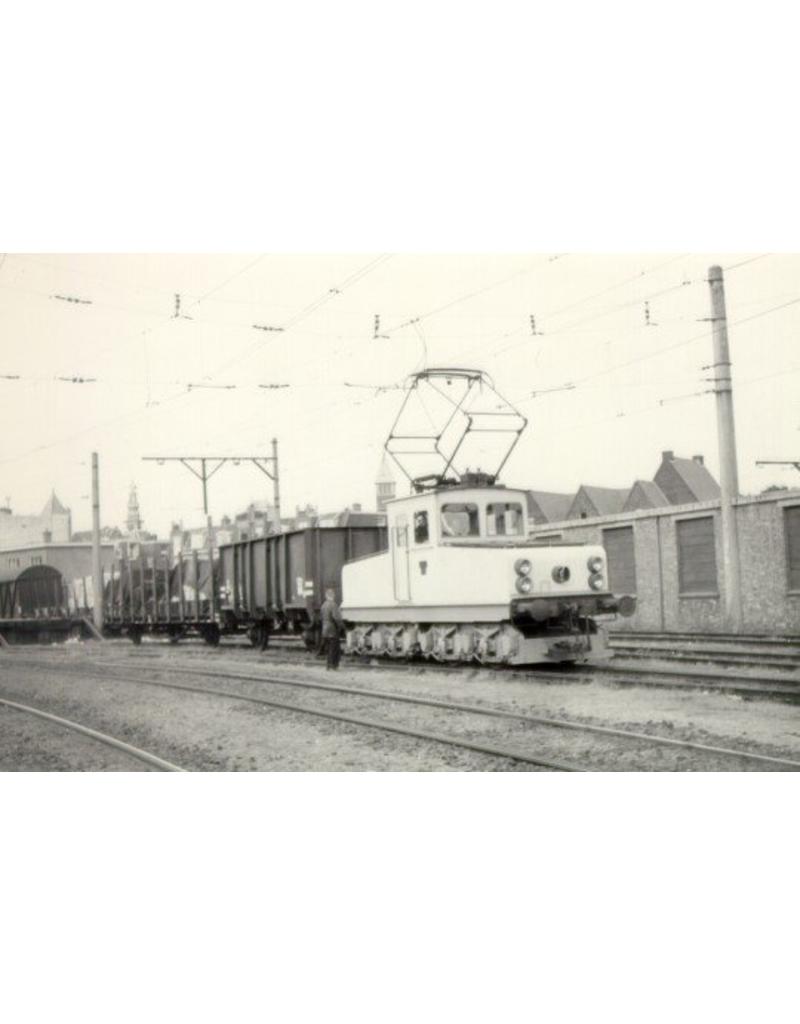

MBT 20.71.001 Electric locomotive HTM H51-52

Drawing number

20.71.001

Author

J.A. Hoogduin

Description

Electric locomotive HTM H51-52

Quality

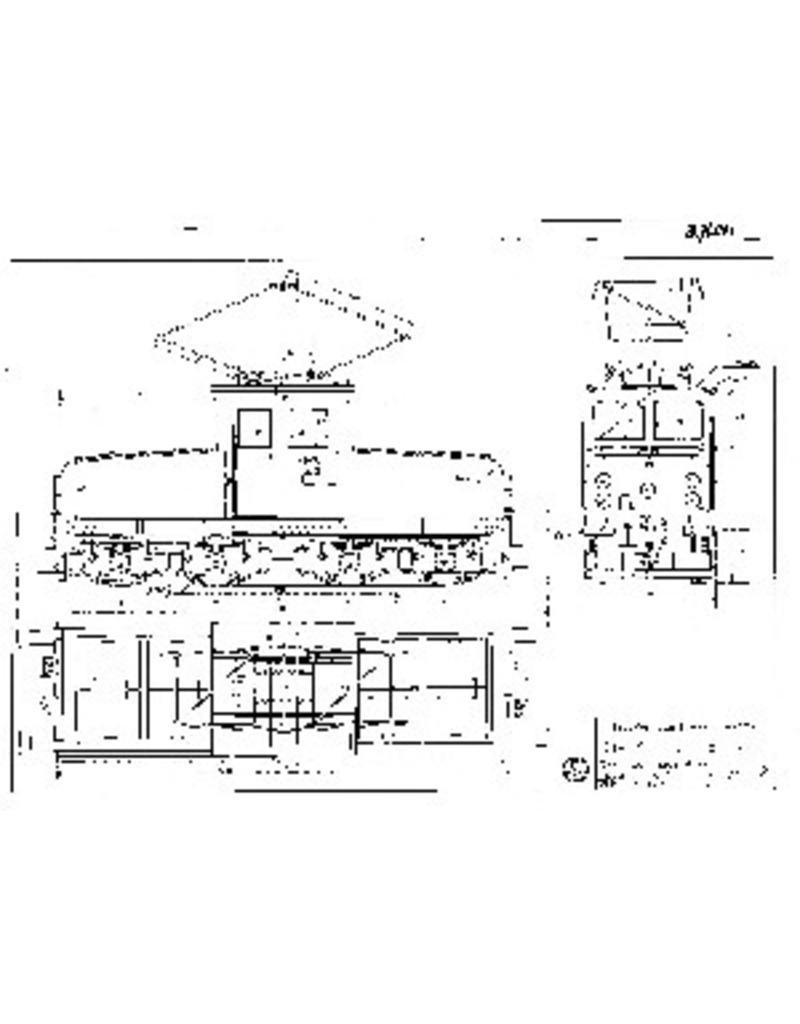

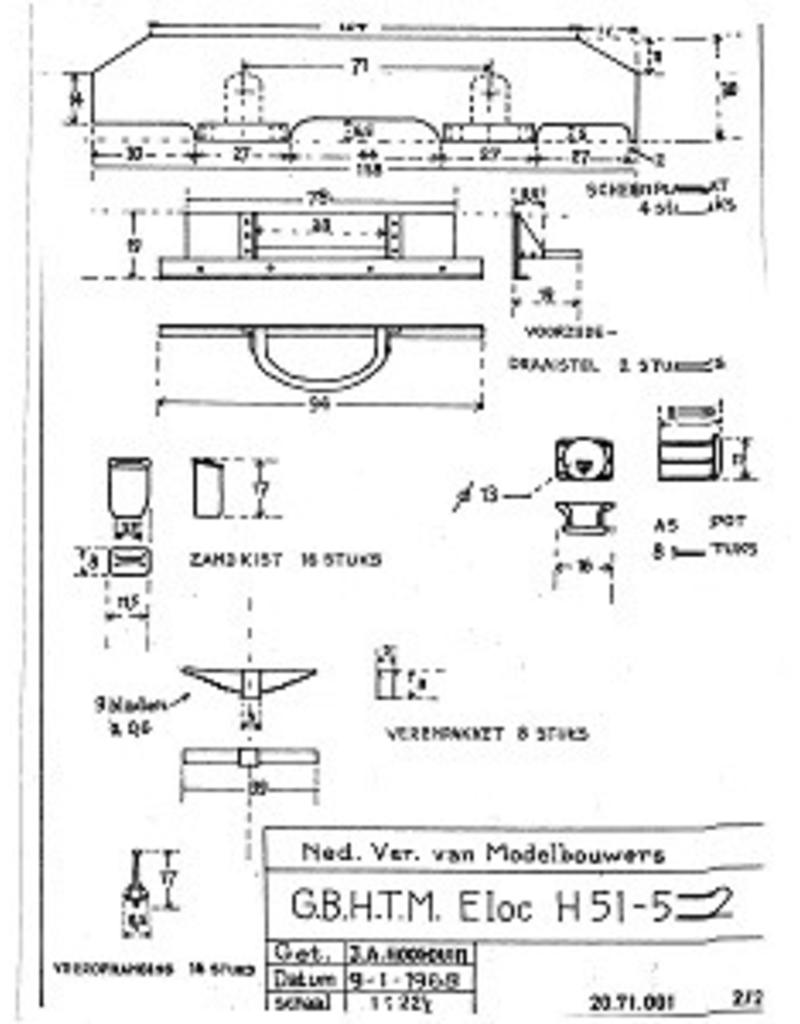

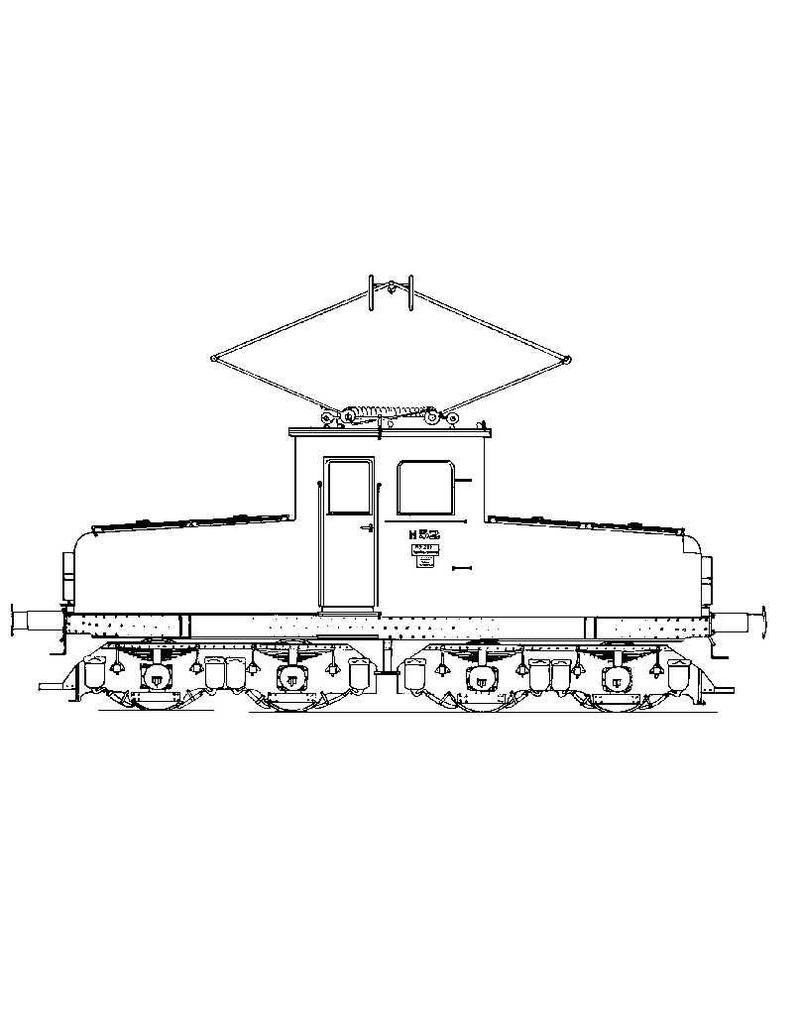

construction drawing with model dimensions

Difficulty level

C

Scale

1 : 22,5

Number of sheets A00

0

Number of sheets A0

0

Number of sheets A1

0

Number of sheets A2

1

Number of sheets A3

0

Number of sheets A4

1

Total number of drawing sheets

2

Number of A4 text sheets

0

Weight in grams

60

Special features

dM 1968/12, 1983/12

Copy of article: 22.71.001 (4 pages)

Notes
