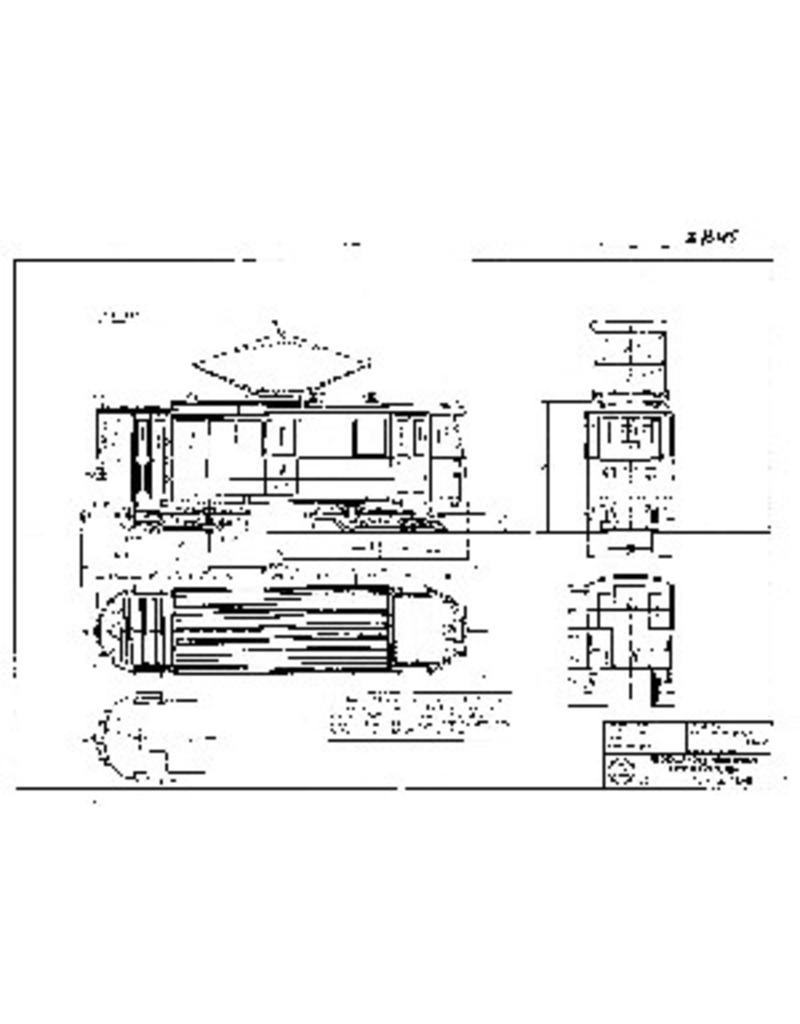

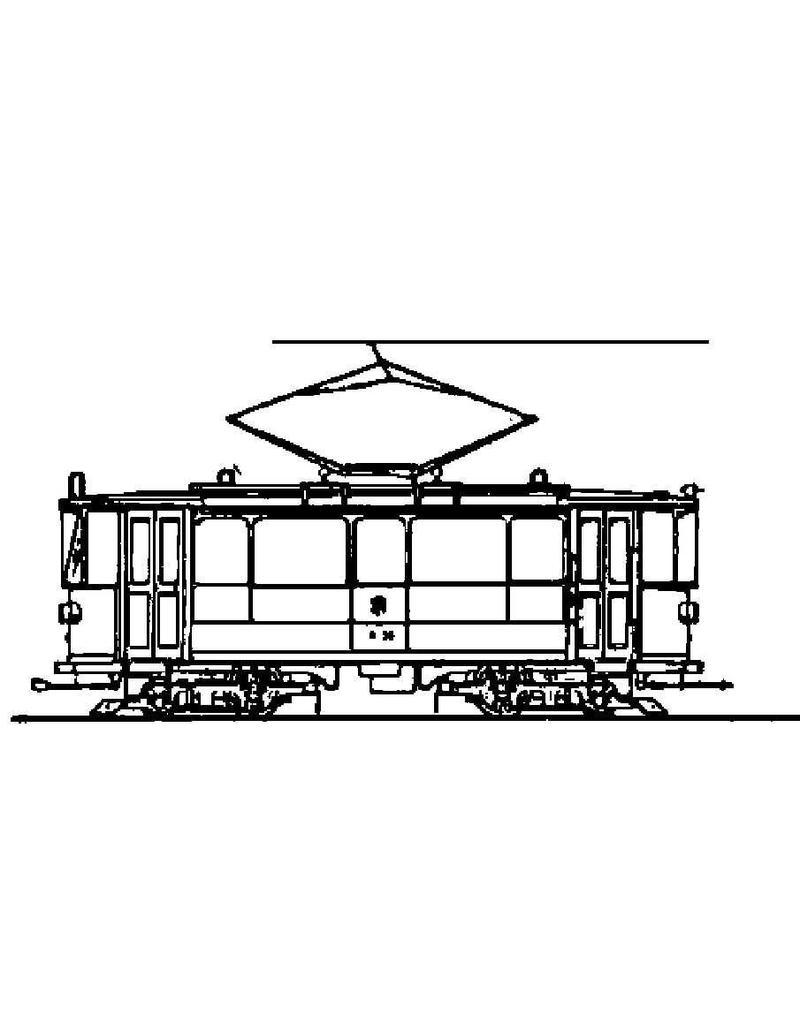

MBT 20.73.015 motor coach NZHVM A37-40, A58-59, trailer coach B63, as of 1916

Drawing number

20.73.015

Author

J.F. Smit

Description

motor coach NZHVM A37-40, A58-59, trailer coach B63, as of 1916

Quality

detailed dimensioned sketch with prototype dimensions

Difficulty level

C

Scale

1 : 32

Number of sheets A00

0

Number of sheets A0

0

Number of sheets A1

0

Number of sheets A2

1

Number of sheets A3

0

Number of sheets A4

0

Total number of drawing sheets

1

Number of A4 text sheets

0

Weight in grams

45

Details

narrow-gauge rolling stock

dM 1974/8

Notes
