| Article number: | 20.73.036 |
Specifications :
|
Drawing number |
20.73.036 |
|
Description |

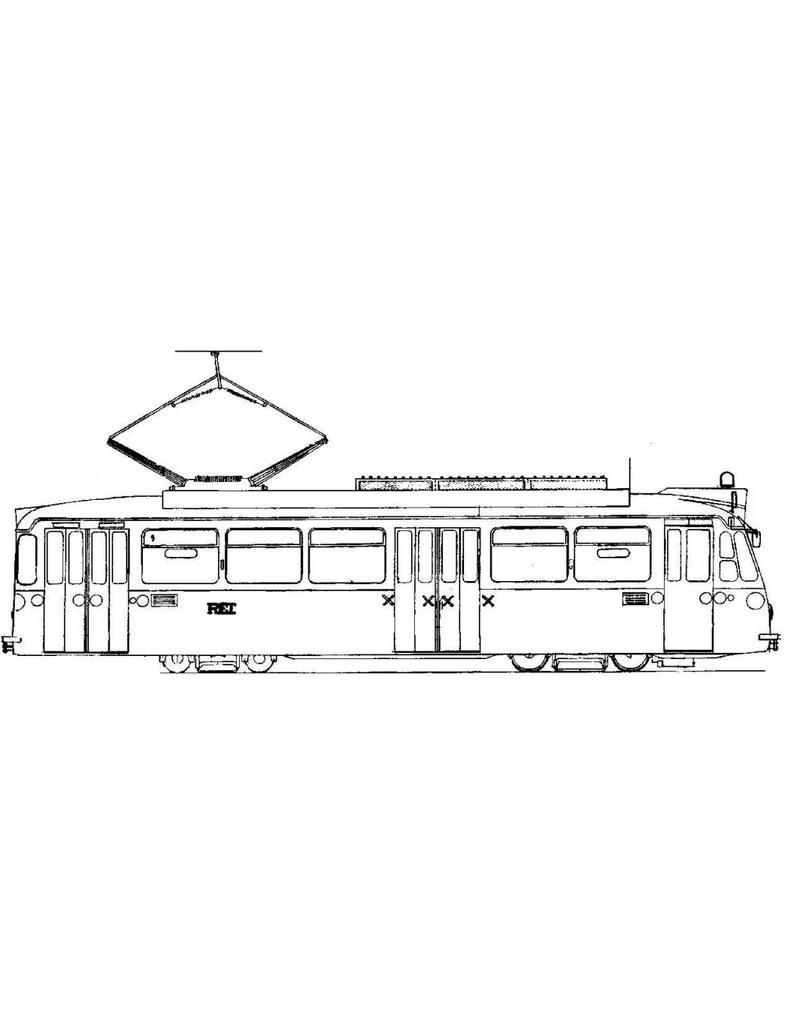

motor carriage RET 1-15 - (Schindler) |
|
Quality |

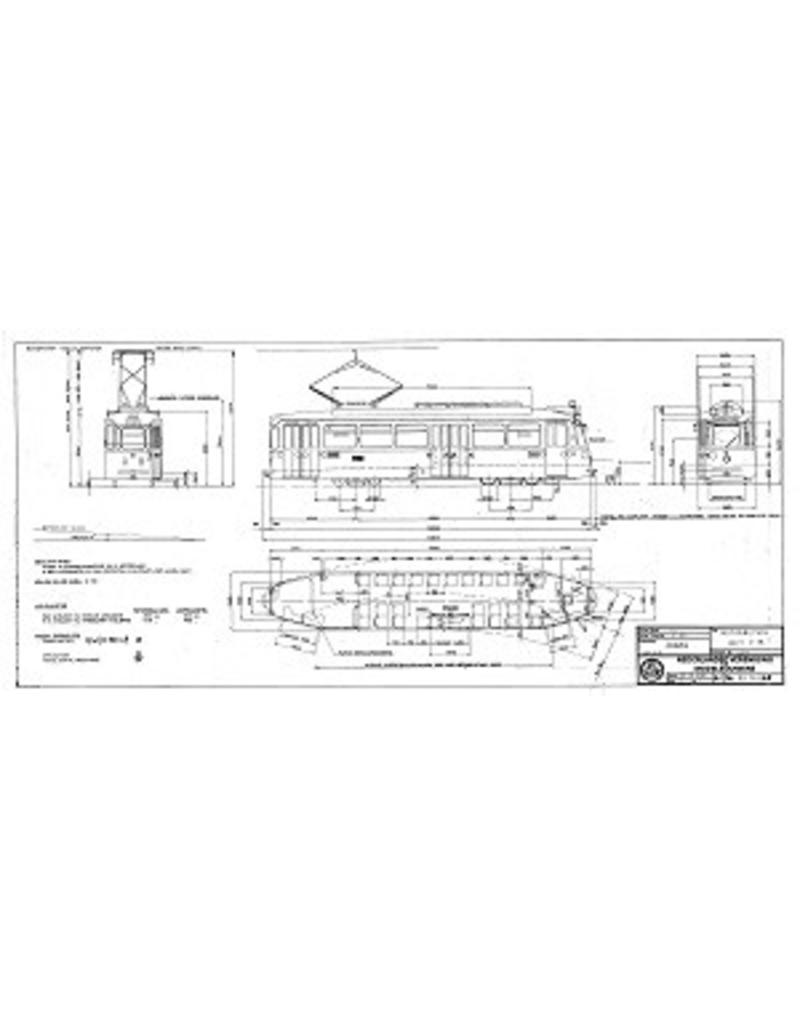

detailed dimensioned sketch with prototype dimensions |
|
Difficulty level |
C |
|
Scale |
1 : 50 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
1 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
65 |
|
Special features |
Ì´Ì_ |
|
Remarks |
Ì´Ì_ |
