| Article number: | 20.73.037 |
Specifications :
|
Drawing number |
20.73.037 |
|
Description |

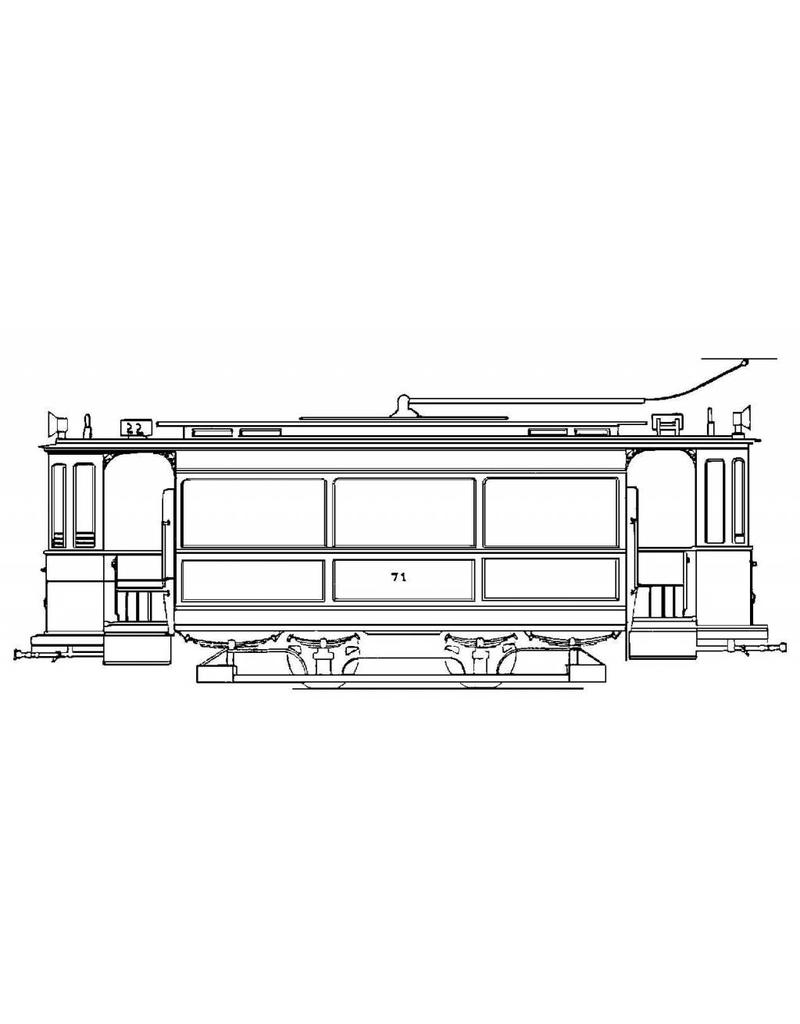

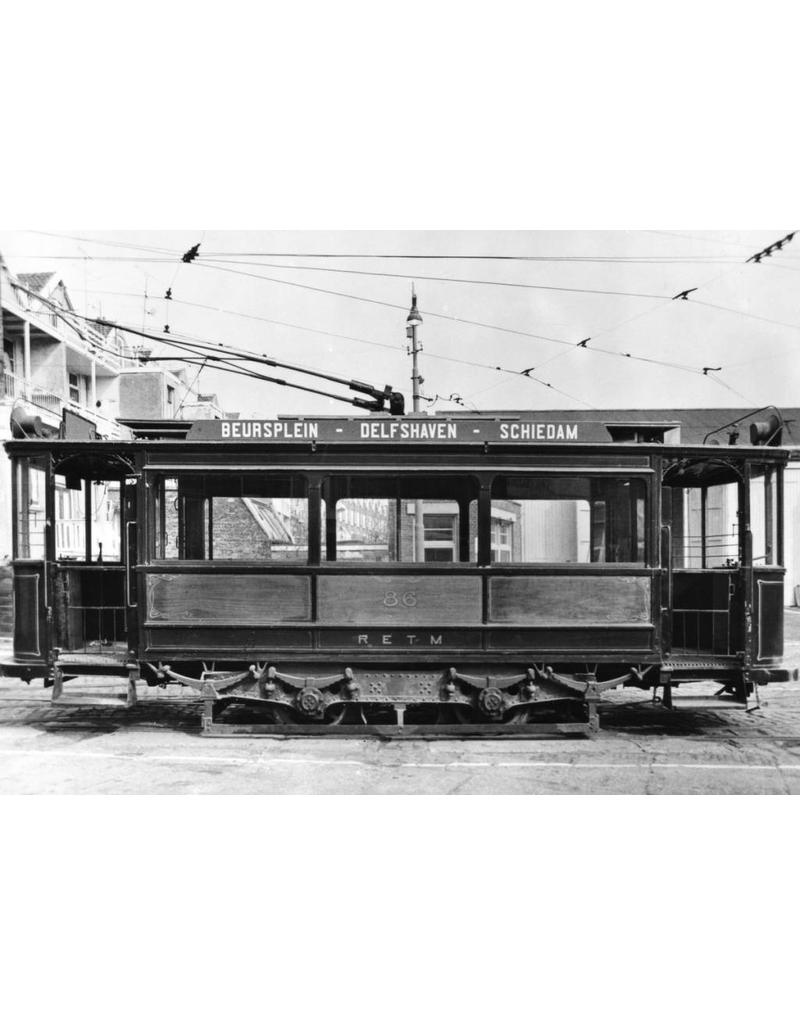

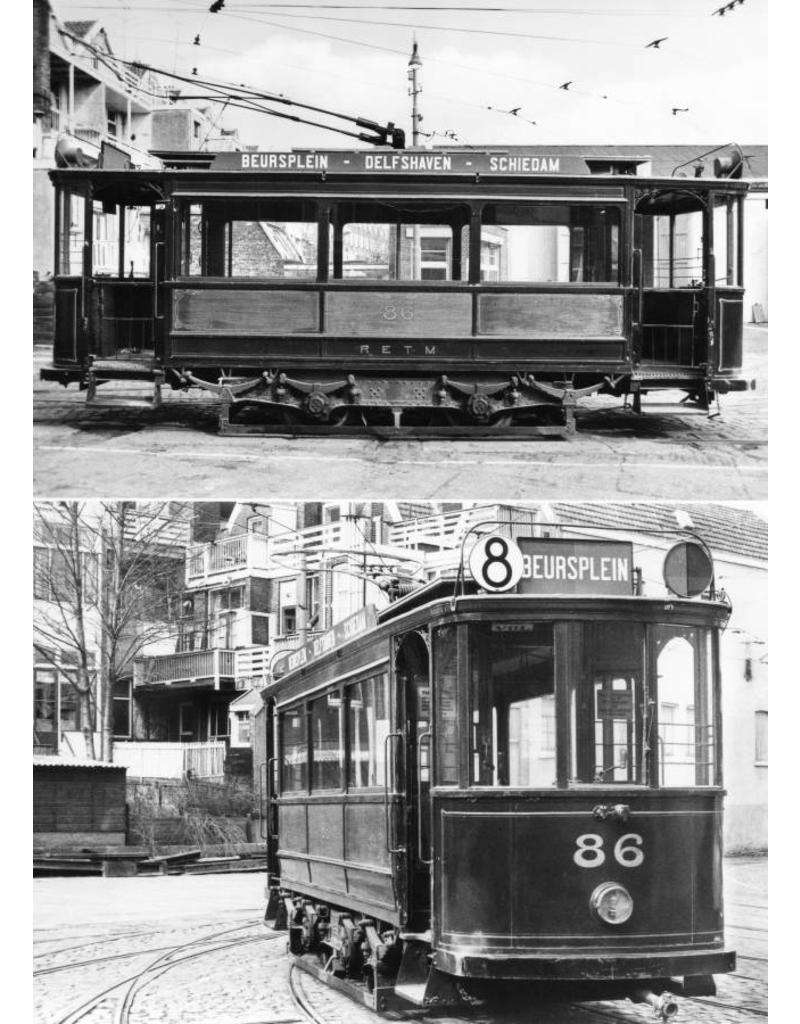

motor carriage RET 71-90 |
|
Quality |
simple dimensioned sketch with main dimensions prototype |
|
Difficulty level |
C |
|
Scale |
1 : 40 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
1 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
35 |
|
Special features |
Ì´Ì_ |
|
Remarks |
Ì´Ì_ |
