| Article number: | 21.02.004 |
Specifications :
|
Drawing number |
21.02.004 |
|
Author |
J.F. Smit |
|
Description |

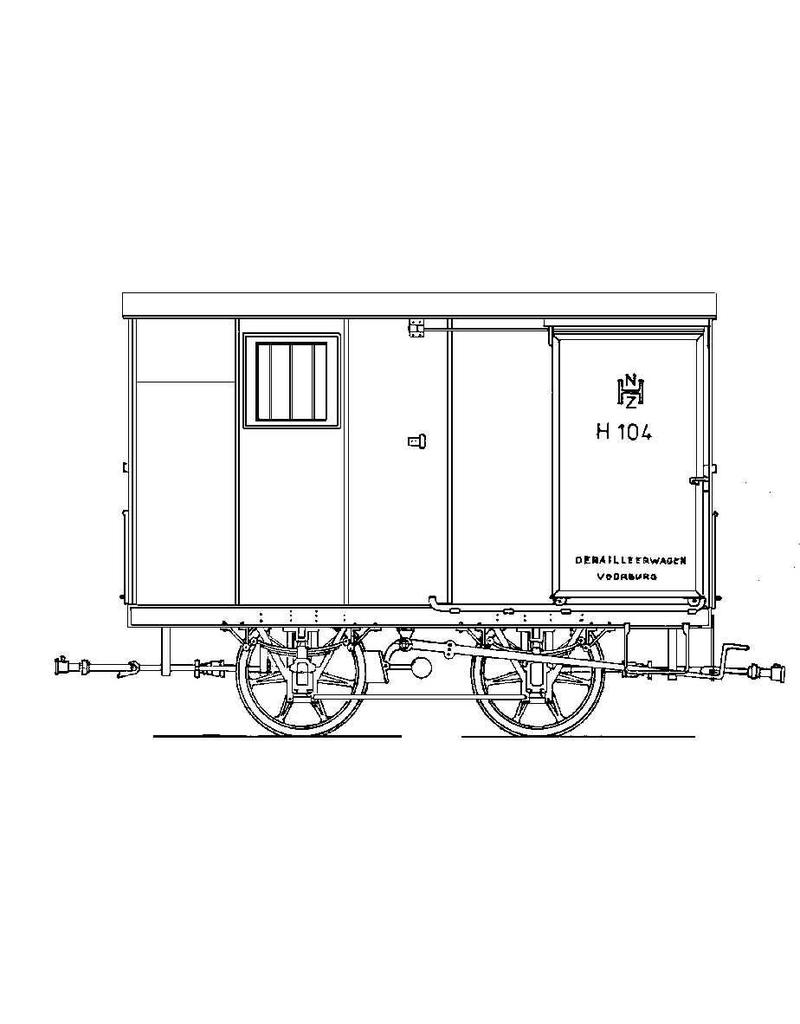

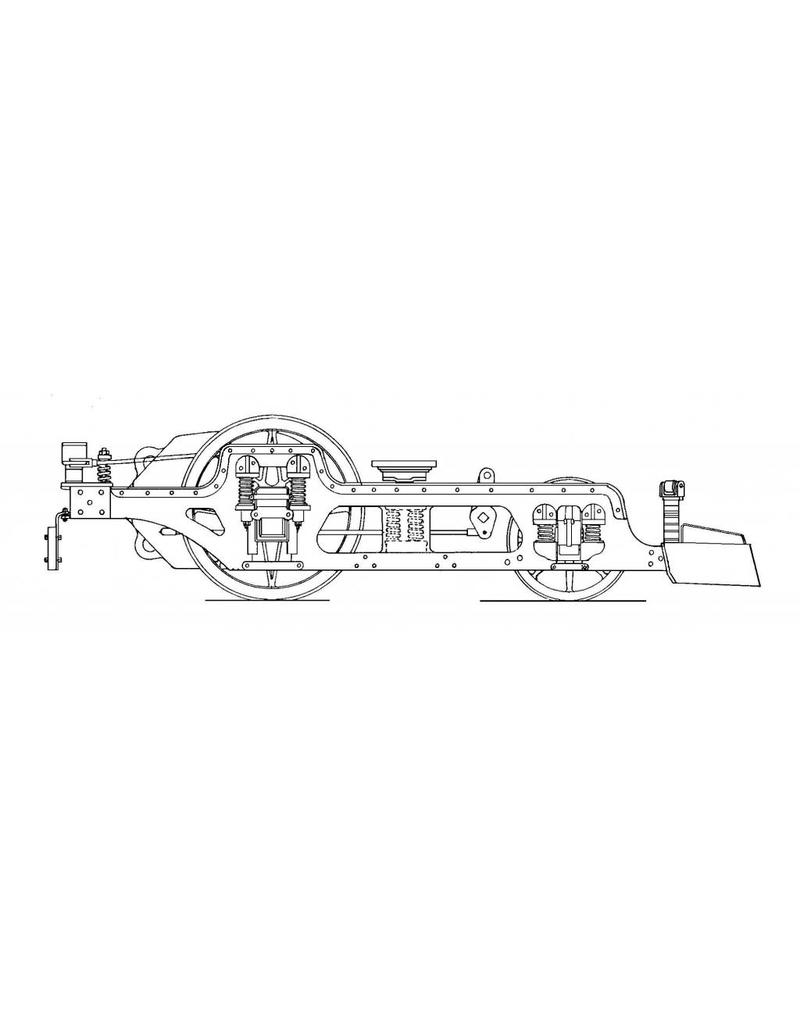

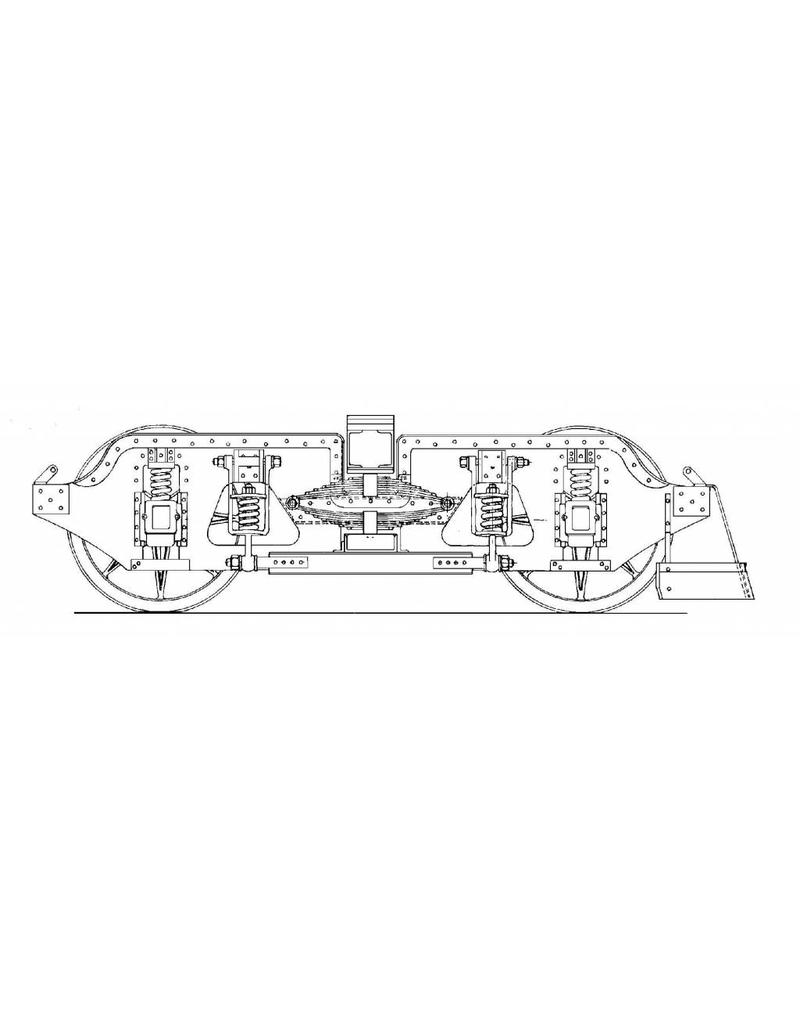

bogie NZHVM narrow-gauge rolling stock and derailment wagon H104-105 |
|
Quality |
detailed drawing with dimensions for full-scale operation; dimension sketch H 104-106 1:32 |
|
Difficulty level |
D |
|
Scale |
1 : 10 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
65 |
|
Particulars |
bogies of converted ENET carriages |
|
Remarks |
