| Article number: | 30.09.007 |
Specifications :
|
Drawing number |
30.09.007 |
|
Author |
Firma Rörink |
|

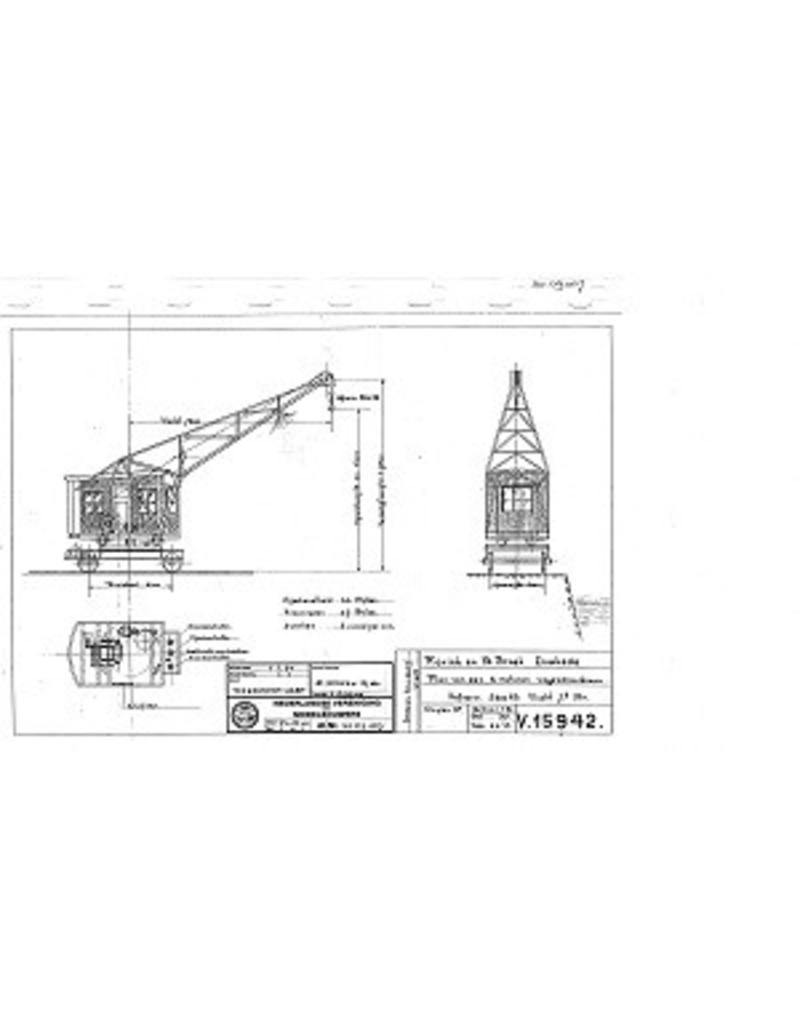

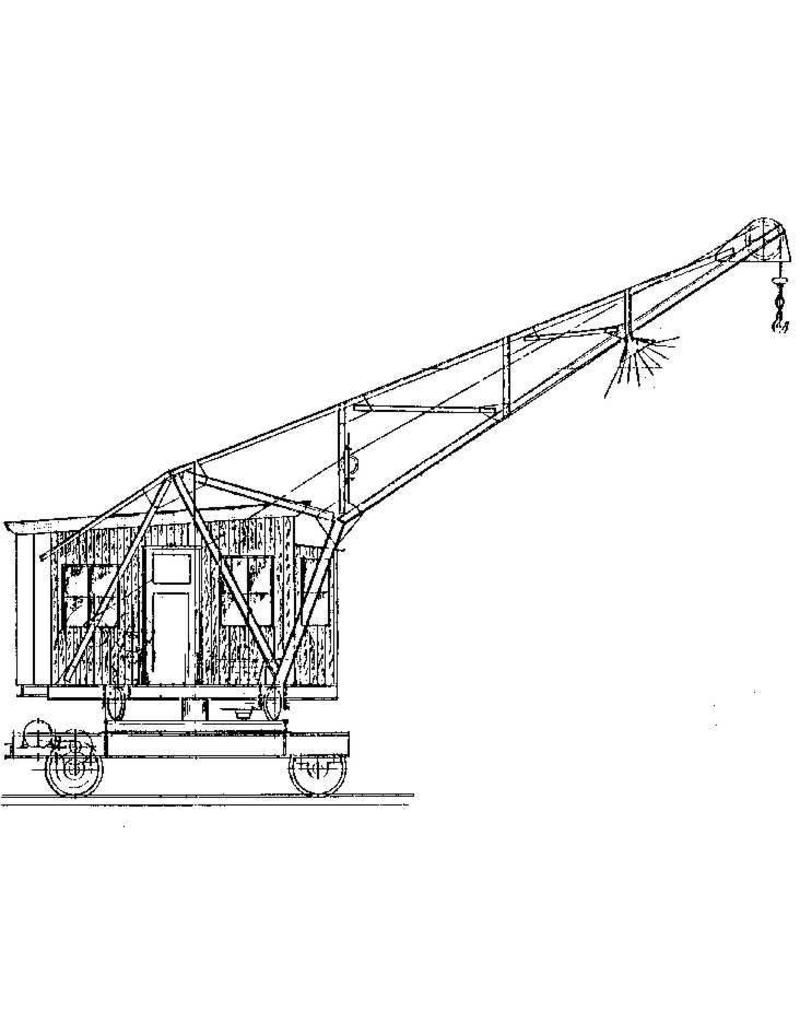

Description |
wagon slewing crane |
|
Quality |
|
|
Difficulty level |
C |
|
Scale |
1 : 50 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
1 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
|
|
Particulars |
|
|
Remarks |
