| Article number: | 40.40.007 |
Specifications :
|
Drawing number |
40.40.007 |
|
Author |
H. Esveldt |
|
Description |

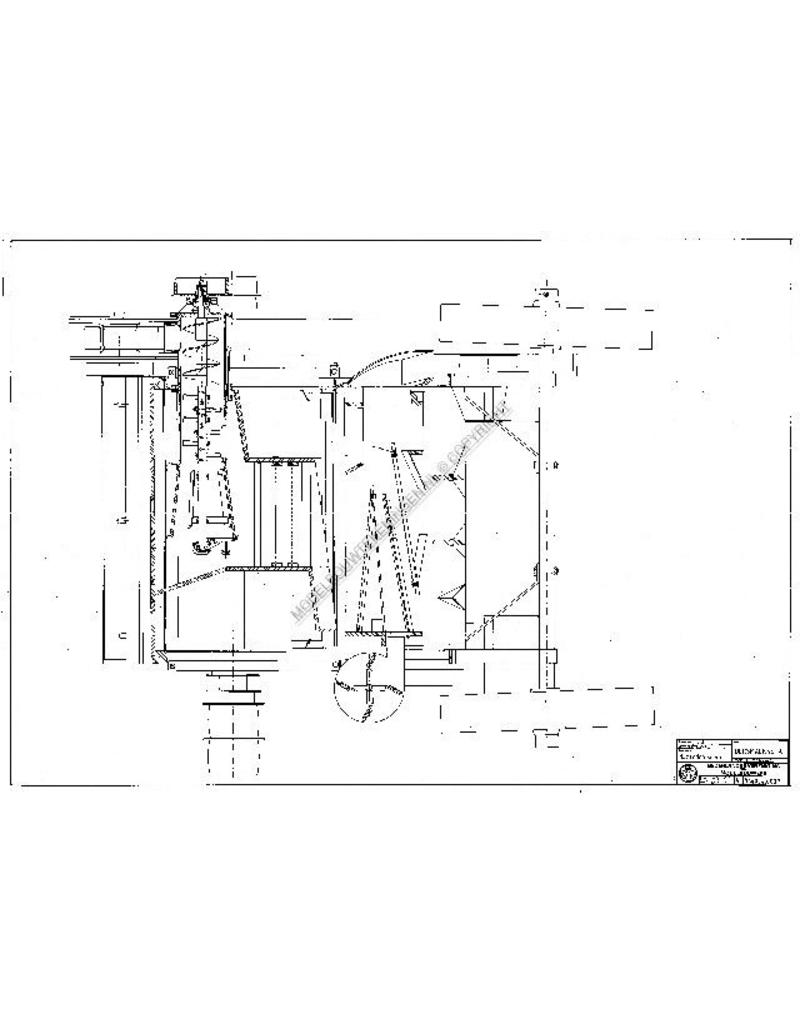

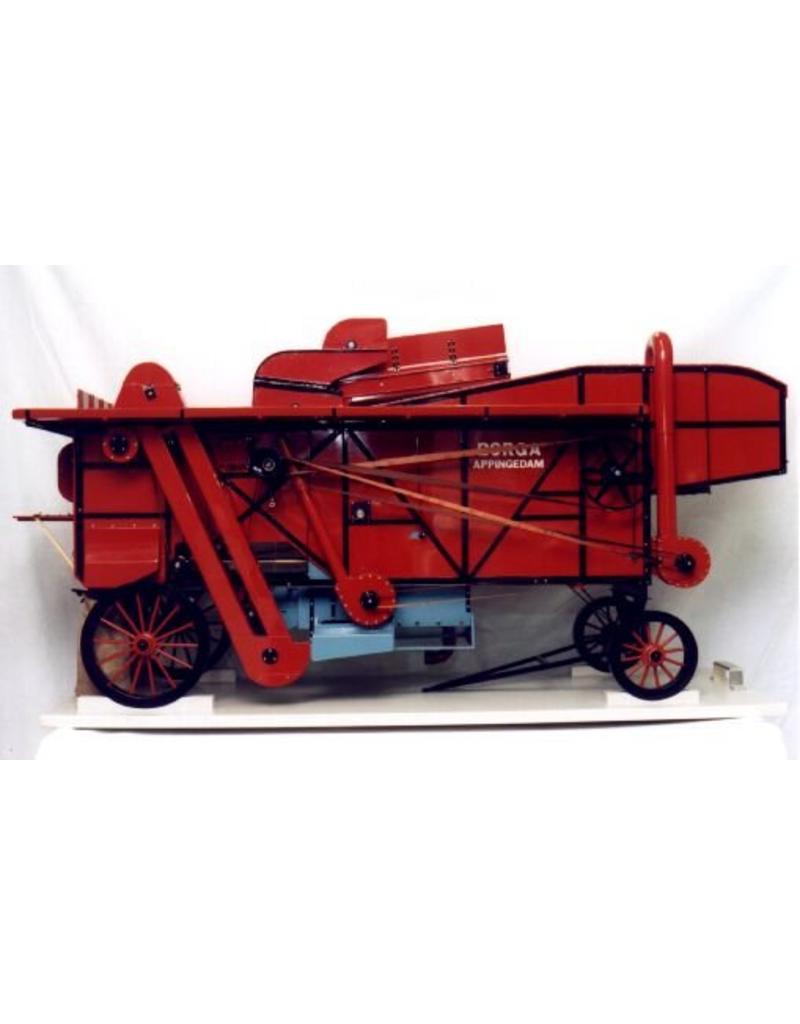

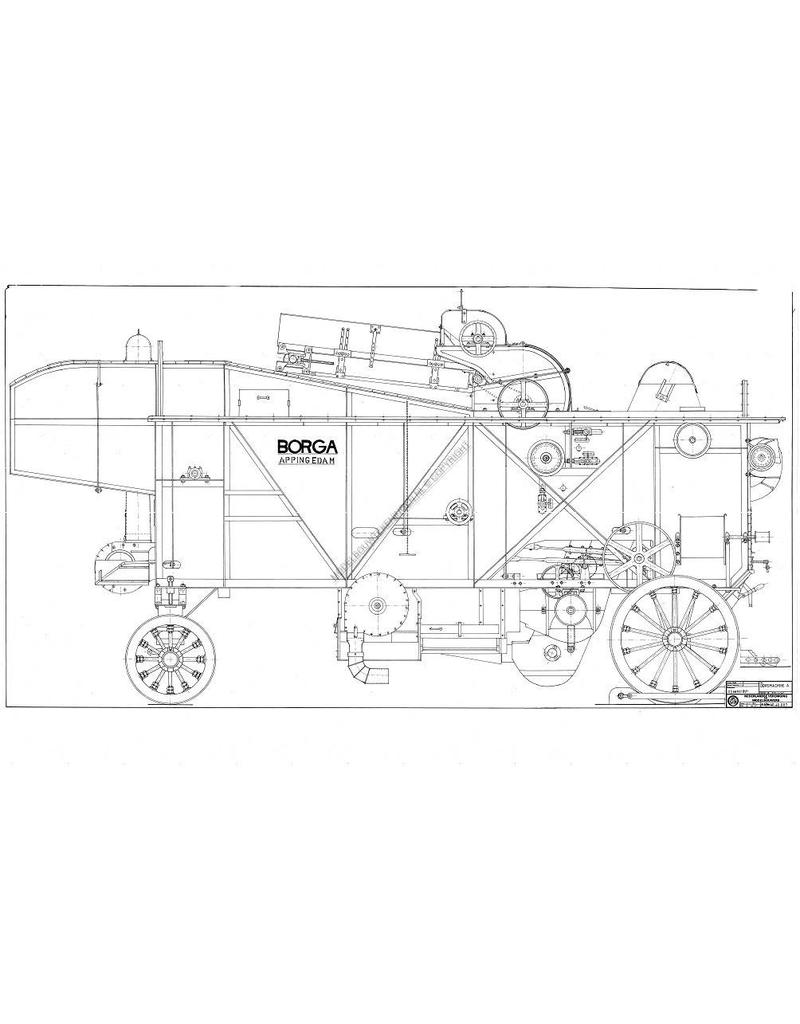

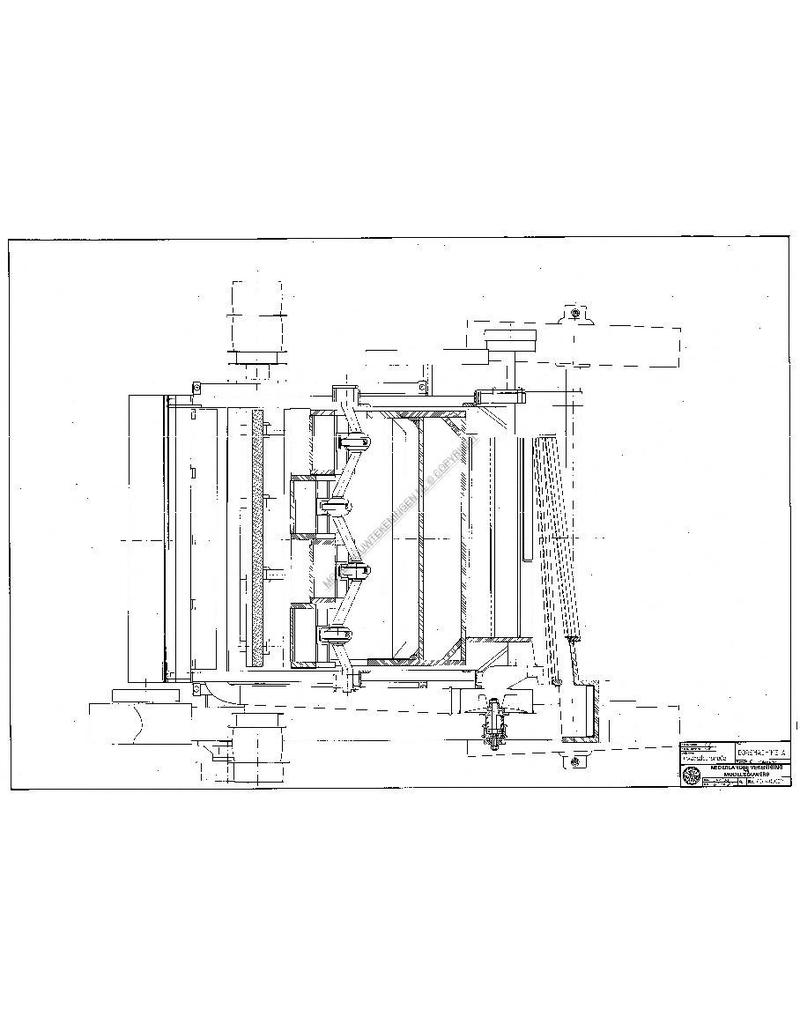

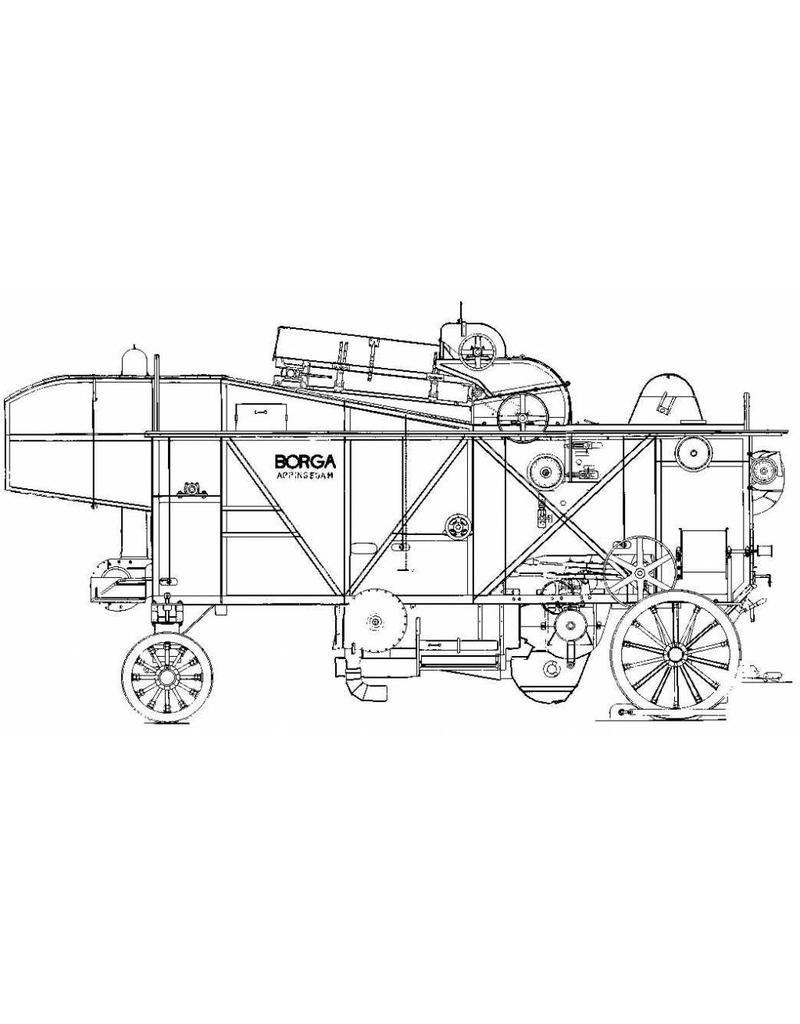

Borga threshing machine |
|
Quality |
The detailing on this drawing is limited, as are the dimensions |
| E | |
|
Scale |
1 : 5 |
|
Number of sheets A00 |
4 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
7 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
11 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
585 |
|
Particulars |
|
|
Remarks |
To successfully complete this model, a good knowledge of the machine's construction and operation is desirable. The dimensions of internal parts are generally complete, the detailing is limited. The copy article is not a building description, but a general description based on factory data. dMB 11-1986 Copy article: 42.40.007 (2 pages) |
