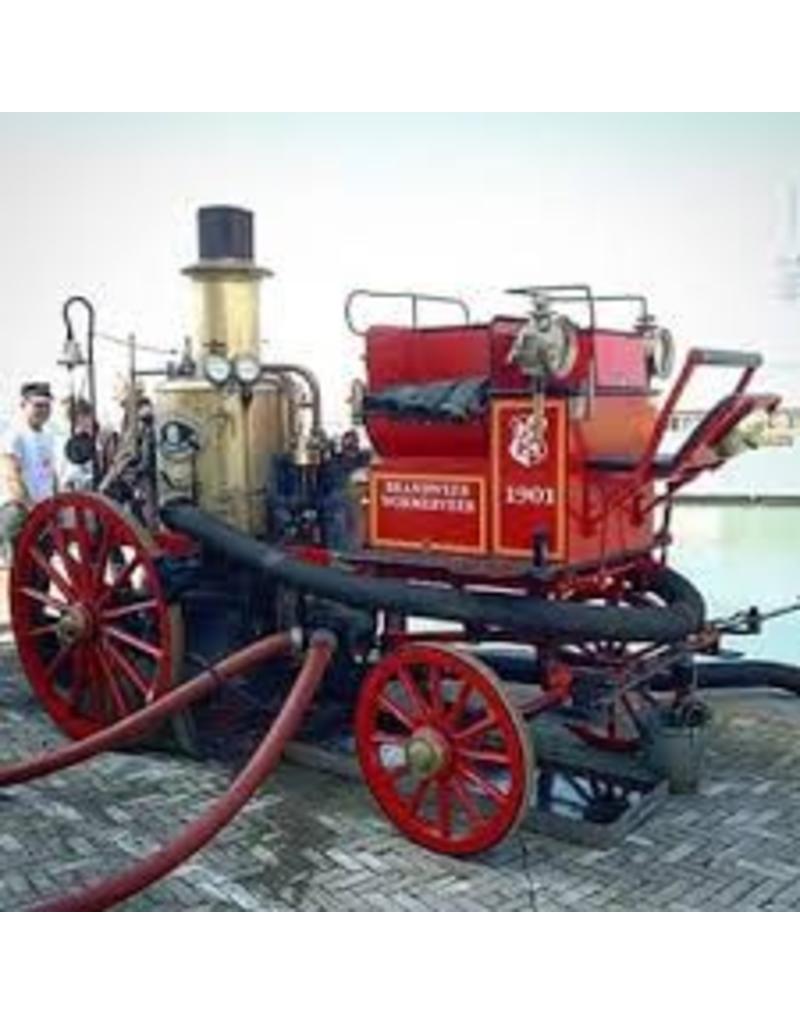

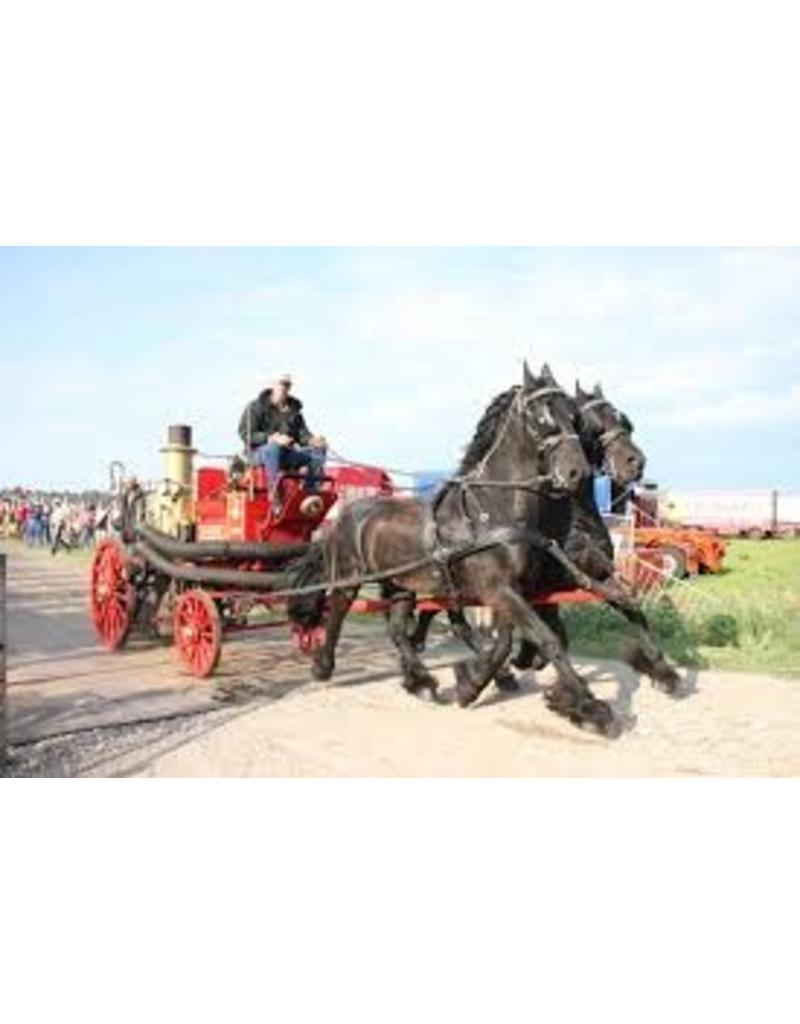

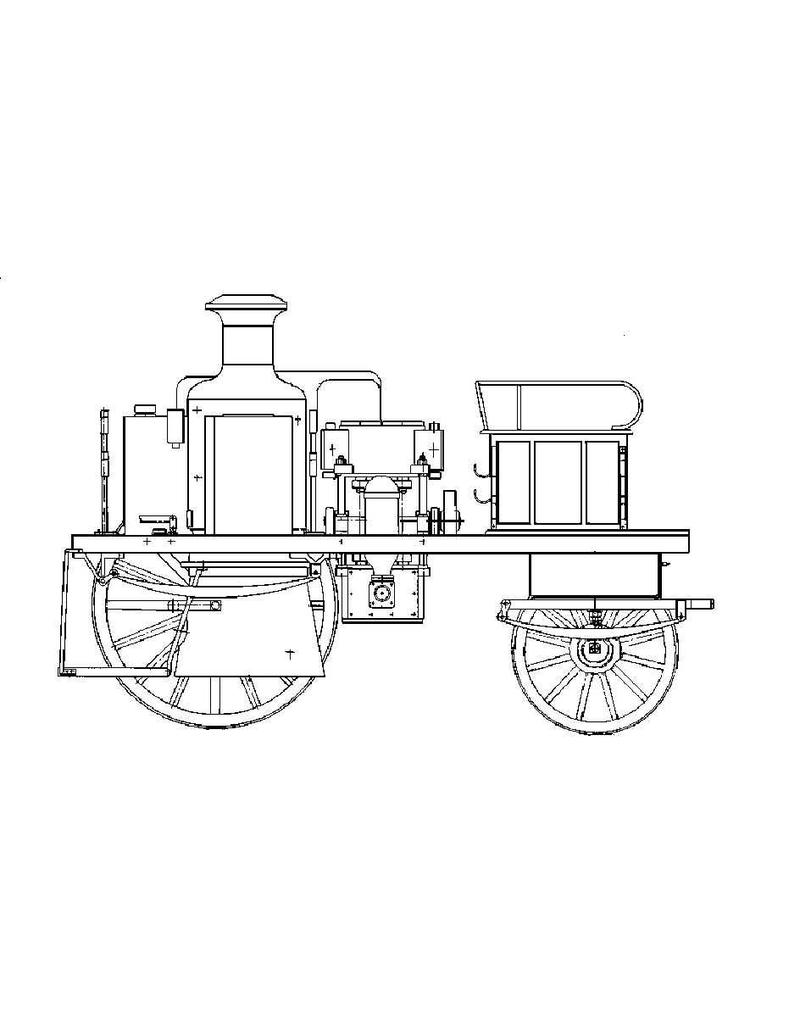

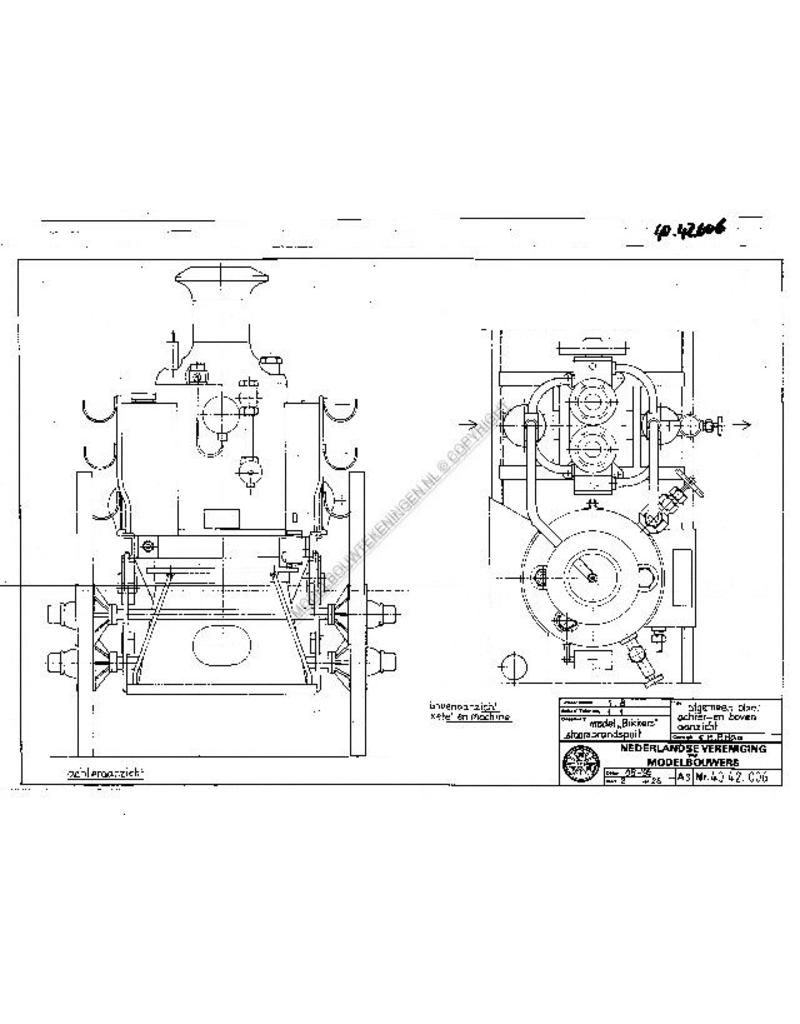

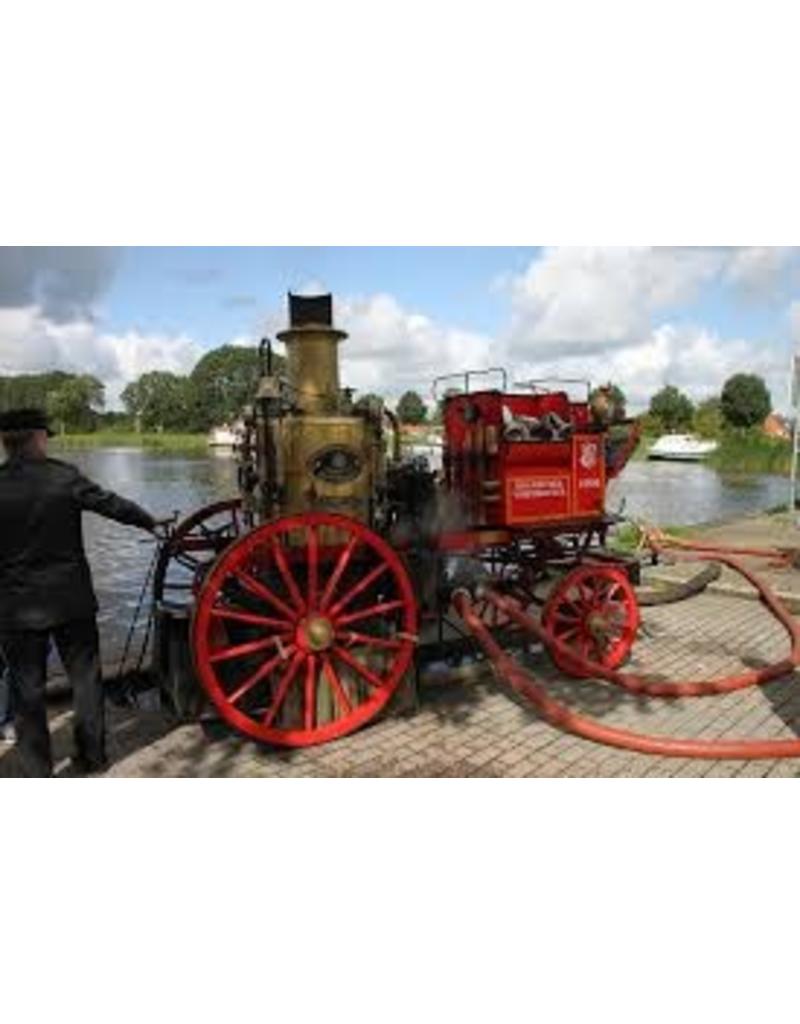

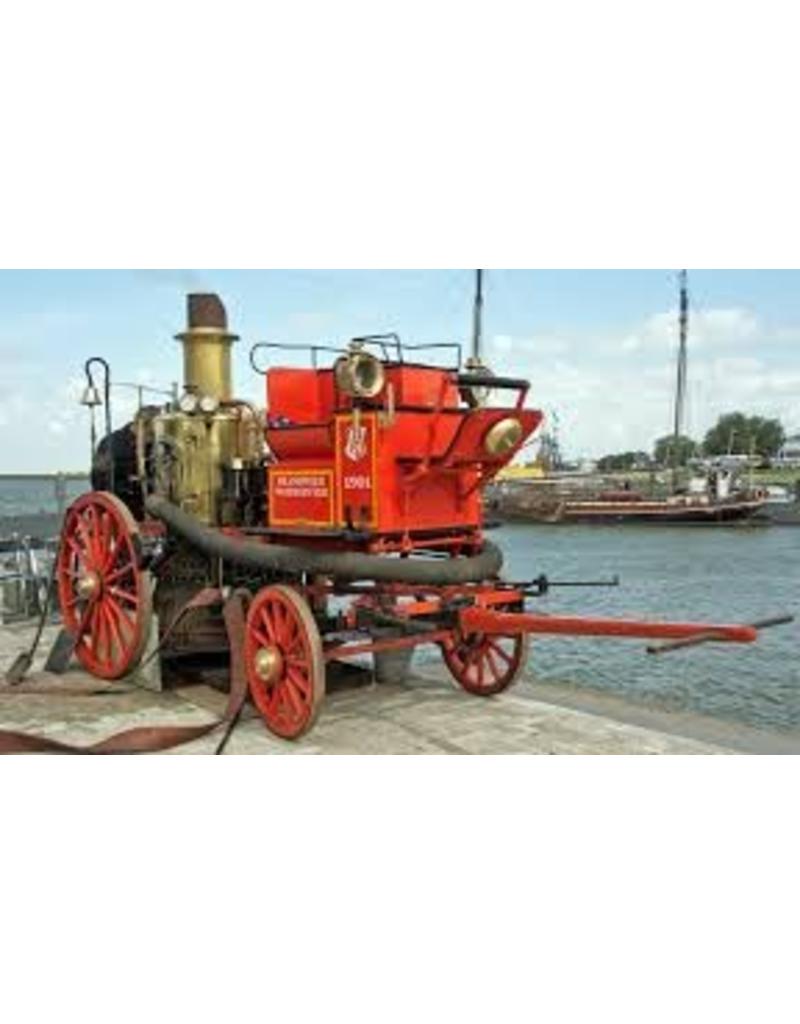

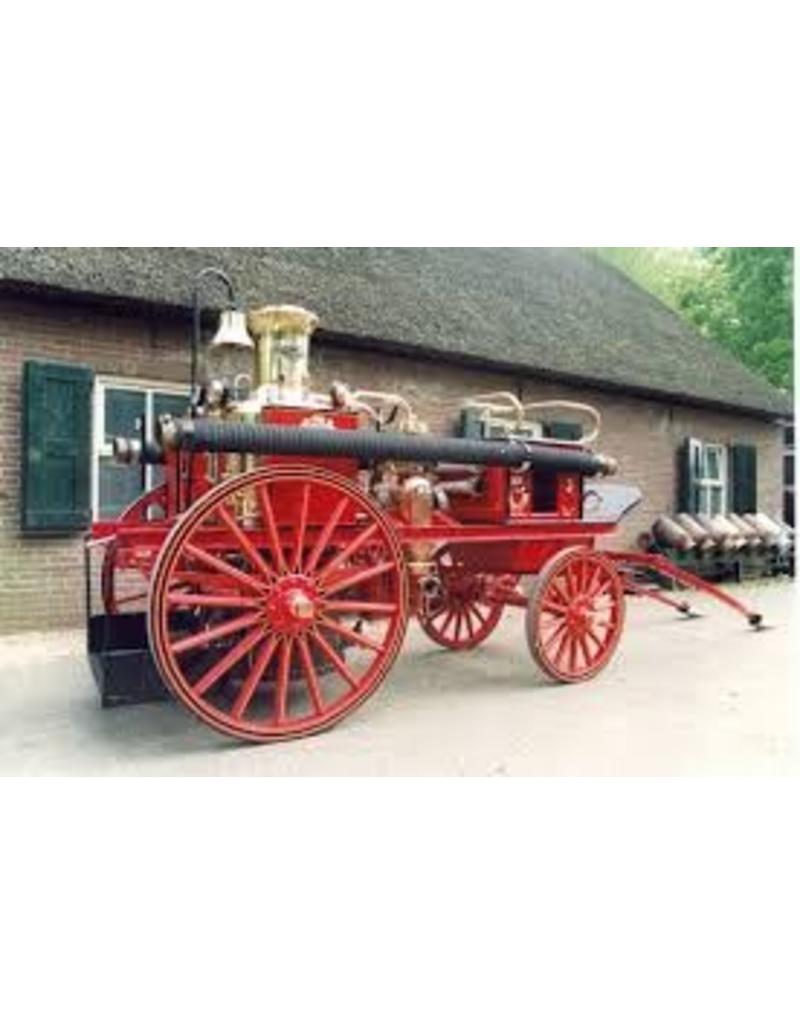

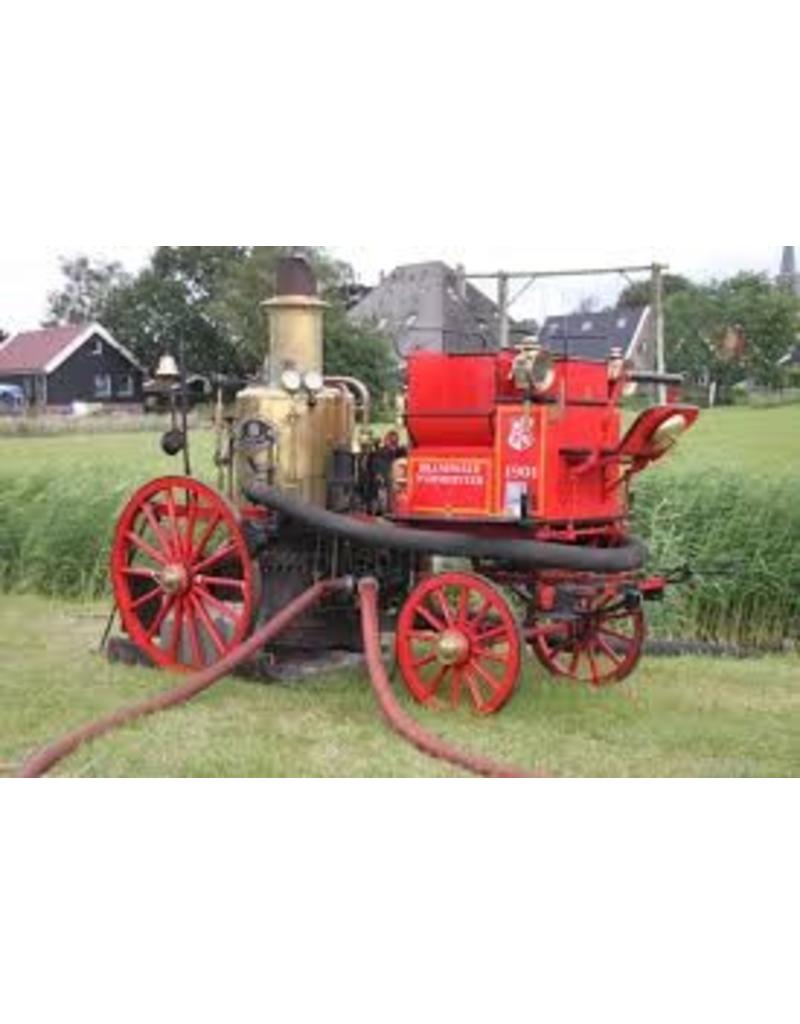

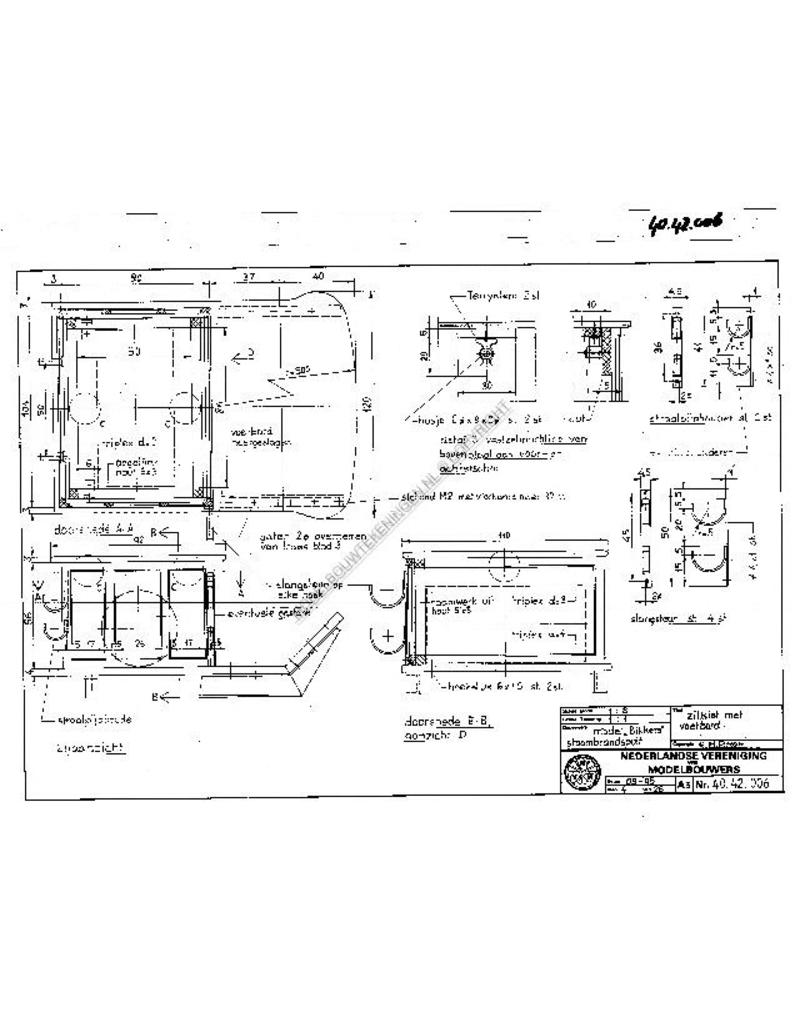

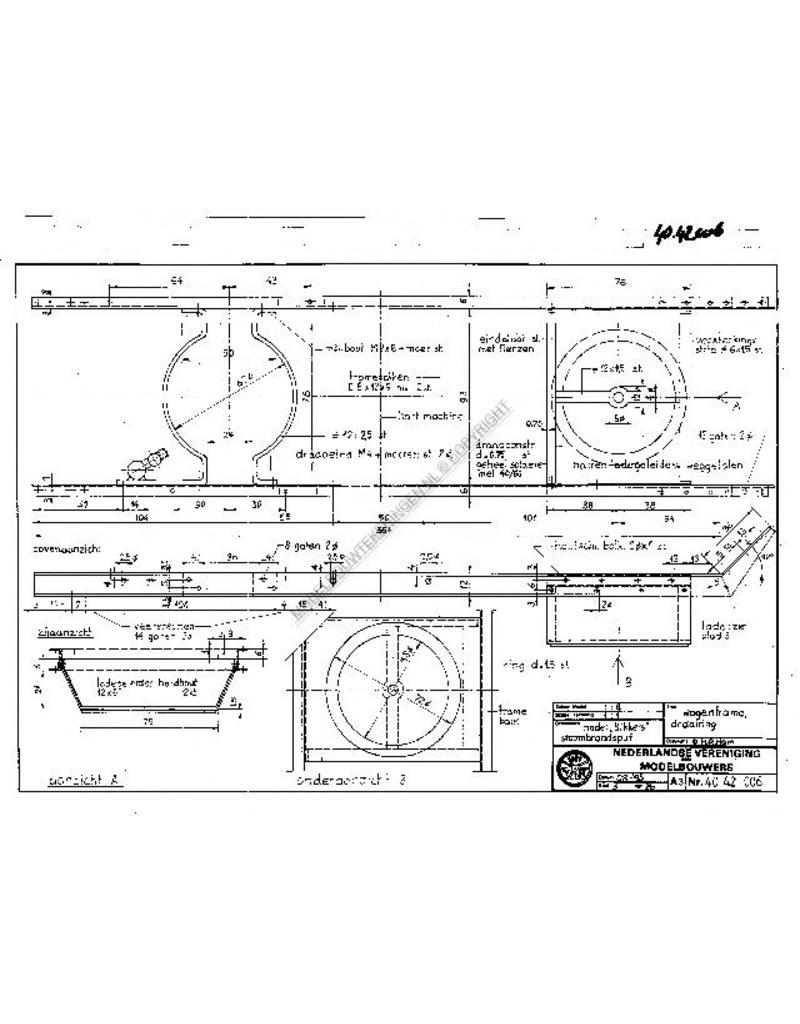

MBT 40.42.006 Bikkers steam fire engine

Drawing number

40.42.006

Author

H.P. Ham

Description

Bikkers steam fire engine

Quality

D

Difficulty level

Scale

1 : 8

Number of sheets A00

0

Number of sheets A0

0

Number of sheets A1

0

Number of sheets A2

0

Number of sheets A3

26

Number of sheets A4

0

Total number of drawing sheets

26

Number of A4 text sheets

0

Weight in grams

295

Special features

dM 1997/9 to 1998/10

Copy article: 42.42.006 (16 pages)

Gas-fired; 3 bar; 2 cyl. Engine, bore x stroke 18 x 18 mm; rear wheels diam. 147 mm; flywheel diam. 35 mm

a combination of woodworking and metalworking

the original is located with the Hague fire brigade

Notes

booklet
