| Article number: | 40.45.007 |
Specifications :
|
Drawing number |
40.45.007 |
|
Author |
L. Schwerckhardt |
|
Description |

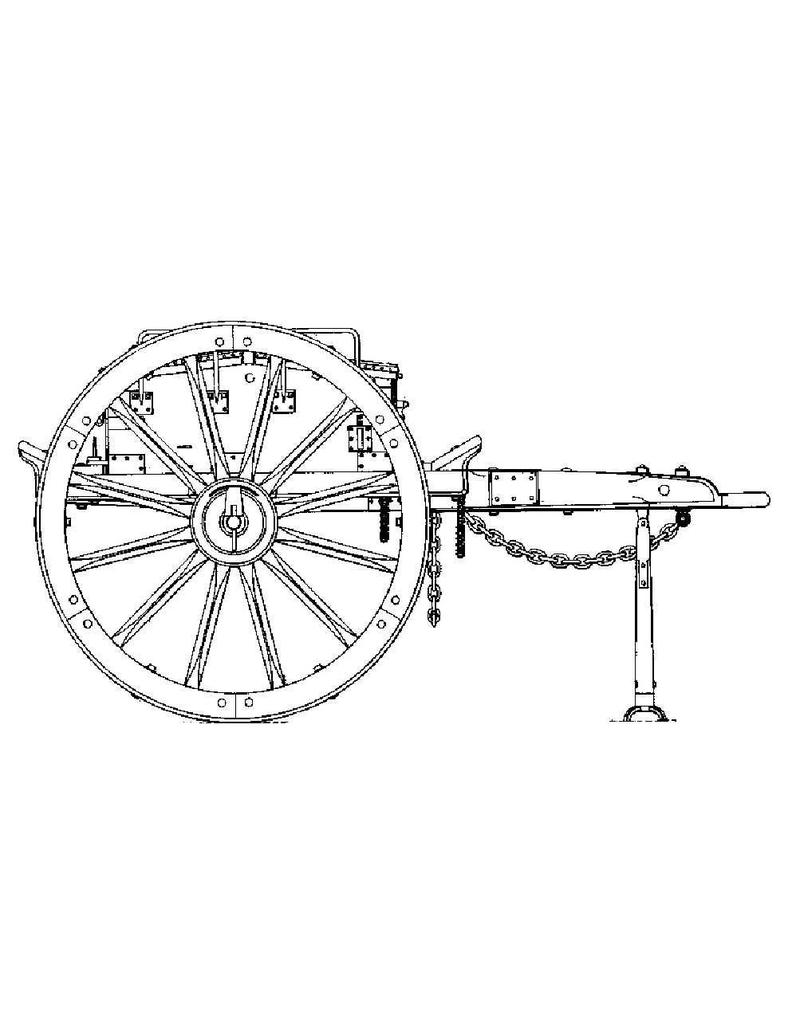

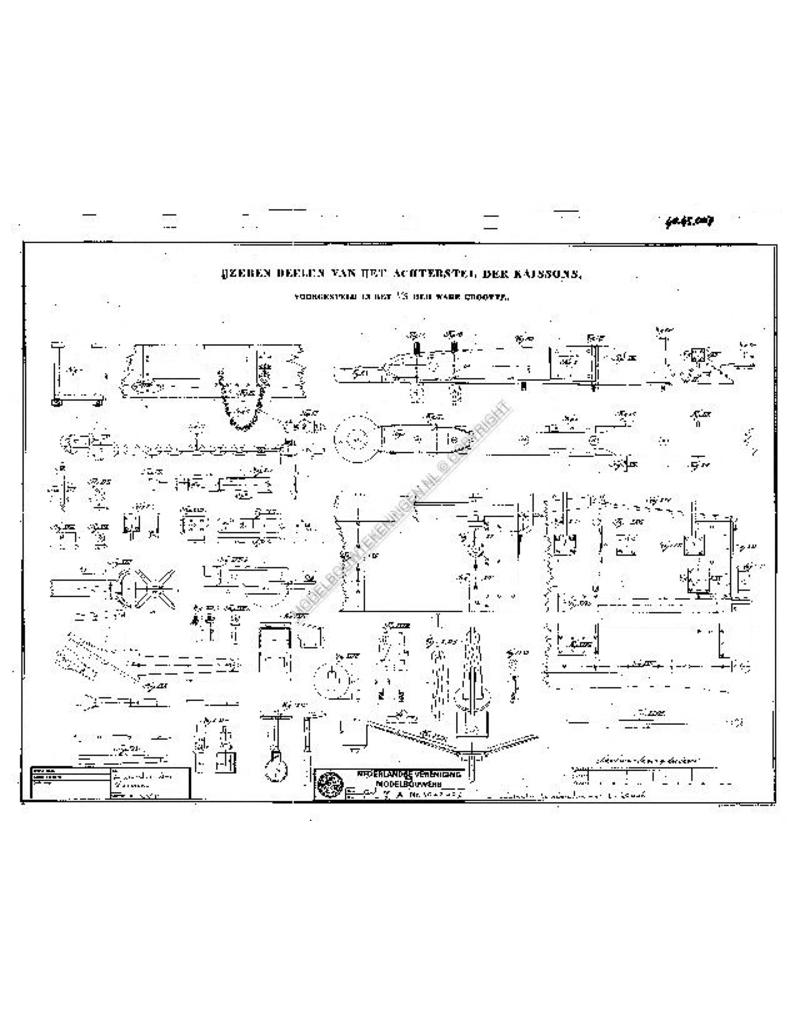

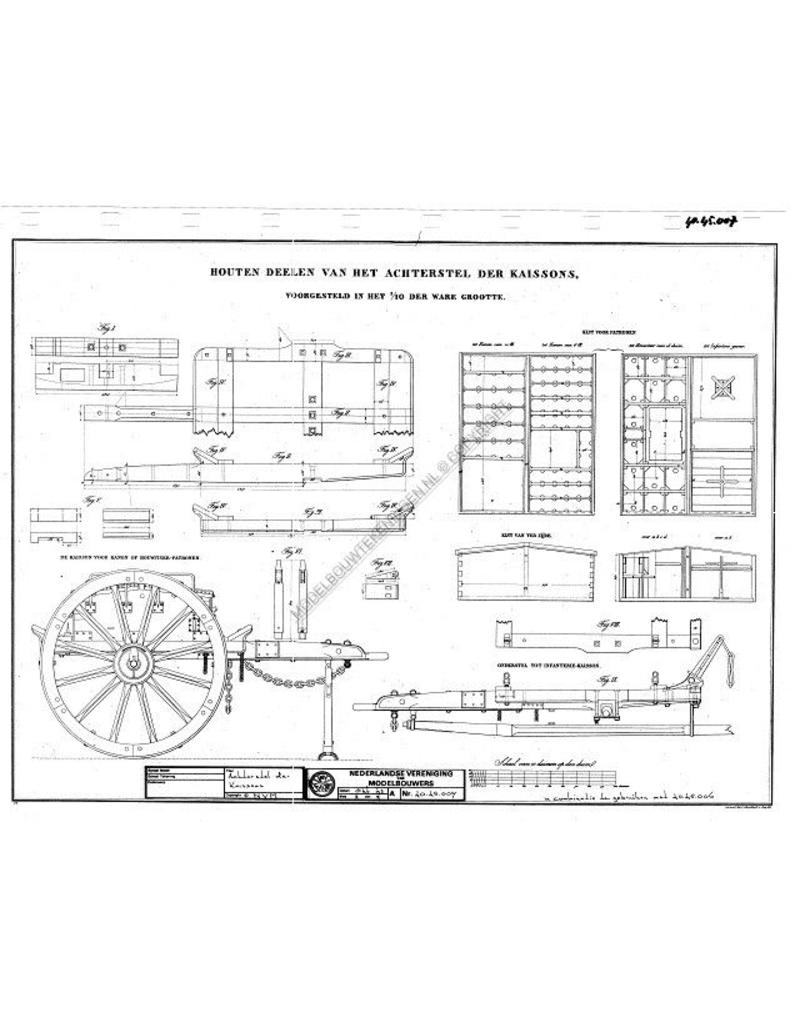

rear carriage of the caissons |
|
Quality |
C |
|
Difficulty level |
|
|
Scale |
1 : 10 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
2 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
2 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
105 |
|
Special features |
combines with 40.45.006 |
|
Remarks |
