| Article number: | 50.12.003 |
Specifications :
|

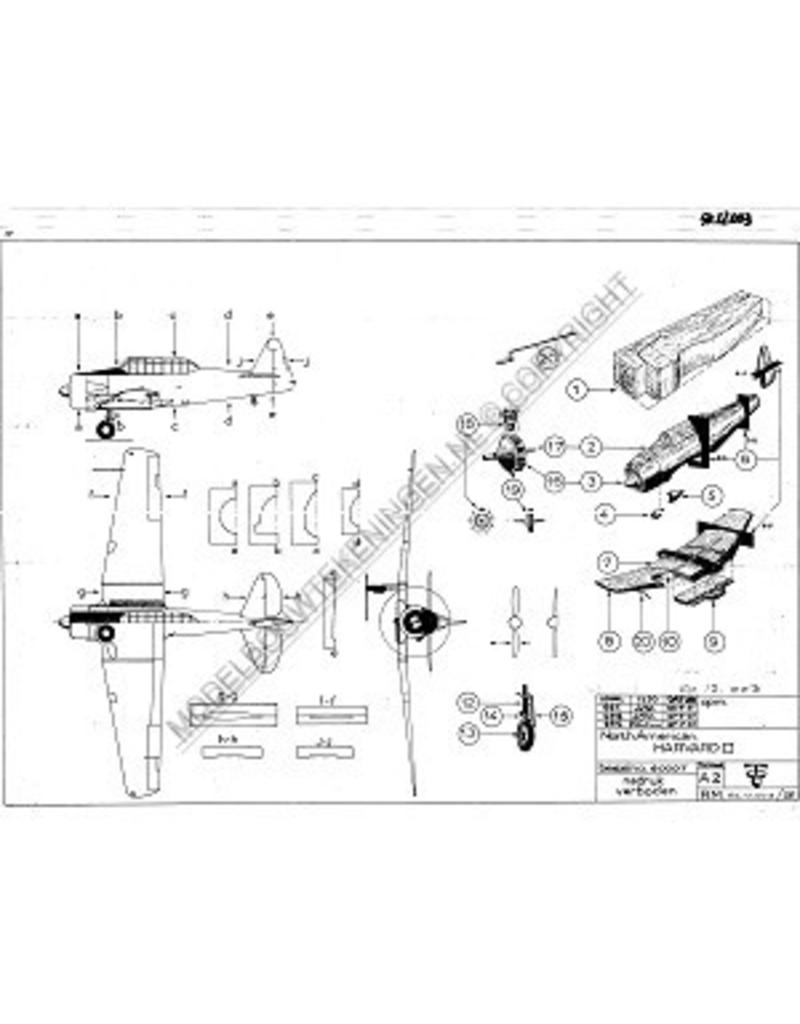

Drawing number |
50.12.003 |
|
Author |
J.J. van Tol |
|
Description |
North American Harvard II |
|
Quality |
a dimensioned sketch with limited data |
|
Difficulty |
Ì´Ì_ |
|
Scale |
1 : 50 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
1 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
45 |
|
Details |
dM 1951/12 |
|
Remarks |
Ì´Ì_ |
