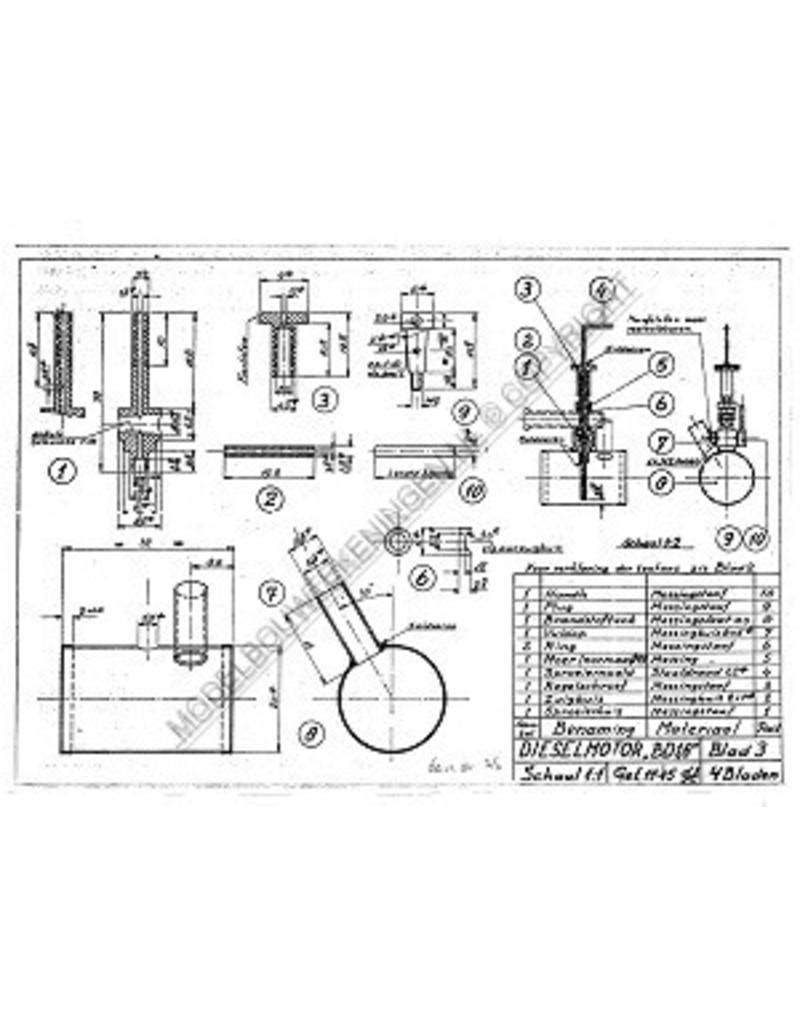

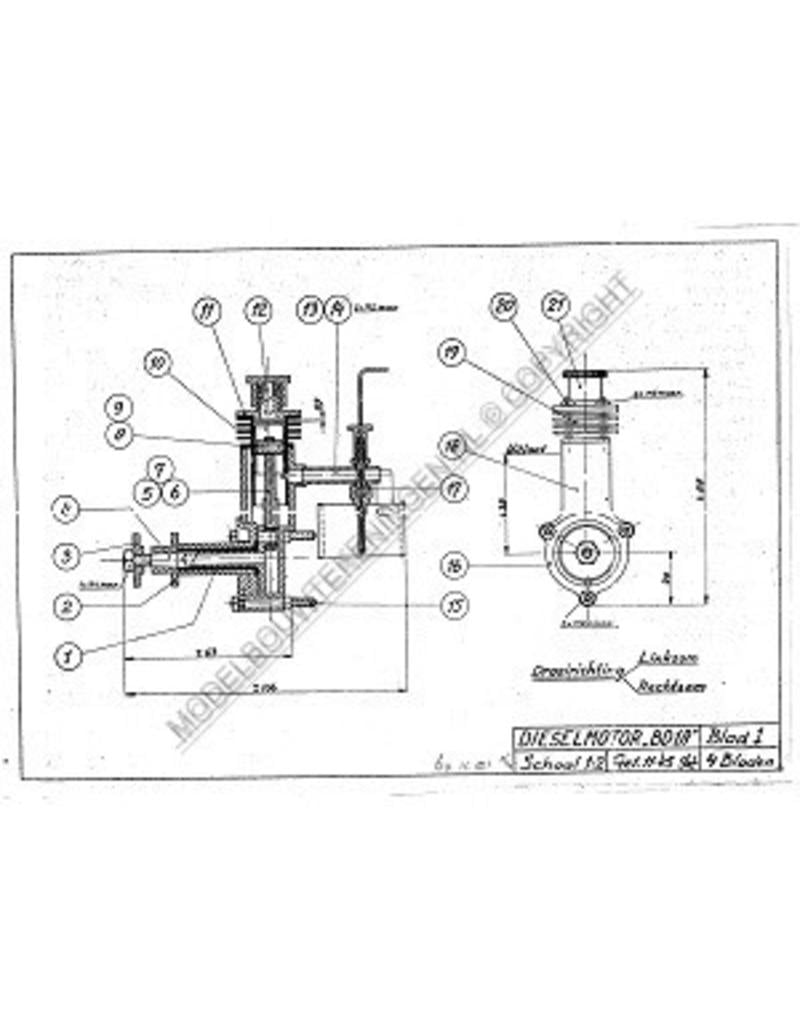

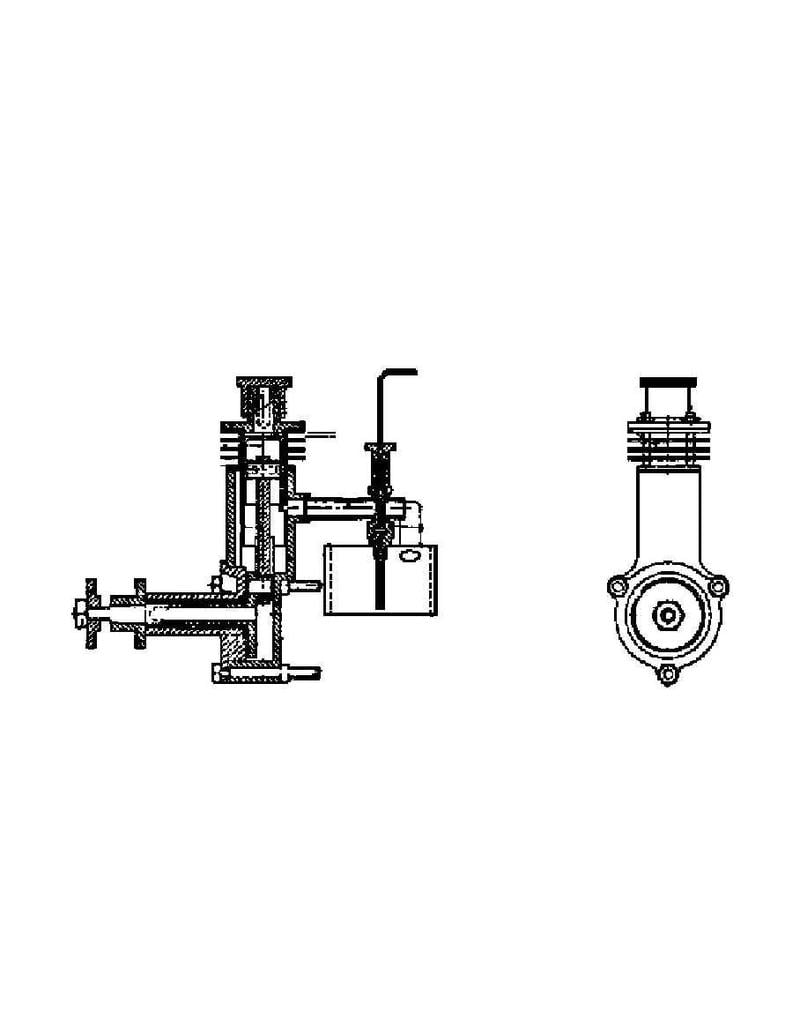

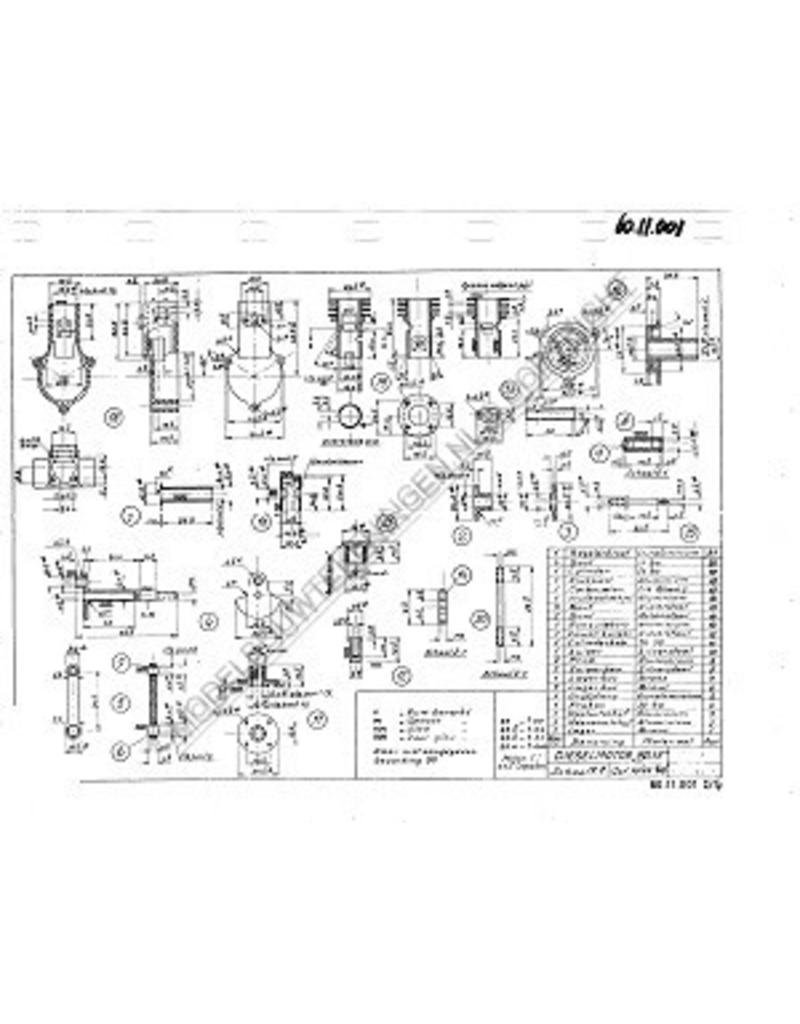

MBT 60.11.001 diesel engine BD 1.8

Drawing number

60.11.001

Author

J. Buwalda

Description

diesel engine BD 1.8

Quality

Difficulty level

C

Scale

Number of sheets A00

0

Number of sheets A0

0

Number of sheets A1

0

Number of sheets A2

0

Number of sheets A3

1

Number of sheets A4

3

Total number of drawing sheets

4

Number of A4 text sheets

0

Weight in grams

40

Special features

dM 1946/2

Copy article: 62.11.001 (12 pp)

bore x stroke 12x16 mm

a classic aircraft engine based on the self-ignition principle

Remarks
