| Article number: | 30.09.033 |
|
Drawing number |
30.09.033 |
|
Author |
G.J. Volgers |
|
Description |

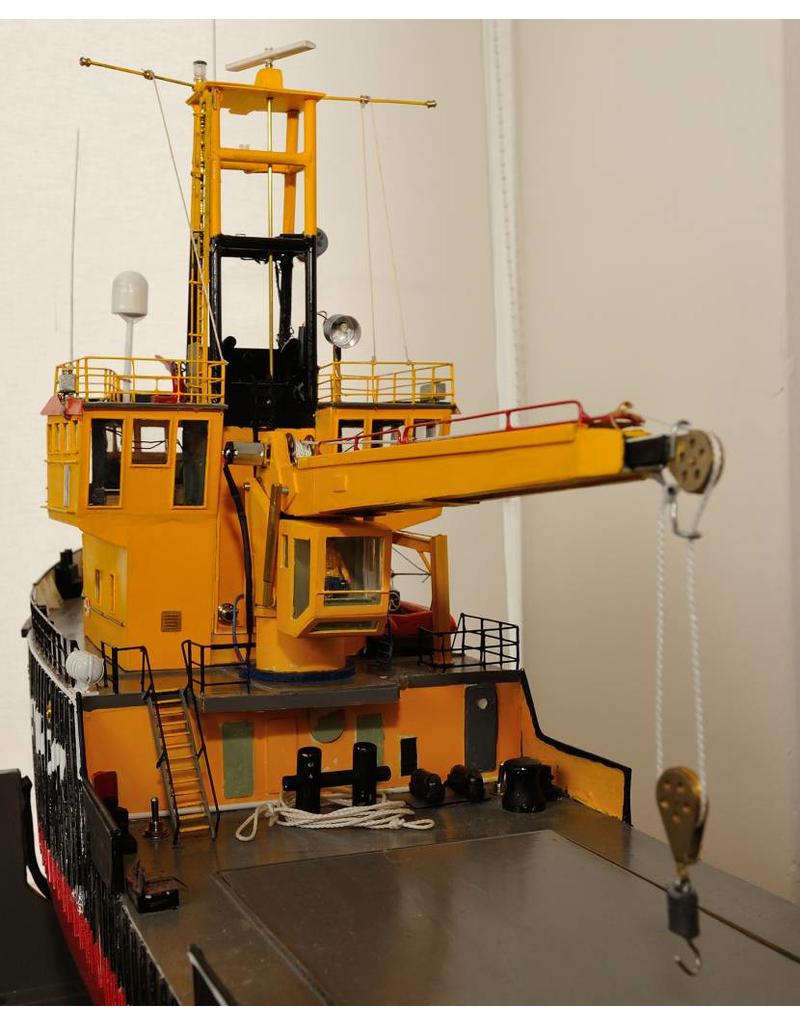

Ship's crane of the buoy layer mv Frans Naerebout |
|
Difficulty level |
D |
|
Quality |
a detailed model building drawing |
|
Scale |
1 : 50 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
2 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Number of sheets A4 text |
0 |
|
Weight in grams |
65 |
|
Special features |
detailed model building drawing of the crane as placed on the mv Frans Naerebout, but naturally also usable on other work vessels. dM 4/2017 Copy article: 32.09.032 (6 pp) |
|
