| Article number: | 40.05.001 |

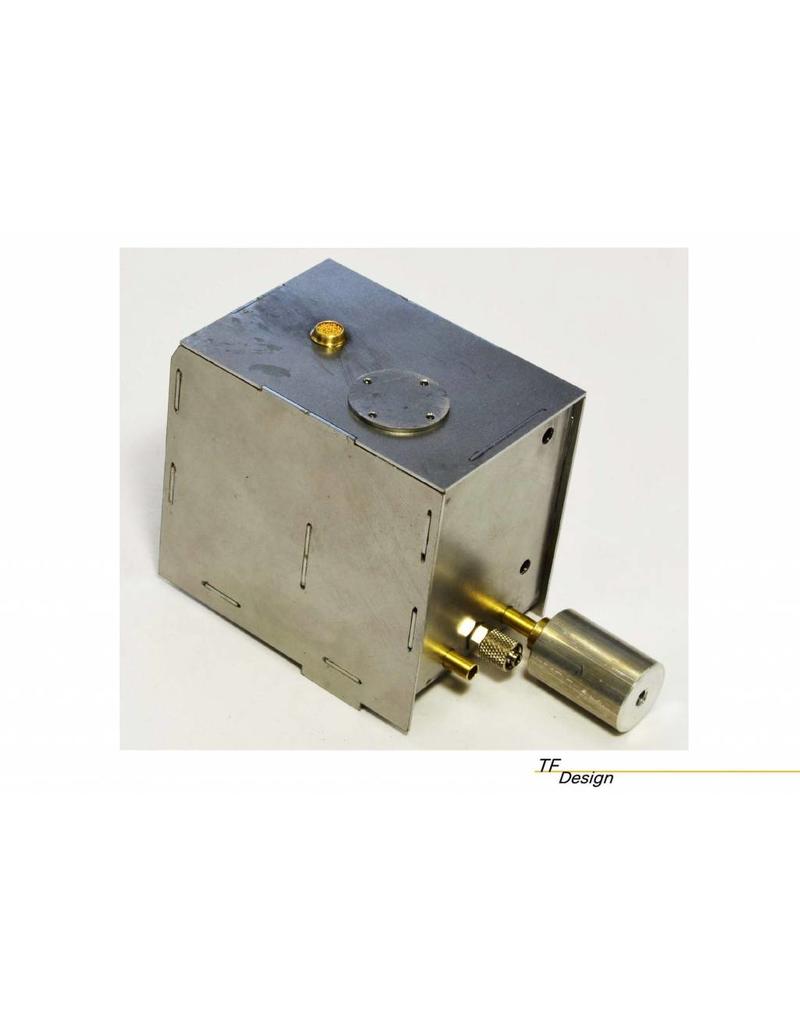

A follow-up to drawing 40,05,001. The hydraulic system is designed for use in a dipper dredge, but its components can also be used for other applications
dMB 9/2016
Copy article: 42,05,002 (2 pp)
| Author: | G. Followers |
| Drawing content: | detailed model building drawing |
| Scale: | 1:1 |
| Total number of drawing sheets: | 1 |
| Number of A4 pages of text: | |
| Difficulty Level: | C |
