| Article number: | 40.05.001 |
|
Drawing number |
40.05.001 |
|
Author |
G.J. Volgers |
|
Description |

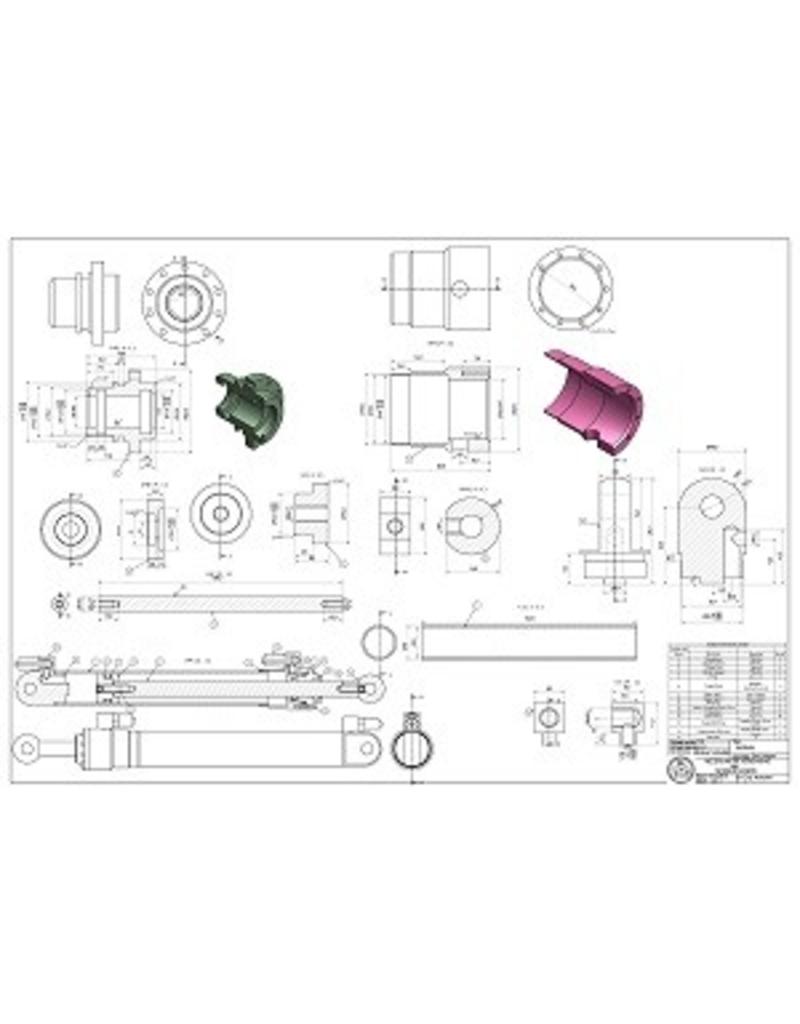

Hydraulic lifting cylinder for backhoe excavator |
|
Quality |
detailed model construction drawing with full dimensions |
|
Scale |
1 : 15 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
1 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Number of sheets A4 text |
0 |
|
Weight in grams |
65 |
|
Special features |
according to data from Thomas Frank |
