| Article number: | 10.03.009 |
The iron blazer "Amsteldiep" was a single-masted sailing ship built in 1885 by the Royal Company De Schelde in Vlissingen. This type of vessel, a so-called 'blazer', was used for transporting oysters. A distinctive feature of the "Amsteldiep" was that it was constructed entirely of iron, which was unusual at the time, as many ships were still made of wood.
The ship had a length of 15.44 metres and a width of 4.67 metres. Its displacement was 60 tonnes, including 6 tonnes of water in the well. The "Amsteldiep" was known as a fast and excellent sailing vessel.

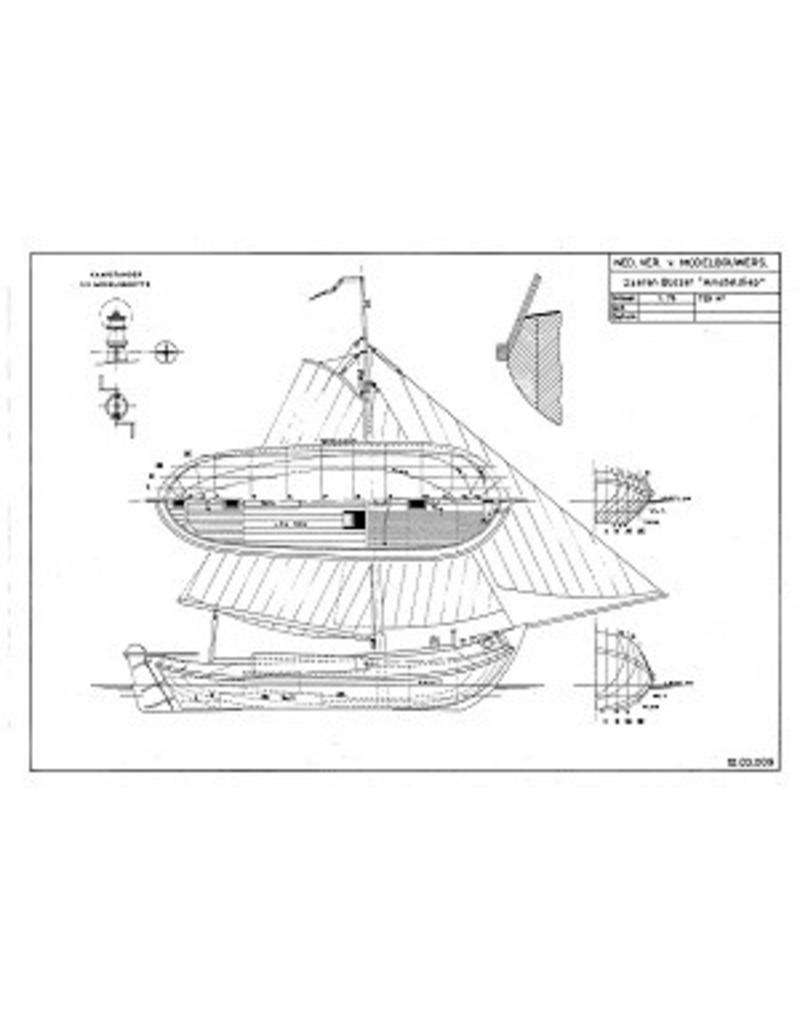

For model builders, a construction drawing of the "Amsteldiep" is available in scale 1:75. This drawing, made by L.D. Struyck, includes frame and line drawings, a deck plan, views, rigging plan, and some details.
Specifications :
|
Drawing number |
10.03.009 |
|
Author |
L.D. Struyck |
|
Description |
iron blazer "Amsteldiep" (1885) |
|
Quality |
frames/lines; deck plan; view/rigging plan; some details |
|
Scale |
1 : 75 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
0 |
|
Number of sheets A3 |
1 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
35 |
|
Particulars |
l.o.a. 29 cm |
