| Article number: | 10.12.026 |
Specifications :
|
Drawing number |
10.12.026 |
|
Author |
G. van Schaik - Zillesen |
|

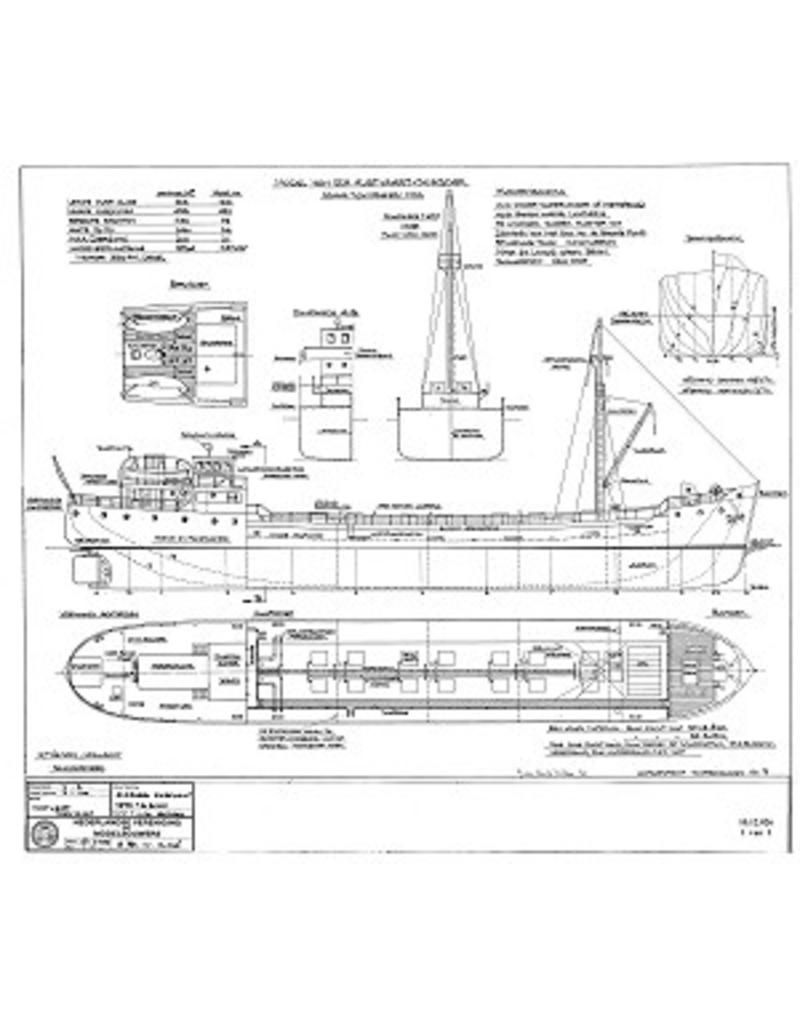

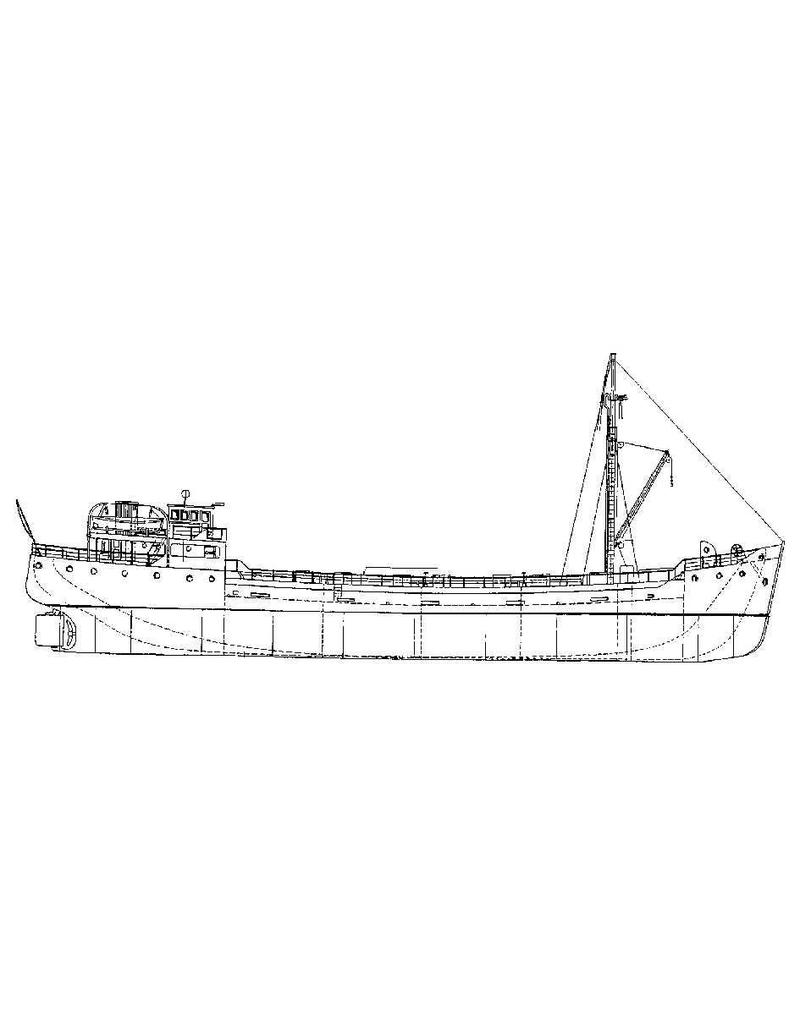

Description |
coastal tanker |
|
Quality |
frames; side view; deck plan |
|
Scale |
1 : 100 |
|
Number of sheets A00 |
0 |
|
Number of sheets A0 |
0 |
|
Number of sheets A1 |
0 |
|
Number of sheets A2 |
1 |
|
Number of sheets A3 |
0 |
|
Number of sheets A4 |
0 |
|
Total number of drawing sheets |
1 |
|
Number of A4 text sheets |
0 |
|
Weight in grams |
45 |
|
Particulars |
orig. publ. Holland, Slikkerveer |
|
Remarks |
